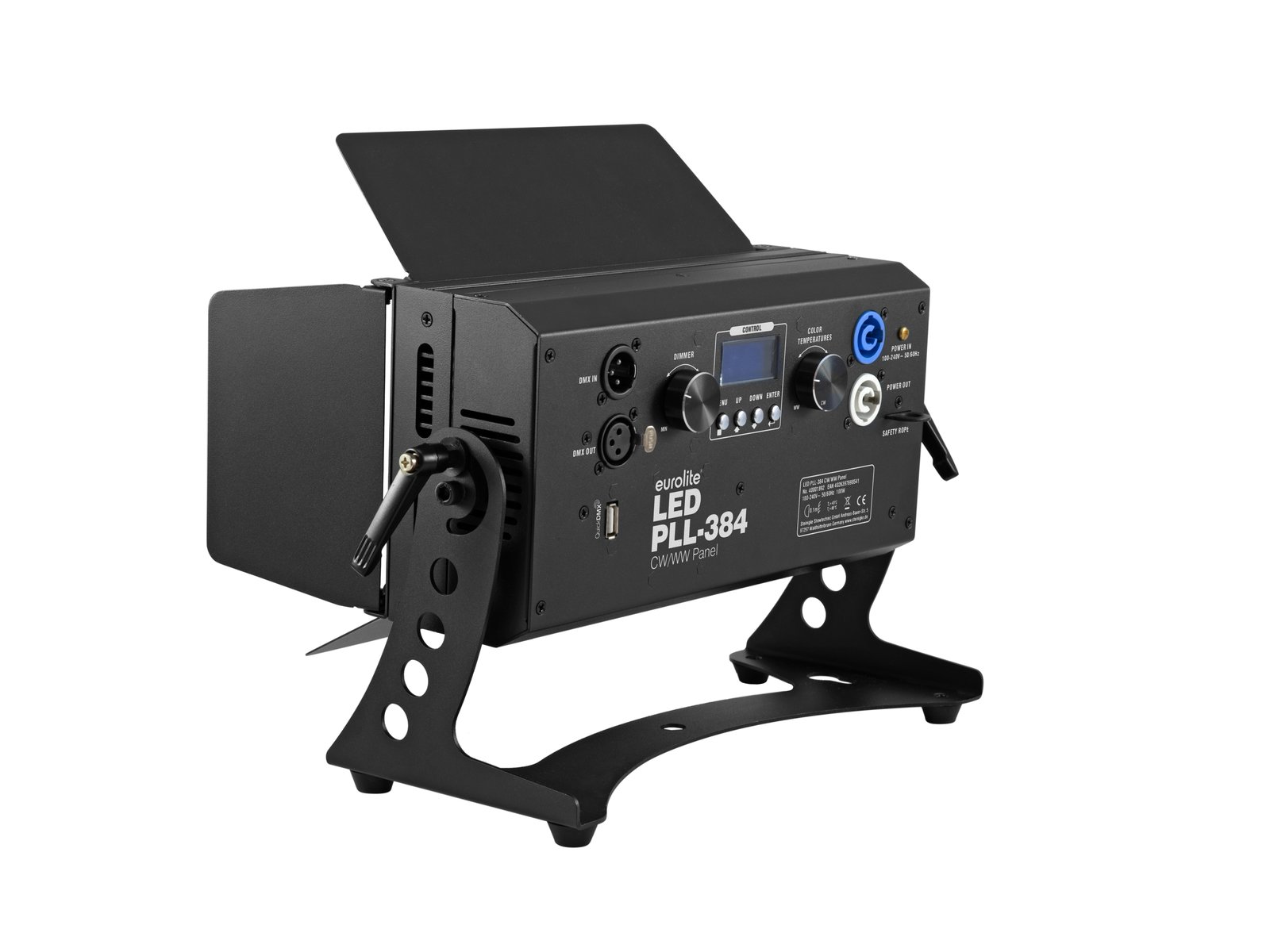

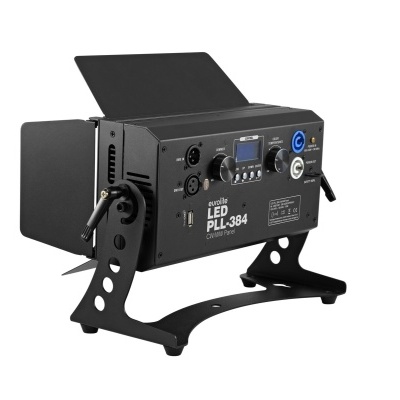

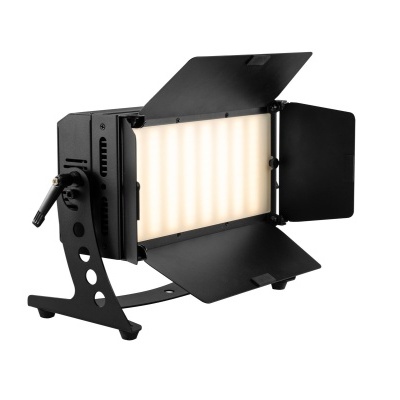

EUROLITE LED PLL-384 CW/WW Panel
SKU: 40001892
DMX-controlled surface light with 384 dual white LEDs, QuickDMX port, diffuser and barn doors

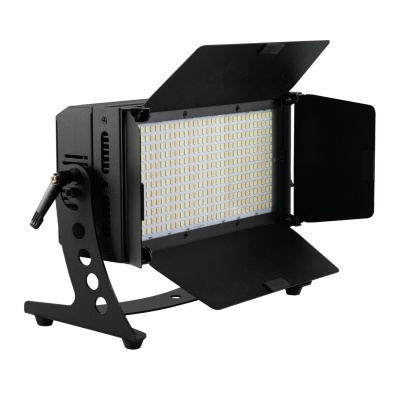

- 192 powerful LEDs 0,5 W SMD 5730 cold white (CW)
- 192 powerful LEDs 0,5 W SMD 5730 warm white (WW)
- Energy-saving, durable and environmentally friendly
- Additional frost filter provides a wide, soft and homogeneous light

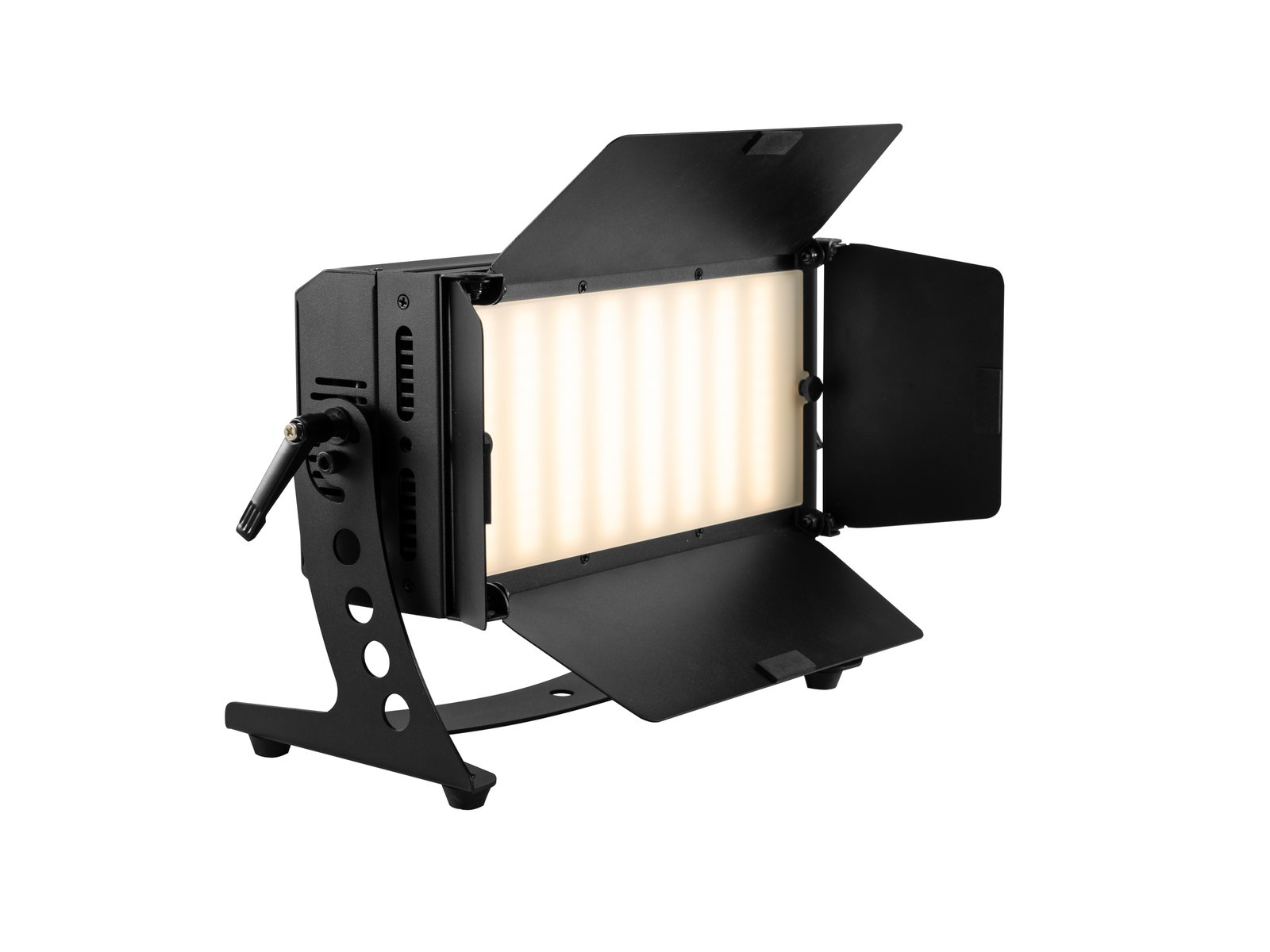

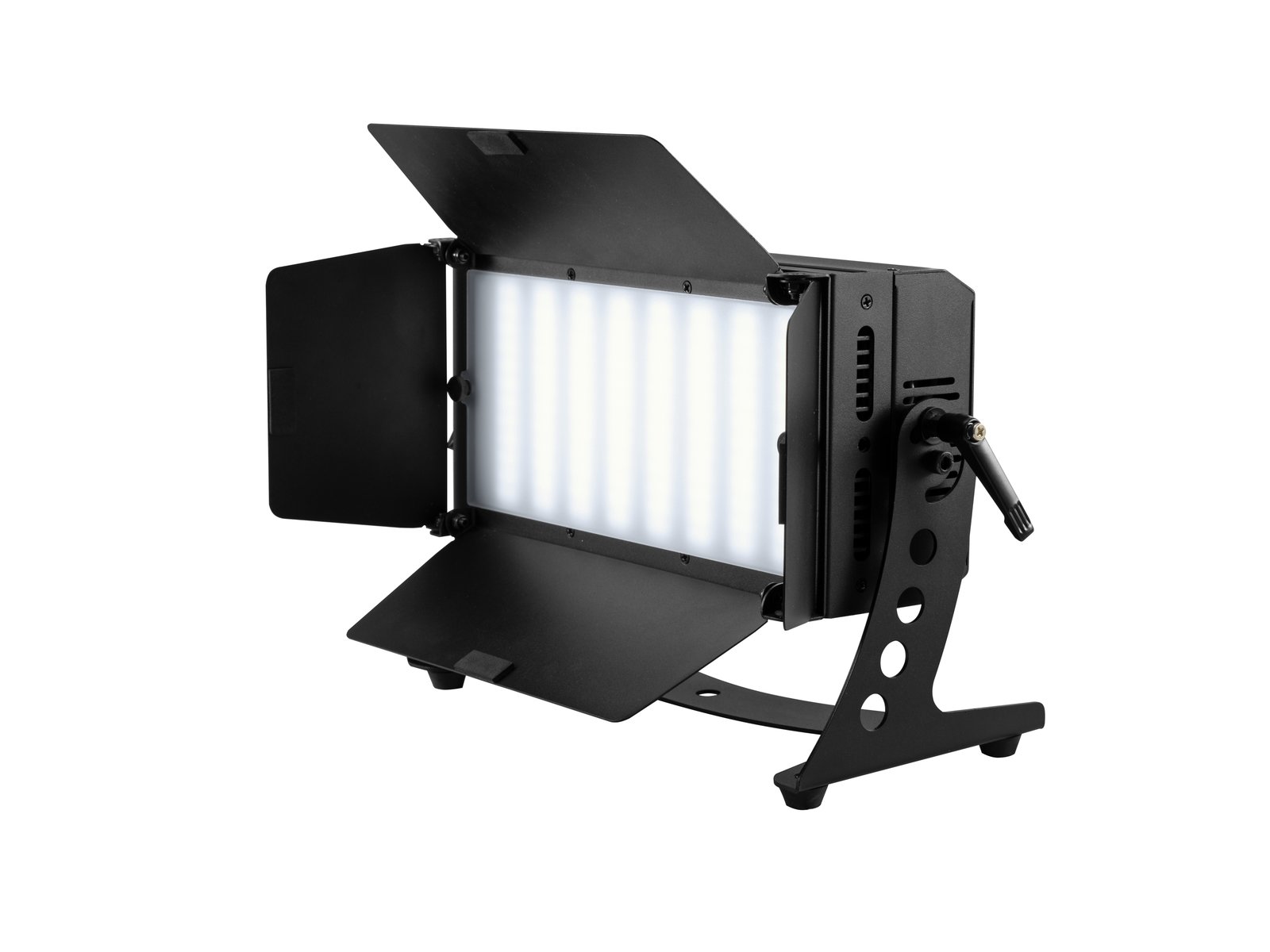

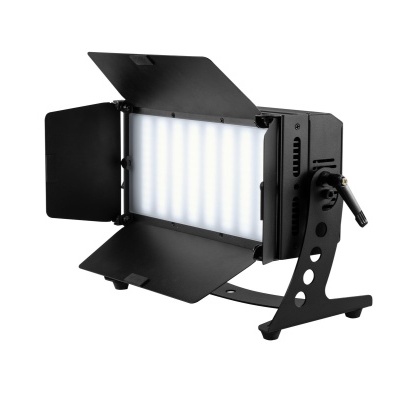

- 4 barn doors to avoid blinding the audience and for protection during transport
- Variable color temperature 2700 K - 5700 K
- Very quiet working noise
- Direct color temperature selection for 69 preset values
- Dimmer electronic
- The device is cooled by temperature-controlled fan
- Control via Quick select potentiometer for brightness and color temperature; DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
- Flicker-free
- With a beam angle of 120°
- Very high color rendering index (CRI)
- With Mounting bracket
- LCD display
- For application areas such as: Video and photography; Stage; Trade fair and shop fitting; theater
- Preprogrammed in Light Captain
- Rubber feet
- Mains input and output for power linking up to 8 units
- Application possibility: Suspended; on tripod
Package contents
- 1 x spotlight, 1 x power cord, 1 x diffusor cover, 2 x knurled screw, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Fuse: | T 3,15 A Fuse fix on board |
| Lamp type: | LED lamp |
| LED: | 192 x 0,5 W SMD 5730 cold white (CW) 192 x 0,5 W SMD 5730 warm white (WW) |
| Color temperature: | 2700K - 5700K adjustable |
| Flash rate: | 1 - 20 Hz |
| DMX channels: | 2-1; 2-2; 3-1; 3-2; 4 |

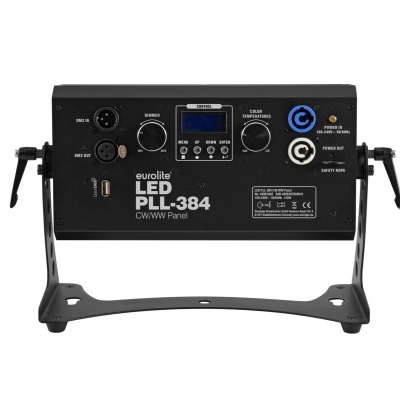

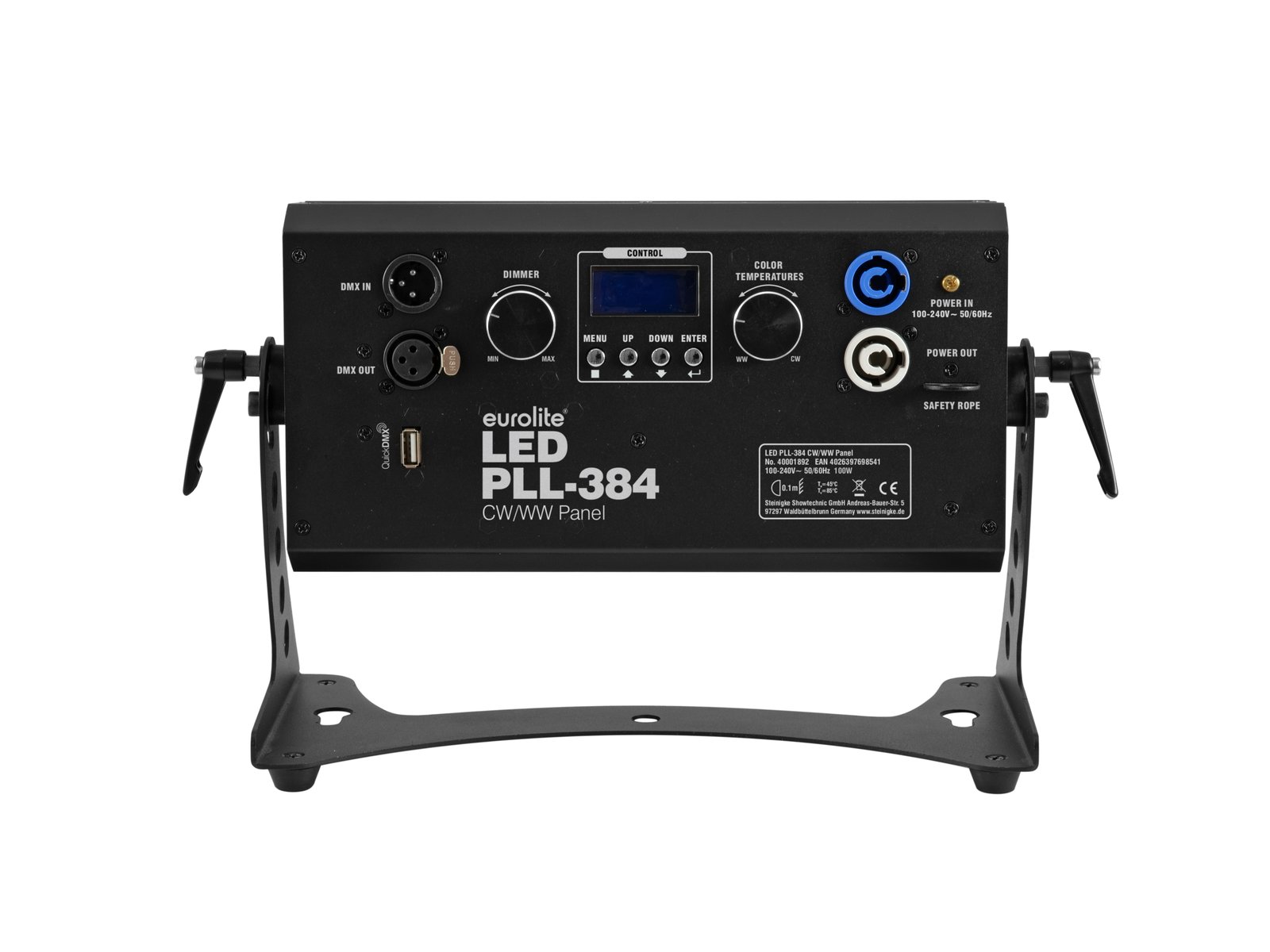

| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Quick select potentiometer for brightness and color temperature; DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional) |
| Preprogrammed in: | Light Captain |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Color rendering index (CRI): | 94 Ra |
| Illuminance in Lux (lx): | Wide cold white (CW) 1m: 2324 lx, 3m: 276 lx, 6m: 83 lx Wide warm white (WW) 1m: 2277 lx, 3m: 249 lx, 6m: 76 lx Wide all 1m: 3530 lx, 3m: 407 lx, 6m: 124 lx Narrow cold white (CW) 1m: 2789 lx, 3m: 327 lx, 6m: 98 lx Narrow warm white (WW) 1m: 2542 lx, 3m: 297 lx, 6m: 94 lx Narrow all 1m: 4167 lx, 3m: 508 lx, 6m: 150 lx |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | LCD display |
| Transport aid: | Rubber feet |
| Material: | Metal |
| Dimensions: | Length: 34,7 cm Width: 13,8 cm Height: 21,1 cm |
| Weight: | 3,52 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Power cord | |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Cable length: | Approx. 1,2 m |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø11mm; 2 x Ø8mm; 8 x Ø15mm |
| Material: | Metal, 2 mm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
