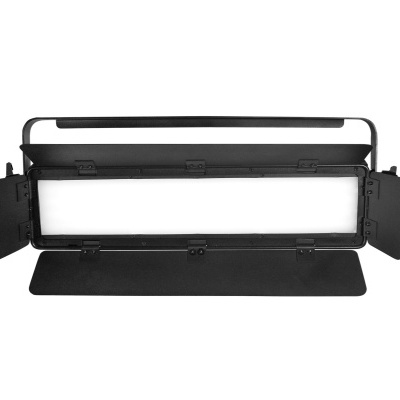

EUROLITE LED PLL-432 CW/WW Panel
EUROLITE LED PLL-432 CW/WW Panel
EUROLITE LED PLL-432 CW/WW Panel
EUROLITE LED PLL-432 CW/WW Panel
EUROLITE LED PLL-432 CW/WW Panel
EUROLITE LED PLL-432 CW/WW Panel

EUROLITE LED PLL-432 CW/WW Panel

SKU: 40001894

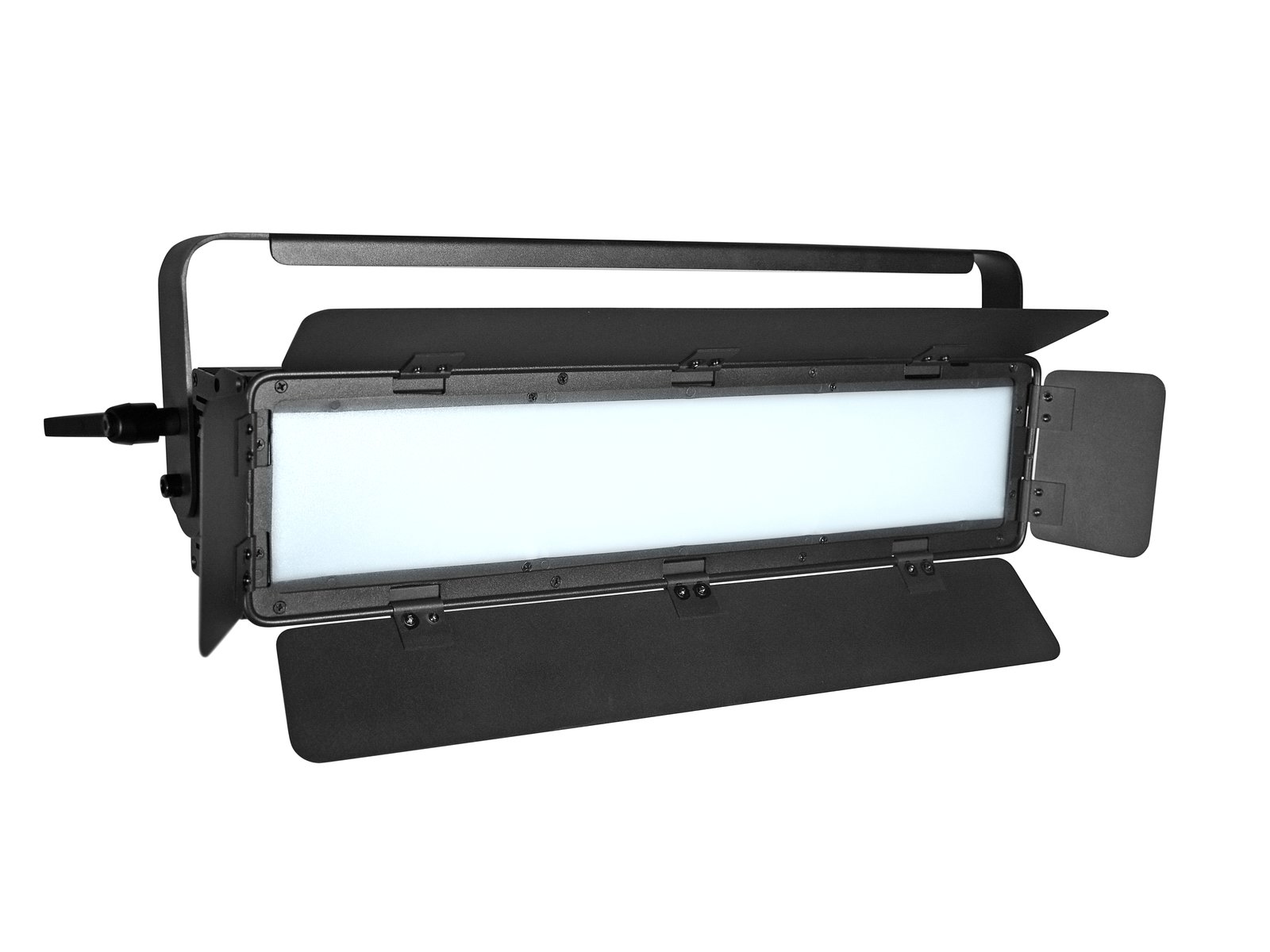

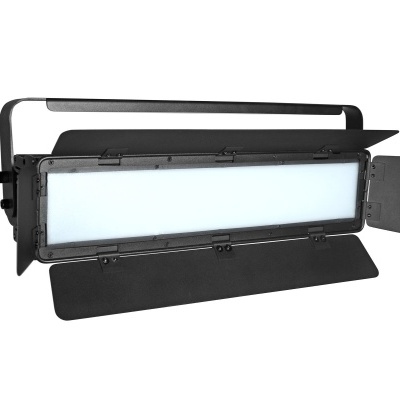

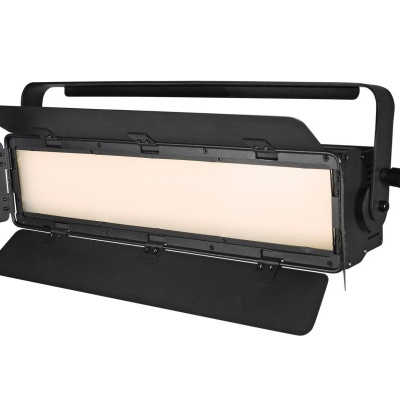

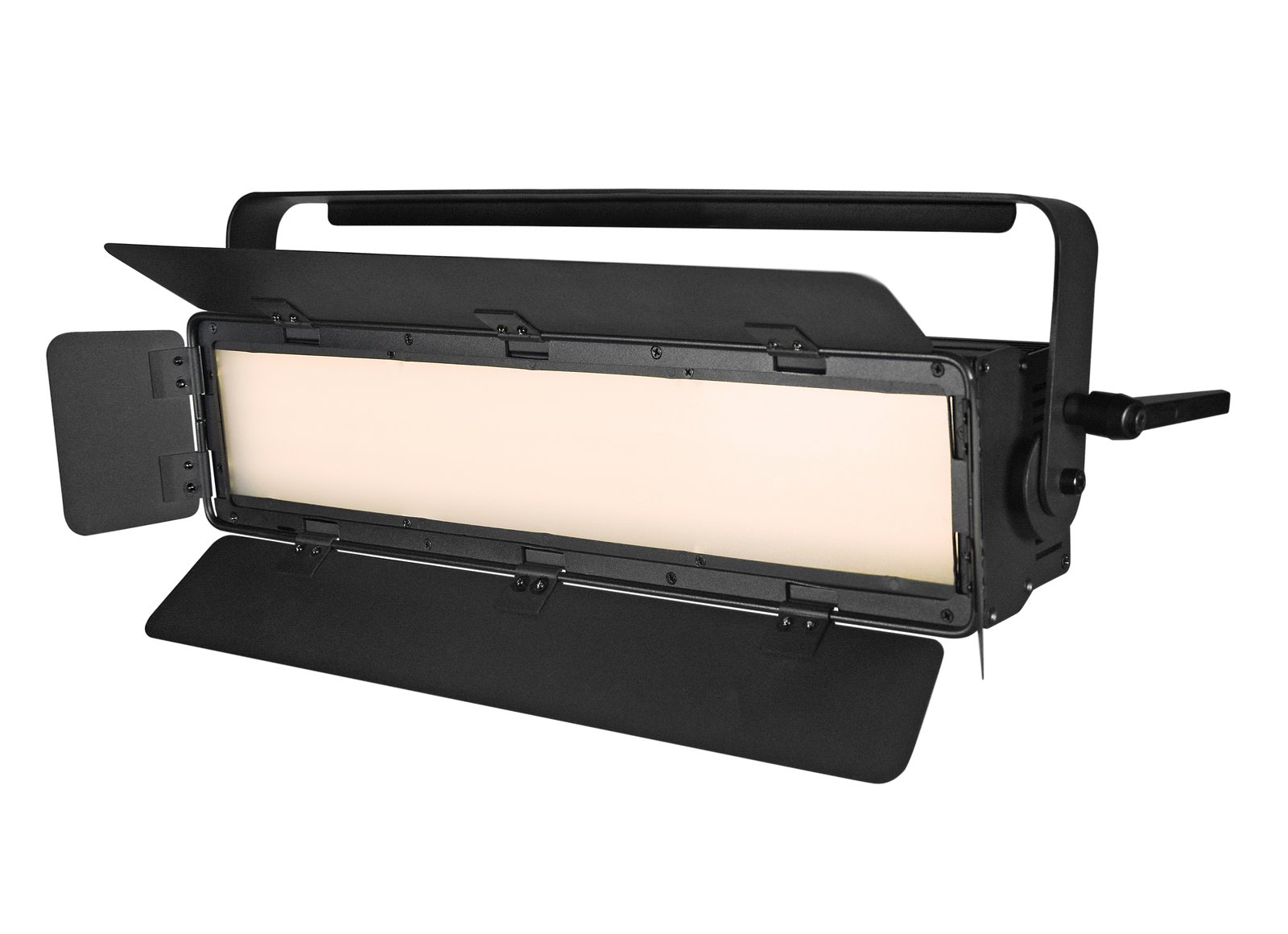

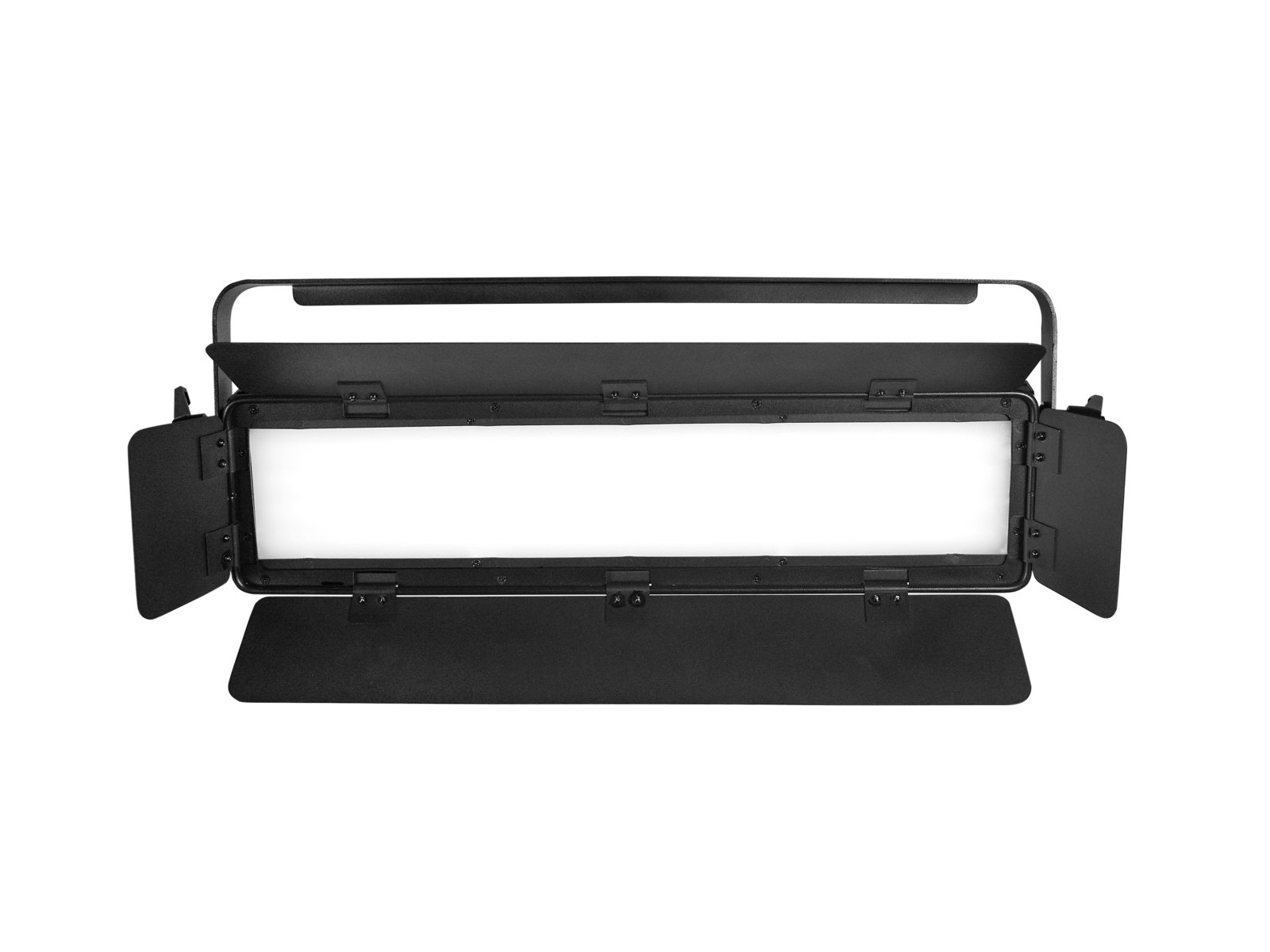

DMX-controlled surface light with 432 dual white LEDs, QuickDMX port and barn doors

  • 432 powerful LEDs SMD 2835 CW/WW
  • 4 barn doors to avoid blinding the audience and for protection during transport
  • Energy-saving, durable and environmentally friendly
  • Variable color temperature 2800 K - 6500 K
  • Pulse-width modulation variable
  • Strobe effect
  • Integrated show programs
  • The device is cooled by passive convection cooling
  • Control via DMX; Quick select potentiometer for brightness and color temperature; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Flicker-free
  • With a beam angle of 120°
  • Very high color rendering index (CRI)
  • With Mounting bracket

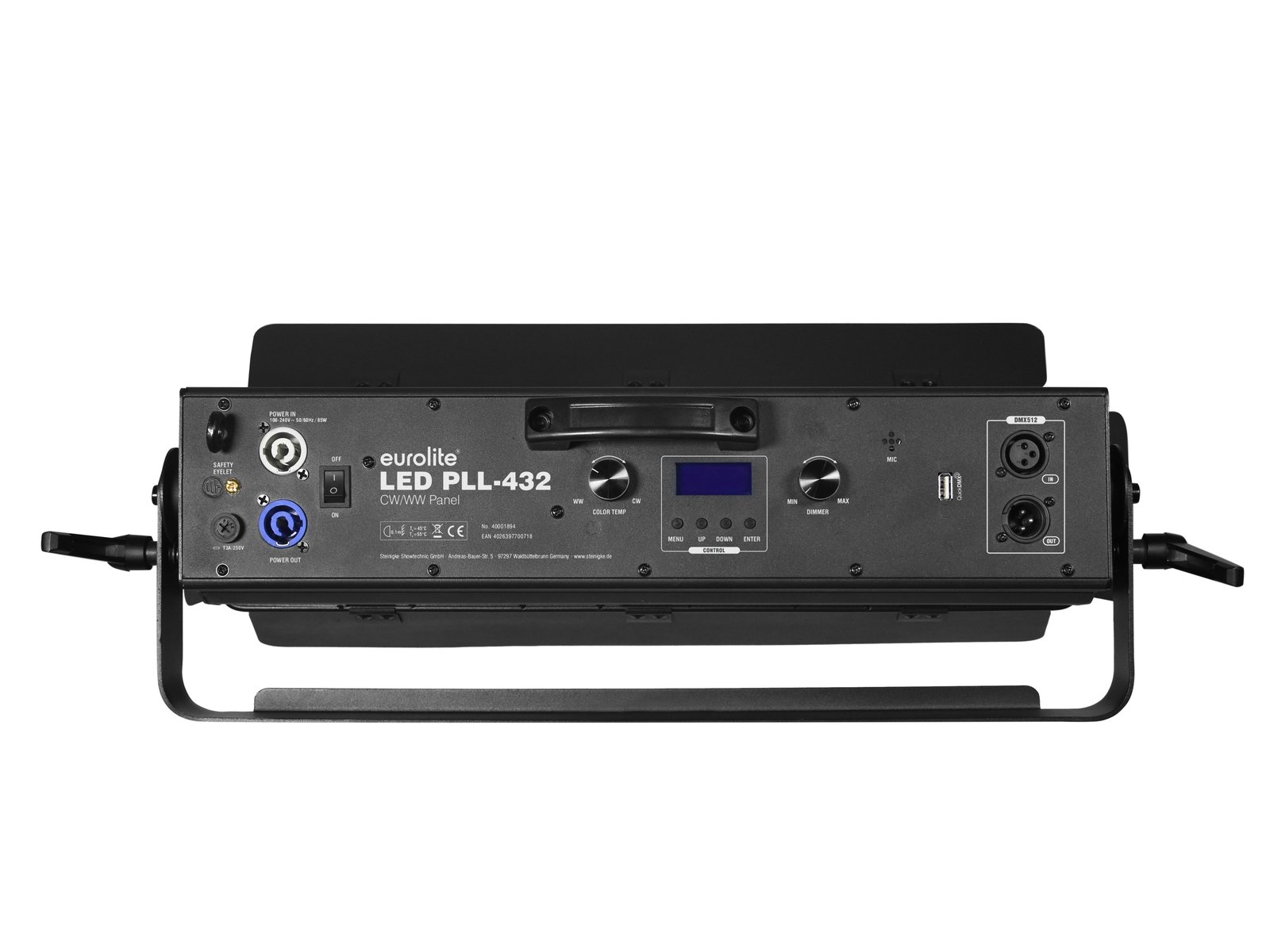

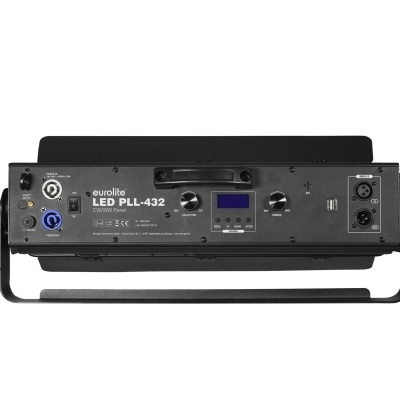

  • LCD display
  • For application areas such as: Video and photography; Stage; Trade fair and shop fitting; Installation
  • Preprogrammed in Light Captain
  • Mains input and output for power linking up to 8 units
  • Rugged carrying handle
  • Silent operation
  • Application possibility: Suspended; on tripod

Package contents

  • 1 x spotlight, 1 x user manual, 1 x power cord


Power supply:100-240 V AC, 50/60 Hz
Power consumption:85 W
IP classification:IP20
Protection class:Protection class I
Fuse:T 3 A Fuse replaceable
Lamp type:LED lamp
LED:432 x SMD 2835 CW/WW
Color temperature:2800K - 6500K adjustable
DMX channels:2; 4; 6
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Passive convection cooling
Control:DMX; Quick select potentiometer for brightness and color temperature; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:Light Captain
Beam angle:120°
Beam angle (1/2 peak):120°
Color rendering index (CRI):91 Ra
Illuminance in Lux (lx):Cold white (CW) 1m: 919 lx, 3m: 124 lx, 6m: 38 lx
Warm white (WW) 1m: 801 lx, 3m: 109 lx, 6m: 33 lx
All 1m: 1681 lx, 3m: 228 lx, 6m: 69 lx
Housing color:Black
Attachment system:Mounting bracket
Display type:LCD display
Carrying handle:1 pc/pcs
Dimensions:Width: 60,3 cm
Depth: 17,9 cm
Height: 20,8 cm
Weight:4,60 kg
Noise classification:Class 0 (no noise at all)
Photobiological safety:Risk Group 0
