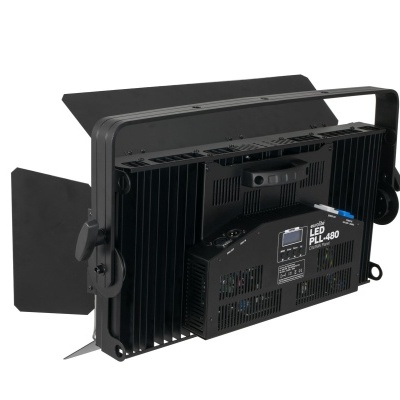

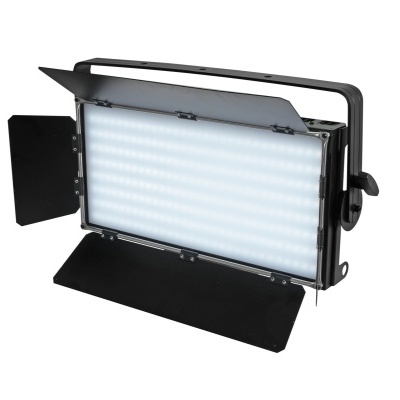

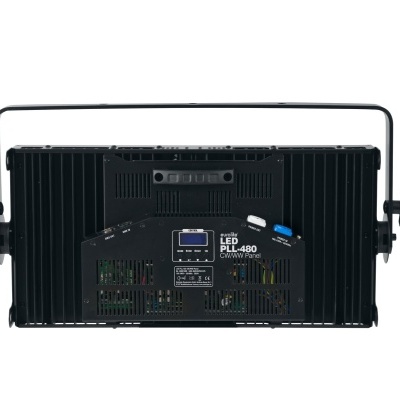

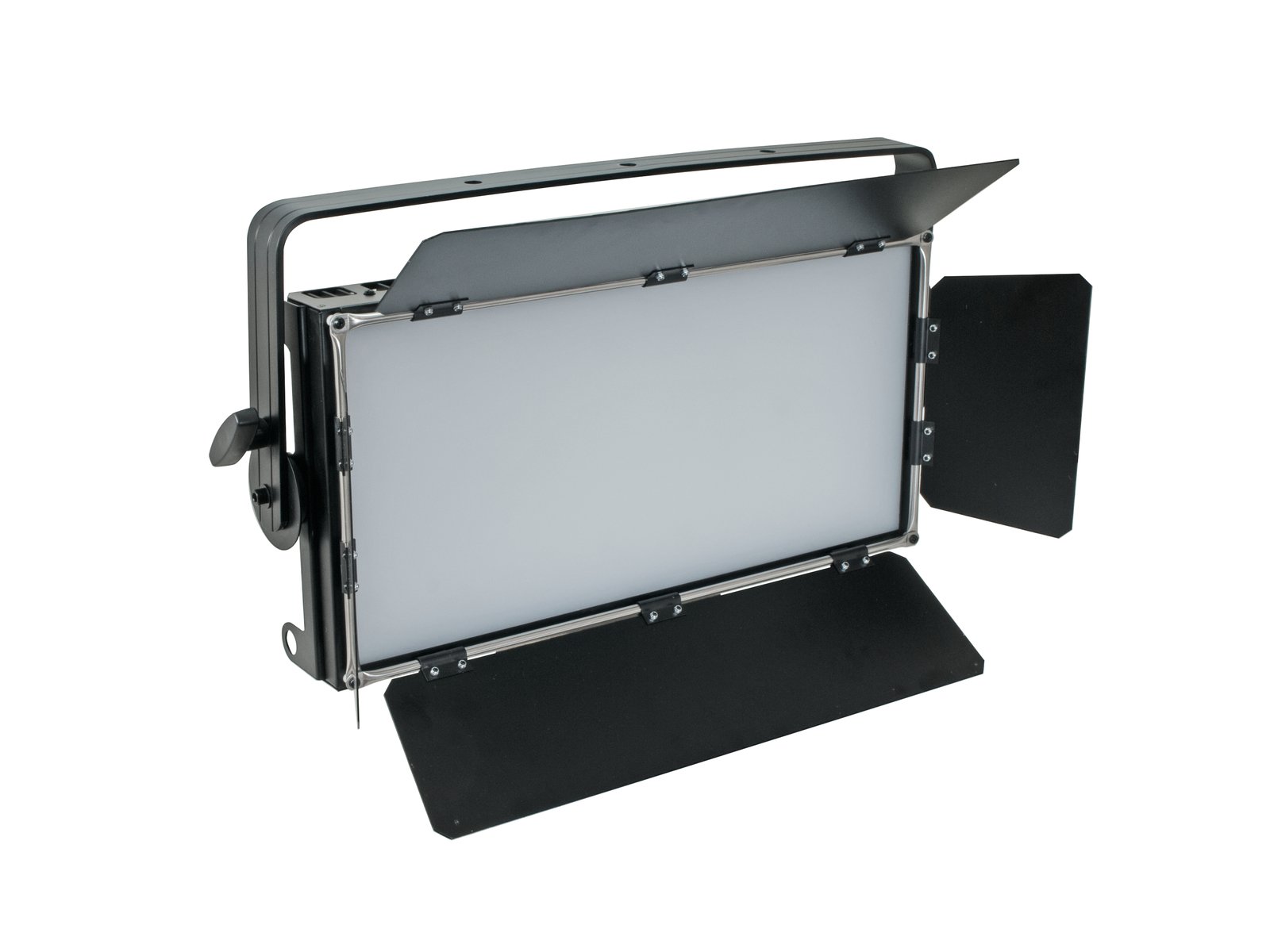

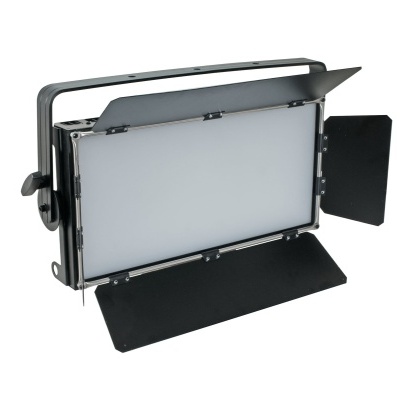

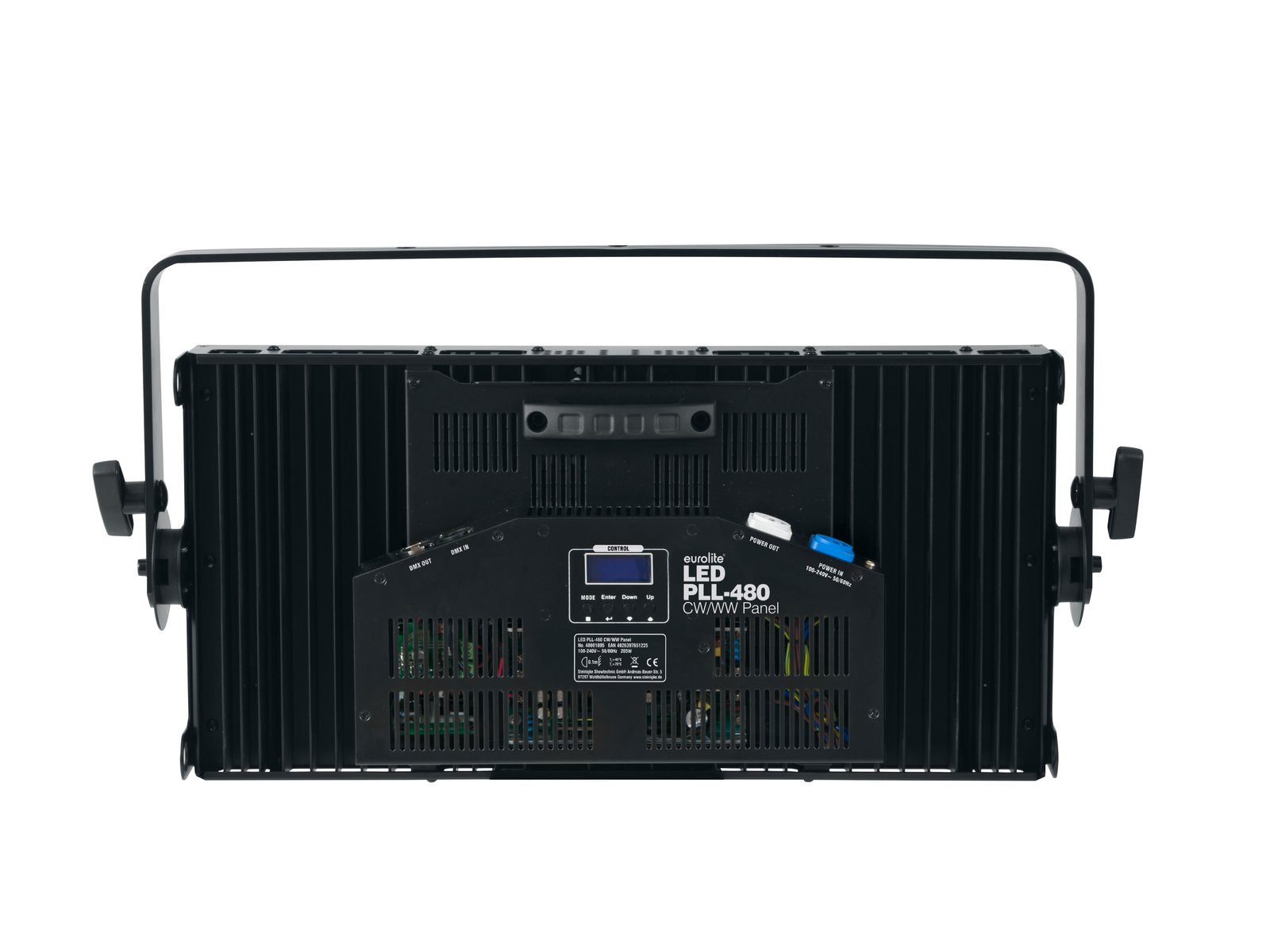

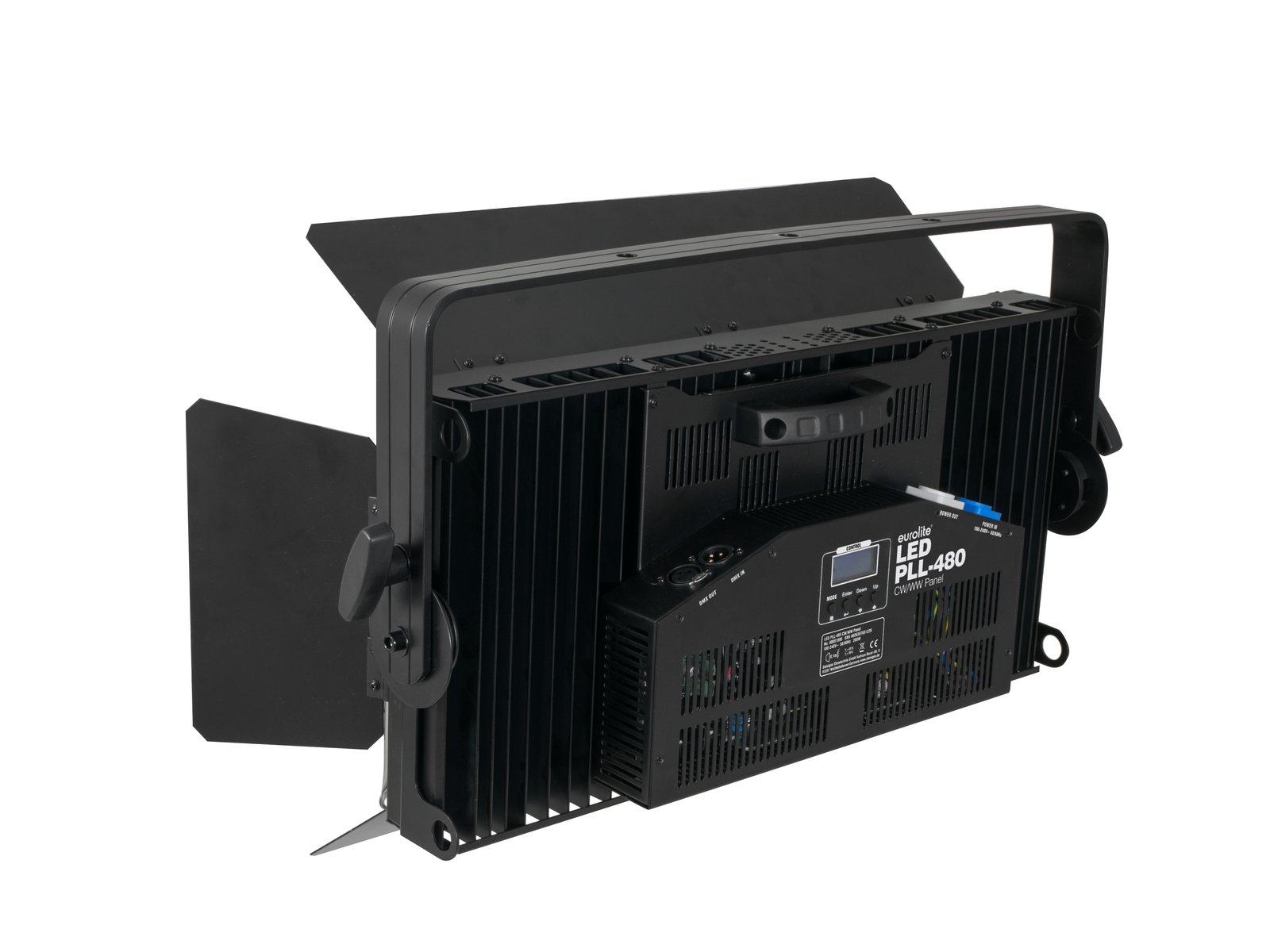

EUROLITE LED PLL-480 CW/WW Panel
SKU: 40001895
DMX controlled surface light with 240 cold white and 240 warm white LEDs
- 480 powerful LEDs 0,5 W SMD 2835 CW/WW (homogenous color mix)
- Energy-saving, durable and environmentally friendly
- Variable color temperature 3200 K - 5600 K
- Frost filter provides a soft, homogeneous light
- 4 barn doors to avoid blinding the audience and for protection during transport
- Silent operation
- Dimmer electronic; Dimmer speed (step response) adjustable
- Strobe effect
- The device is cooled by passive convection cooling
- Control via DMX; Master/slave function
- Flicker-free
- With a beam angle of 120°
- Very high color rendering index (CRI)
- With Mounting bracket
- LCD display
- Stand or truss installation
- Slim, rugged metal housing
- For application areas such as: Video and photography; Stage; Trade fair and shop fitting; mobile use
- Preprogrammed in Light´J; Light Captain
- Rugged carrying handle
- Mains input and output for power linking up to 8 units
- Application possibility: Suspended; on tripod
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x plug (male)
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 205 W |
| IP classification: | IP20 |
| Power connection: | Via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 480 x 0,5 W SMD 2835 CW/WW (homogenous color mix) |
| Color temperature: | 3200K - 5600K adjustable |
| DMX channels: | 5 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; Master/slave function |
| Preprogrammed in: | Light´J; Light Captain |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Color rendering index (CRI): | 96 Ra |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 398 lx, 6m: 119 lx Warm white (WW) 3m: 391 lx, 6m: 117 lx All 3m: 787 lx, 6m: 234 lx |
| Lamp life: | 50000 h |
| Luminous flux: | 17470 lm |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | LCD display |
| Carrying handle: | 1 pc/pcs |
| Dimensions: | Width: 64 cm Depth: 12,5 cm Height: 33 cm |
| Weight: | 12,60 kg |
| Noise classification: | Class 0 (no noise at all) |
| Energy efficiency class (A - G): | F |
