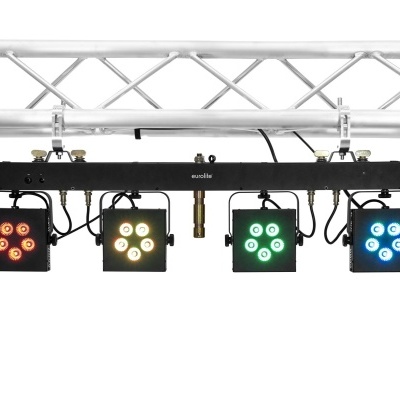

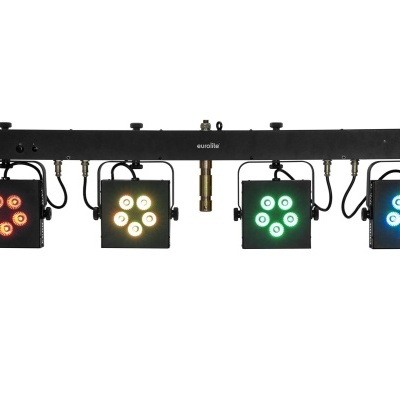

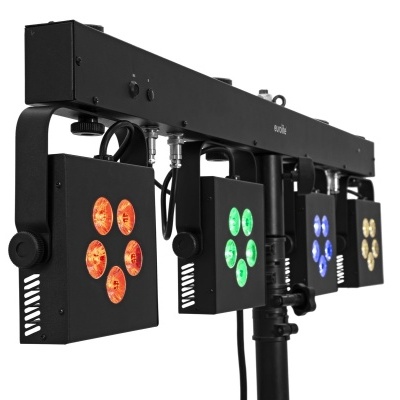

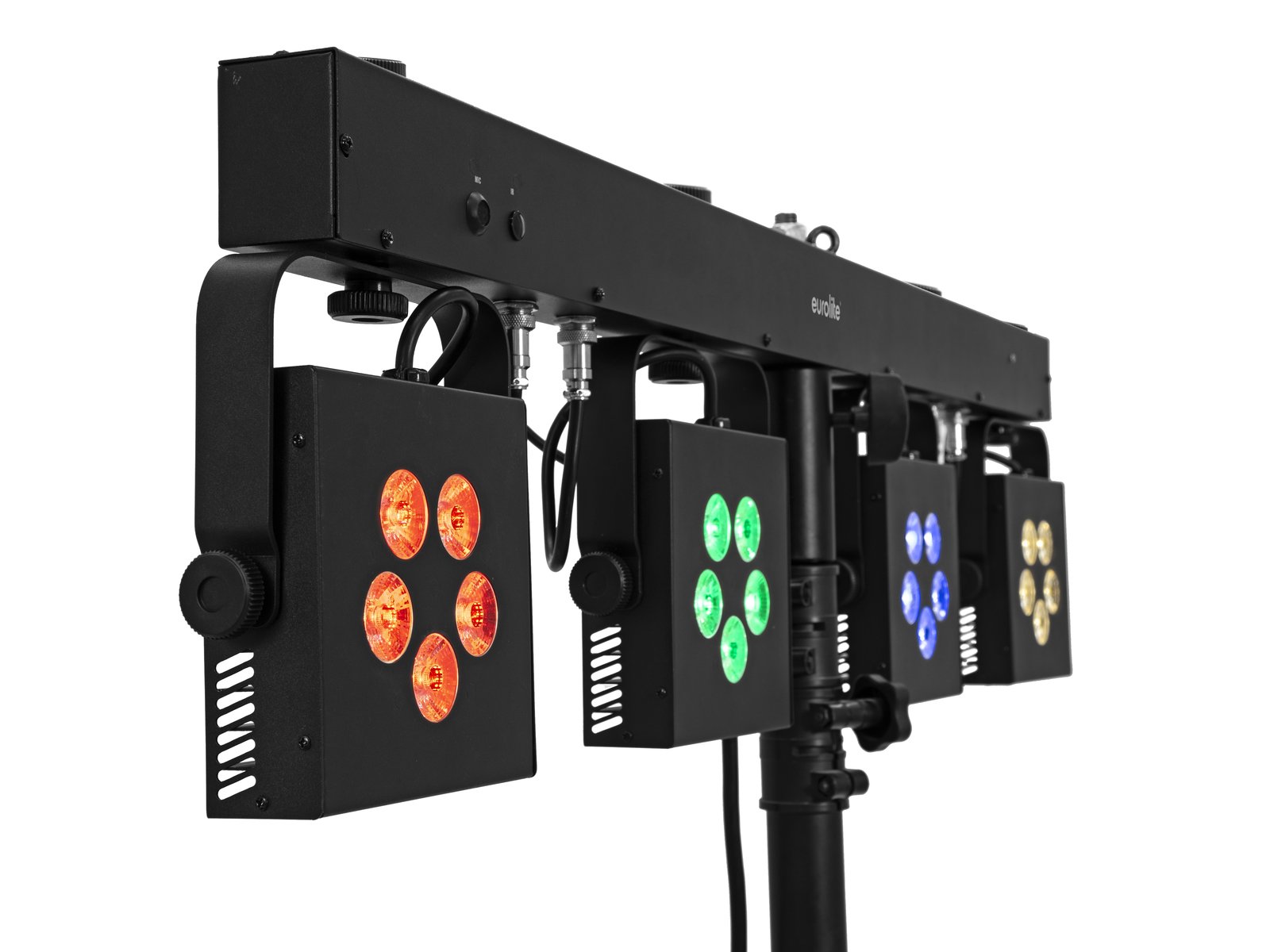

EUROLITE LED KLS-902 Next Compact Light Set
SKU: 42109860

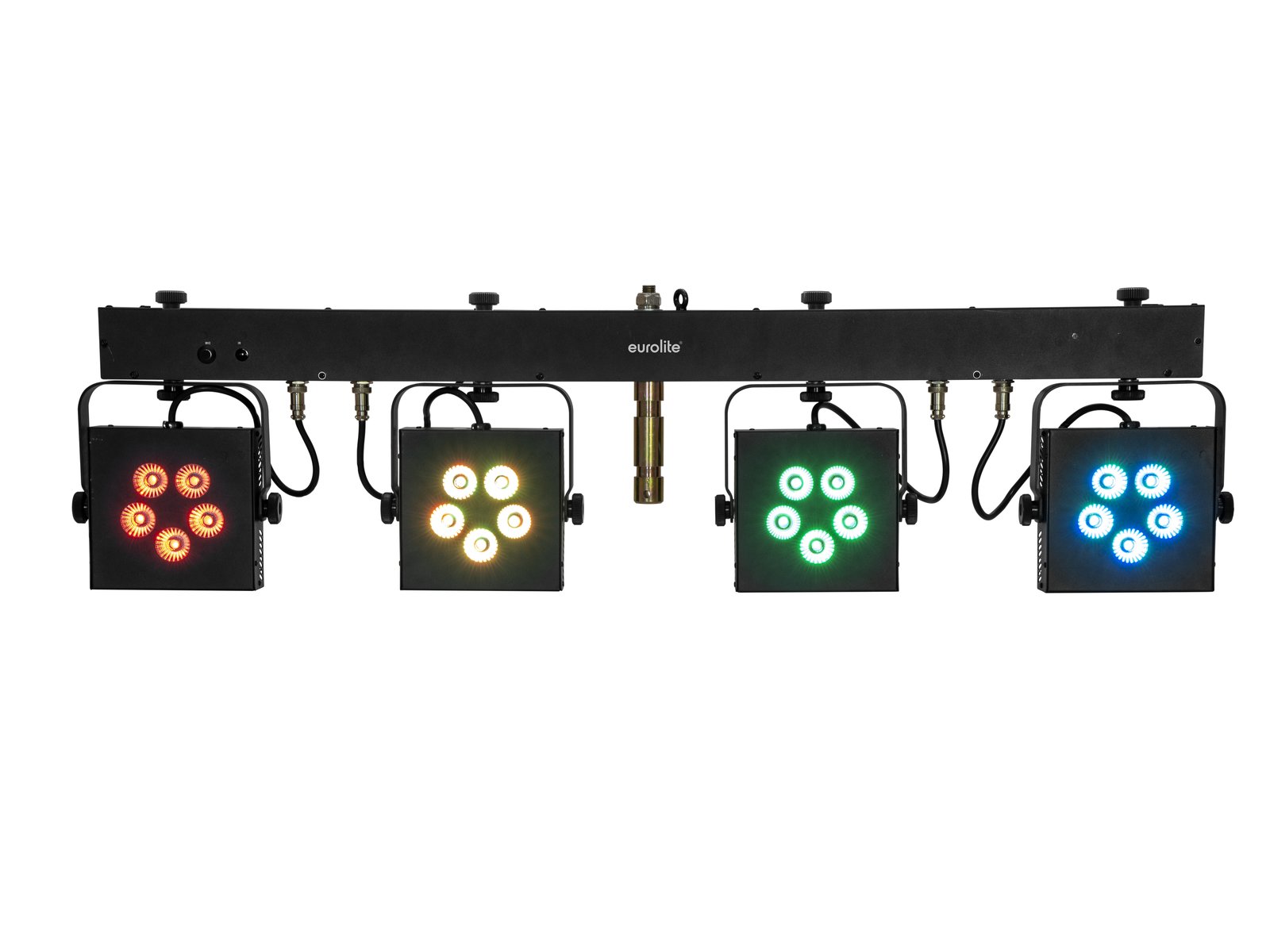

Bar with 4 powerful RGB/WW spots, QuickDMX support, IR remote control and carrying bag
- 5 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
spots controlled separately - Crossbar with integrated DMX control unit and TV spigot for tripod installation
- With a beam angle of 16°
- 20 integrated show programs
- Color blend stepless; Dimmer electronic; program selection
- Mounting points and power outlets for additional fixtures
- Control via DMX; stand-alone; Sound to light via Microphone; IR remote control; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- For application areas such as: Mobile use; Stage; mobile djs/entertainer; small rental; Rental
- Preprogrammed in EASY SHOW 1; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; Light´J; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- Very quiet working noise

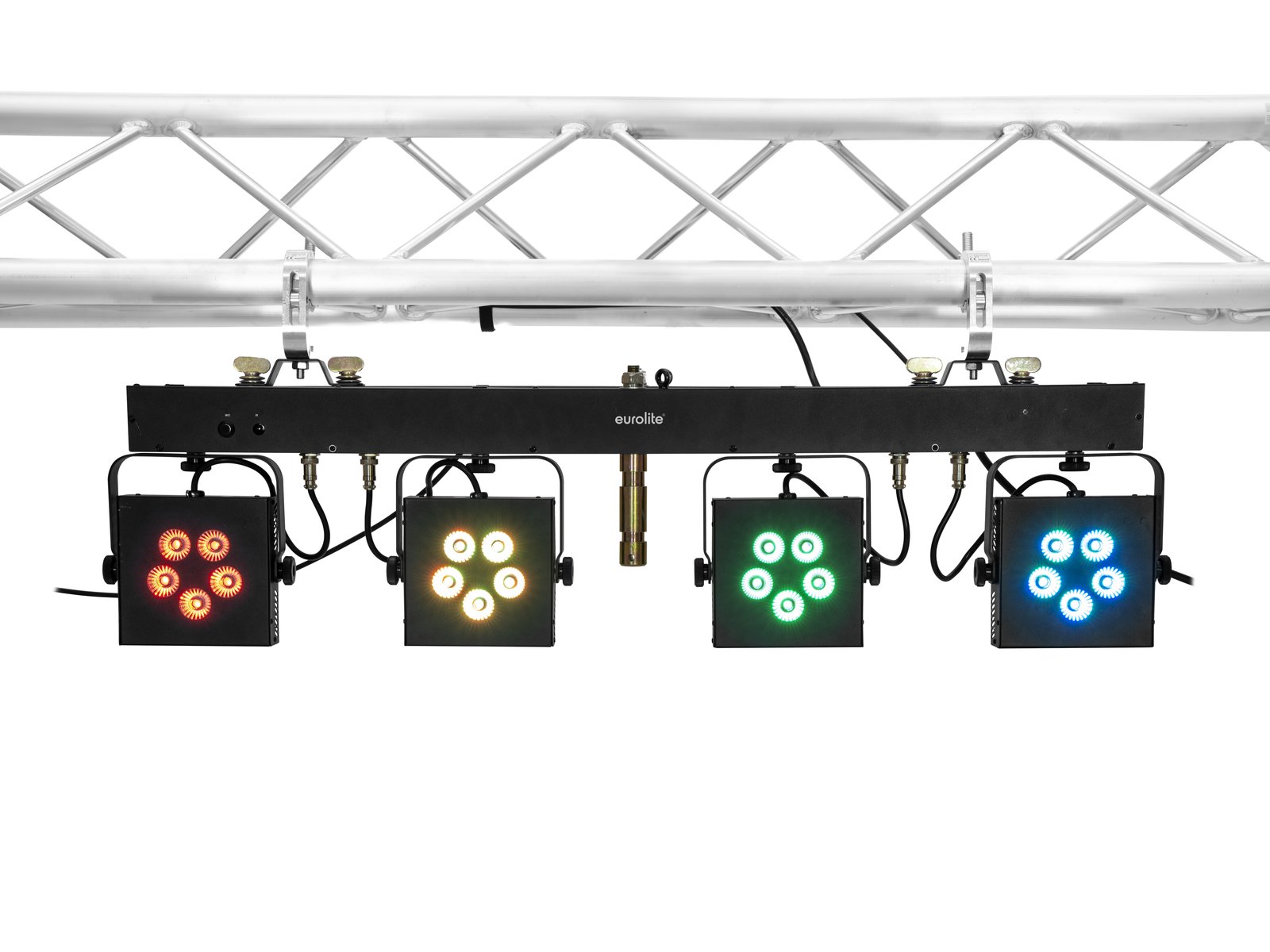

- Application possibility: Suspended; on tripod
Package contents

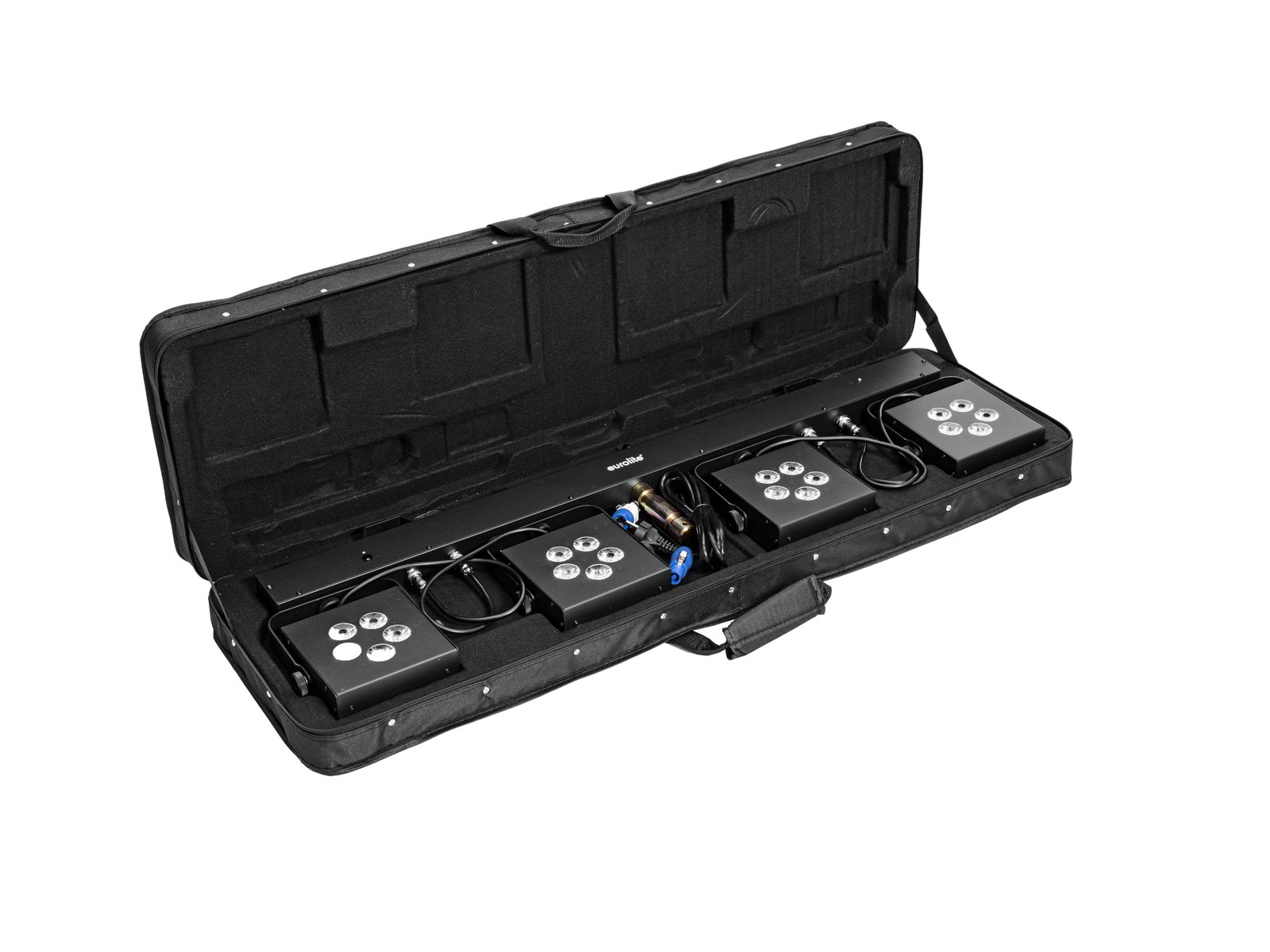

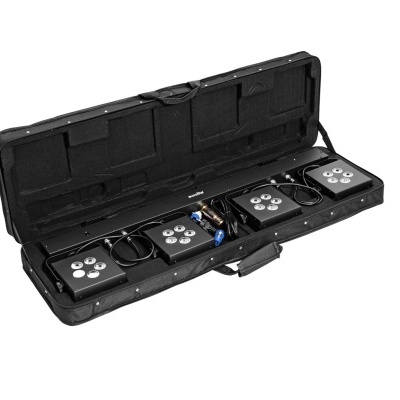

- 1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 2 x omega bracket, 1 x declaration of conformity, 4 x knurled screw, 1 x bag
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 125 W |
| IP classification: | IP20 |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: | 3 m |

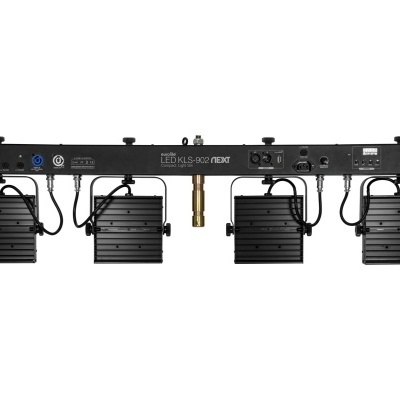

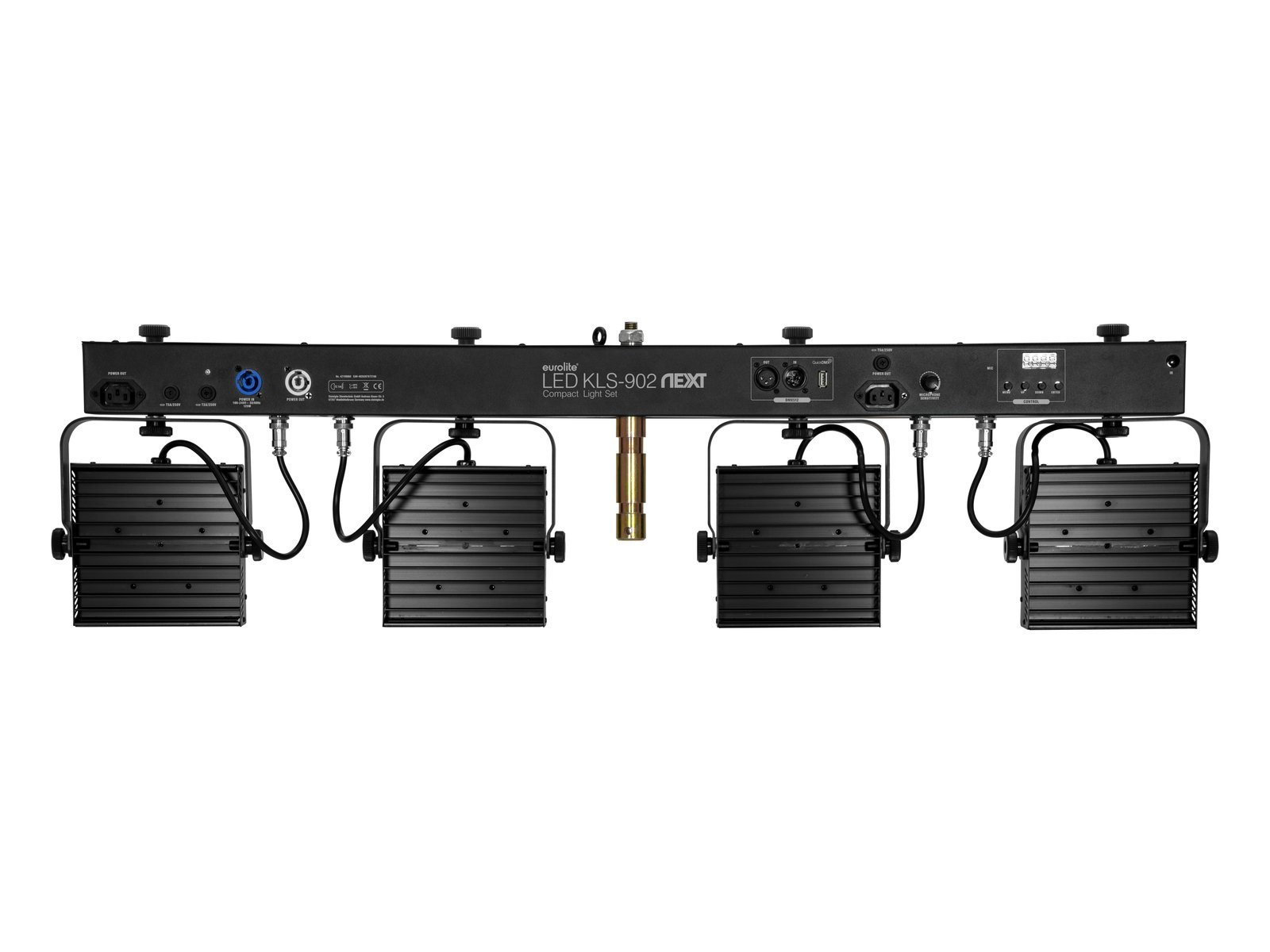

| Power output: | 2 x IEC connector (F) mounting version 1 x P-Con (gray), mounting version |
| Device fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
| Power output fuse per channel: | 5 x 20 mm, T 5 A Fuse replaceable |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Lamp type: | LED lamp |
| LED: | 5 x 7 W high-power 4in1 QCL RGB/WW (homogenous color mix) |
| DMX channels: | 3; 4; 6; 8; 16; 20; 18 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; stand-alone; Sound to light via Microphone; IR remote control; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | EASY SHOW 1; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; Light´J; EASY SHOW 3 |
| Beam angle: | 16° |
| Beam angle (1/2 peak): | 16° |
| Beam angle (1/10 peak): | 32° |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm Omega bracket |
| Dimensions: | Width: 1,08 m Depth: 6 cm Height: 28 cm |
| Weight: | 9,80 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
