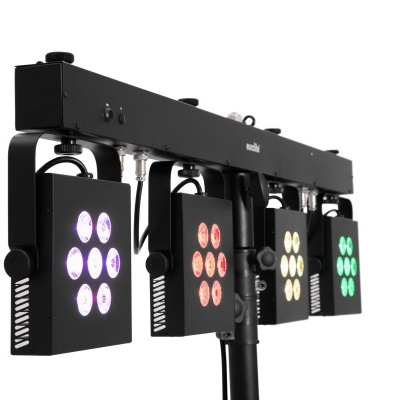

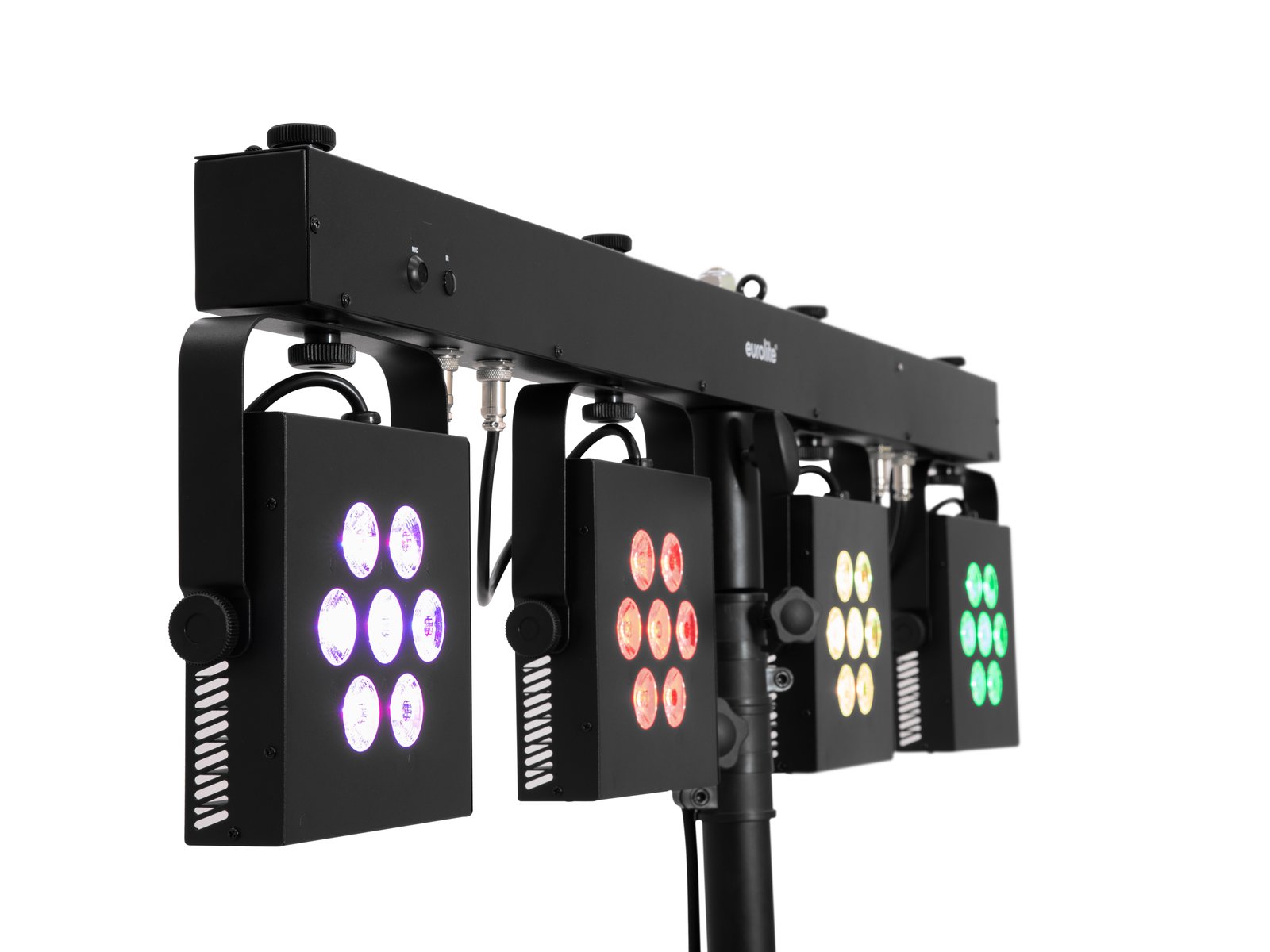

EUROLITE LED KLS-3002 Next Compact Light Set
EUROLITE LED KLS-3002 Next Compact Light Set
EUROLITE LED KLS-3002 Next Compact Light Set
EUROLITE LED KLS-3002 Next Compact Light Set
EUROLITE LED KLS-3002 Next Compact Light Set
EUROLITE LED KLS-3002 Next Compact Light Set

EUROLITE LED KLS-3002 Next Compact Light Set

SKU: 42109895

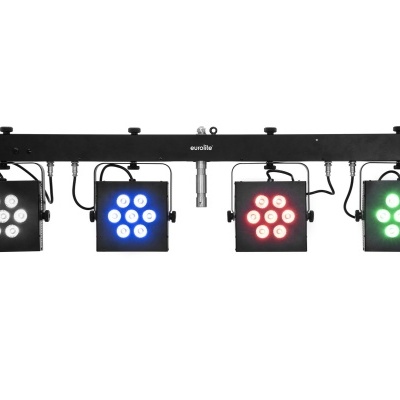

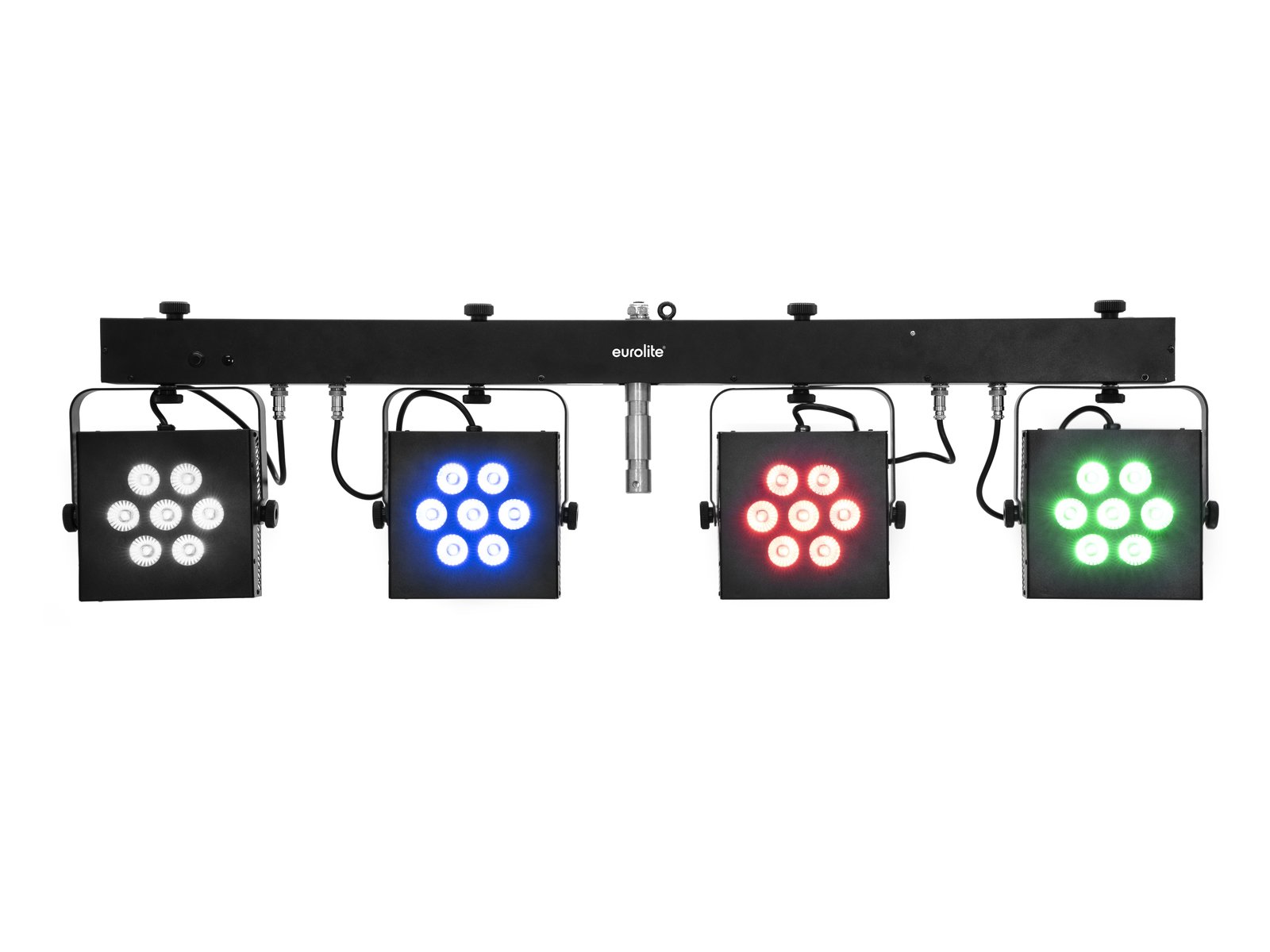

Bar with 4 powerful RGBAW/UV spots, QuickDMX support, IR remote control and carrying bag

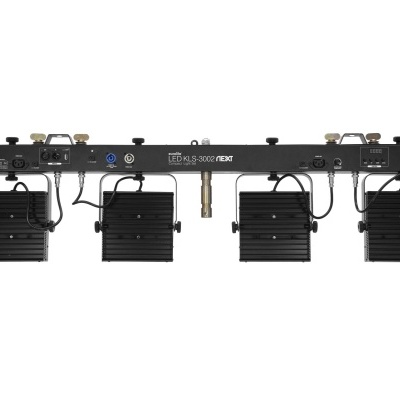

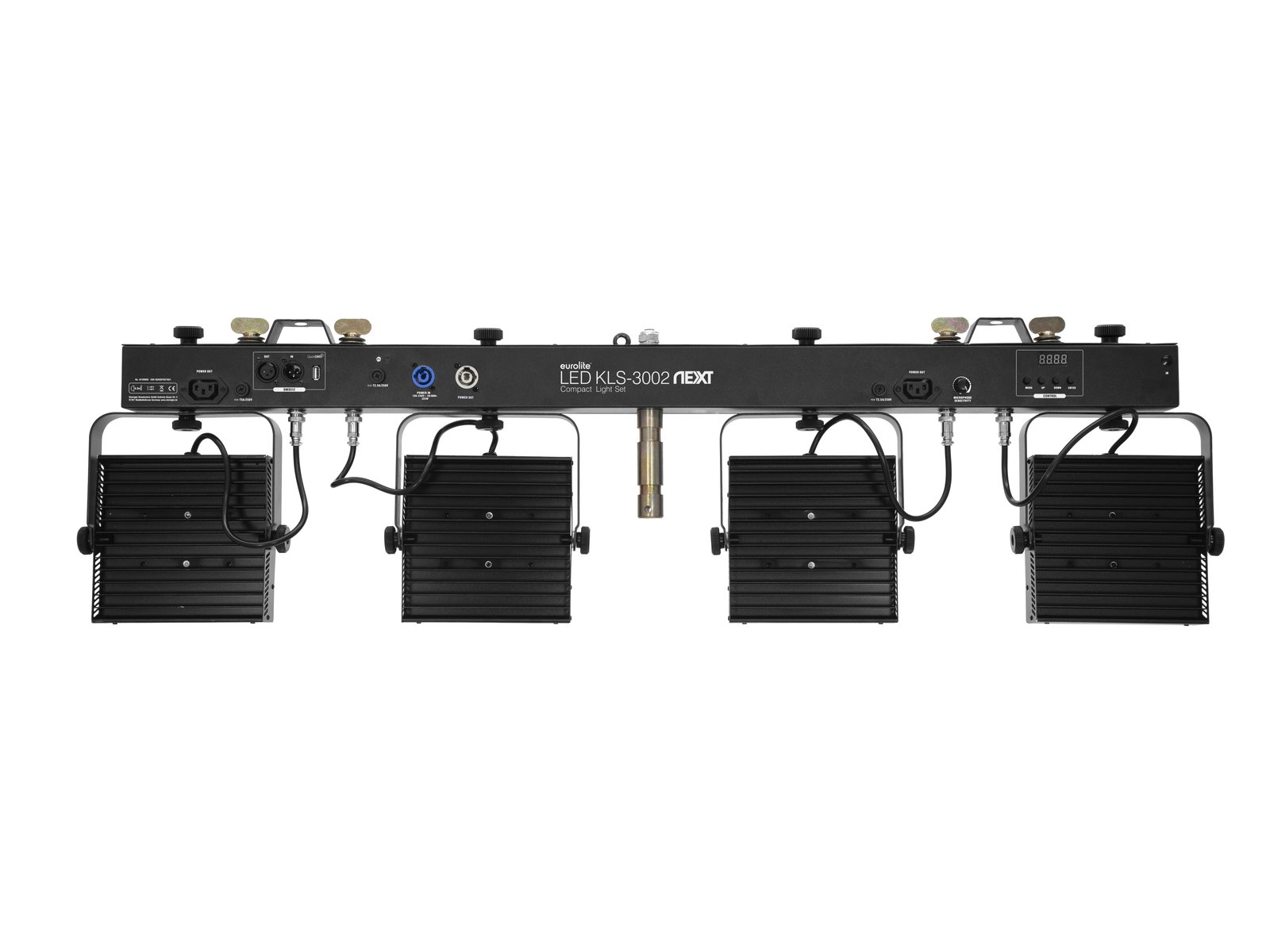

  • Crossbar with integrated DMX control unit and TV spigot for tripod installation
  • 7 powerful LEDs 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
    spots controlled separately
  • With a beam angle of 19°
  • 20 integrated show programs
  • Direct color selection for 21 preset colors
  • Dimmer electronic; color blend stepless; color selection; program selection
  • UV effect
  • Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Preprogrammed in EASY SHOW 1; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
  • For application areas such as: Mobile use; Stage; mobile djs/entertainer; Rental
  • Mounting points and power outlets for additional fixtures
  • Mains input and output for power linking up to 8 units
  • Silent operation

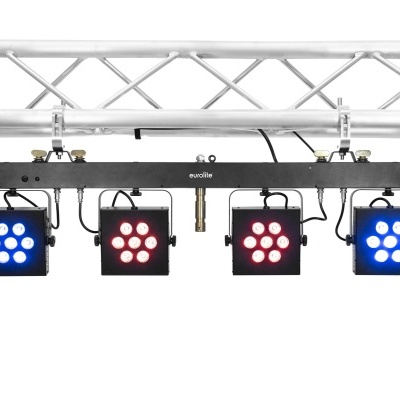

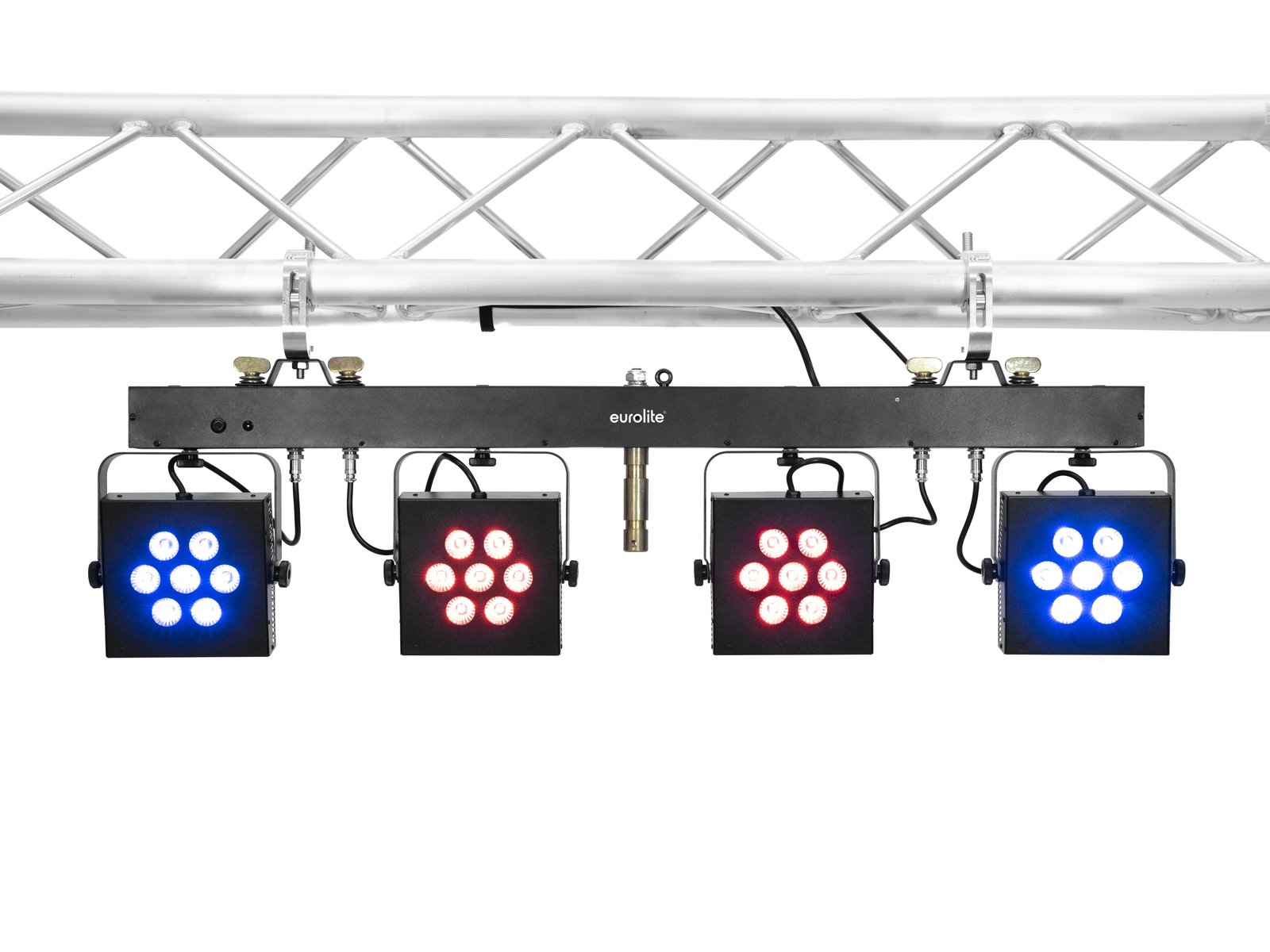

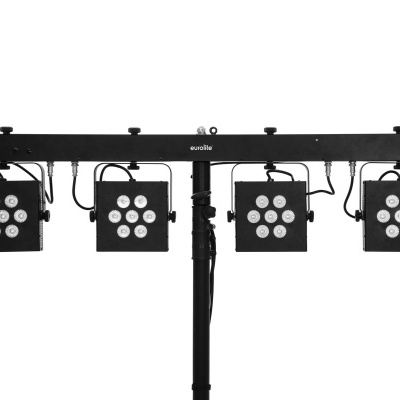

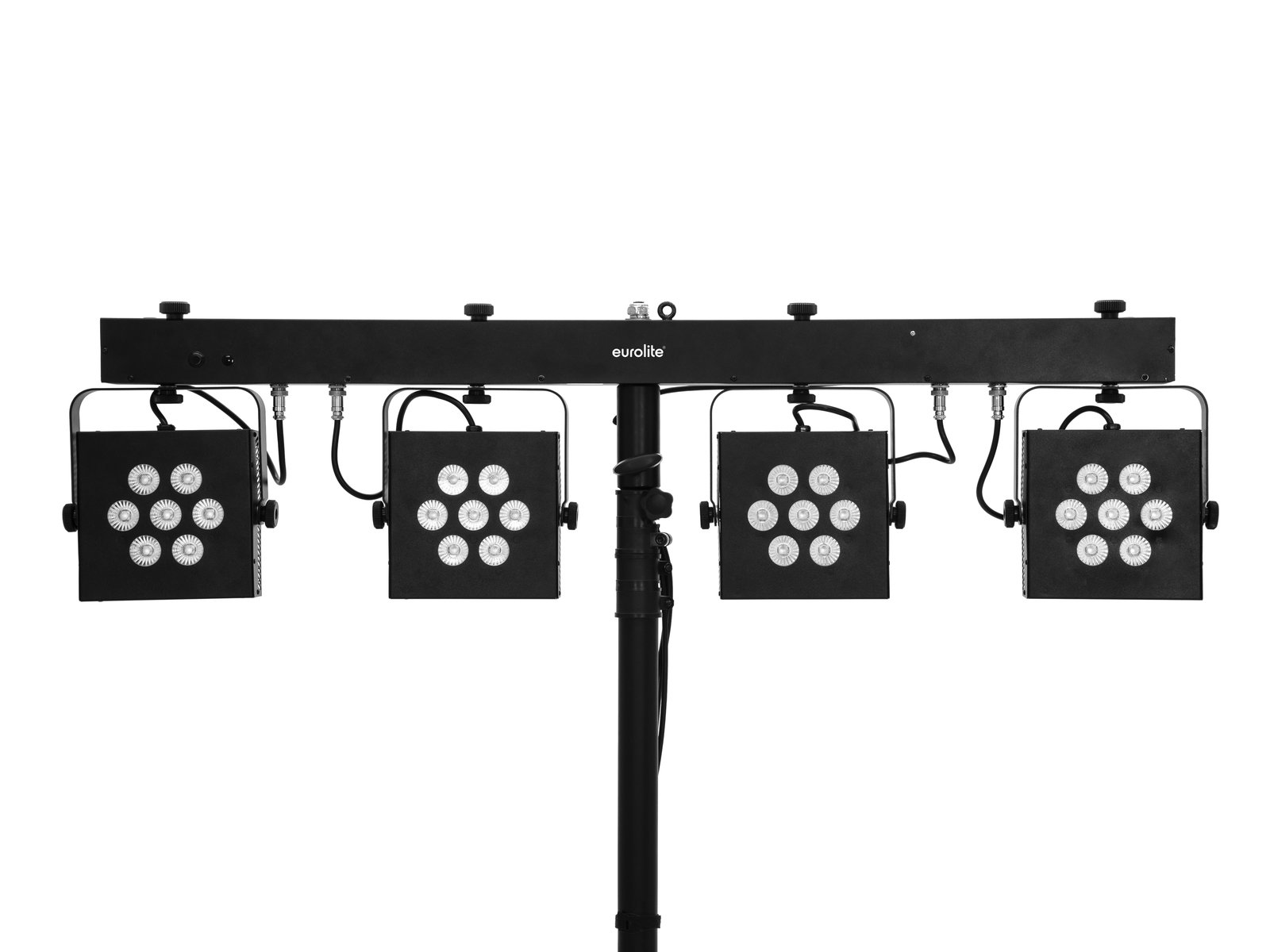

  • Application possibility: Suspended; on tripod

Package contents

  • 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x remote control, 1 x bag, 2 x omega bracket, 4 x knurled screw, 4 x washer, 1 x battery, 1 x terminating plug (power)


Power supply:100-240 V AC, 50/60 Hz
Power consumption:225 W
IP classification:IP20
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length:3 m
Power output:2 x IEC connector (F) mounting version fused
1 x P-Con (gray), mounting version Bypass
Device fuse:5 x 20 mm, T 2,5 A Fuse replaceable
Power output fuse per channel:5 x 20 mm, T 5 A Fuse replaceable
Lamp type:LED lamp
LED:7 x 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
DMX channels:2; 4; 6; 10; 24; 28
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Passive convection cooling
Control:Stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:EASY SHOW 1; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:19°
Beam angle (1/2 peak):19°
Beam angle (1/10 peak):35°
Housing color:Black
Attachment system:TV spigot Ø 28mm
Omega bracket
Dimensions:Width: 1,28 m
Depth: 8 cm
Height: 29 cm
Weight:11,14 kg
Noise classification:Class 0 (no noise at all)
Remote control
Battery:1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
