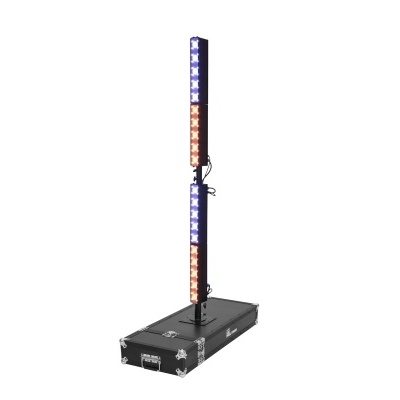

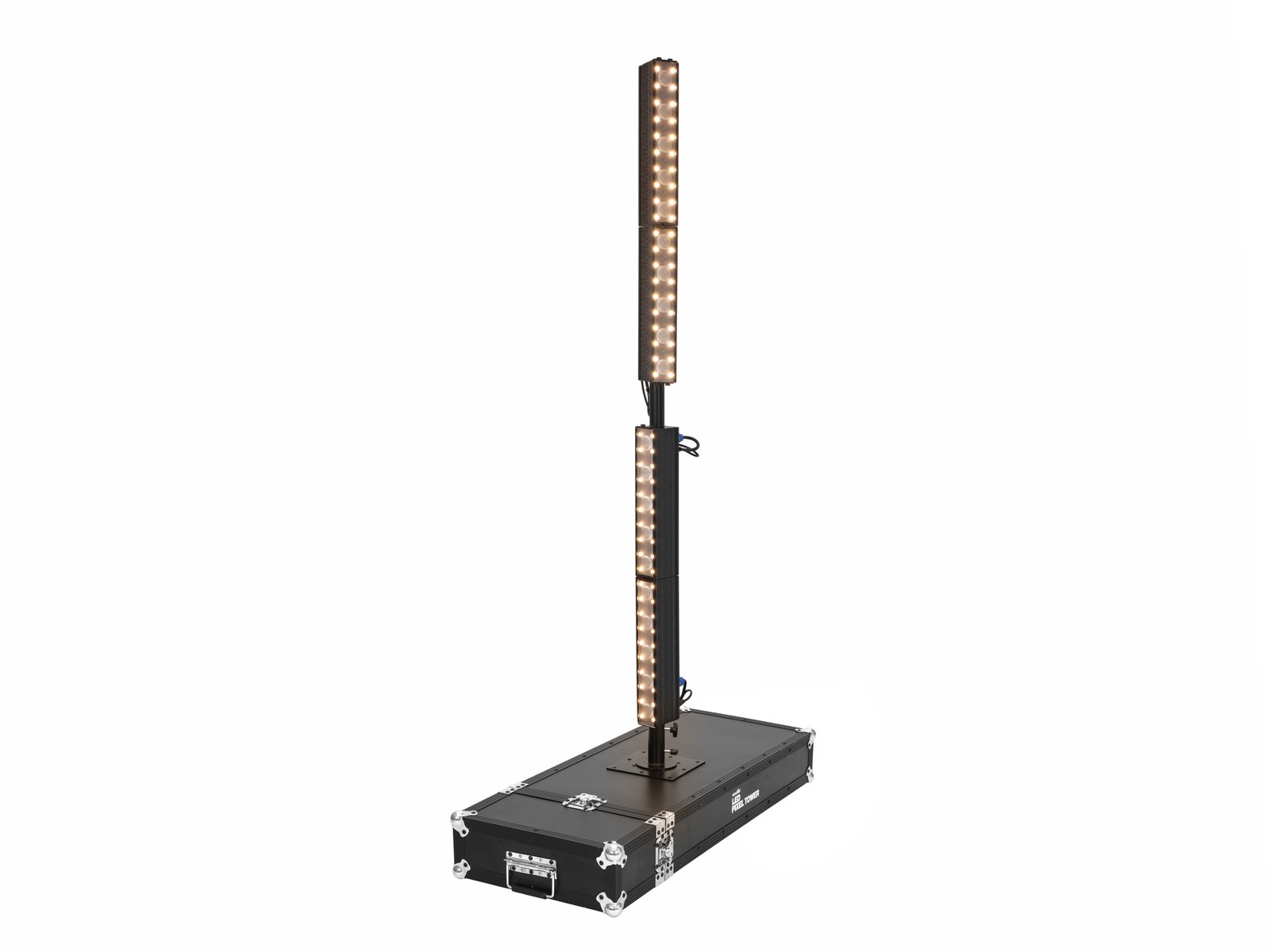

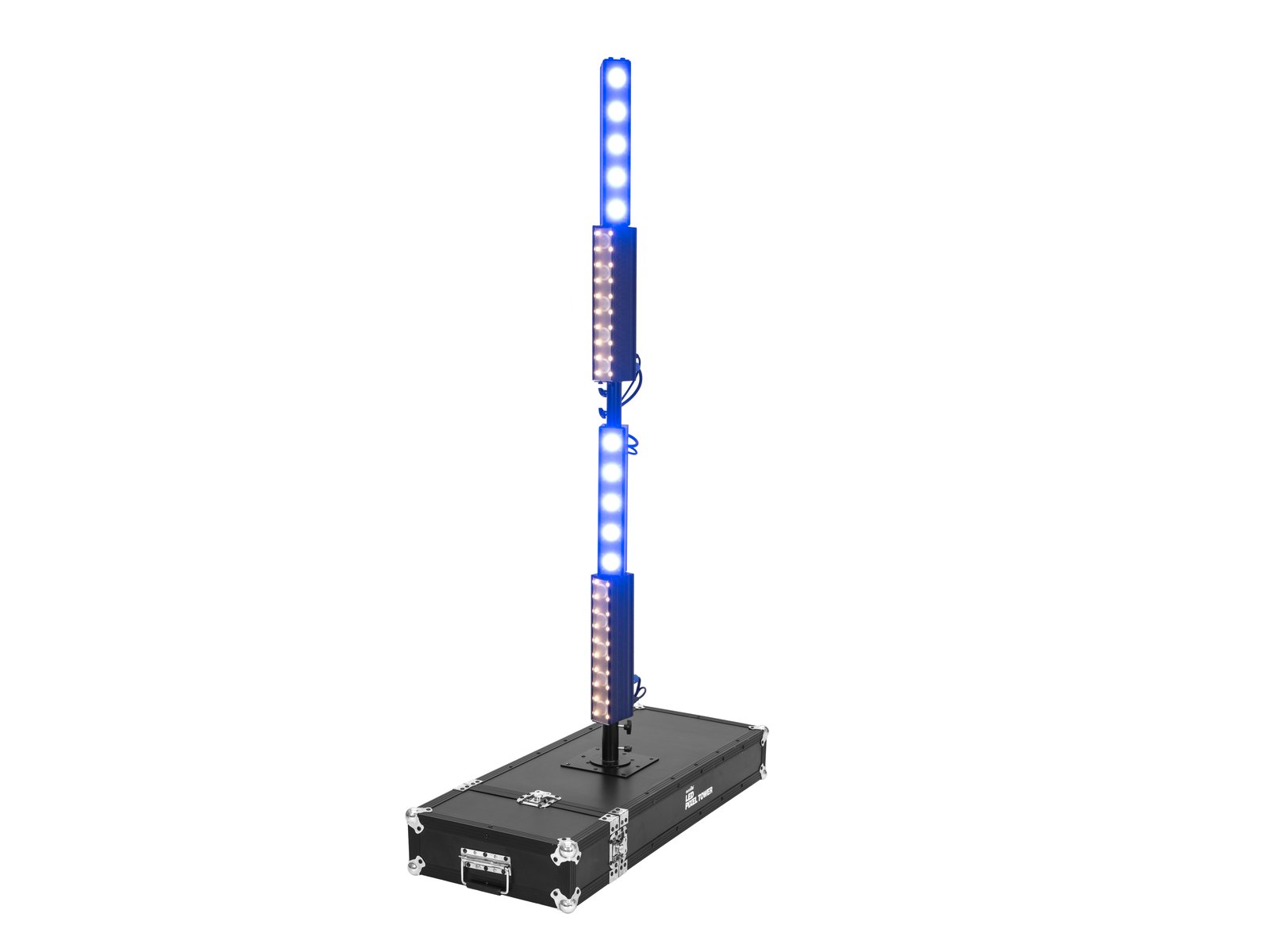

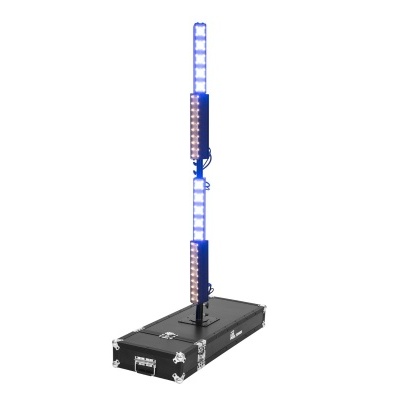

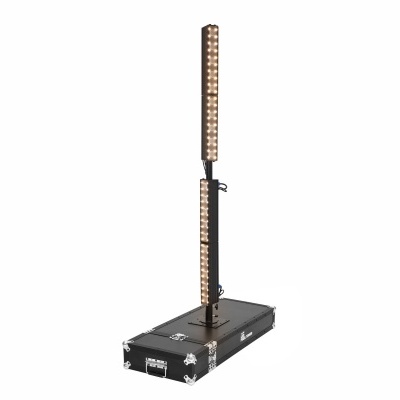

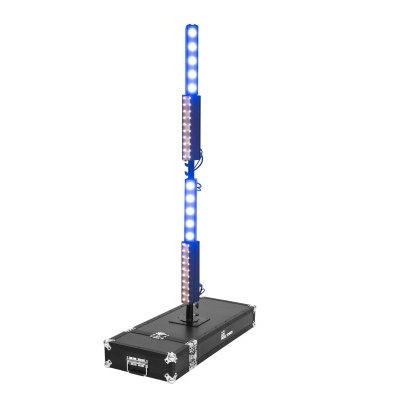

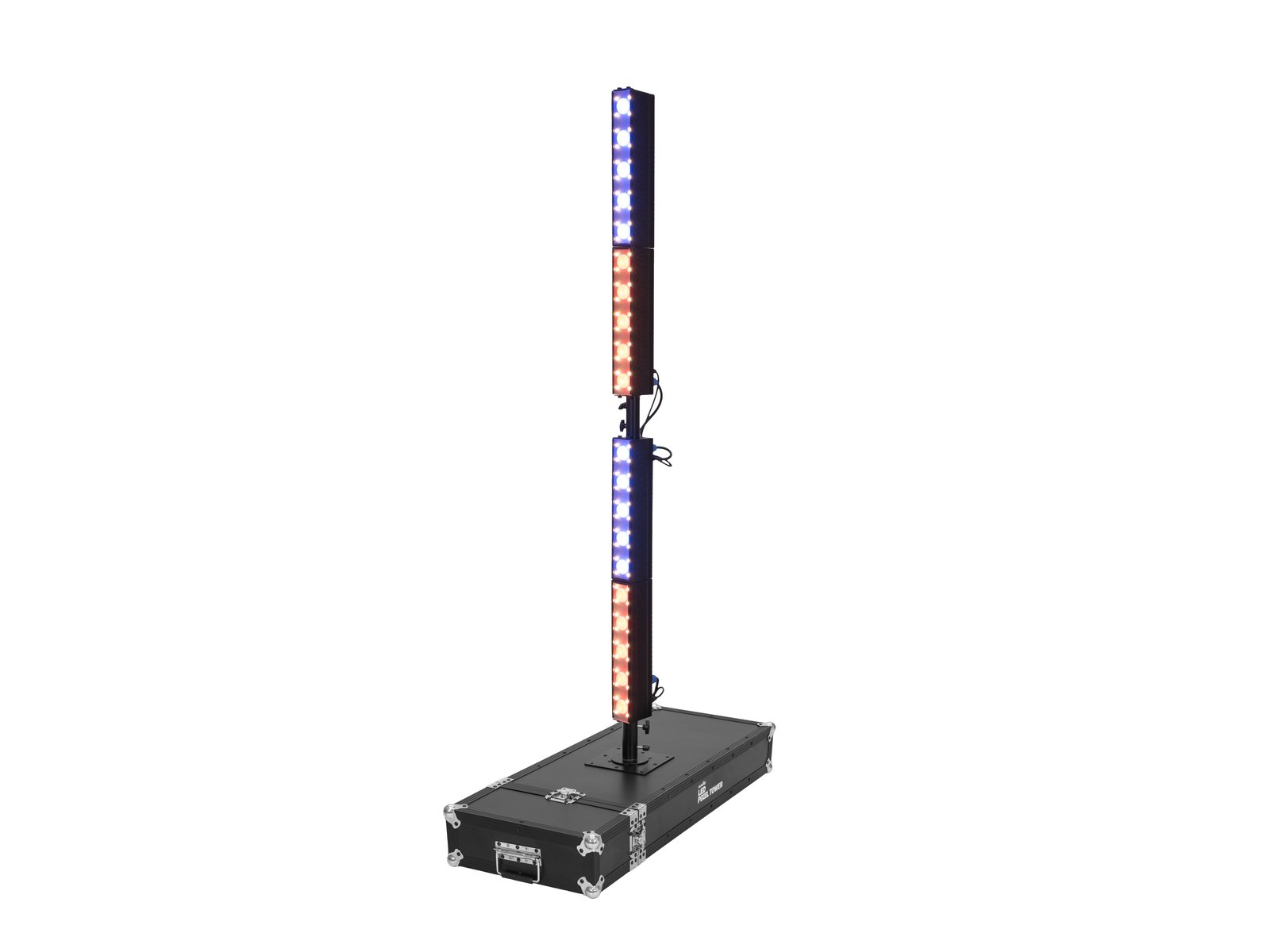

EUROLITE LED Pixel Tower
SKU: 42109900
Multifunctional vertical light effect with mounting option on the supplied case
- Every LED bar can be manually rotated centrally at the joint
- Connection between the two LED bars can be extended spatially at will via P-Con and 3-pin XLR cables
- 80 powerful LEDs 0,3 W SMD 5050 warm white (WW)
4 segments controlled separately - 20 powerful LEDs 15 W high-power 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately - Dimmer electronic; color blend stepless; color change adjustable; colors preset
- Strobe effect
- 96 integrated show programs
- The device is cooled by passive convection cooling
- Control via DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone
- With a beam angle of 8°
- TV pin
- Silent operation
- Preprogrammed in LED PC-Control 512; Light Captain; Light´J
- With Mounting bracket
- For application areas such as: Wedding/gala/events; mobile use; Stage; mobile djs/entertainer

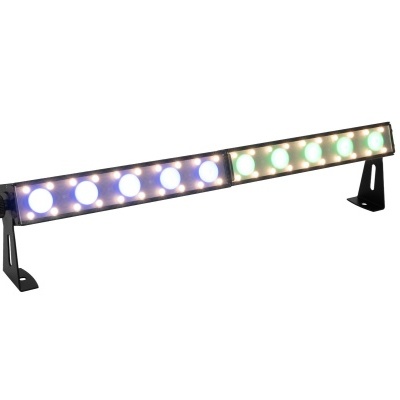

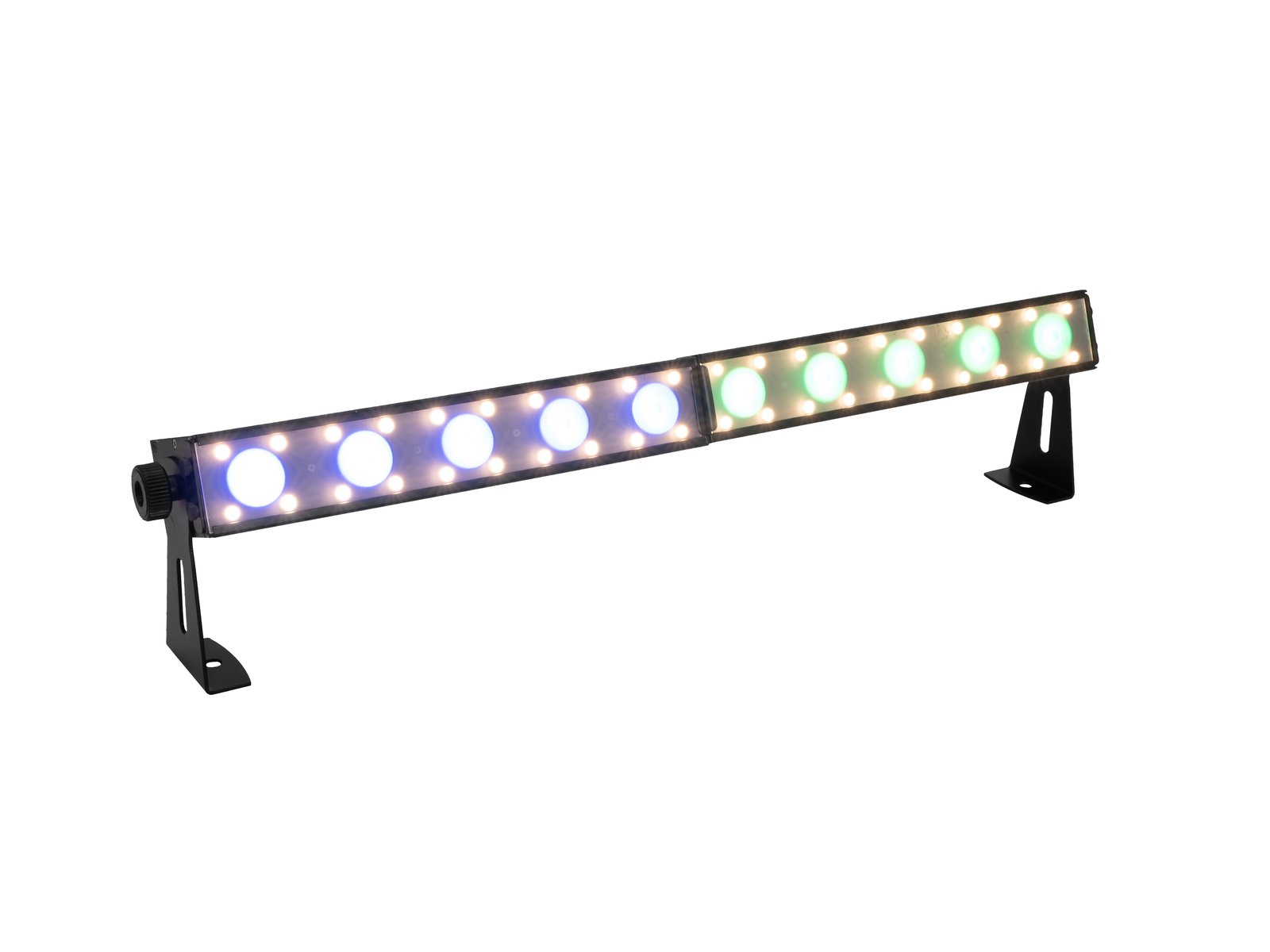

- Application possibility: Standing; suspended; on tripod
Package contents
- 2 x segment, 1 x remote control, 1 x case, 1 x user manual, 2 x power cord, 4 x angle, 1 x stand, 4 x washer, 4 x diffusor cover, 8 x knurled screw, 1 x holder, 2 x mounting bracket, 3 x xLR cable
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 250 W |
| IP classification: | IP20 |
| Lamp type: | LED lamp |
| LED: | 80 x 0,3 W SMD 5050 warm white (WW) 20 x 15 W high-power 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 12; 20; 27; 84; 5 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone |
| Preprogrammed in: | LED PC-Control 512; Light Captain; Light´J |
| Beam angle: | 8° |
| Beam angle (1/2 peak): | 8° |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm Mounting bracket |
| Weight: | 12,00 kg |
| Noise classification: | Class 0 (no noise at all) |
| Device | |
| Dimensions: | Length: 1,1 m Width: 44 cm Height: 2 m |
| Segment | |
| Dimensions: | Length: 92 cm Width: 10,1 cm Height: 7 cm |
| Case | |
| Dimensions: | Length: 1,1 m Width: 44 cm Height: 18 cm |
| Remote control | |
| Battery: | Button cell 3.0 V CR2025 lithium manganese built-in |
