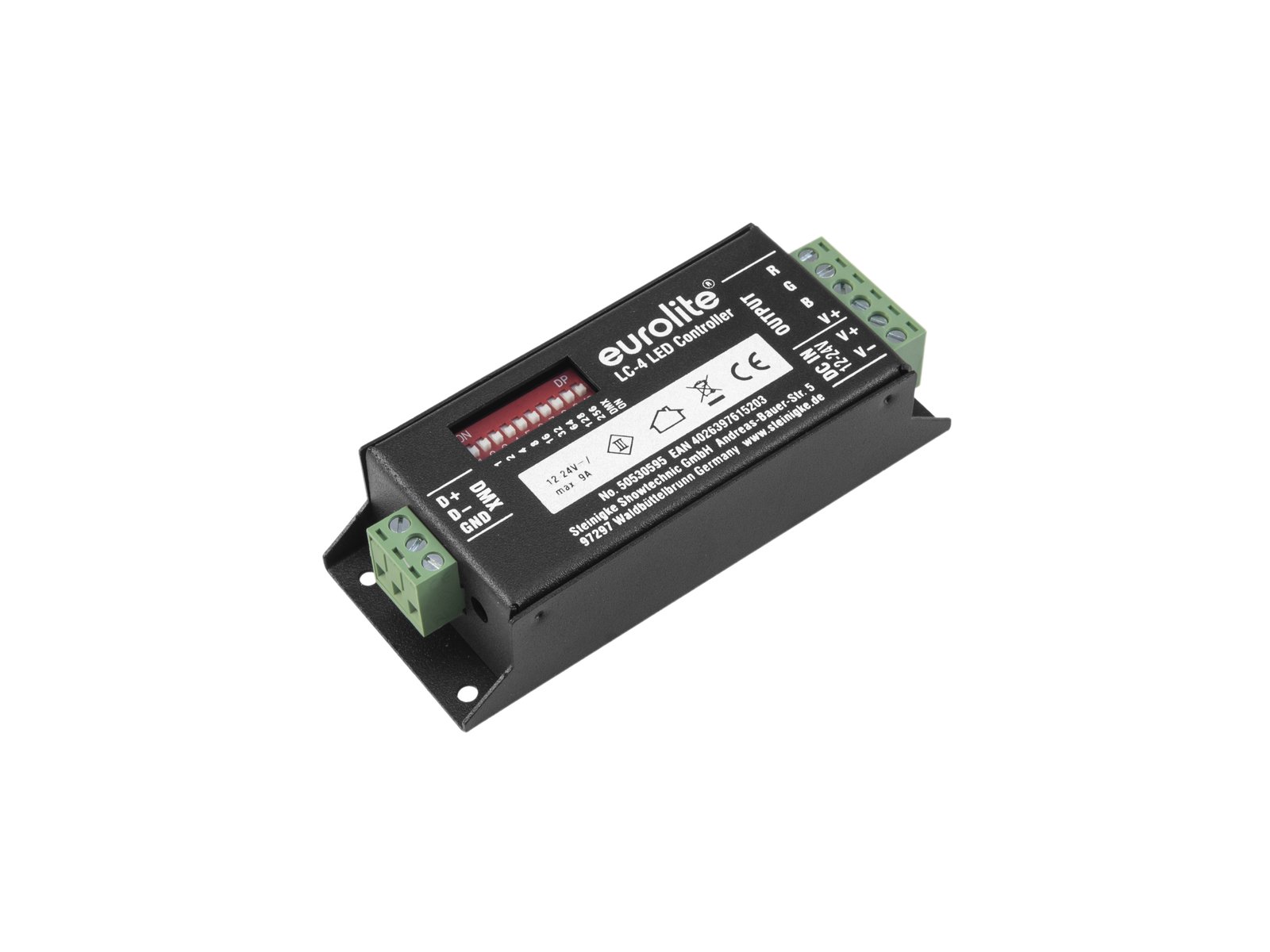

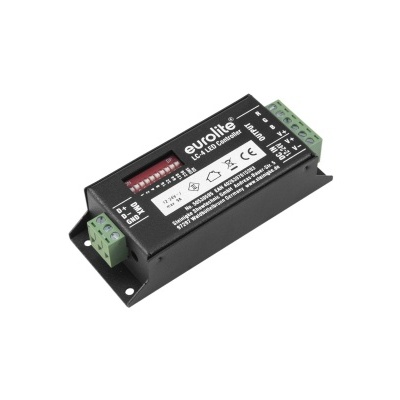

EUROLITE LC-4 LED Strip RGB DMX Controller

Name: EUROLITE LC-4 LED Strip RGB DMX Controller
Brand: Eurolite
SKU: 50530595
Price: 37.02 EUR
Availability: InStock

SKU: 50530595

37,02 €

IVA incluído.

Contactar

3-channel LED controller with DMX interface for RGB LEDs 12-24 V

Compact LED controller for controlling RGB LEDs (12-24 V) via DMX
Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
3 separate control channels for individual color mixing of red, green and blue LEDs
Plug-in screw terminals for connecting the LEDs and the power supply
Rugged black metal housing
Integrated show programs
The device is cooled by passive convection cooling
Control via DMX; stand-alone
For application areas such as: Clubs/dancing school; Trade fair and shop fitting; Installation; restaurants, bars and hotels
Silent operation

Package contents

Power supply:	12/24V DC
Power consumption:	Max. 108 W 12 V DC Max. 216 W 24 V DC 36 W 12 V DC per channal 72 W 24 V DC per channal
IP classification:	IP20
Output current:	Max. 3 x 3 A per channal
Power connection:	Via screw terminal
Power output:	Screw terminal
DMX channels:	4
DMX input:	Screw terminal
Cooling:	Passive convection cooling
Control:	DMX; stand-alone
Housing color:	Black
Dimensions:	Width: 4,5 cm Depth: 10,9 cm Height: 2,7 cm
Weight:	150 g
Noise classification:	Class 0 (no noise at all)
