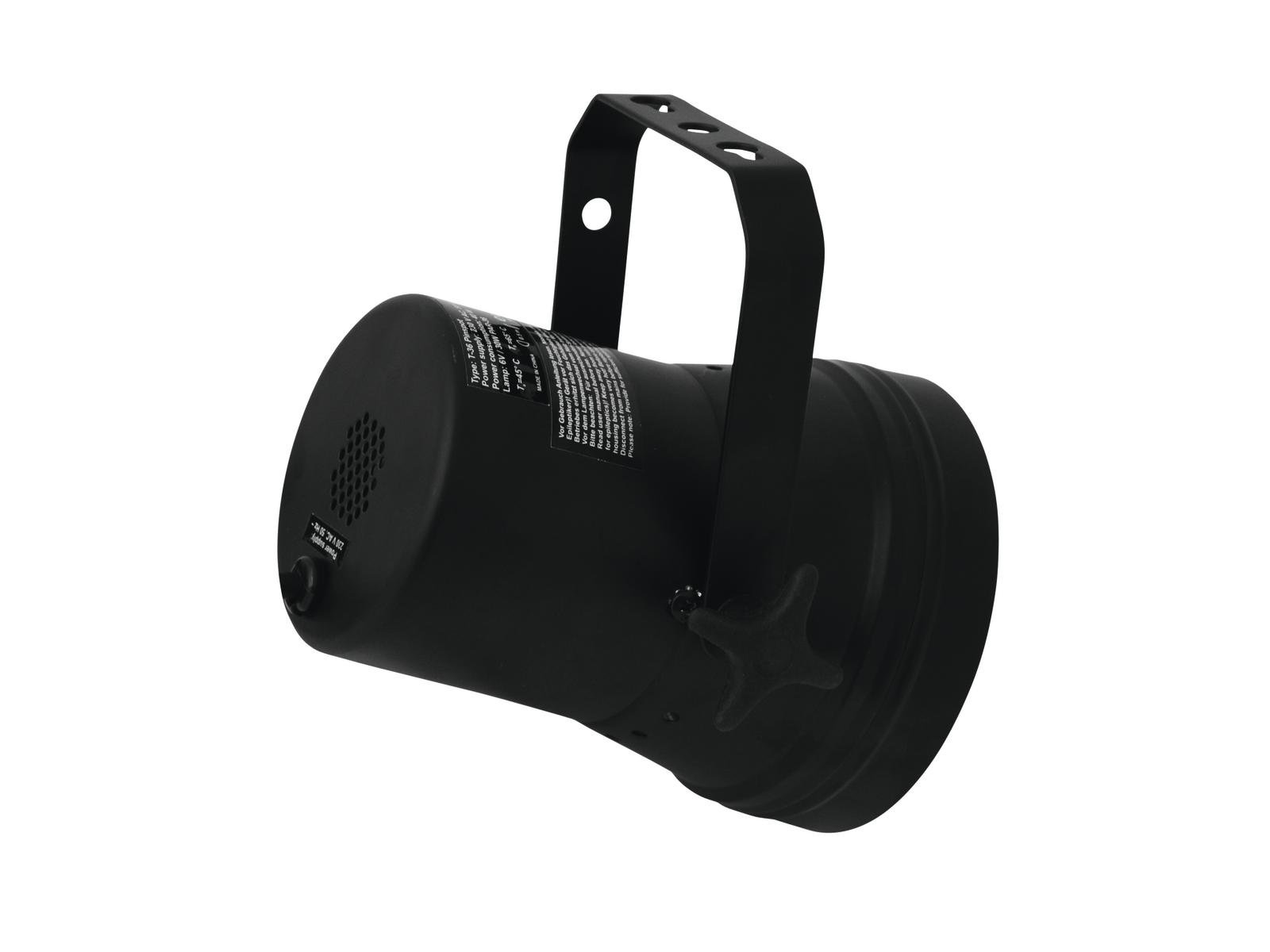

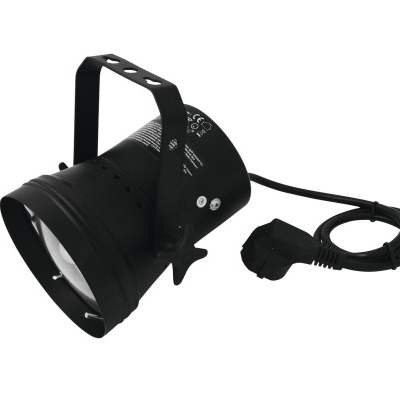

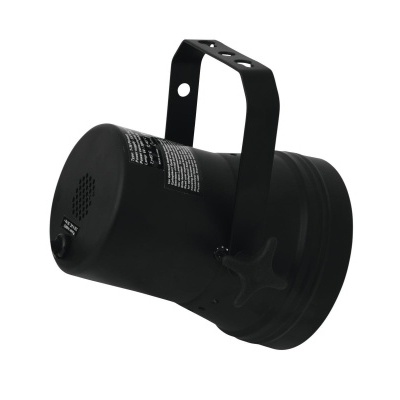

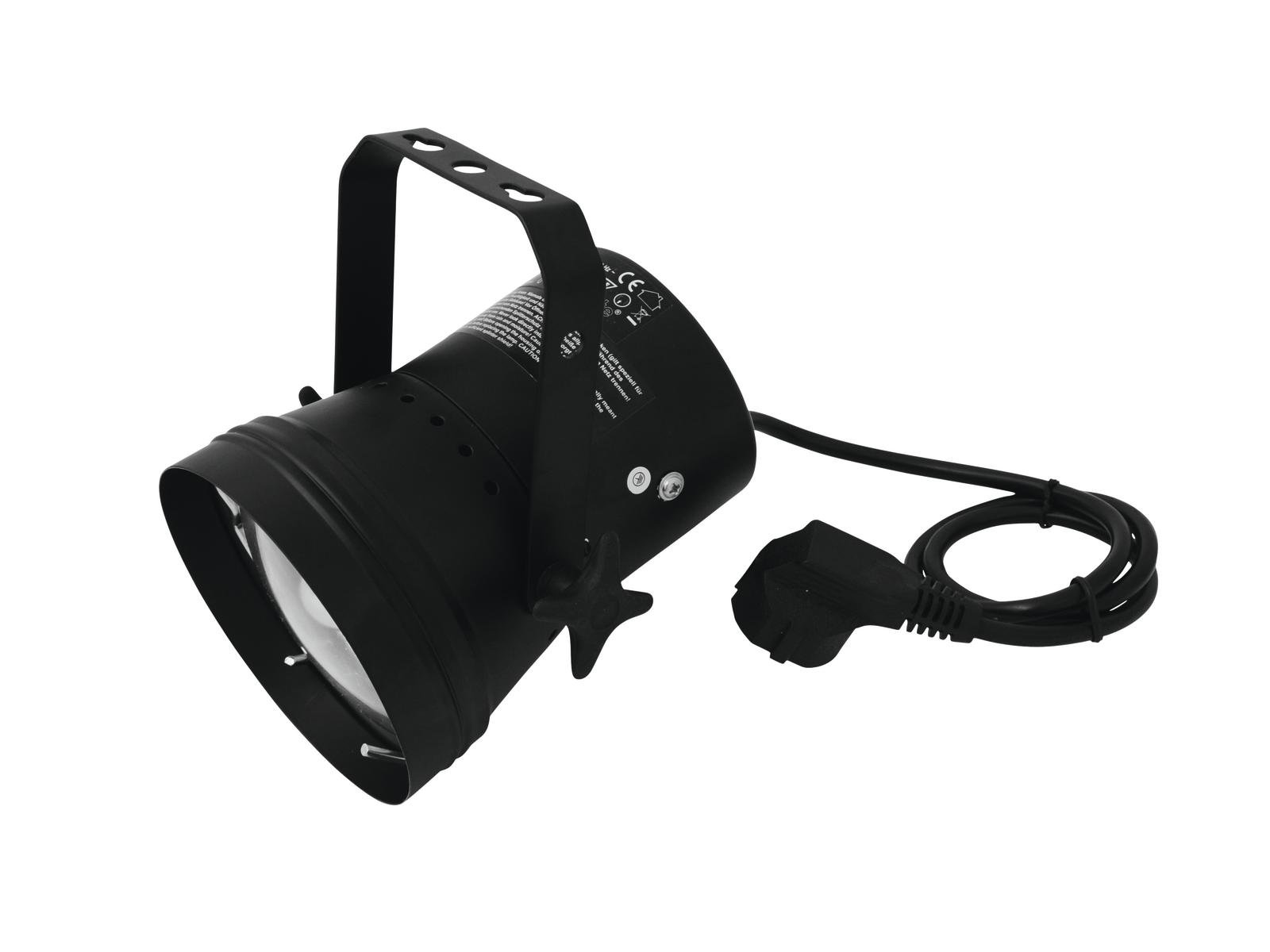

EUROLITE T-36 Pinspot with Plug, black

Suitable Pinspot for PAR-36 6V/30 W lampThe Pinspot T-36 is very well suited for illuminating mirror balls, for entrance or counter areas or simply as basic lighting.Its narrow beam angle makes the projection show a 30-centimetre light circle from a distance of four metres. The use of alternative light sources makes several beam angles possible. Color caps or color foils can easily be placed in front of the T-36.The body of the pinspot is available in black and optionally in silver and can be easily locked in place using the retaining clip.

Pinspot with PAR-36 6V/30W lamp

• Narrow beam angle, at a distance of 4 m there is a projected circle of light with a diameter of 30 cm
• Color caps or color foils can be attached in front of the lens
• For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
• Low power consumption
• Diverse beam angles are possible when using alternative illuminants
• Control via plug and play
• Very high color rendering index (CRI)
• With Mounting bracket
• Available in various colors

illuminant

• Dimmable

Package contents

• 1 x spotlight, 1 x illuminant, 1 x lamp clamping ring, 1 x user manual

Power supply:	230 V AC, 50 Hz
Power consumption:	30 W
IP classification:	IP20
Protection class:	Protection class I
Suitable lamp:	PAR-36 G-53 STC
Power connection:	Fixed power supply cord with safety plug
Cable construction:	3 x 0,75 mm² H05VV-F
Cable length:	Approx. 0,9 m
Base:	Wires
Control:	Plug and play
Color rendering index (CRI):	99 Ra
Housing color:	Black matte
Attachment system:	Mounting bracket
Material:	Metal
Dimensions:	Length: 16 cm Width: 15,5 cm Height: 17 cm
Weight:	1,23 kg
Illuminant
Voltage (lamps):	6,4 V
Nominal wattage:	30 W
Base:	G-53 STC
Lamp type:	Halogen lamp; clear lamp
Lamp specification:	Dimmable
Beam angle:	6°
Color temperature:	3000K
Construction:	PAR-36
Mounting bracket
Diameter mounting holes:	3 x Ø10mm; 1 x Ø8mm
Material:	Metal, 2 mm
Lamp clamping ring
Material:	Metal
Color:	Silver
