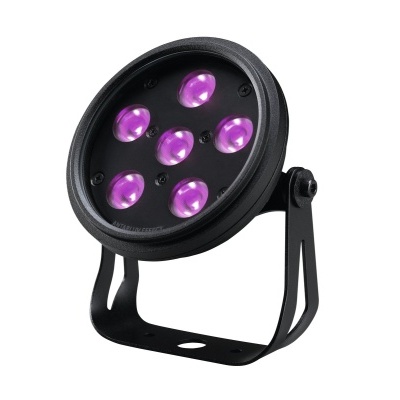

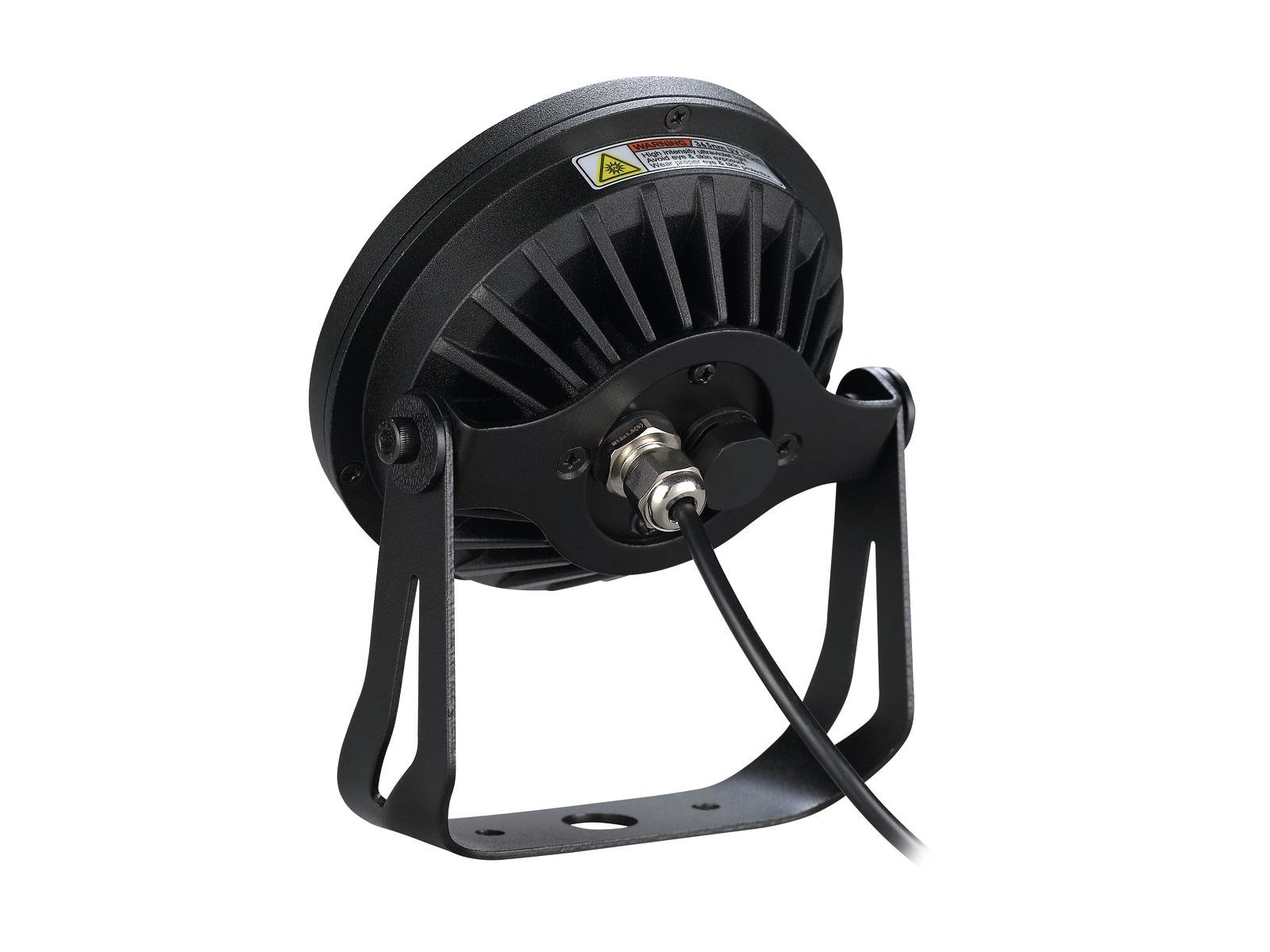

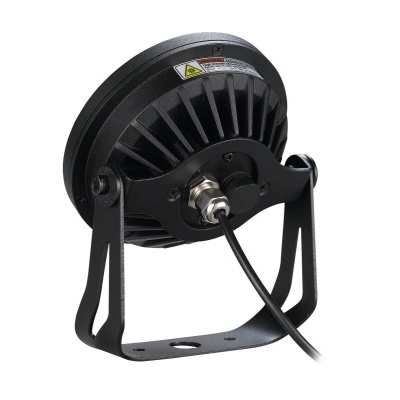

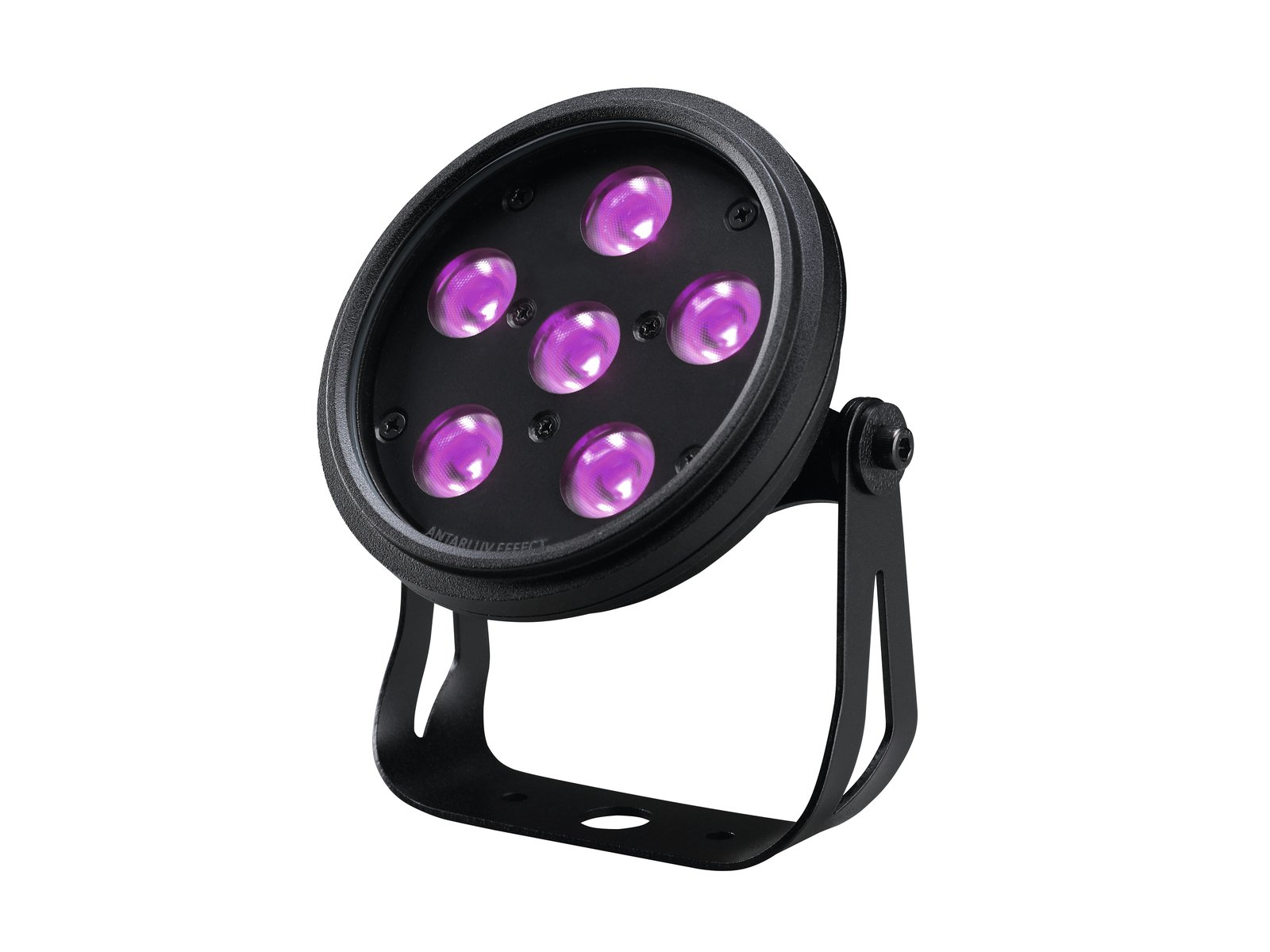

ANTARI DarkFX Spot 510 IP

The Antari DarkFX Spot 510 IP is an efficient high-output and low-power consumption UV LED spot that delivers a peak wavelength of 365 nm and radiant flux output of 4500 mW at full intensity with minimum visible light. This ensures all UV-reactive materials reflect perfectly with stunningly bright and vivid colors. Equipped with 6 x 1.9 W high-power UV LEDs, it features a 15° narrow beam angle, flicker-free operation, and special optics to prevent wear degradation from high UV exposure. This IP65-rated LED spot comes with a die-cast aluminium housing with an adjustable bracket for versatile mounting options.The Antari DarkFX Drive 4 fixture driver (sold separately) is required for power and DMX control.

Weather-proof PRO UV spot with 6 x 1.9 W UV LED, wavelength (365 nm)

• Minimum visible light
• High output at full intensity
• Special optics will not degrade due to high UV exposure
• Power supply and DMX control via optional Antari DarkFX Drive 4 fixture driver
• 6 powerful LEDs 1,9 W high-power ultra violet (UV)
• UV effect
• Flicker-free
• With a beam angle of 15°
• Suitable for outdoor use
• For application areas such as: Clubs/dancing school; Installation; Stage; theater
• Silent operation
• Application possibility: Suspended; on tripod
• For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

• 1 x device, 1 x user manual, 1 x mounting bracket, 2 x screw, 2 x washer

Power supply:	20-24 V DC
Power consumption:	12 W
IP classification:	IP65
Power connection:	Fixed Supply cord with open wires
Lamp type:	LED lamp
LED:	6 x 1,9 W high-power ultra violet (UV)
Beam angle:	15°
Beam angle (1/2 peak):	15°
Wavelength:	365 nm
Housing color:	Black
Material:	Metal
Dimensions:	Width: 11,9 cm Depth: 6,2 cm Height: 13,5 cm
Weight:	710 g
Noise classification:	Class 0 (no noise at all)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
