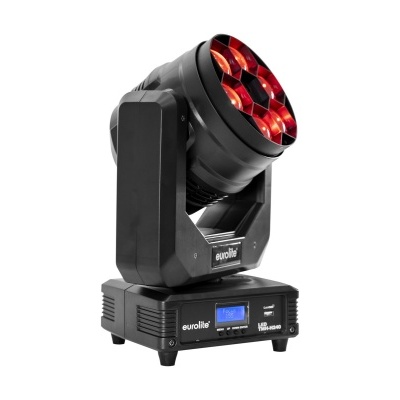

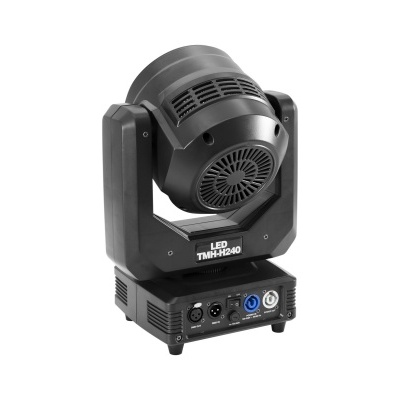

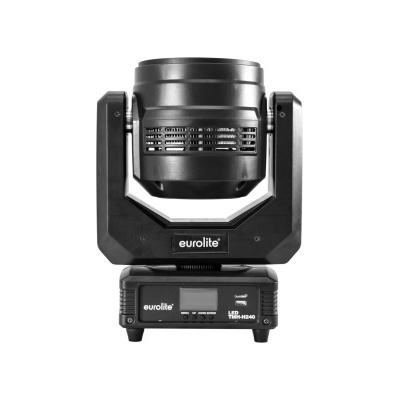

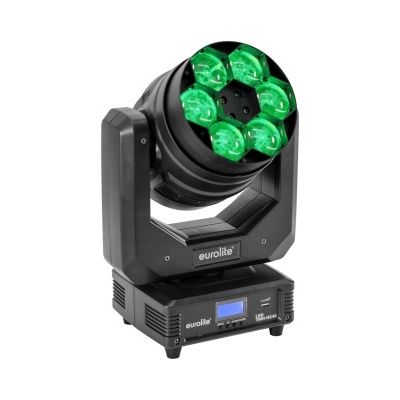

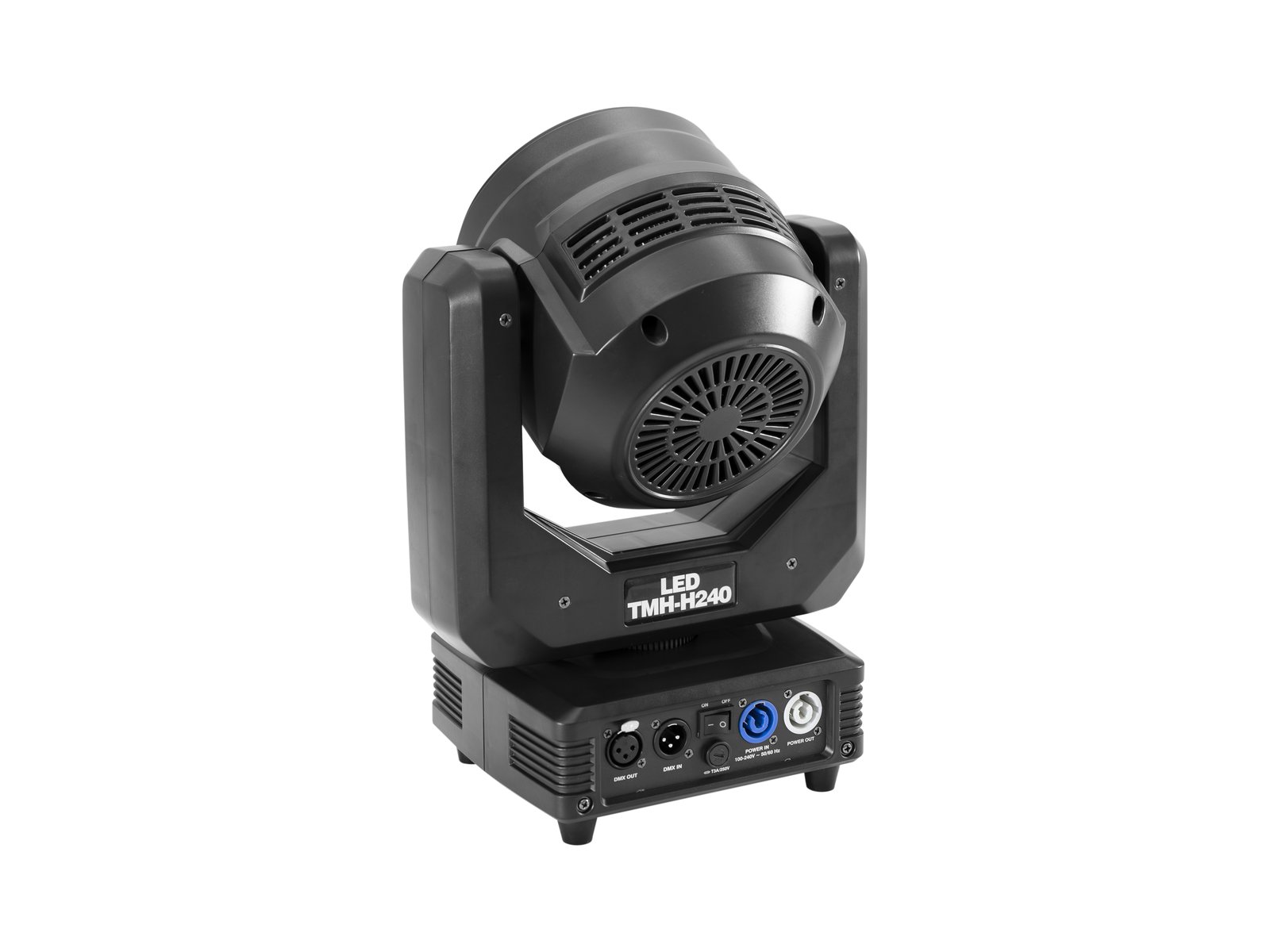

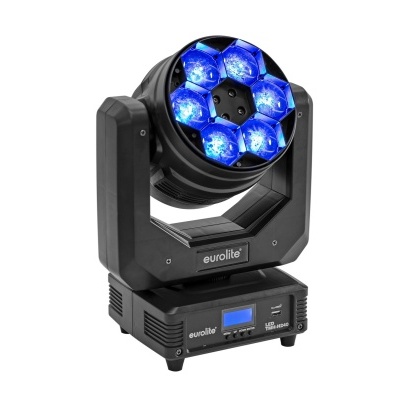

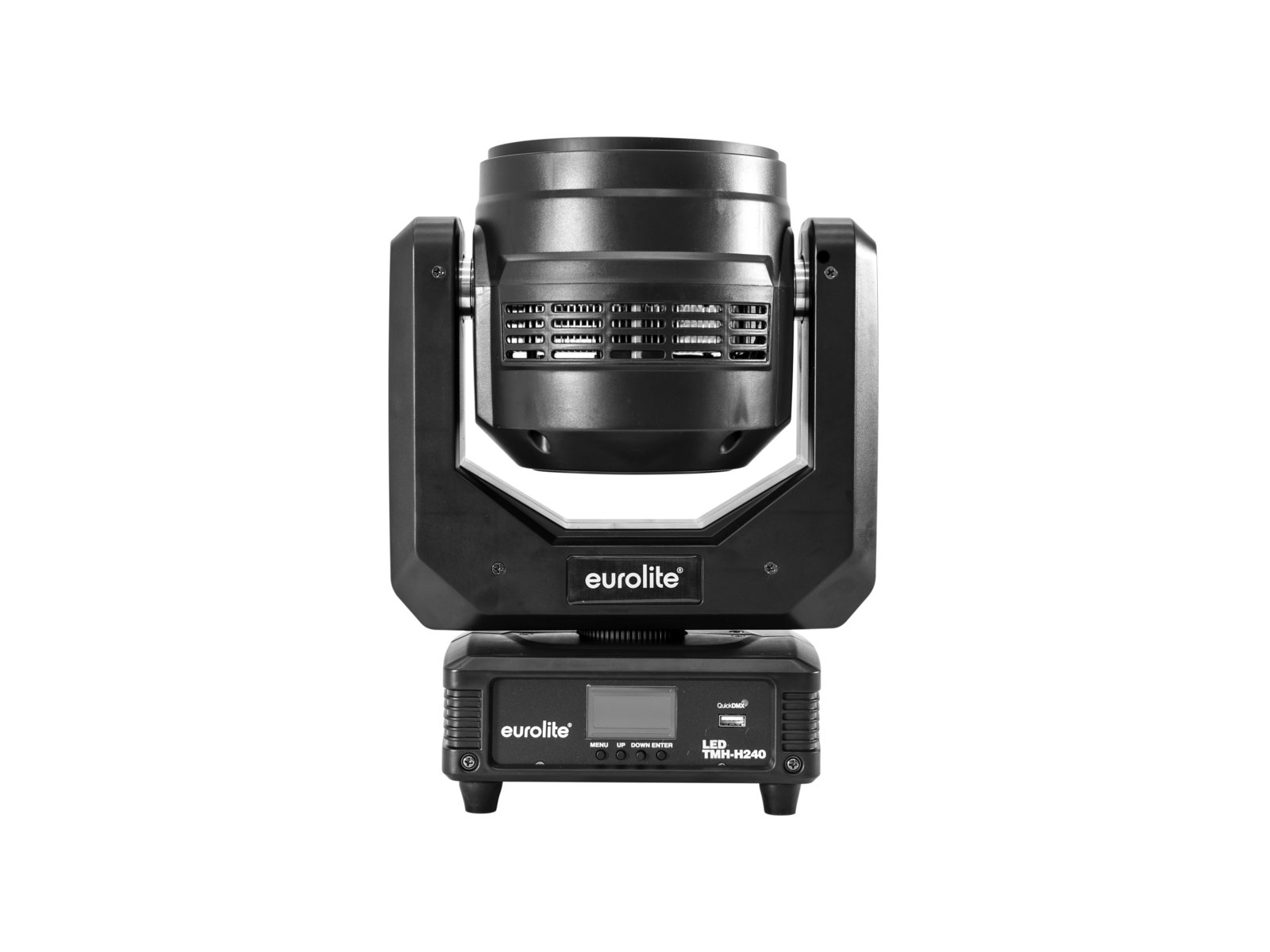

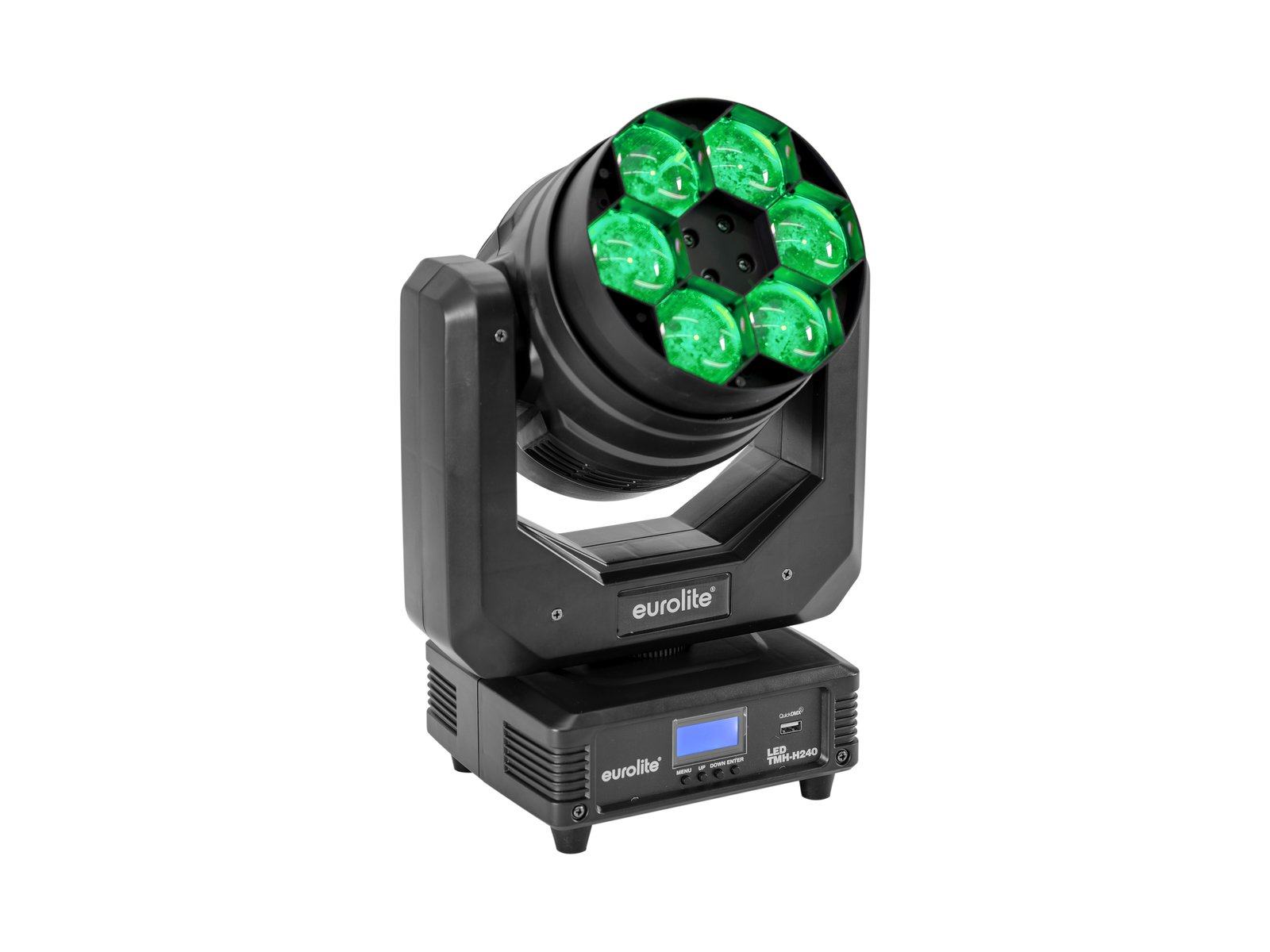

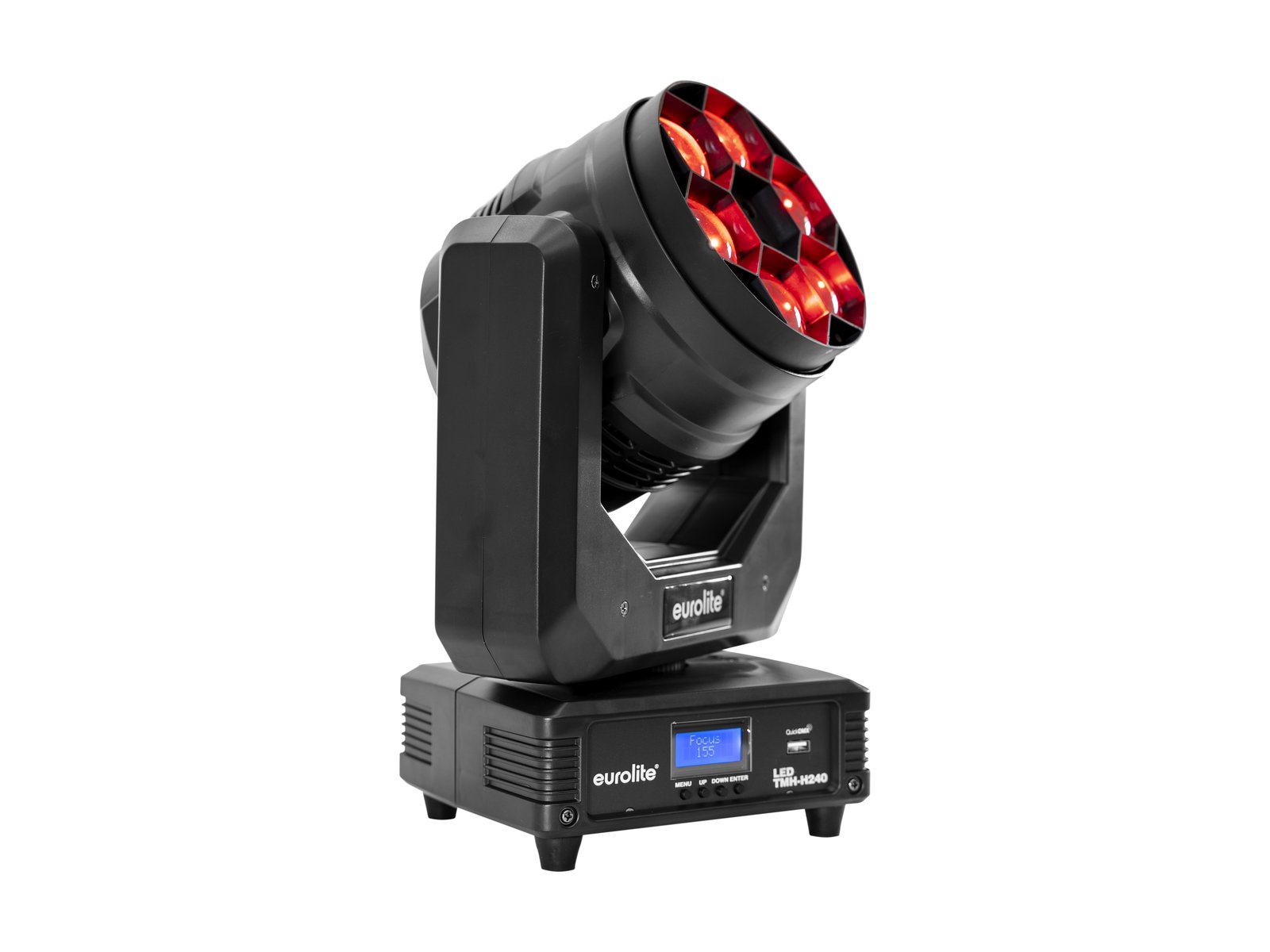

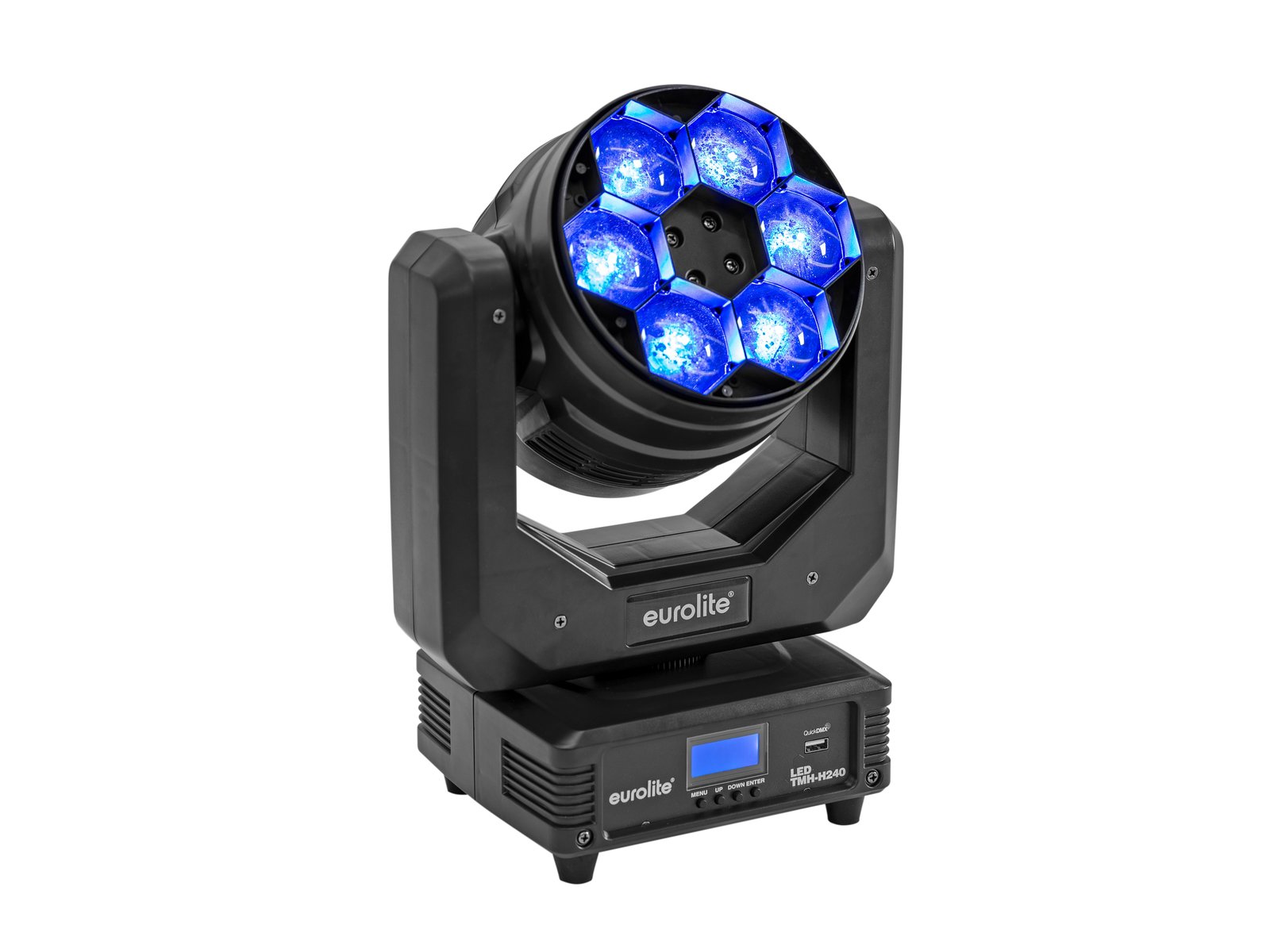

EUROLITE LED TMH-H240 Beam/Wash/Flower Effect
EUROLITE LED TMH-H240 Beam/Wash/Flower Effect
EUROLITE LED TMH-H240 Beam/Wash/Flower Effect
EUROLITE LED TMH-H240 Beam/Wash/Flower Effect
EUROLITE LED TMH-H240 Beam/Wash/Flower Effect
EUROLITE LED TMH-H240 Beam/Wash/Flower Effect

EUROLITE LED TMH-H240 Beam/Wash/Flower Effect

SKU: 51785925



Hybrid moving head with RGBW LEDs, zoom, macros, patterns and color temperature presets

  • 3in1 moving head beam, wash and flower effect in one device
  • 6 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix)
    LEDs controlled separately
  • Positioning within 540° PAN and 240° TILT
  • PAN angle switchable between 540° and 360°
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Zoom motor-driven; lens rotation
  • Color blend stepless; color change; colors preset; patterns preset; background color adjustable; Dimmer speed (step response) adjustable
  • Strobe effect; fan effect; flower effect; multi beam effect
  • Integrated show programs
  • The device is cooled by temperature-controlled fan
  • Control via stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Master/slave function
  • Flicker-free
  • With a beam angle of 2° - 40°
  • With Omega bracket
  • LCD display
  • Preprogrammed in Light Captain; EASY SHOW 3; Light´J
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; Wedding/gala/events; Party room; mobile djs/entertainer; Stage
  • Application possibility: Standing; suspended

Package contents

  • 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x xLR cable


Power supply:100-240 V AC, 50/60 Hz
Power consumption:190 W
IP classification:IP20
Protection class:Protection class I
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:P-Con (gray), mounting version
Fuse:5 x 20 mm, T 3 A
Lamp type:LED lamp
LED:6 x 40 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:240° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:540°, 360° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:1 - 25 Hz
Equipment:Zoom motor-driven; lens rotation
DMX channels:16; 21; 24; 32; 56
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Temperature-controlled fan
Control:Stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Master/slave function
Preprogrammed in:Light Captain; EASY SHOW 3; Light´J
Beam angle:2° - 40°
Beam angle (1/2 peak):2 - 25°
Beam angle (1/10 peak):8 - 40°
Illuminance in Lux (lx):Narrow red (R) 1m: 11423 lx, 3m: 5703 lx, 6m: 1423 lx
Narrow green (G) 1m: 28573 lx, 3m: 11882 lx, 6m: 2992 lx
Narrow blue (B) 1m: 3089 lx, 3m: 1835 lx, 6m: 513 lx
Narrow cold white (CW) 1m: 35392 lx, 3m: 15489 lx, 6m: 3899 lx
Narrow all 1m: 67721 lx, 3m: 30843 lx, 6m: 7807 lx
Housing color:Black
Attachment system:2x Omega bracket
Display type:LCD display
Dimensions:Width: 26 cm
Depth: 18 cm
Height: 33 cm
Weight:6,10 kg
Noise classification:Class 3 (clearly perceptible sounds)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
