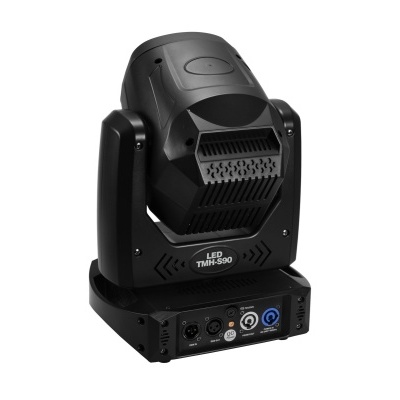

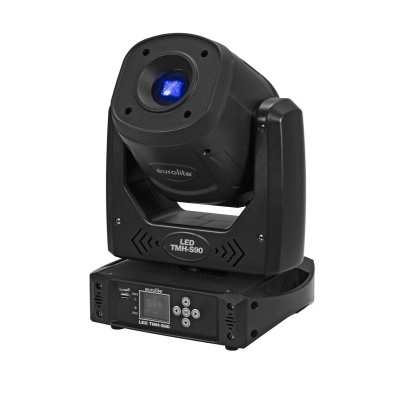

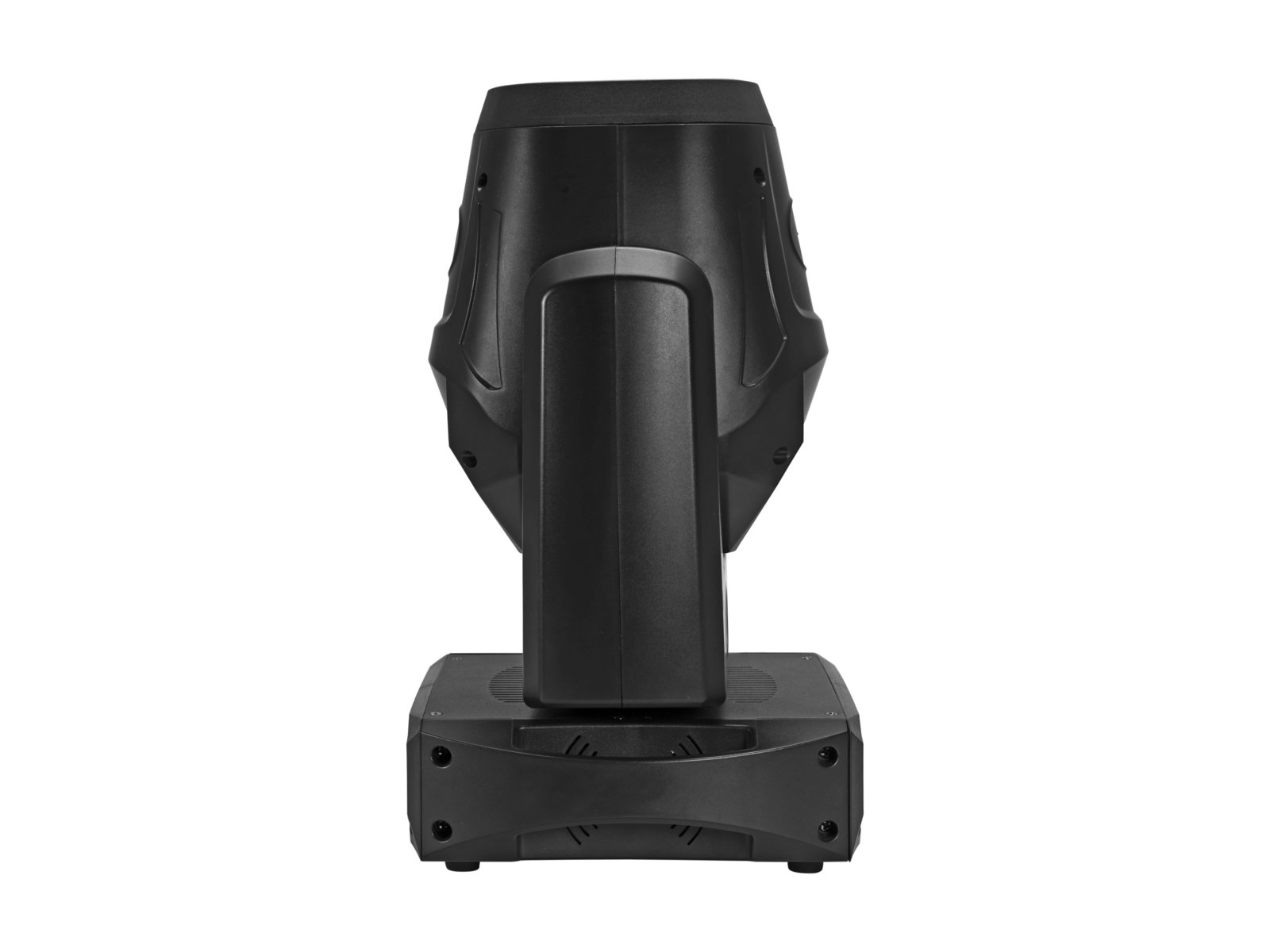

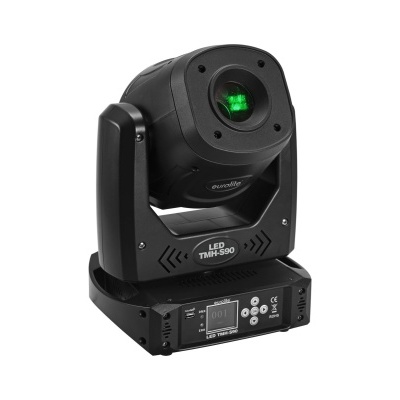

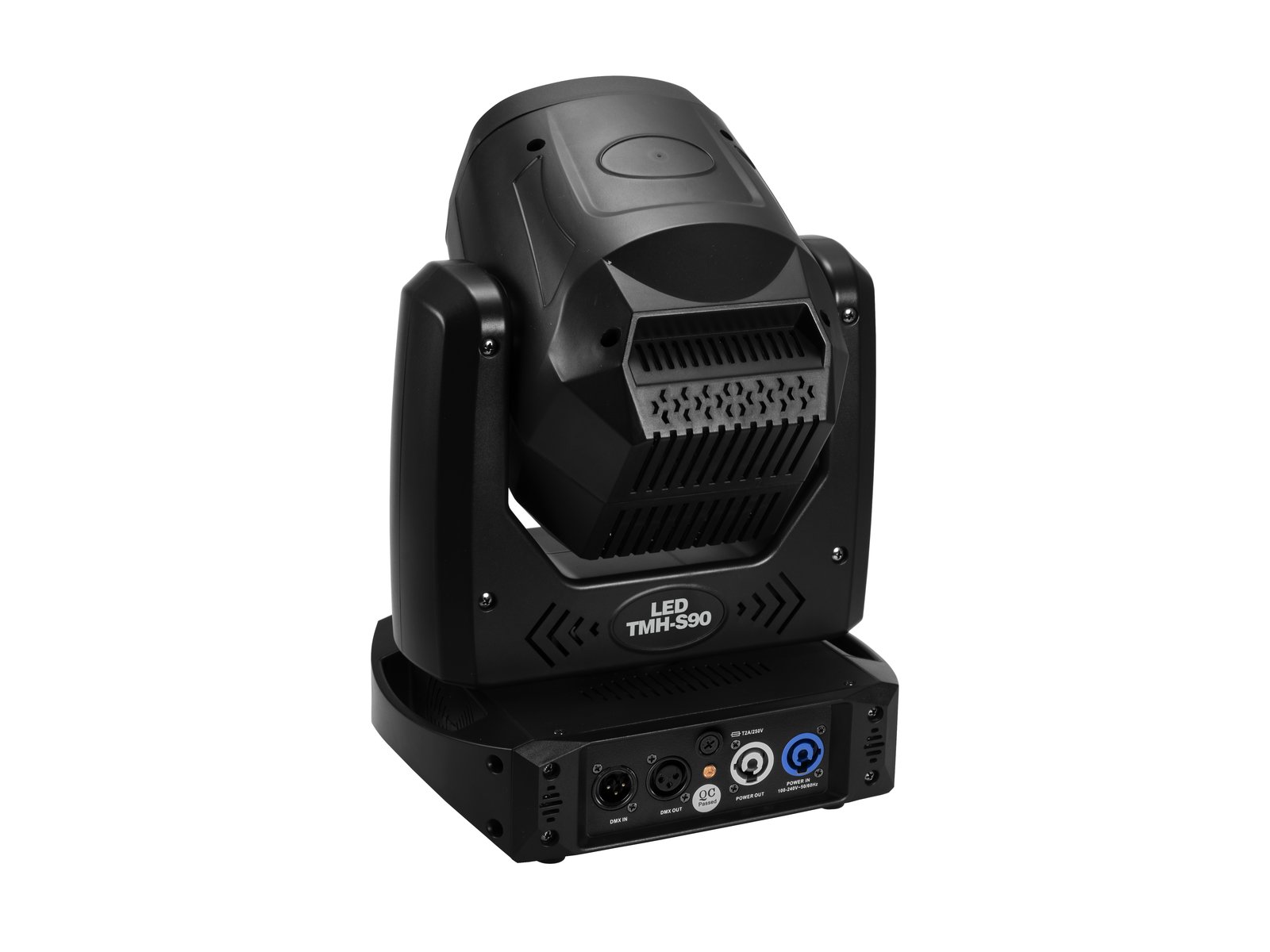

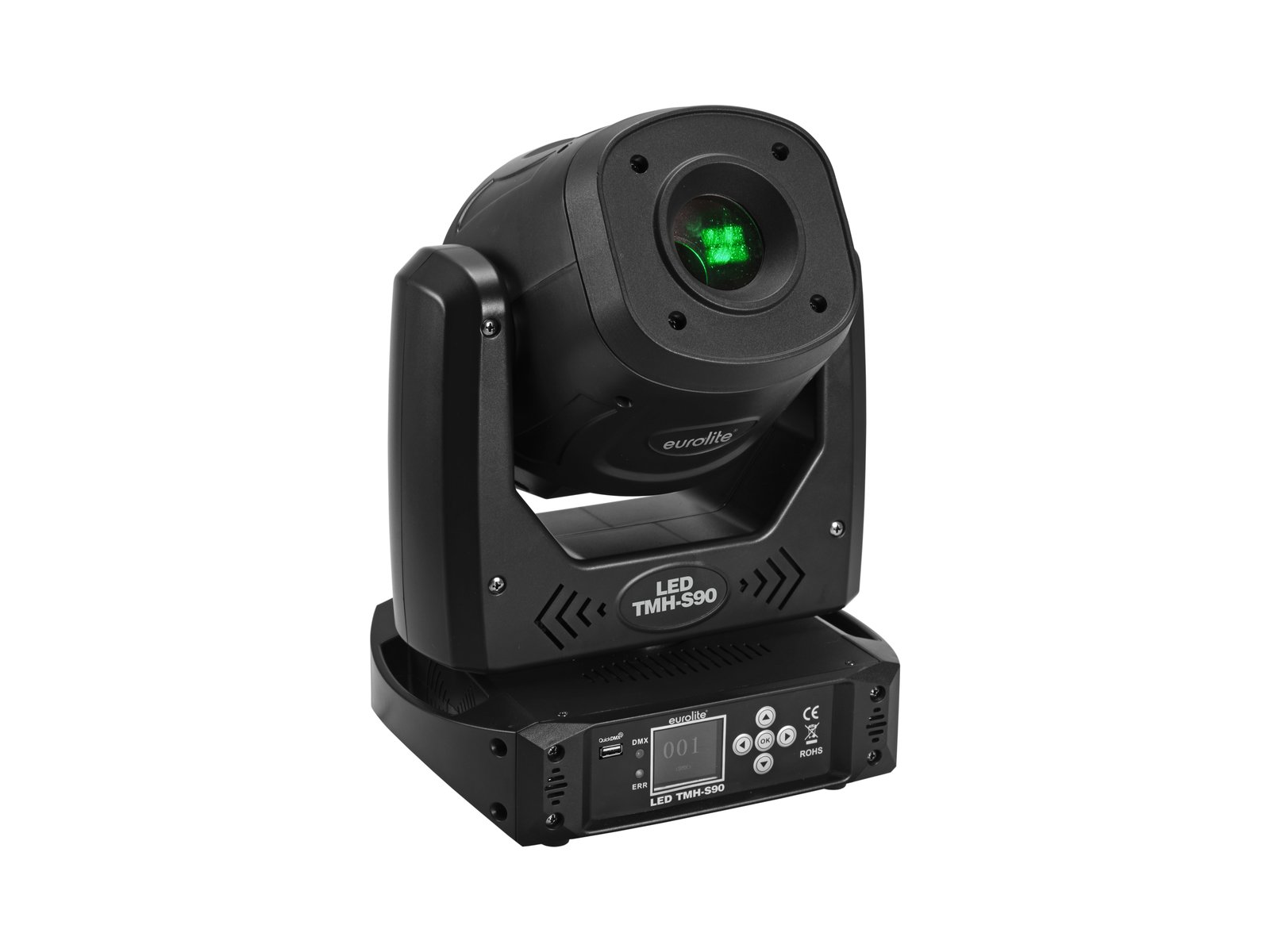

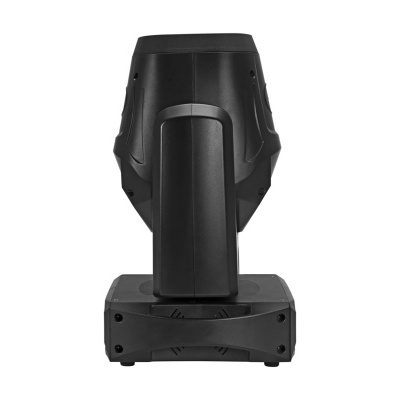

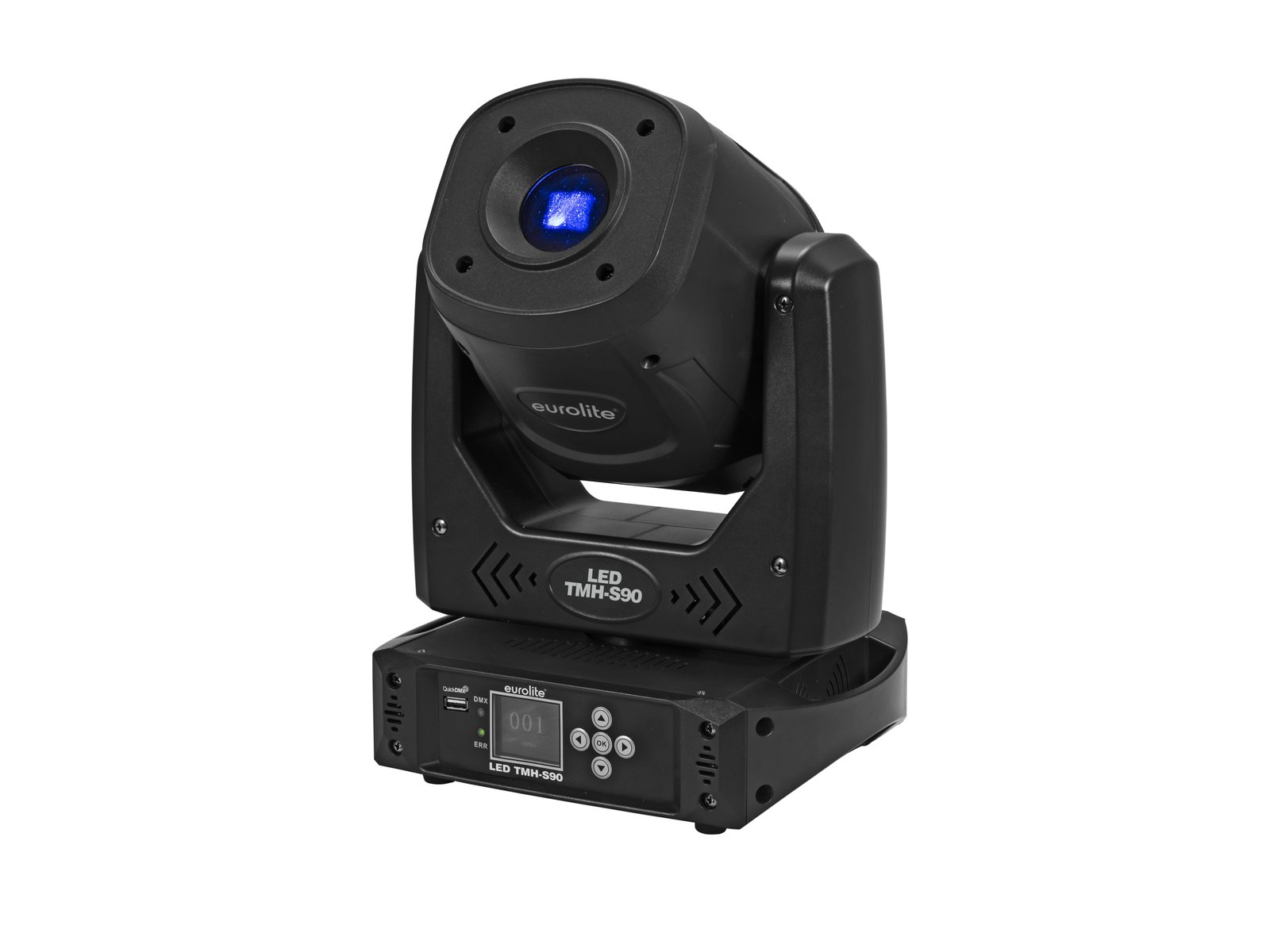

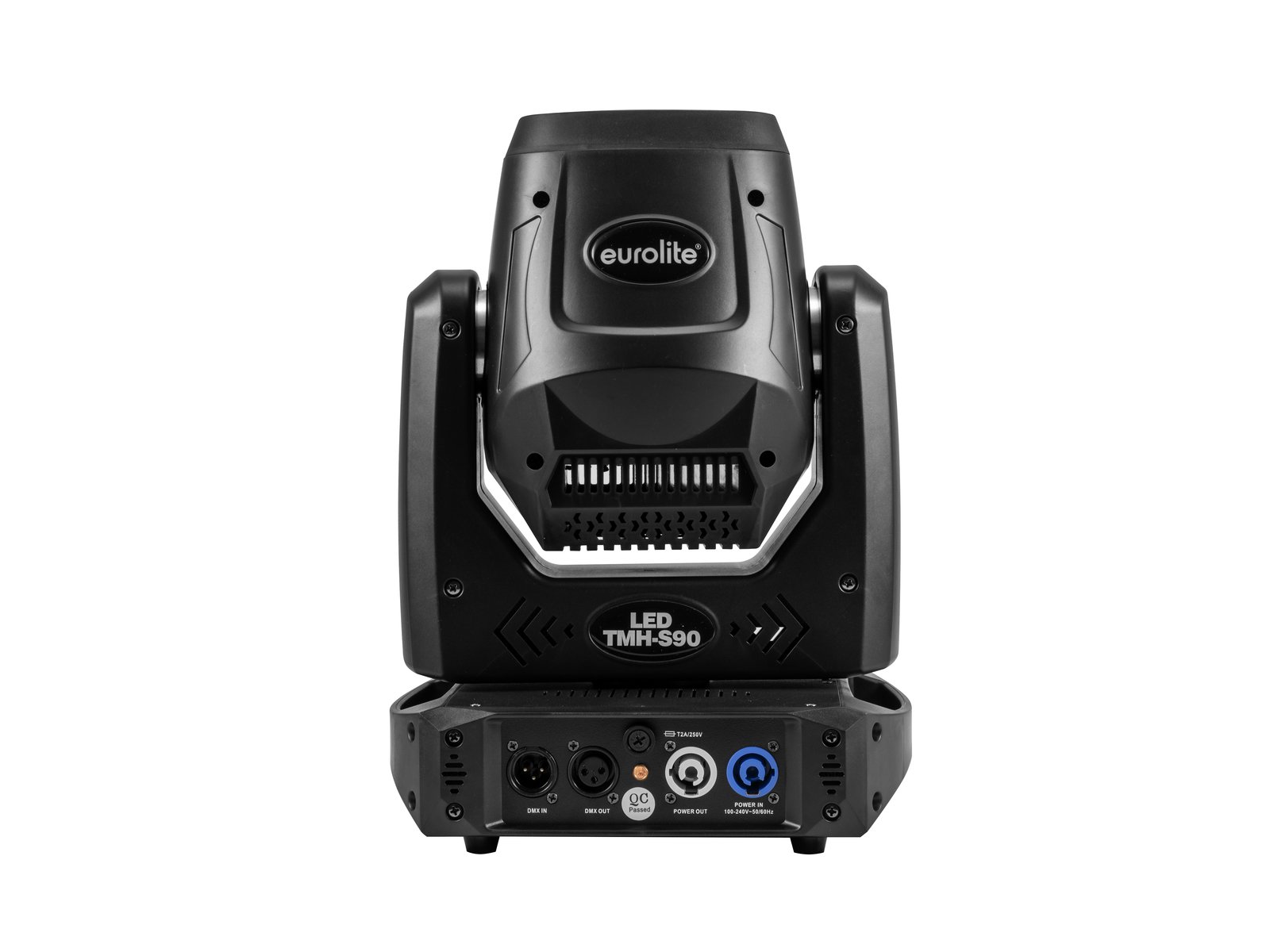

EUROLITE LED TMH-S90 Moving-Head Spot
SKU: 51786075
LED Moving Head spot with color wheel, static and rotating gobo wheel, prism and focus
- Rotating 3-facet prism with variable speed
- 1 powerful LED 90 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN and 200° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Prism 3-fold; gobo wheel with rotating gobos; gobo wheel with static gobos; Focus motor-driven; color wheel
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 6 gobos,1 multi color gobo and open
shake effect - Gobo wheel with rotating gobos, 6 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for easy gobo replacement
- Integrated show programs
- The device is cooled by cooling fan
- Control via DMX; Sound to light via Microphone; stand-alone; Master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
- Flicker-free
- With a beam angle of 12°
- Dimmer electronic
- Preprogrammed in EASY SHOW 1; Light Captain; EASY SHOW 3
- For application areas such as: Clubs/dancing school; Wedding/gala/events; Stage; mobile djs/entertainer
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 140 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A |
| Lamp type: | LED lamp |
| LED: | 1 x 90 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 200° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Flash rate: | 2 - 30 Hz |
| Equipment: | Prism 3-fold; gobo wheel with rotating gobos; gobo wheel with static gobos; Focus motor-driven; color wheel |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 6 gobos,1 multi color gobo and open Shake effect Gobo wheel with rotating gobos, 6 gobos and open Outside diameter 21,8mm Image diameter 16mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement |
| DMX channels: | 15 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; Sound to light via Microphone; stand-alone; Master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional) |
| Preprogrammed in: | EASY SHOW 1; Light Captain; EASY SHOW 3 |
| Beam angle: | 12° |
| Beam angle (1/2 peak): | 12° |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 52772 lx, 3m: 6198 lx, 6m: 1543 lx |
| Housing color: | Black |
| Dimensions: | Width: 25,0 cm Depth: 20,5 cm Height: 35,0 cm |
| Weight: | 6,20 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Photobiological safety: | Risk Group 0 |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
