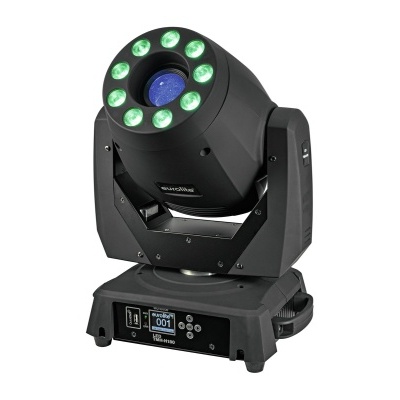

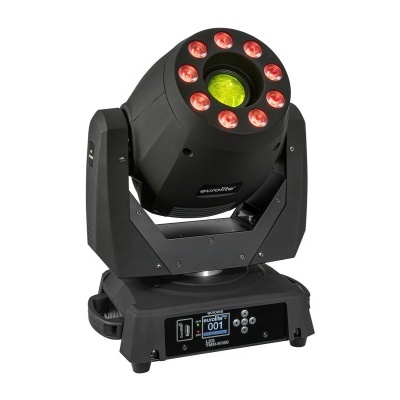

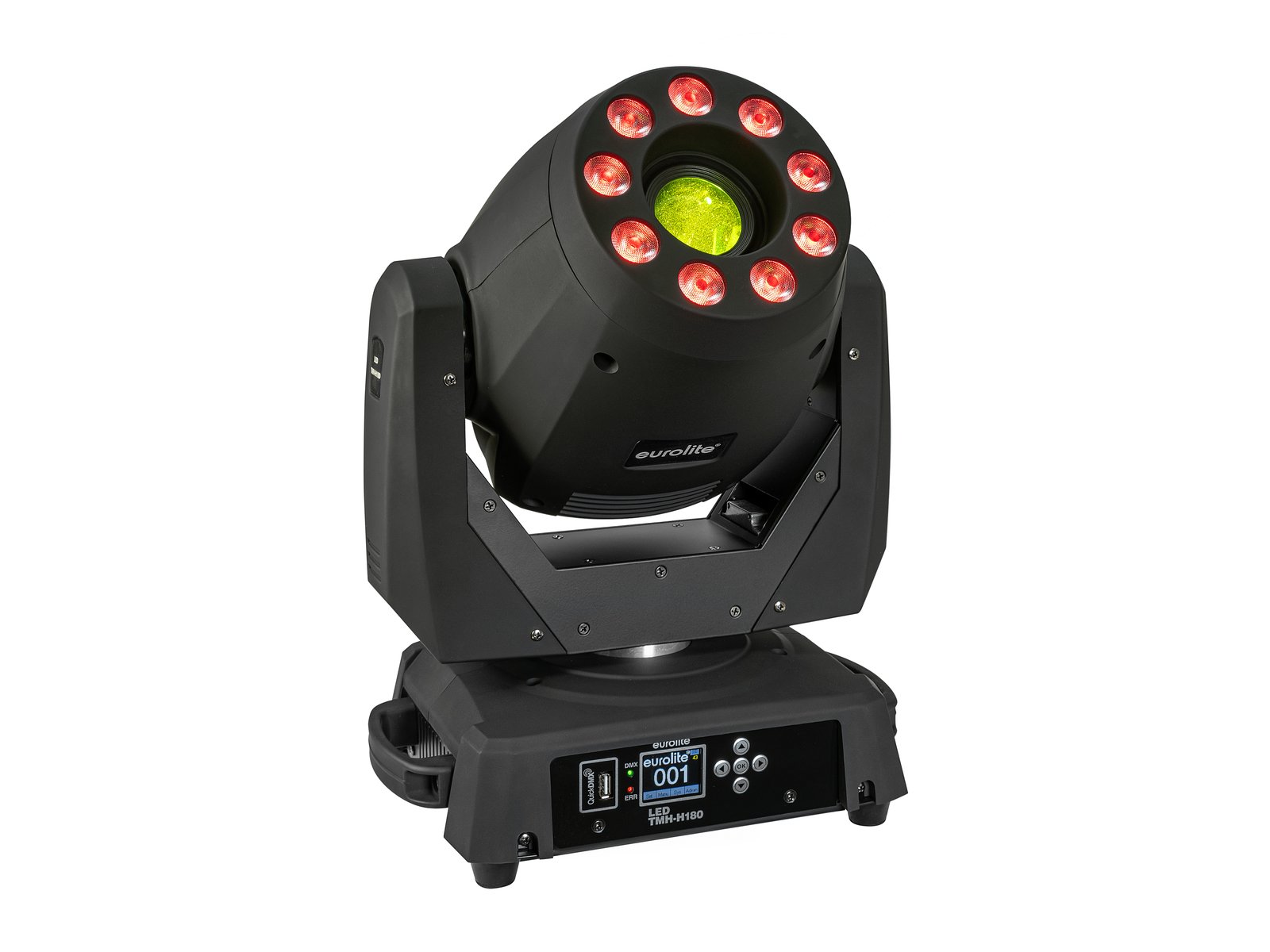

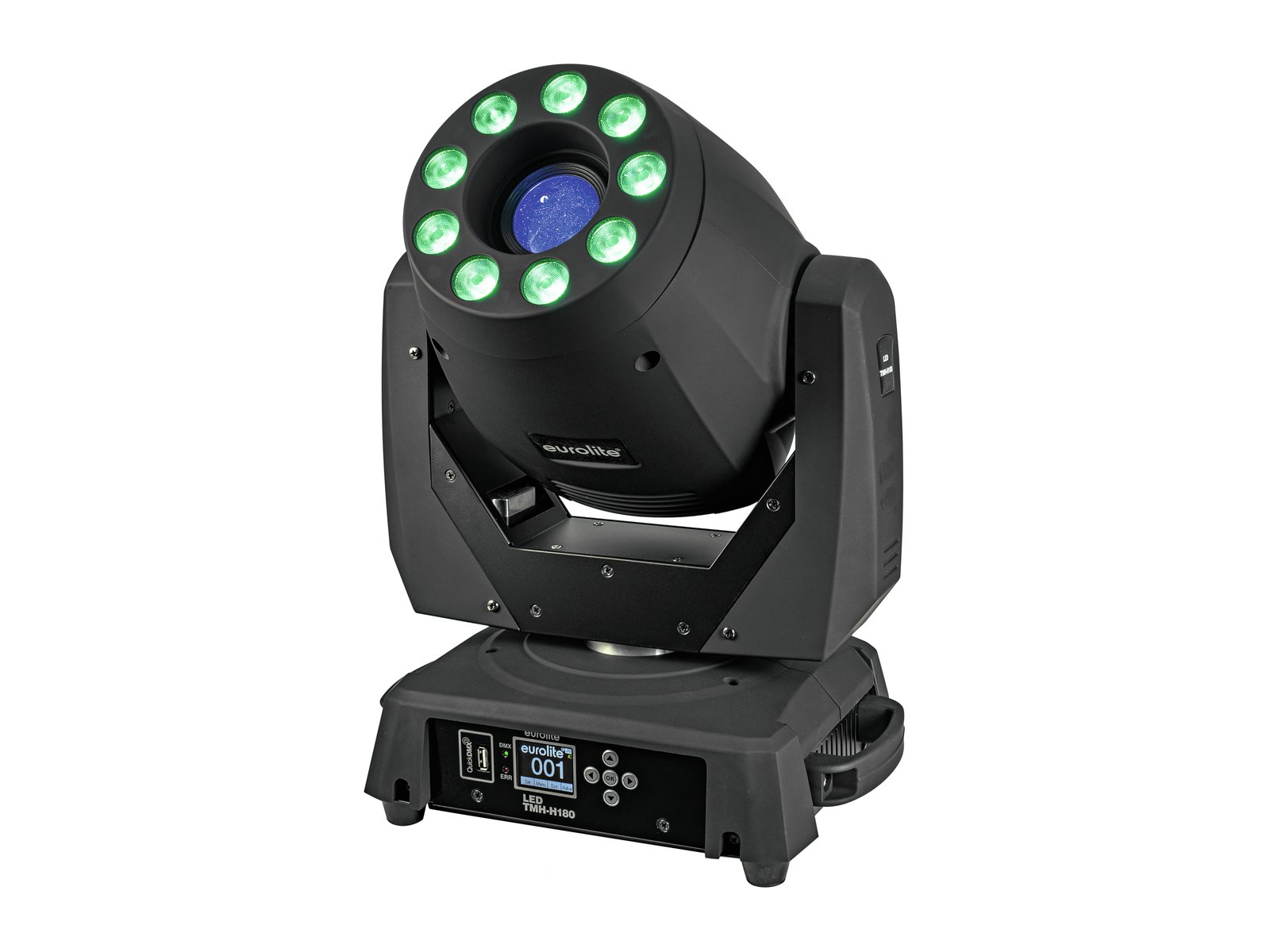

EUROLITE LED TMH-H180 Hybrid Moving-Head Spot/Wash COB
SKU: 51786085
LED Moving Head hybrid spot/wash with rotating gobos, color wheel, prism and QuickDMX port
- Bright spotlight and full-fledged washlight in one device

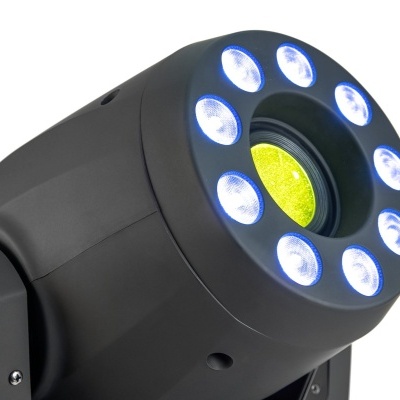

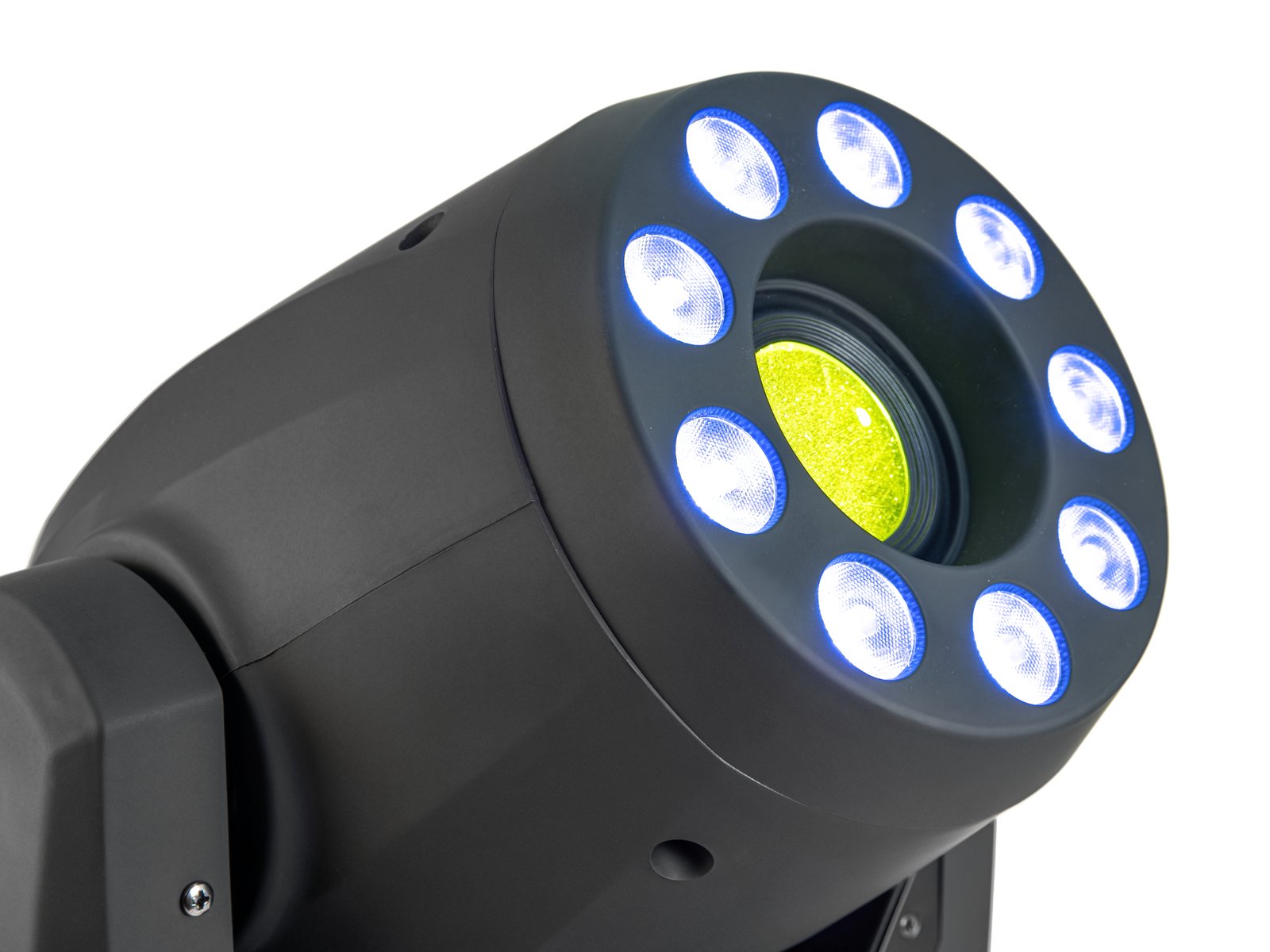

- 1 powerful LED 200 W COB (chip-on-board) cold white (CW)
- 9 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
- Positioning within 540° PAN and 220° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Prism 3-fold rotating; Focus motor-driven; gobo wheel with rotating gobos
- Color wheel with 8 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
Slot-in gobo system for easy gobo replacement - Shake effect
- Integrated show programs
- The device is cooled by temperature-controlled fan
- Preprogrammed in Light Captain; LED PC-Control 512
- Flicker-free
- With a beam angle of 10°
- Multicolor LCD display
- Dimmer electronic
- Control via stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function
- Gobo effect; Strobe effect
- With Omega bracket
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; Stage; Rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 280 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

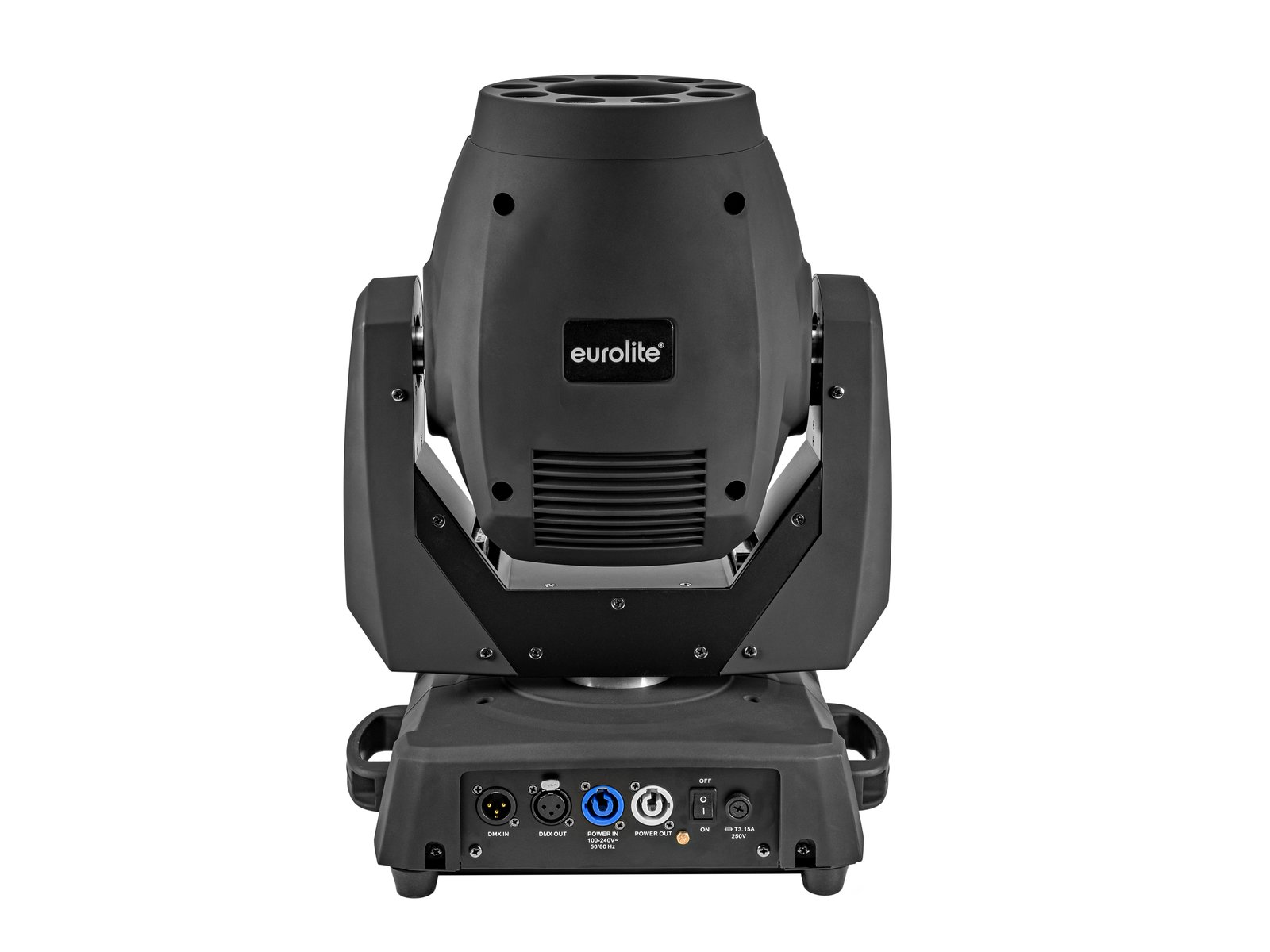

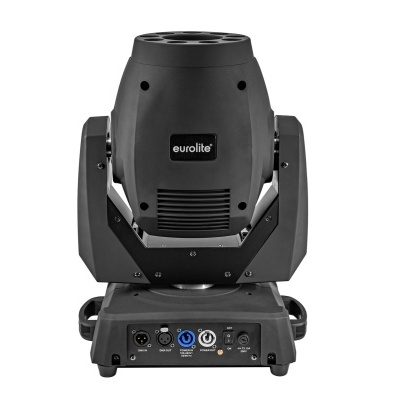

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 3,15 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x 200 W COB (chip-on-board) cold white (CW) 9 x 8 W high-power 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | 220° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Flash rate: | 1 - 20 Hz |
| Equipment: | Prism 3-fold rotating; Focus motor-driven; gobo wheel with rotating gobos |
| Color generation: | Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 24mm Image diameter 16mm Slot-in gobo system for easy gobo replacement Shake effect |
| DMX channels: | 21; 23 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function |
| Preprogrammed in: | Light Captain; LED PC-Control 512 |
| Beam angle: | 10° |
| Beam angle (1/2 peak): | Spot 10° Wash effect 14° |
| Beam angle (1/10 peak): | Wash effect 30° |
| Illuminance in Lux (lx): | Spot cold white (CW) 3m: 21934 lx, 6m: 5598 lx Wash effect red (R) 1m: 1430 lx, 3m: 160 lx, 6m: 41 lx Wash effect green (G) 1m: 1495 lx, 3m: 171 lx, 6m: 41 lx Wash effect blue (B) 1m: 604 lx, 3m: 66 lx, 6m: 17 lx Wash effect cold white (CW) 1m: 4241 lx, 3m: 481 lx, 6m: 123 lx Wash effect all 1m: 7407 lx, 3m: 829 lx, 6m: 206 lx |
| Housing color: | Black |
| Attachment system: | 2x Omega bracket |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 32,0 cm Depth: 22,5 cm Height: 45,0 cm |
| Weight: | 12,00 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
