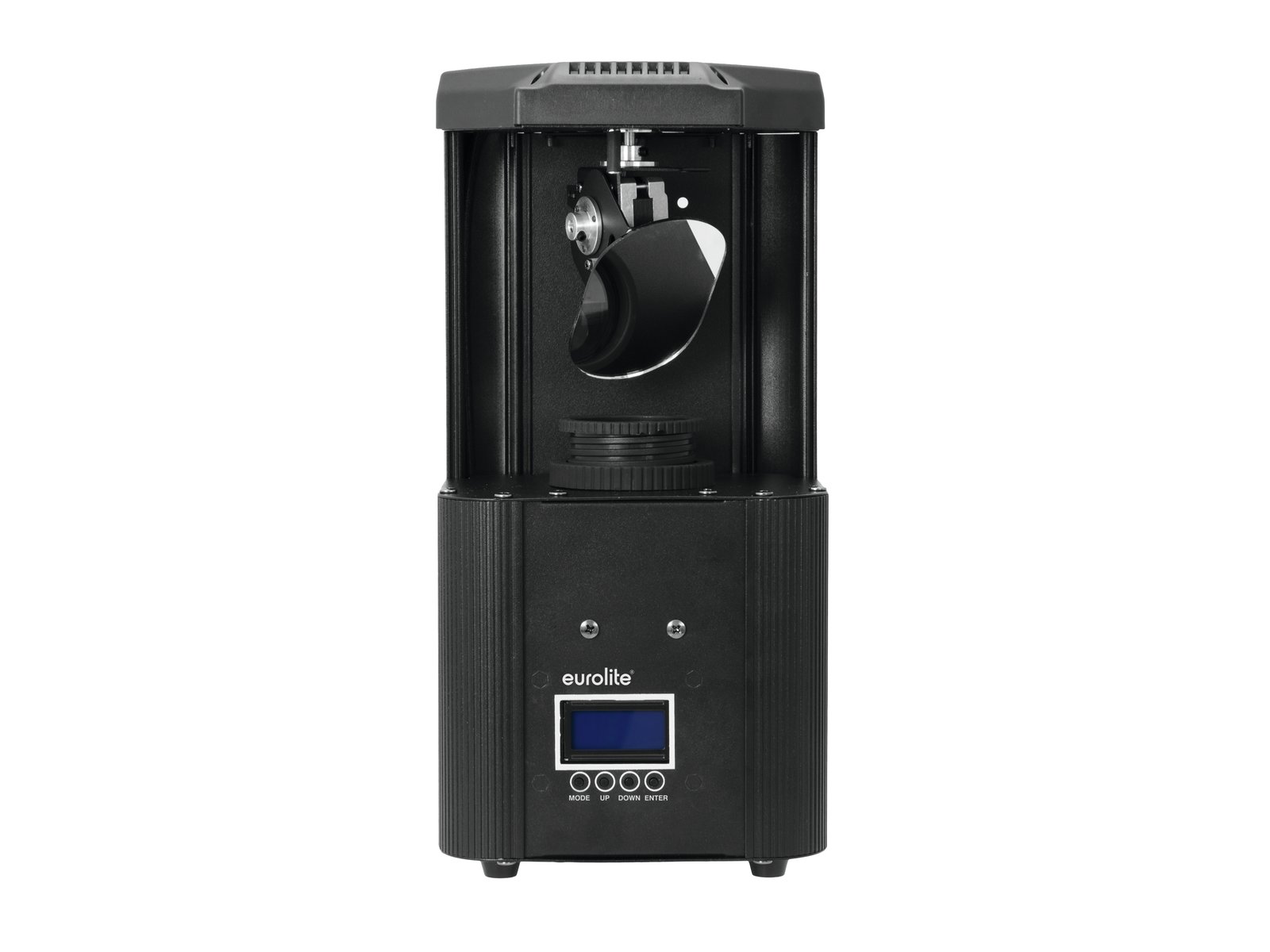

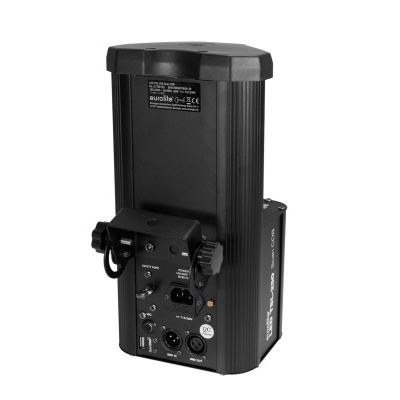

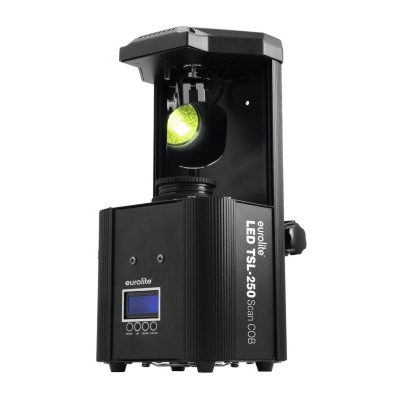

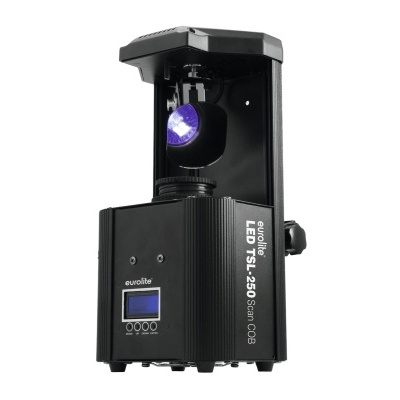

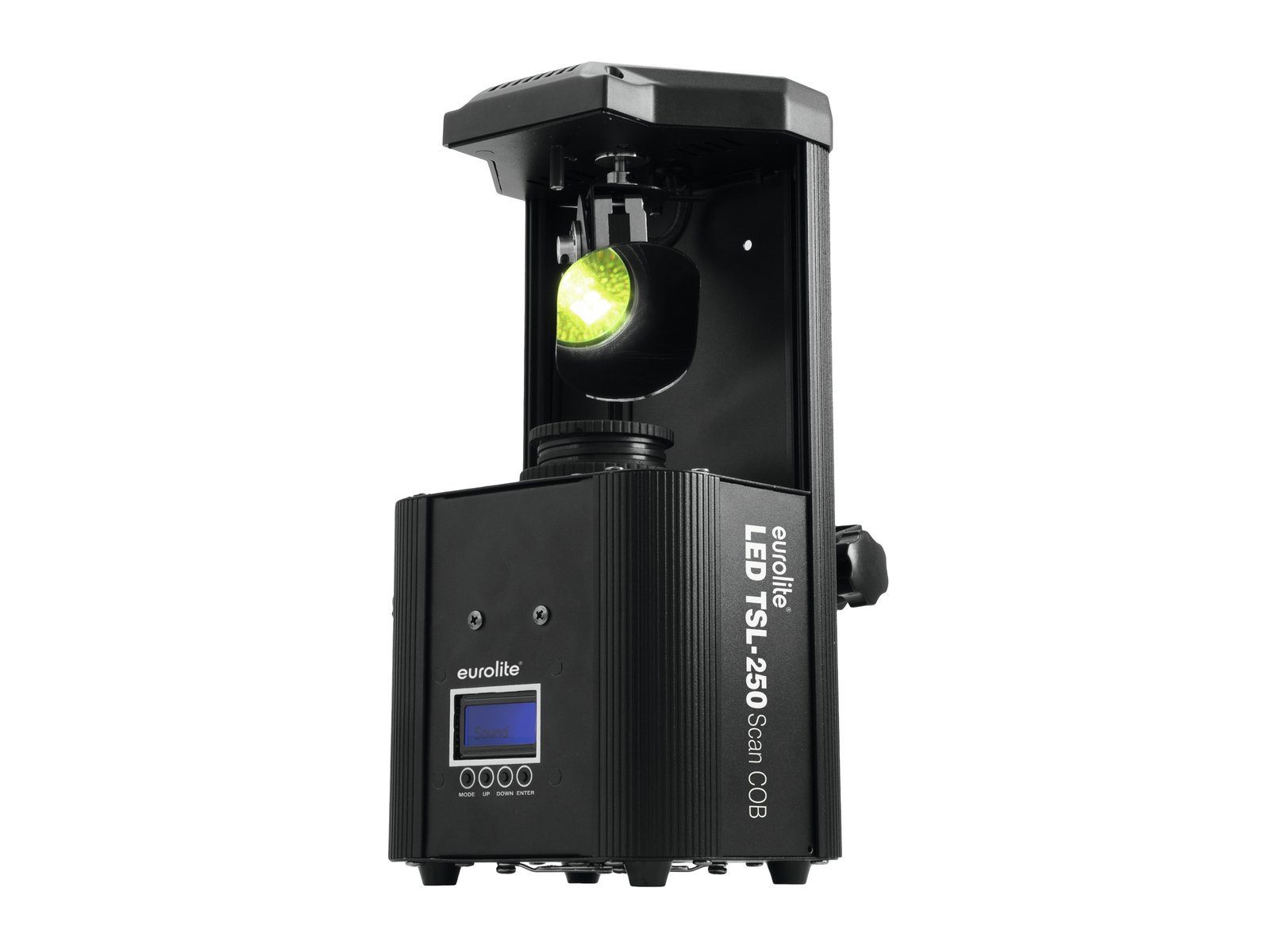

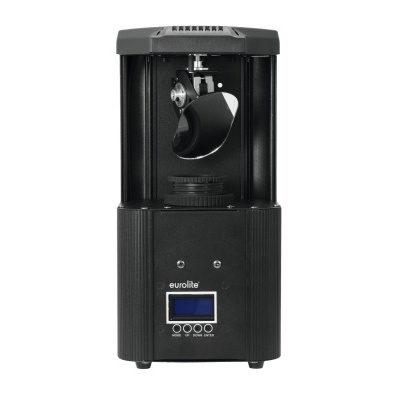

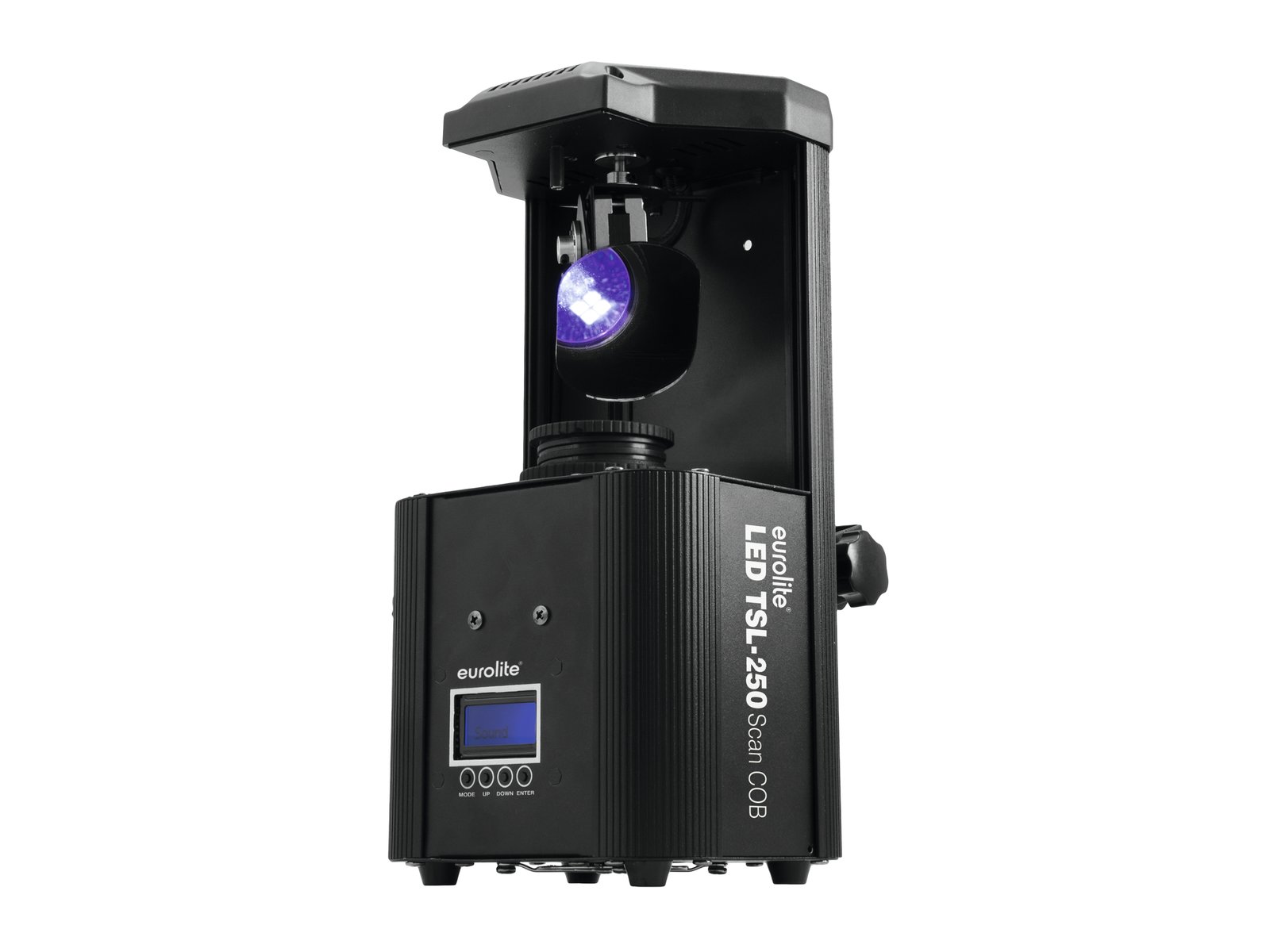

EUROLITE LED TSL-250 Scan COB
SKU: 51786125
Handy scanner with 30 W LED, rotating gobo and color wheel
- Compact design
- 1 powerful LED 30 W COB (chip-on-board)
- Positioning within PAN and TILT
- Color wheel; gobo wheel with rotating gobos; Focus manual
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
gobos changeable - Slot-in gobo system for easy gobo replacement
- Shake effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 9°
- LCD display
- Dimmer electronic
- Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
- Rubber feet
- For application areas such as: Clubs/dancing school; Party room; mobile djs/entertainer
- Application possibility: Standing; suspended; on tripod
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x mounting bracket, 2 x screw
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 65 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x 30 W COB (chip-on-board) |
| Equipment: | Color wheel; gobo wheel with rotating gobos; Focus manual |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 14mm Image diameter 10mm Gobos changeable Slot-in gobo system for easy gobo replacement Shake effect |
| DMX channels: | 10 |

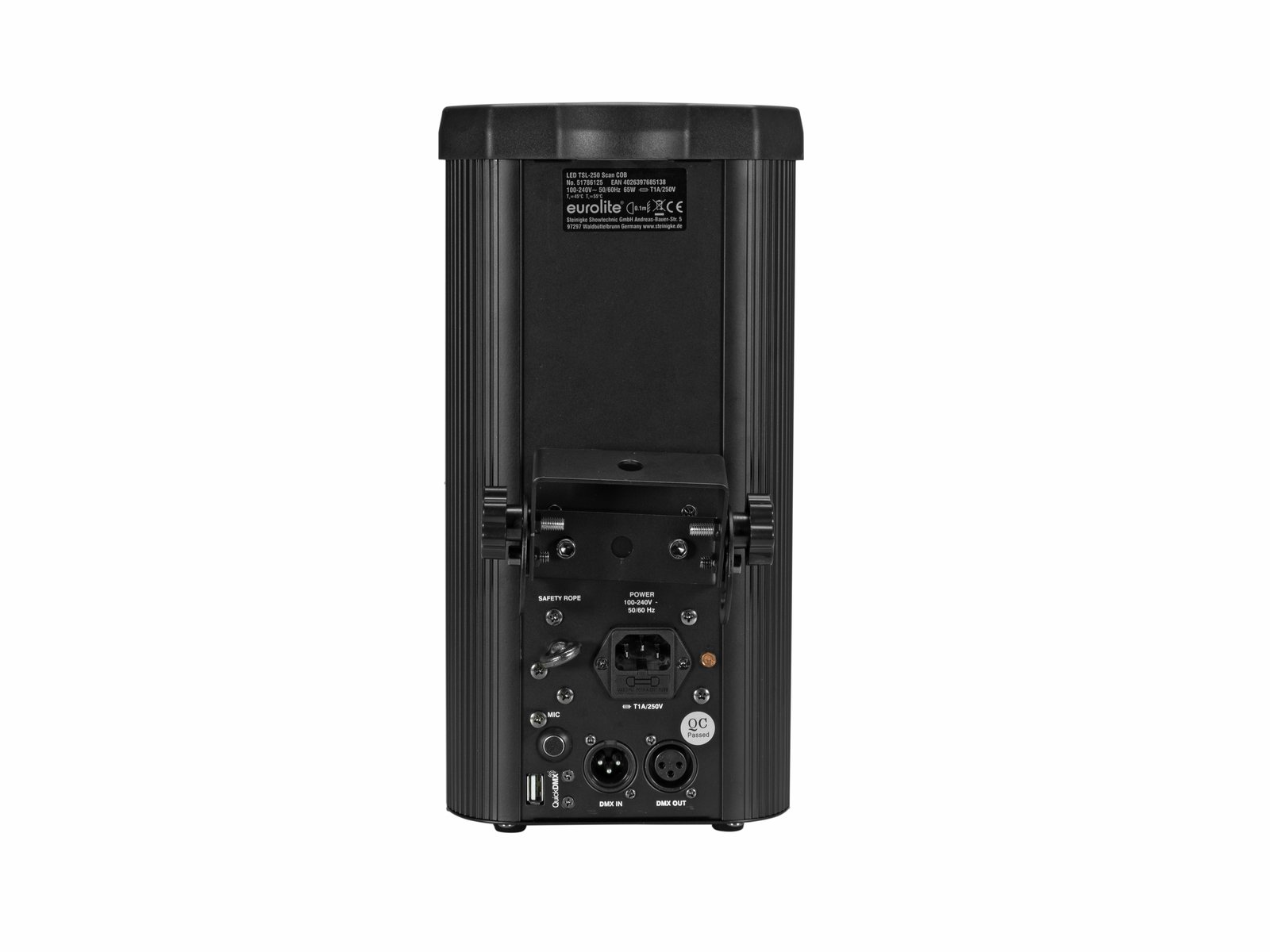

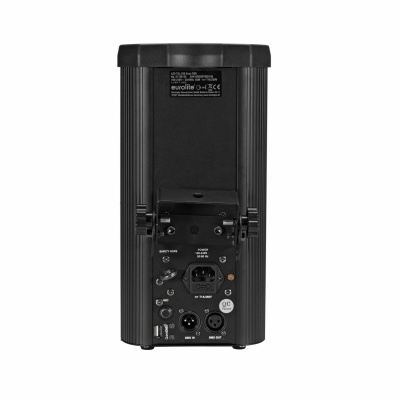

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 9° |
| Beam angle (1/2 peak): | 9° |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 9123 lx, 3m: 955 lx, 6m: 149 lx |
| Housing color: | Black |
| Display type: | LCD display |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 16,0 cm Depth: 15,0 cm Height: 33,0 cm |
| Weight: | 3,16 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
