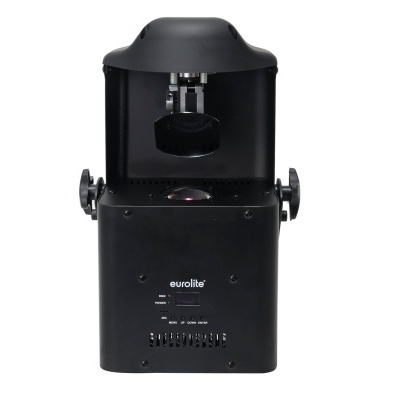

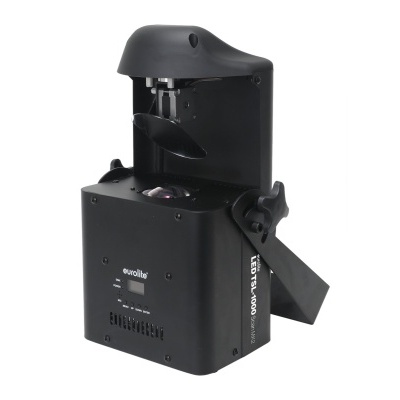

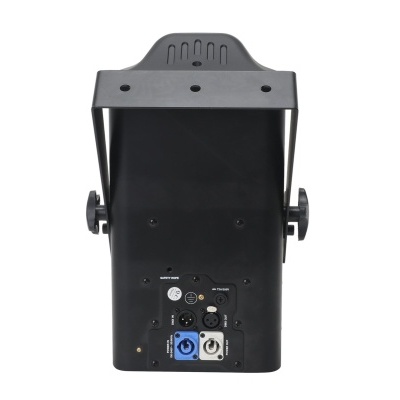

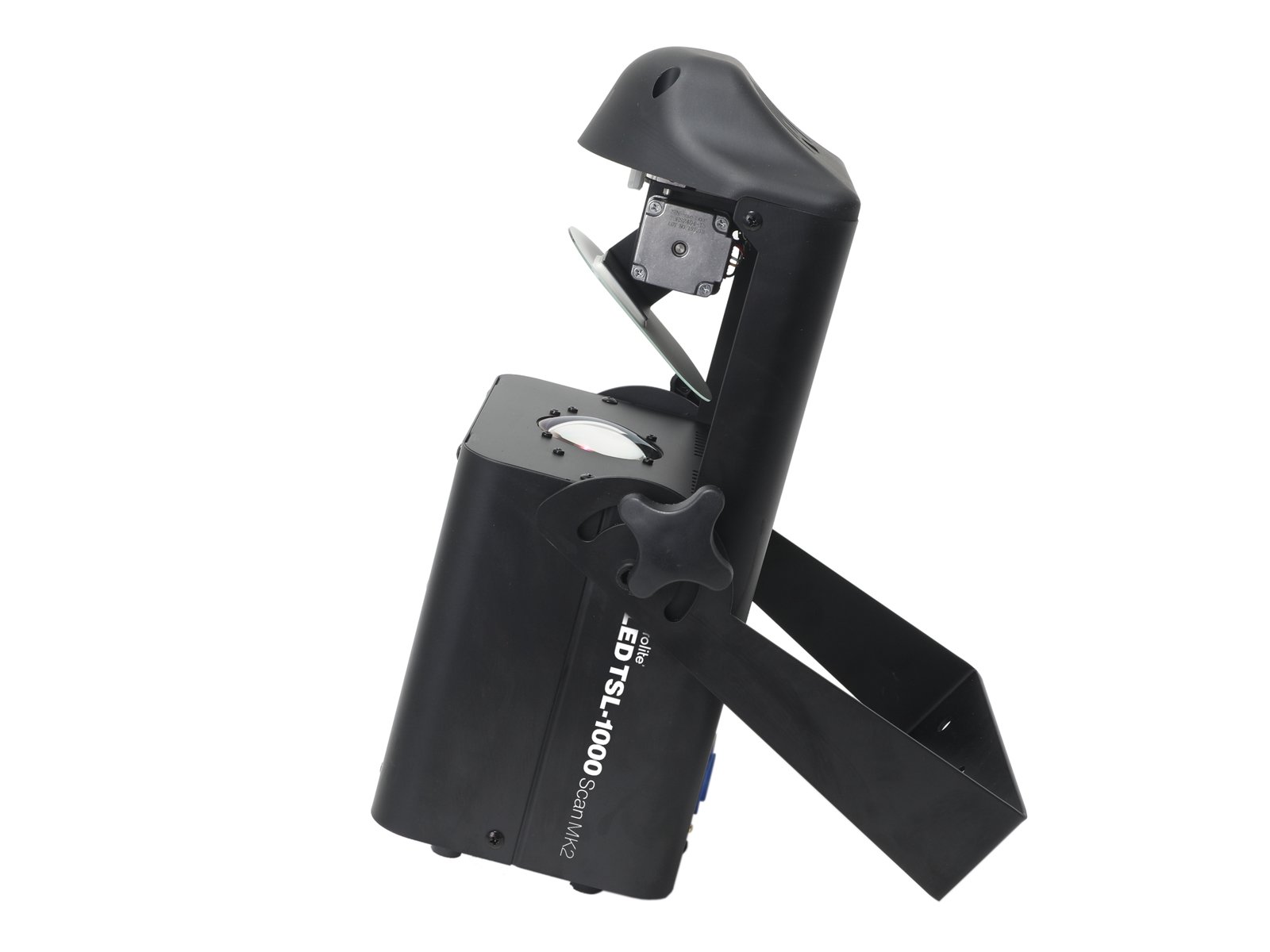

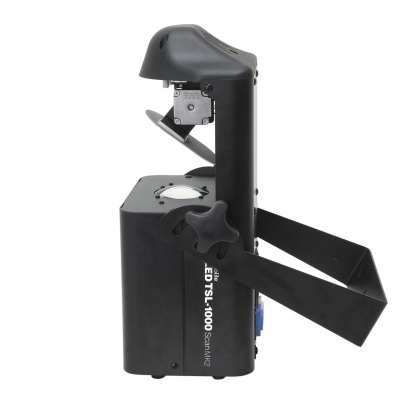

EUROLITE LED TSL-1000 Scan MK2
EUROLITE LED TSL-1000 Scan MK2
EUROLITE LED TSL-1000 Scan MK2
EUROLITE LED TSL-1000 Scan MK2
EUROLITE LED TSL-1000 Scan MK2
EUROLITE LED TSL-1000 Scan MK2

EUROLITE LED TSL-1000 Scan MK2

SKU: 51786126



Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus

  • Note: The macro programs of the predecessor model (no. 51786122) are not identical, therefore no synchronous master/slave operation is possible between these devices.
  • 1 powerful LED 100 W COB (chip-on-board) cold white (CW)
  • Positioning within 160° PAN and 50° TILT
  • Exact positioning (16 bit resolution)
  • Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold
  • Gobo effect; Strobe effect
  • Color wheel with 8 dichroic filters plus open
    half colors selectable, Rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 7 gobos and open
    shake effect
  • Gobos changeable
  • Slot-in gobo system for easy gobo replacement
  • Integrated show programs
  • The device is cooled by cooling fan
  • Control via stand-alone; DMX; Master/slave function; Sound to light via Microphone
  • Flicker-free
  • With a beam angle of 20°
  • OLED display
  • Dimmer electronic
  • Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
  • Rubber feet
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; Wedding/gala/events; mobile djs/entertainer; Rental
  • Application possibility: Standing; suspended; on tripod

Package contents

  • 1 x light effect, 1 x user manual, 1 x power cord, 1 x safety eyelet


Power supply:100-240 V AC, 50/60 Hz
Power consumption:110 W
IP classification:IP20
Protection class:Protection class I
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:P-Con (gray), mounting version
Fuse:5 x 20 mm, T 4 A Fuse replaceable
Lamp type:LED lamp
LED:1 x 100 W COB (chip-on-board) cold white (CW)
Color temperature:8000K
Max. TILT movement:50° Exact positioning (16 bit resolution)
Max. PAN movement:160° Exact positioning (16 bit resolution)
Flash rate:1 - 25 Hz
Equipment:Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold
Color generation:Color wheel with 8 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:Gobo wheel with rotating gobos, 7 gobos and open
Shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
DMX channels:10; 15
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Stand-alone; DMX; Master/slave function; Sound to light via Microphone
Preprogrammed in:Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:20°
Beam angle (1/2 peak):20°
Illuminance in Lux (lx):Cold white (CW) 1m: 35679 lx, 3m: 4265 lx, 6m: 1055 lx
Housing color:Black
Display type:OLED display
Transport aid:Rubber feet
Dimensions:Width: 25,1 cm
Depth: 14,1 cm
Height: 37,7 cm
Weight:5,75 kg
Noise classification:Class 2 (slight noise)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
