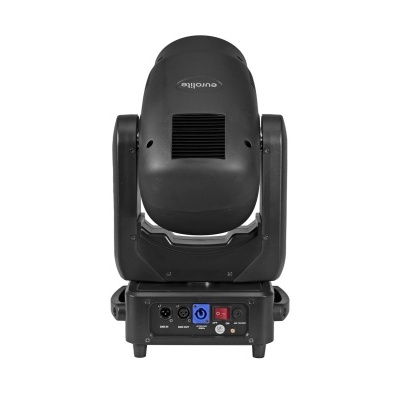

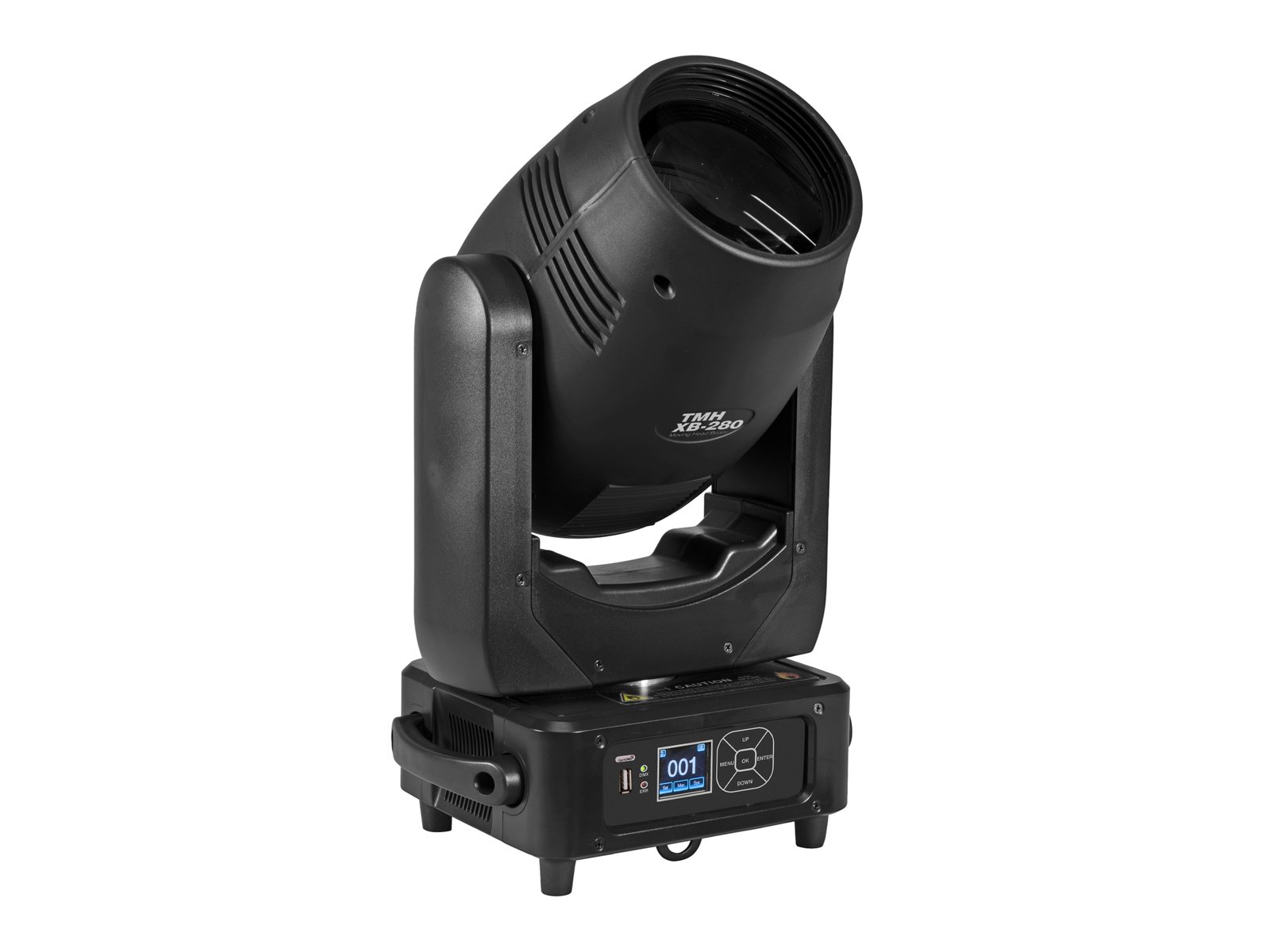

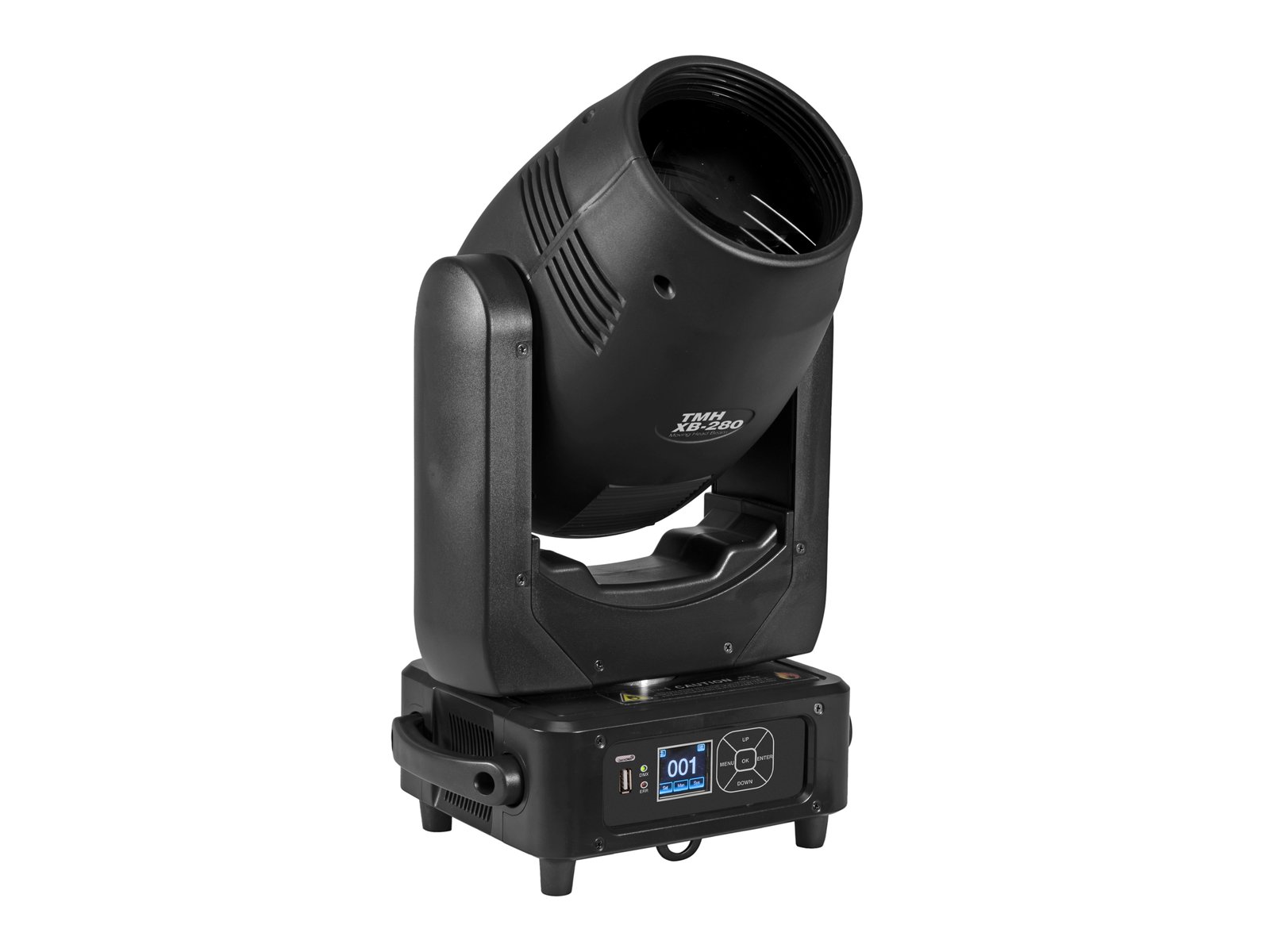

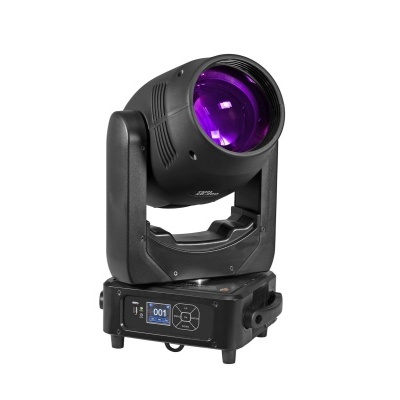

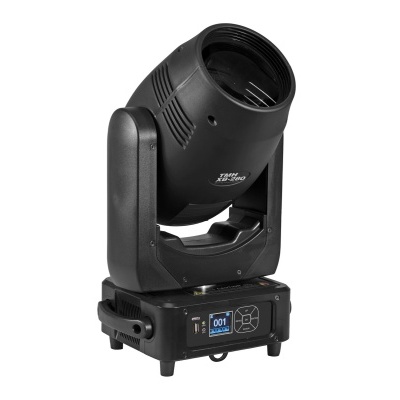

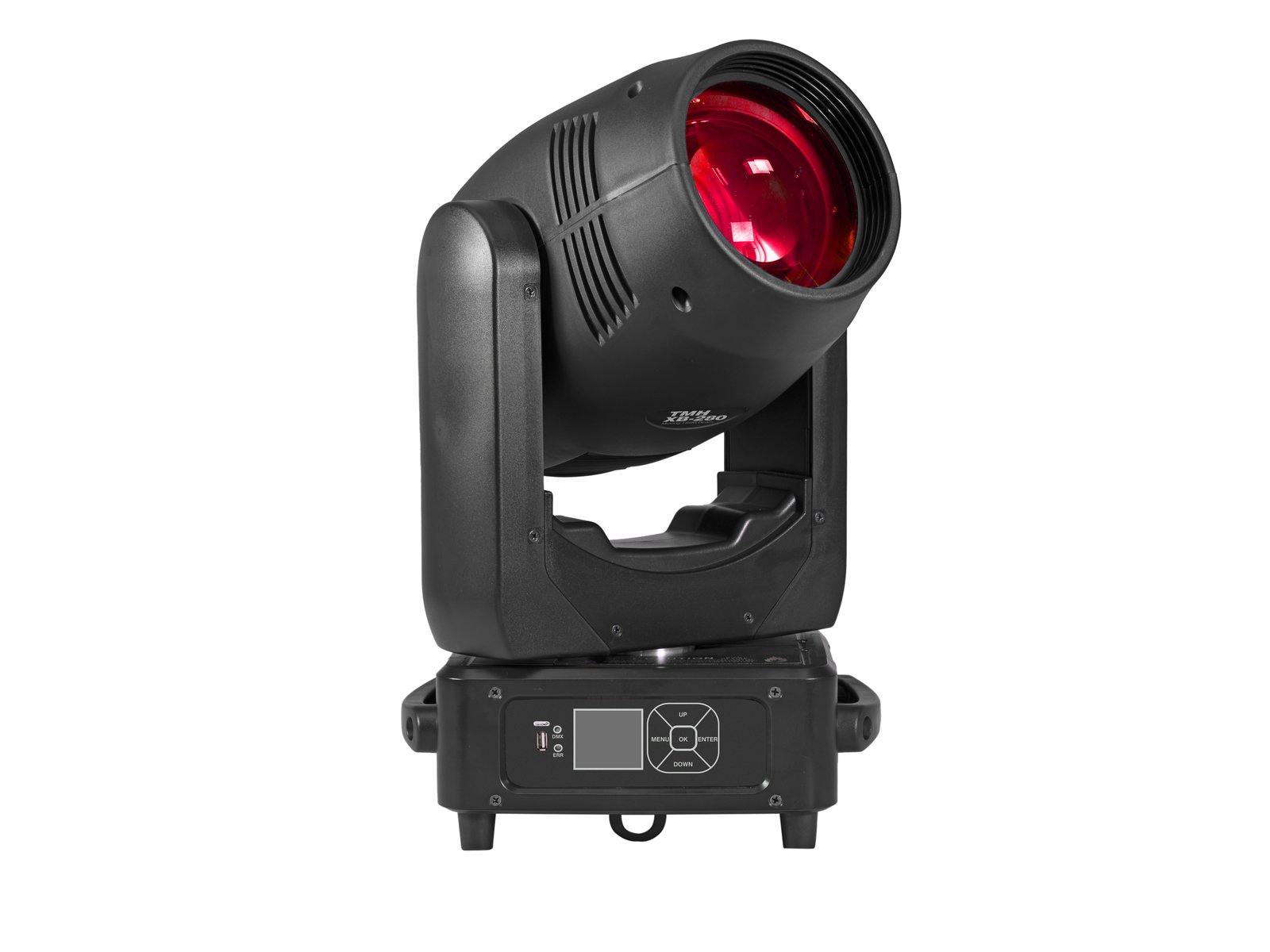

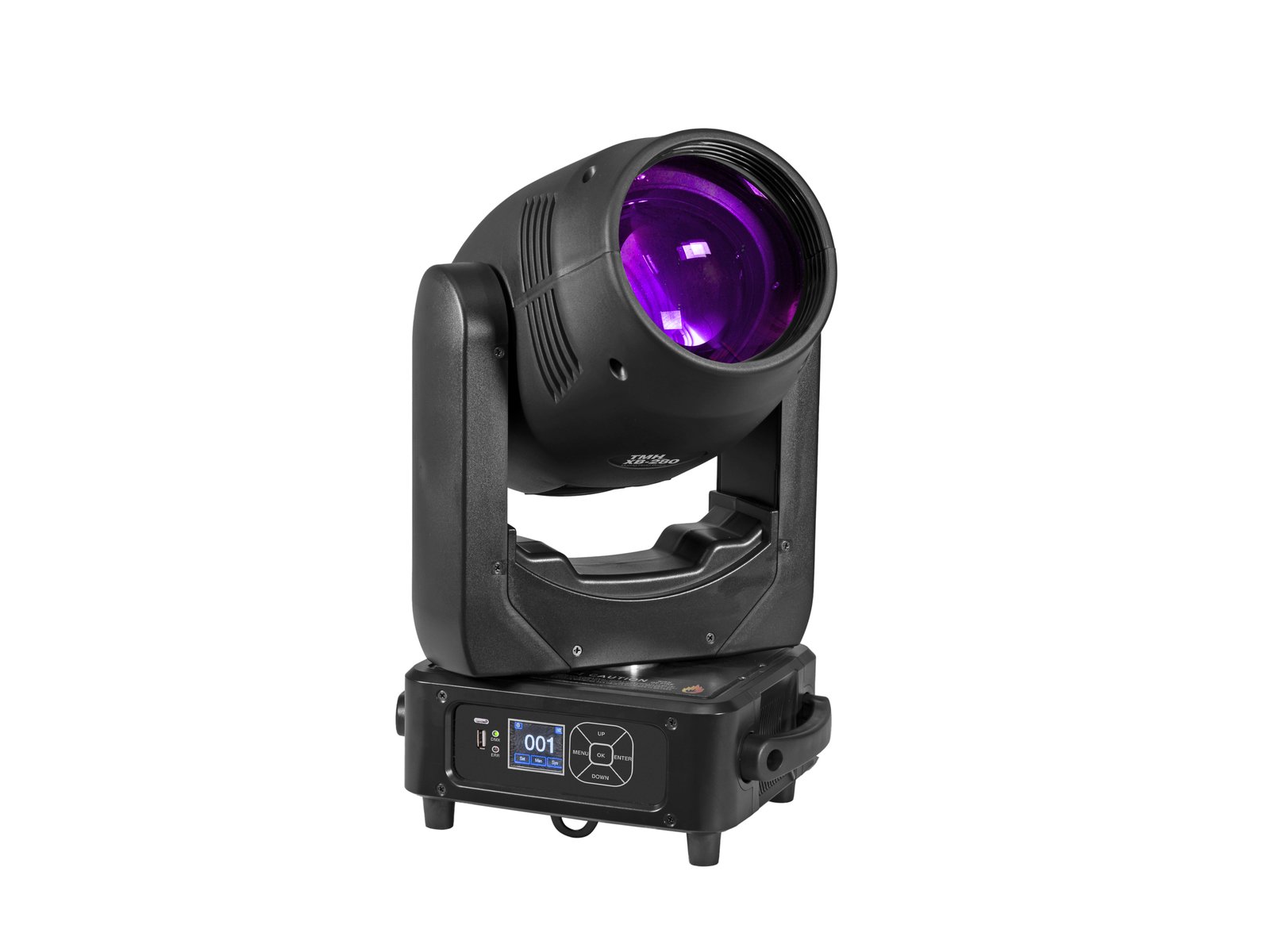

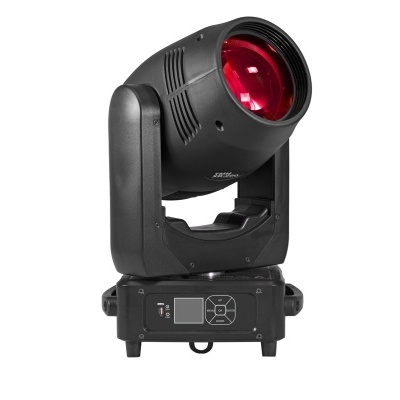

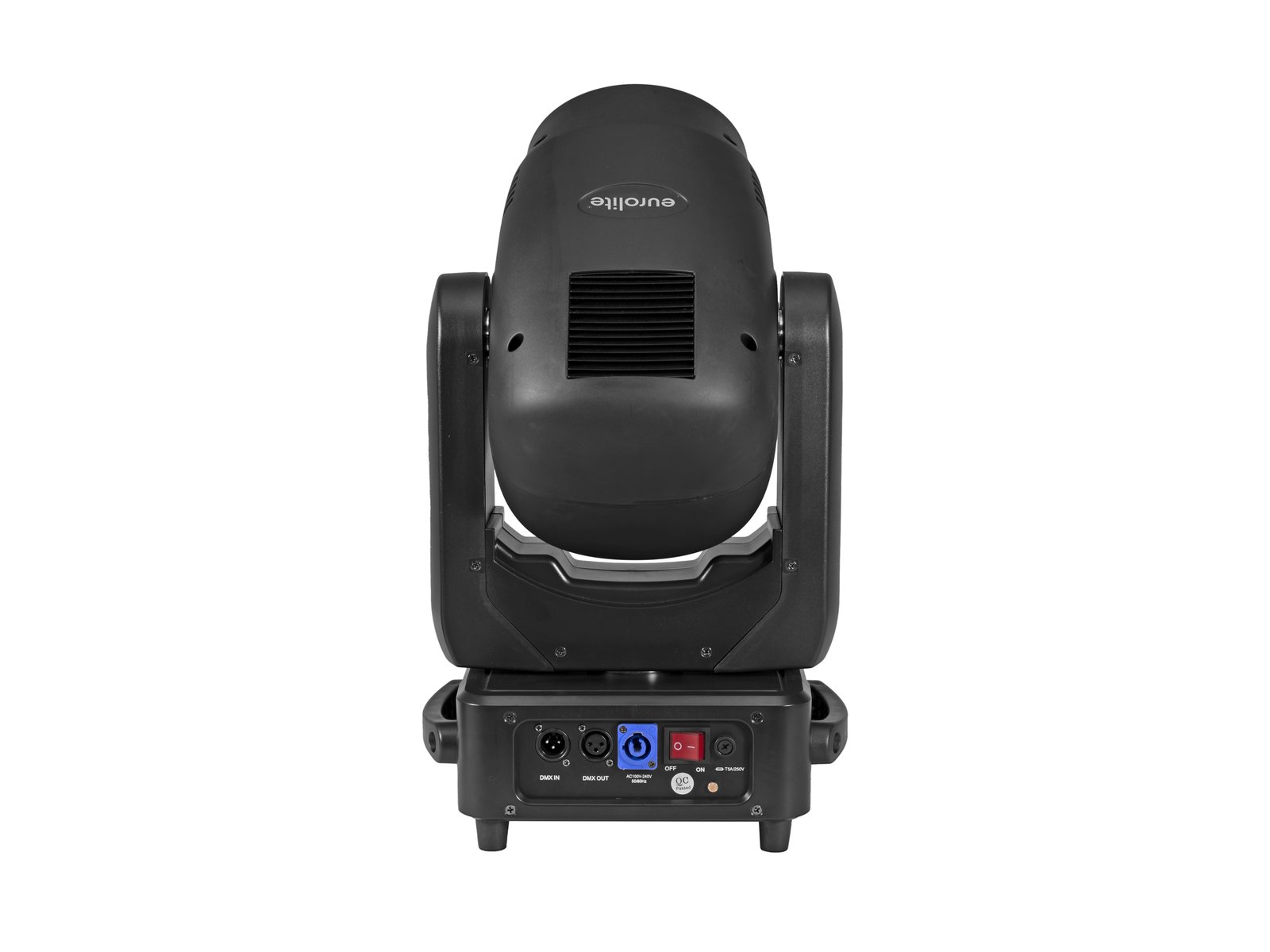

EUROLITE TMH XB-280 Moving-Head-Beam
SKU: 51786825
Bright, narrow beam with OSD 10 280W discharge lamp, color wheel, gobos and prisms
- Equipped with an OSD 10 Reflector 280W discharge lamp
- Positioning within 540° PAN and 270° TILT
- Exact positioning (16 bit resolution)
- Color wheel; Focus motor-driven; gobo wheel with static gobos; frost filter; Prism 8-fold rotating; Prism 24-fold rotating
- Color wheel with 14 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 13 gobos und open
shake effect - The device is cooled by cooling fan
- Control via DMX; stand-alone; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- With a beam angle of 2°
- Multicolor LCD display
- Dimmer electronic
- Strobe effect
- Preprogrammed in LED PC-Control 512; Light Captain
- For application areas such as: Clubs/dancing school; Stage; Rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 385 W |
| IP classification: | IP20 |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Fuse: | T 5 A Fuse replaceable |
| Lamp type: | Discharge lamp |
| Max. TILT movement: | 270° Exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) |
| Flash rate: | 1 - 18 Hz |
| Equipment: | Color wheel; Focus motor-driven; gobo wheel with static gobos; frost filter; Prism 8-fold rotating; Prism 24-fold rotating |
| Color generation: | Color wheel with 14 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 13 gobos und open Shake effect |
| DMX channels: | 16; 19 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | LED PC-Control 512; Light Captain |
| Beam angle: | 2° |
| Beam angle (1/2 peak): | 2° |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 30,0 cm Depth: 20,5 cm Height: 50,5 cm |
| Weight: | 14,80 kg |
| Noise classification: | Class 4 (loud noises) |
