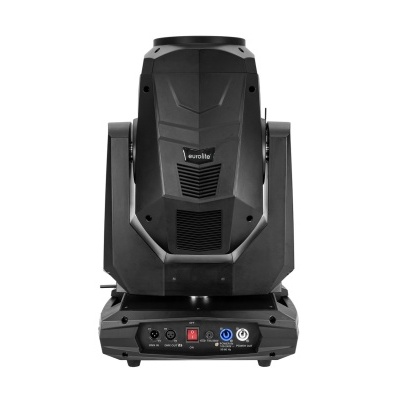

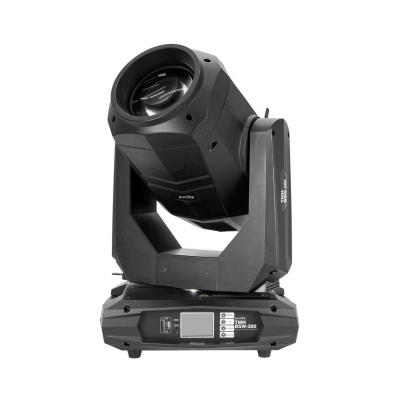

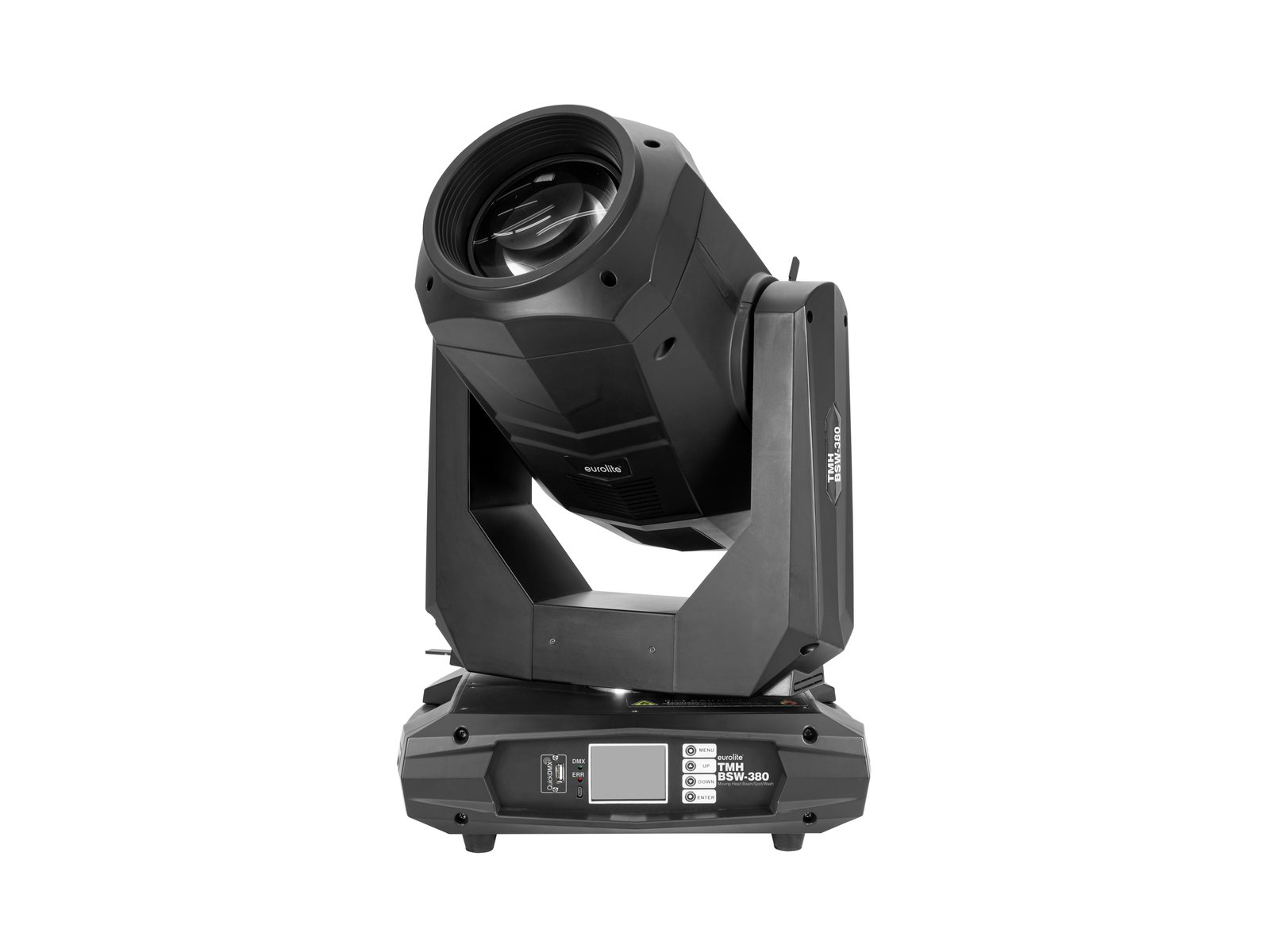

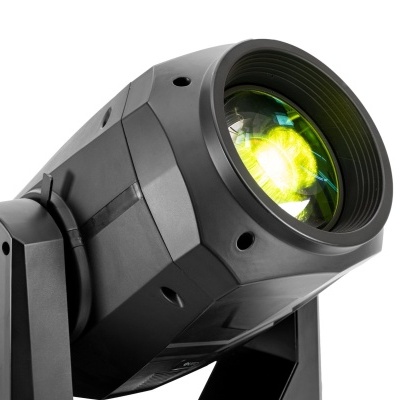

EUROLITE TMH BSW-380 Moving-Head Beam/Spot/Wash
SKU: 51786850
Beam/spot/wash moving-head with 371W discharge lamp, color wheel, gobo wheels, prisms, frost, focus and zoom
- Beam effect; spot effect; Wash effect
- Light source: Osram Sirius HRI 371W discharge lamp
- Lamp installed and adjusted ex factory
- Additional frost filter provides a wide, soft and homogeneous light
- Positioning within 540° PAN and 230° TILT
- Auto position correction (feedback)
- Exact 16 bit resolution at zoom, focus
- Exact positioning (16 bit resolution)
- Prism 16-fold; Prism 8-fold rotating; Prism 16-fold rotating; gobo wheel with static gobos; gobo wheel with rotating gobos; Focus motor-driven; Zoom motor-driven; frost filter; Dimmer
- Color wheel with 13 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Slot-in gobo system for easy gobo replacement
- Gobos changeable
- Gobo wheel with static gobos, 11 gobos and open
shake effect - Gobo wheel with static gobos, 5 gobos and open
shake effect - Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- With a beam angle of 4° - 35°
- Multicolor LCD display,
with battery buffering for easy controlling - Mains input and output for power linking up to 4 units
- Color animations; patterns
- Preprogrammed in Light Captain
- For application areas such as: Clubs/dancing school; Stage; Rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 490 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 8 A |
| Lamp type: | Discharge lamp |
| Max. TILT movement: | 230° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Flash rate: | 1 - 18 Hz |
| Equipment: | Prism 16-fold; Prism 8-fold rotating; Prism 16-fold rotating; gobo wheel with static gobos; gobo wheel with rotating gobos; Focus motor-driven; Zoom motor-driven; frost filter; Dimmer |
| Color generation: | Color wheel with 13 dichroic filters plus open Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Shake effect Outside diameter 22,5mm Image diameter 12mm Slot-in gobo system for easy gobo replacement Gobos changeable Gobo wheel with static gobos, 11 gobos and open Shake effect Gobo wheel with static gobos, 5 gobos and open Shake effect |
| DMX channels: | 22; 26 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain |
| Beam angle: | 4° - 35° |
| Beam angle (1/2 peak): | Spot 4 - 35° |
| Beam angle (1/10 peak): | Spot 4 - 35° |
| Housing color: | Black |
| Display type: | Multicolor LCD display battery buffering |
| Use of brands: | OSRAM bulb included |
| Dimensions: | Width: 39,5 cm Depth: 30,5 cm Height: 63,0 cm |
| Weight: | 22,70 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
