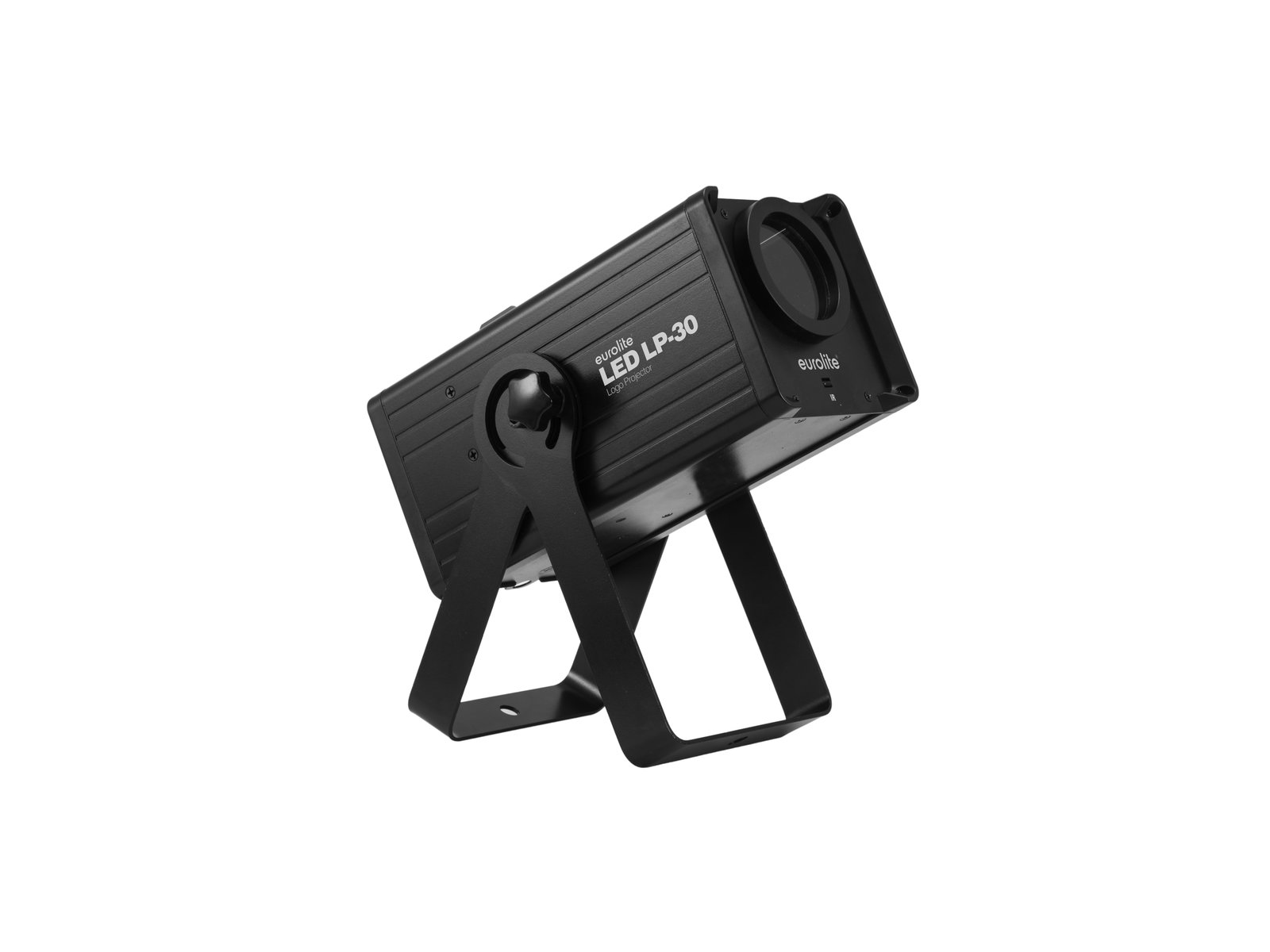

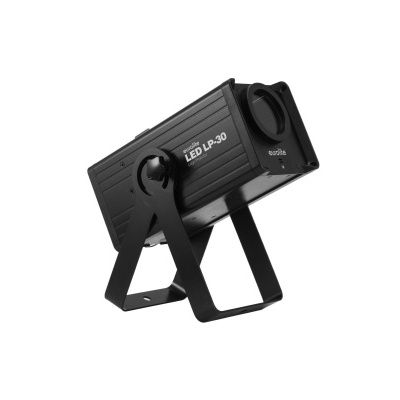

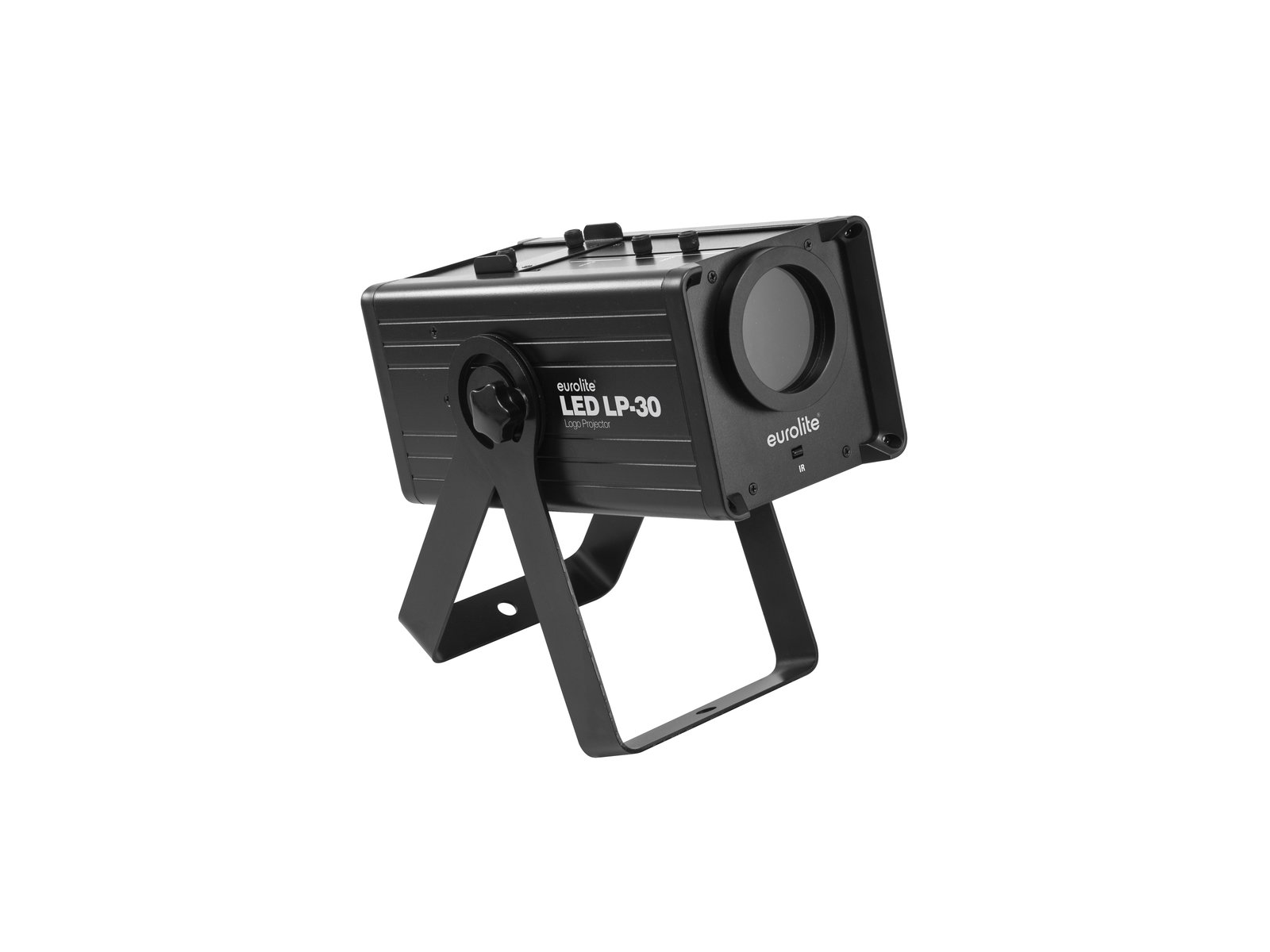

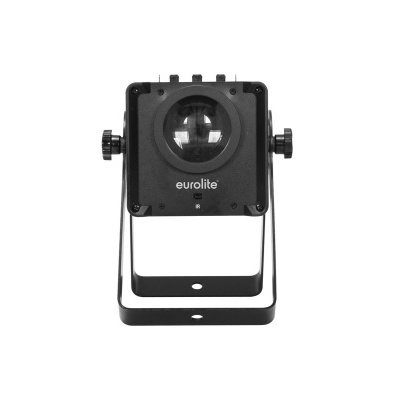

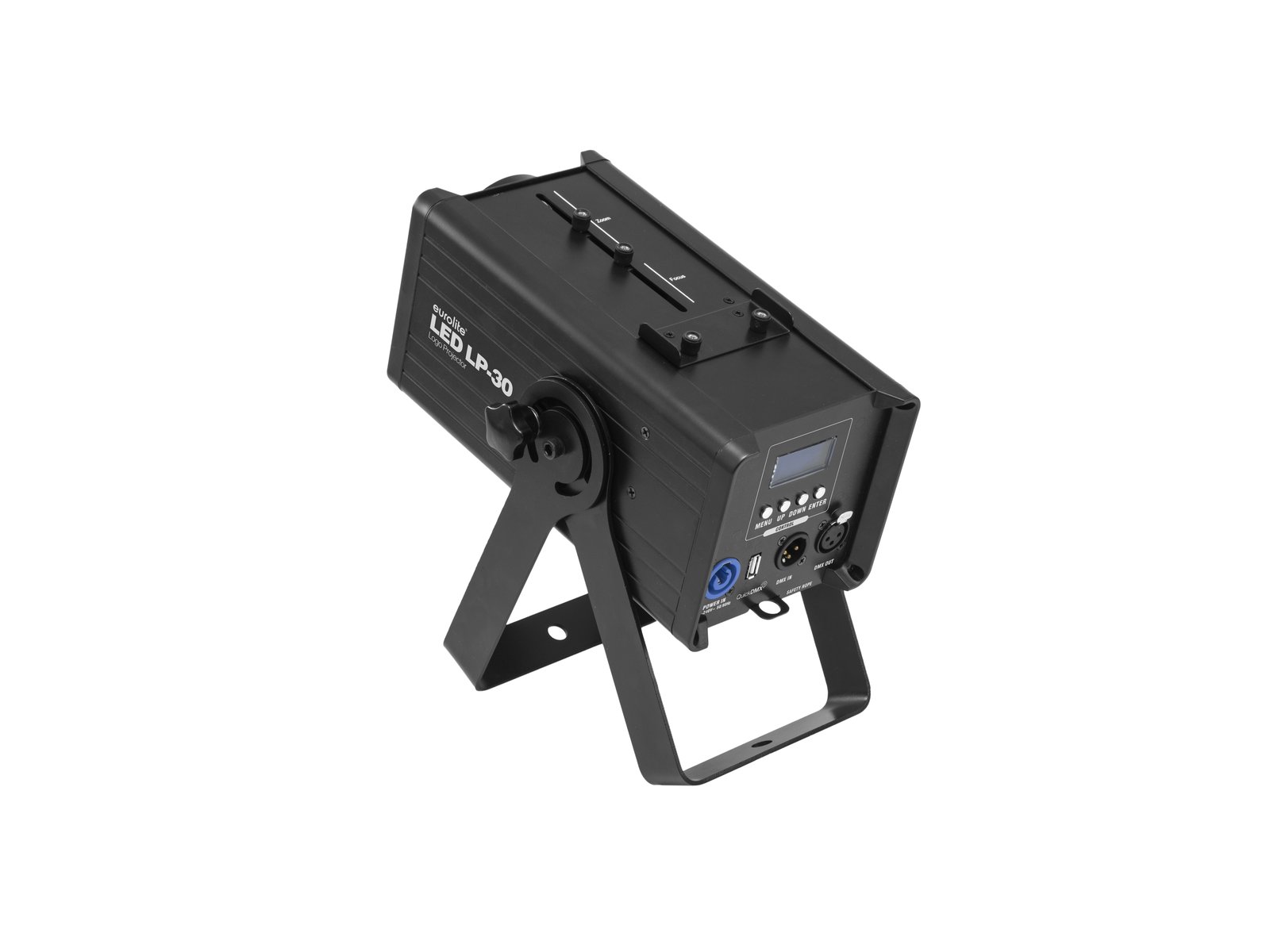

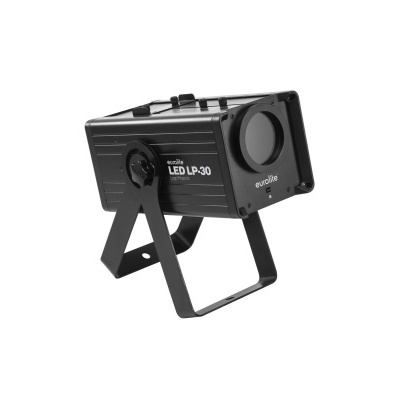

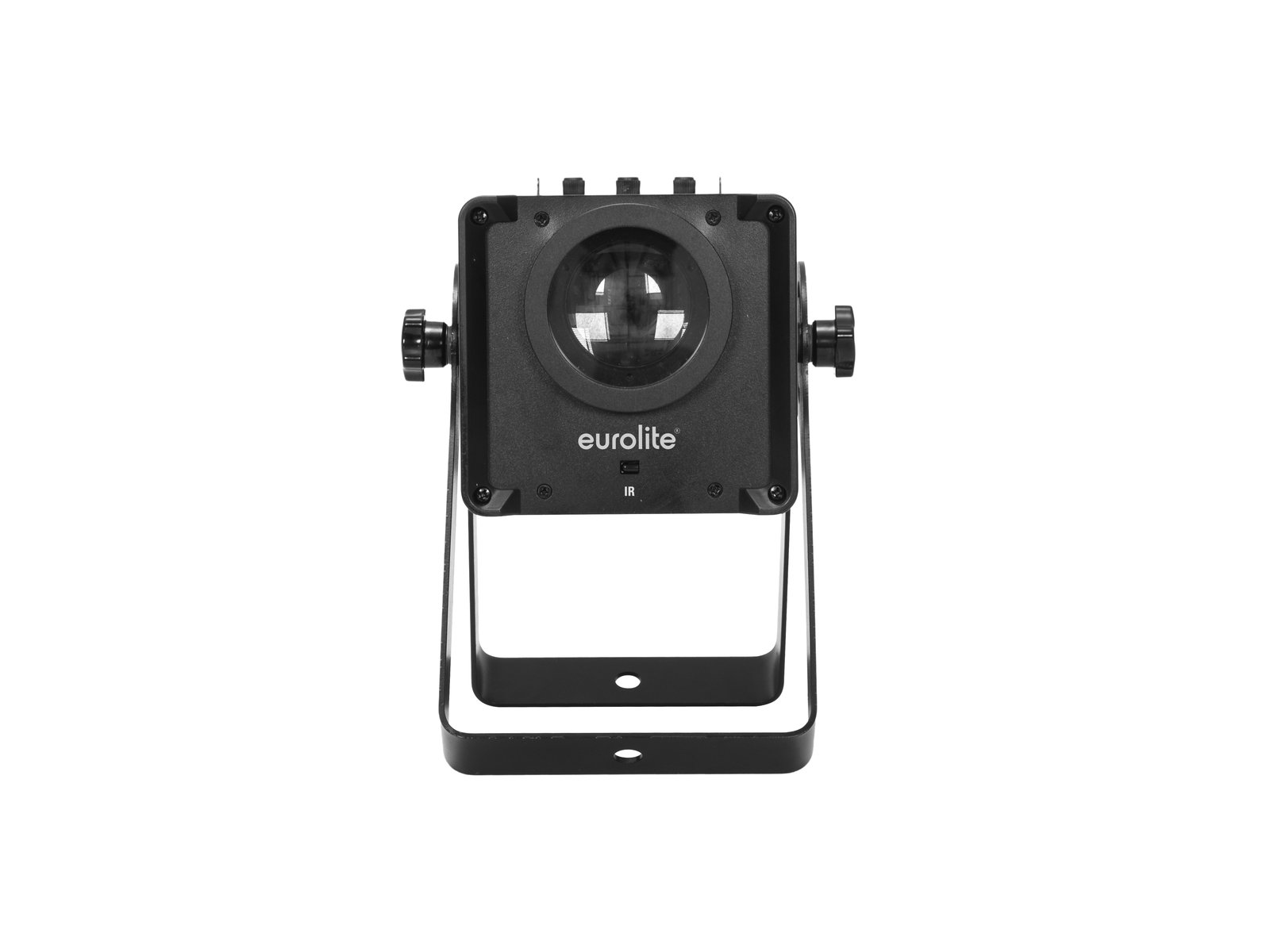

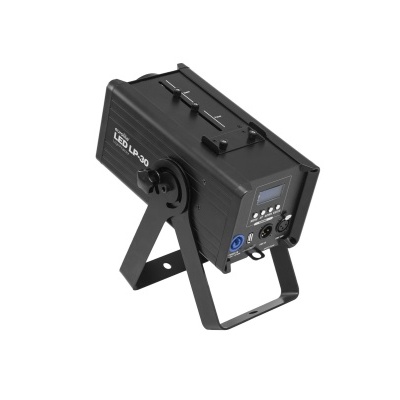

EUROLITE LED LP-30 Logo Projector

LED logo projector with 30 W LED incl. IR remote controlUse the EUROLITE LED LP-30 to advertise your booth with your company logo projected on the ceiling or throw a Christmas motif directly from your shop window onto the street to attract the full attention of passers-by. The LP-30 logo projector is completely silent as it is equipped with convection cooling. The sharp and flicker-free projection is made possible by the powerful, cool white 30-watt COB LED. Different gobos can be easily changed and inserted. Switch conveniently between static or rotating gobos and control the rotation speed and direction according to your needs. A gobo with "bubbles" motif is included in the delivery.The logo projector also features a dimmer, pre-programmed macros and a variable speed strobe effect with a random generator. You can control the projector either via DMX, master/slave or with the included infrared remote control. The logo projector is also compatible with QuickDMX - the wireless DMX system from Eurolite. The P-Con mains connection allows you to operate up to eight devices in series. You can address and set the LP-30 via the control board with LCD display.

LED logo projector with 30 W LED, strobe, dimmer and gobo rotation, incl. IR remote control

• Delivery includes a gobo, motive "bubbles"
• Clear projection
• 1 powerful LED 30 W COB (chip-on-board) cold white (CW)
• Gobo wheel with rotating gobos; Focus manual; Zoom manual; gobo wheel with static gobos
• Gobo effect; Strobe effect
• The device is cooled by passive convection cooling
• Control via DMX; IR remote control; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Flicker-free
• With a beam angle of 11° - 16°
• With double bracket
• For application areas such as: Clubs/dancing school; Wedding/gala/events; mobile djs/entertainer; restaurants, bars and hotels
• Silent operation
• Dimmer electronic; color macros adjustable
• Preprogrammed in Light Captain; Light´J
• Mains input and output for power linking up to 8 units
• Application possibility: Standing; suspended; on tripod

Gobos

• Gobos changeable

Package contents

• 1 x device, 2 x mounting bracket, 1 x power cord, 1 x remote control, 1 x battery, 1 x gobos, 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	35 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED:	1 x 30 W COB (chip-on-board) cold white (CW)
Equipment:	Gobo wheel with rotating gobos; Focus manual; Zoom manual; gobo wheel with static gobos
DMX channels:	2; 3; 4

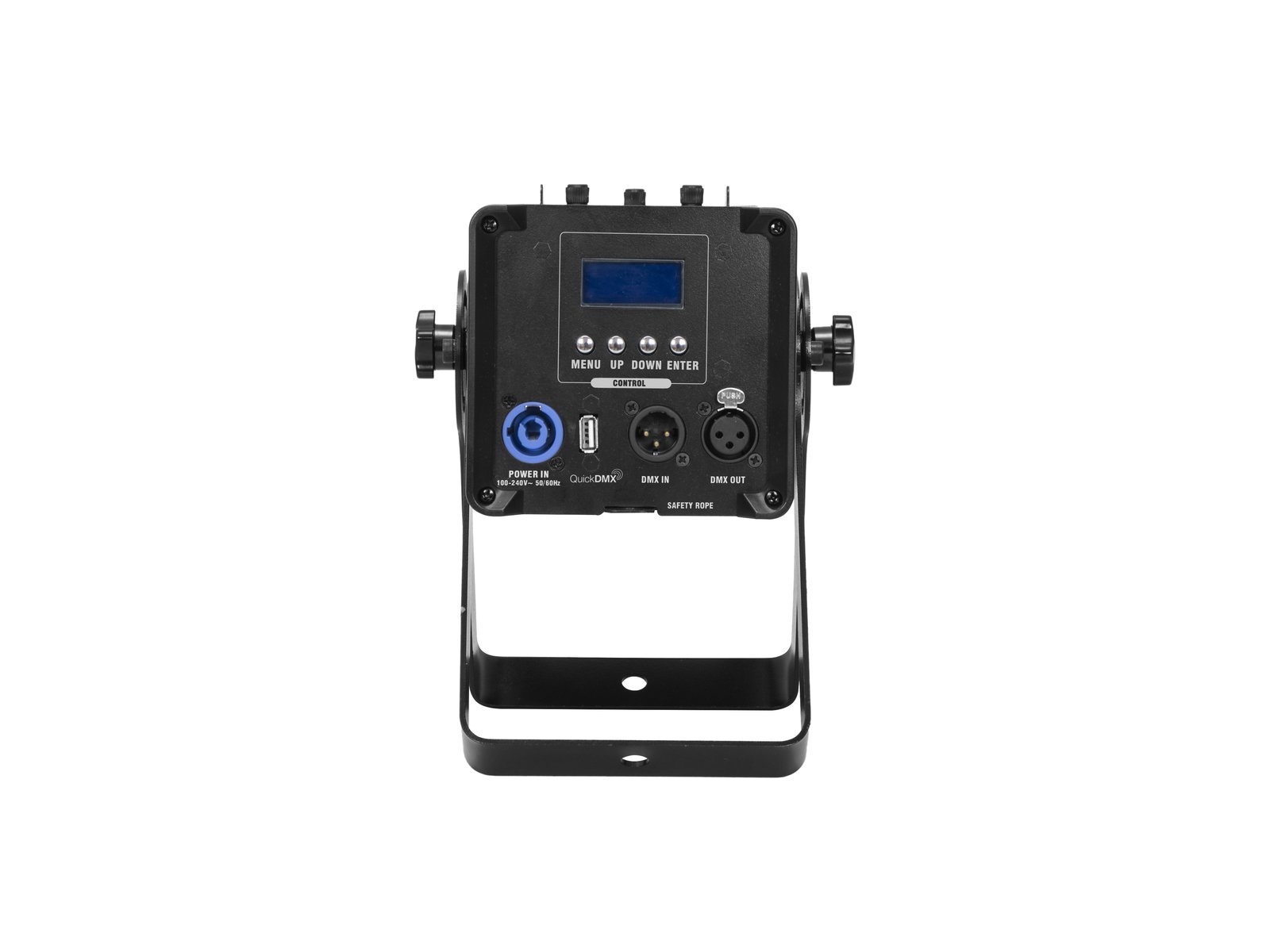

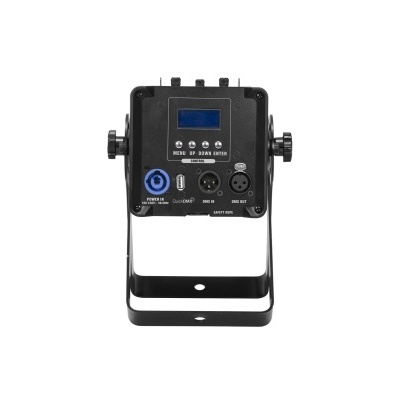

DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	DMX; IR remote control; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	Light Captain; Light´J
Beam angle:	11° - 16°
Beam angle (1/2 peak):	11 - 16°
Beam angle (1/10 peak):	11 - 16°
Housing color:	Black
Attachment system:	Double bracket
Material:	Aluminum
Dimensions:	Length: 25,2 cm Width: 12 cm Height: 24,8 cm
Weight:	3,34 kg
Noise classification:	Class 0 (no noise at all)
Power cord
Cable length:	Approx. 1,2 m
Mounting bracket
Diameter mounting holes:	2 x Ø10mm
Material:	Metal, 2,5 mm
Gobos
Gobos:	Outside diameter 27mm Image diameter 18mm Gobos changeable
Remote control
Battery:	1 x Button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
