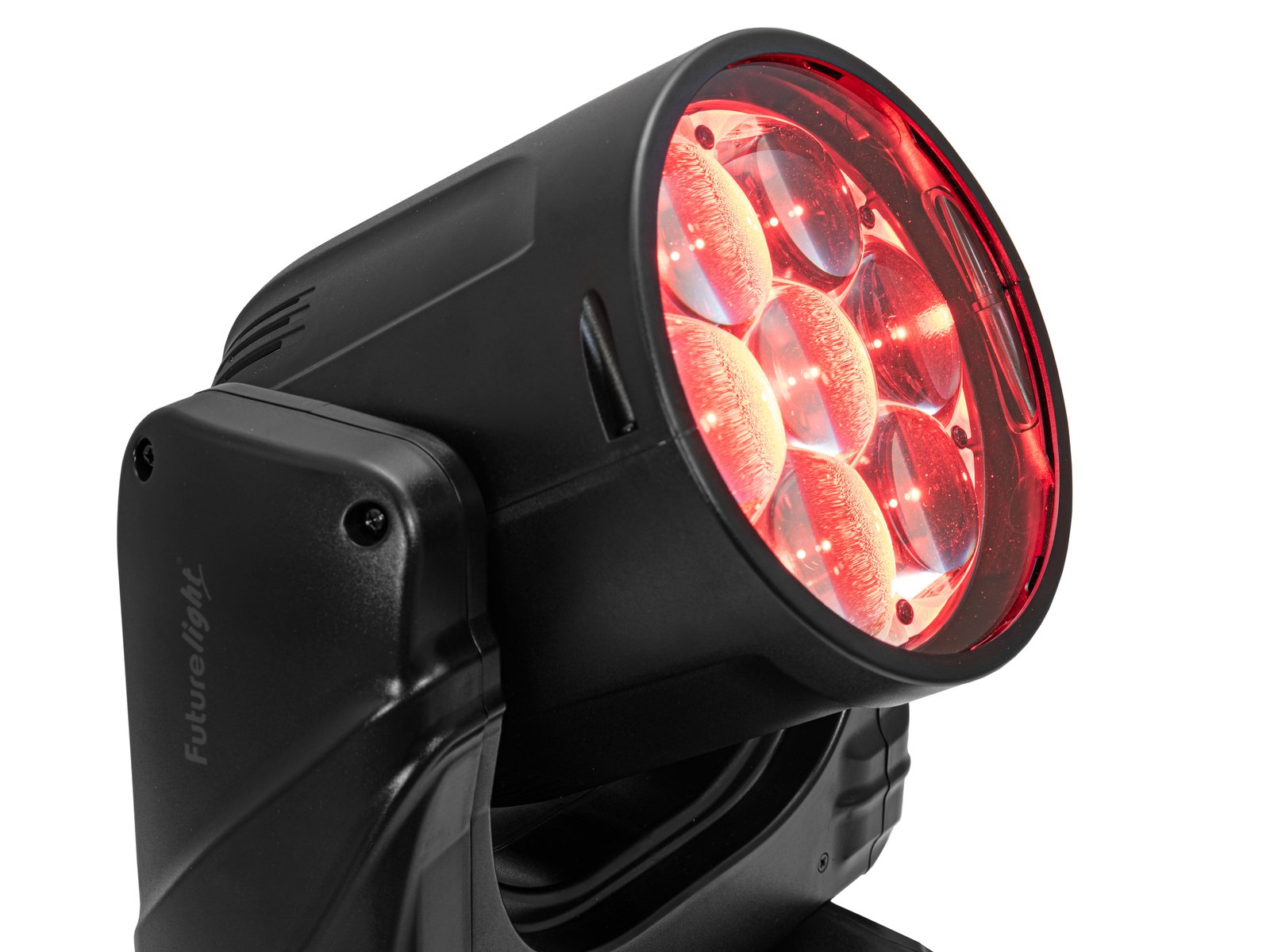

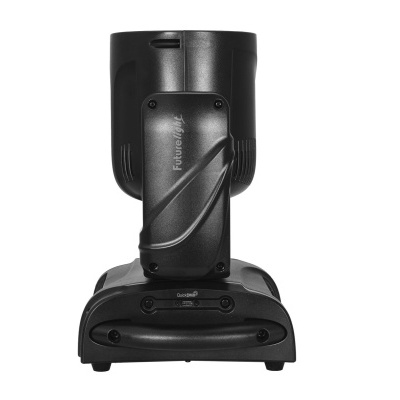

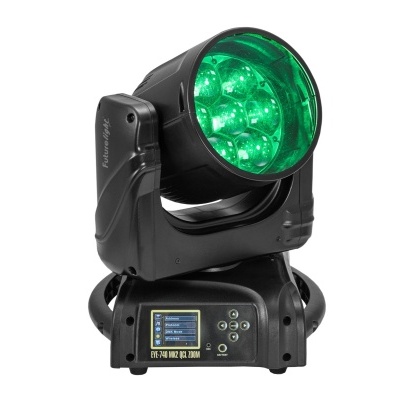

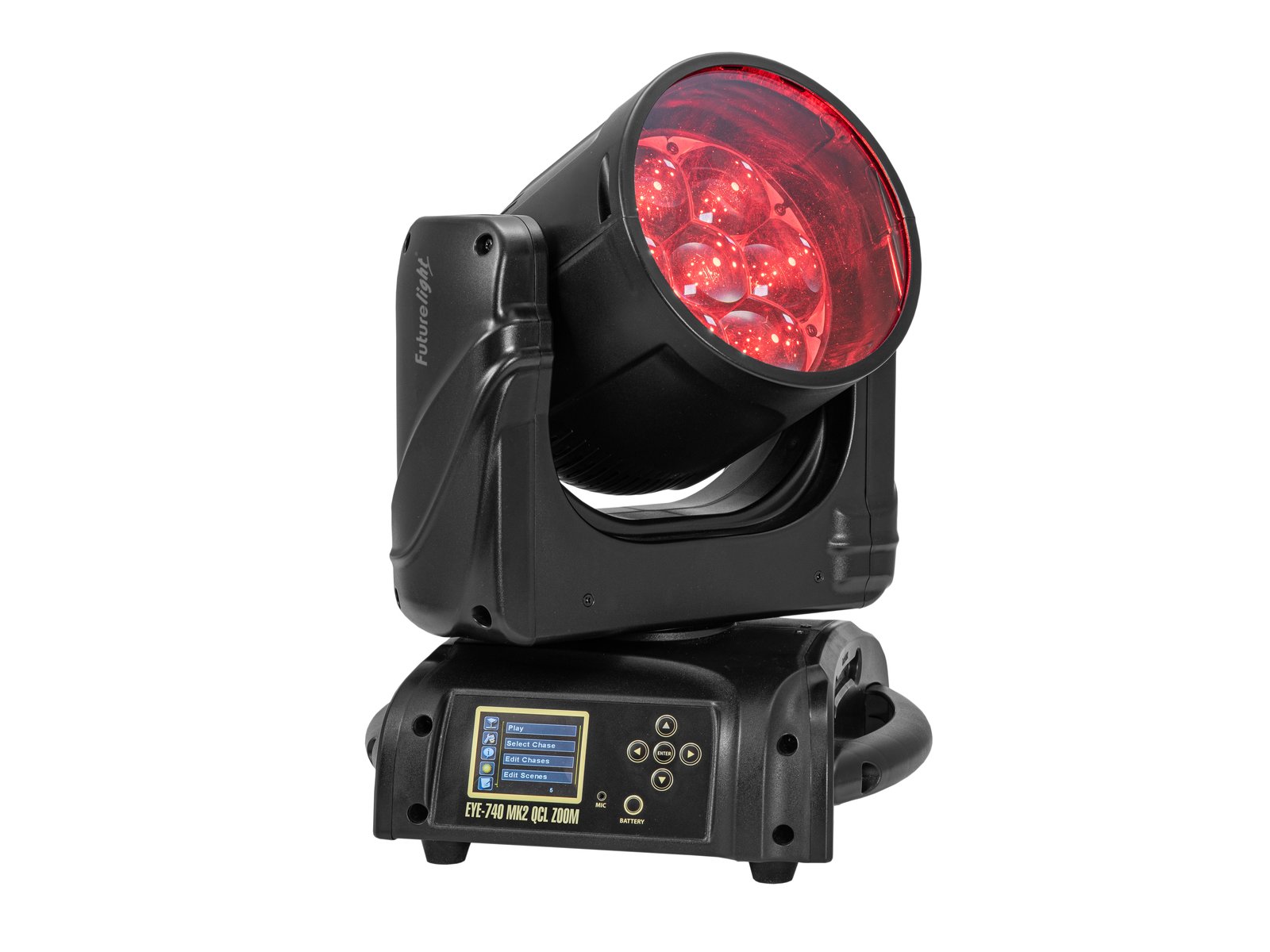

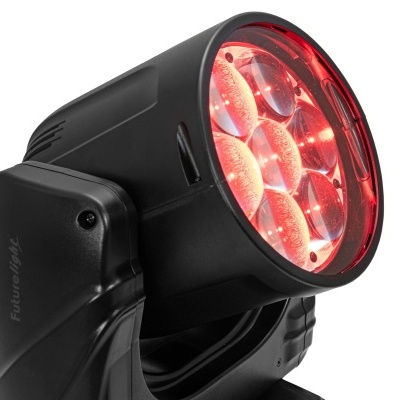

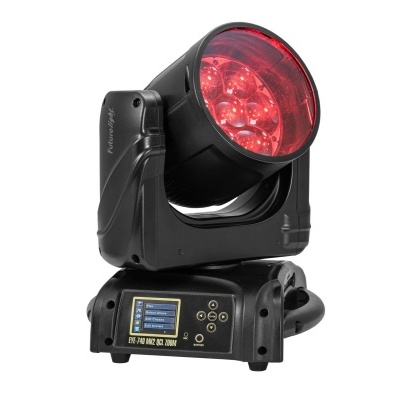

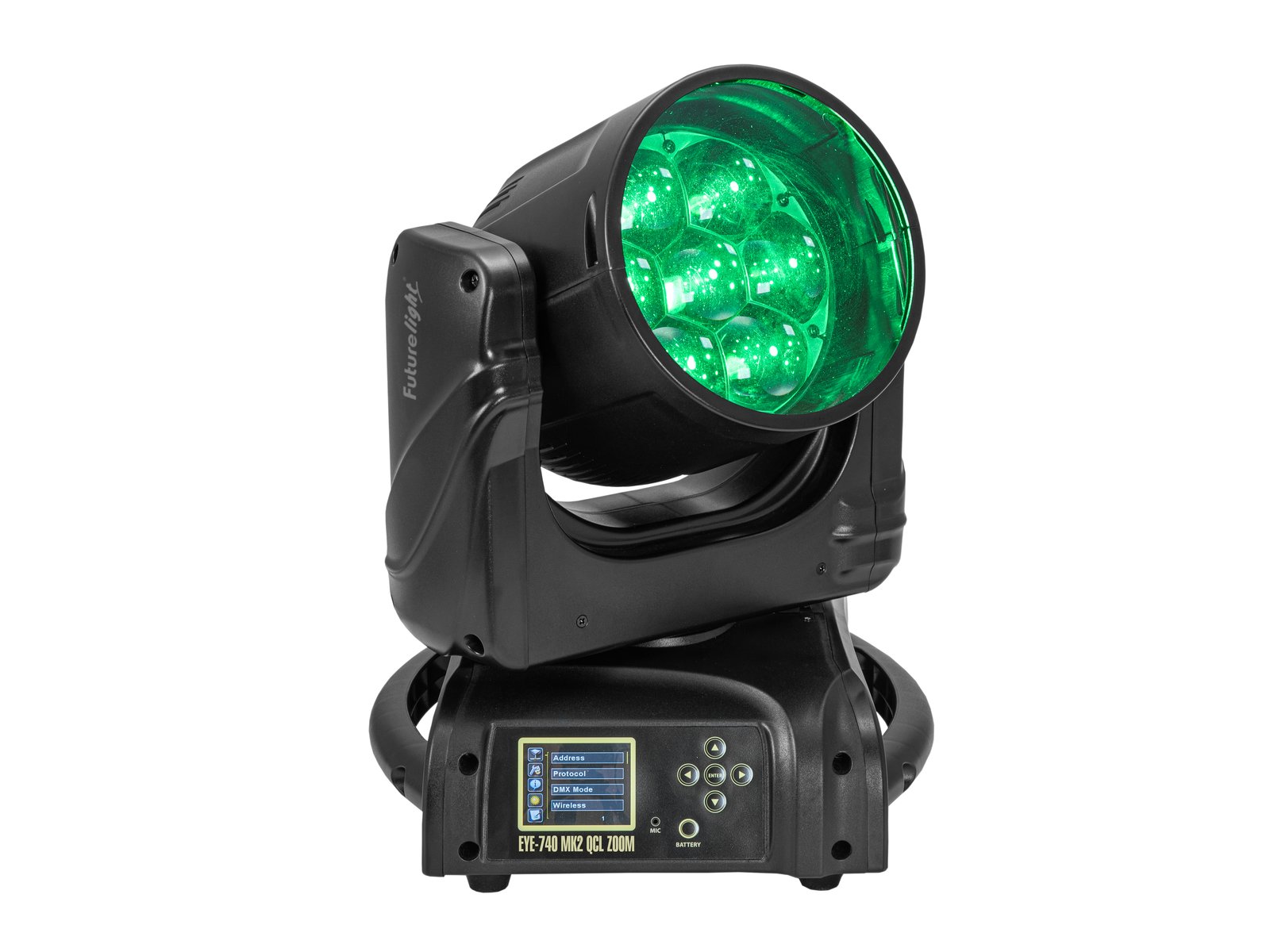

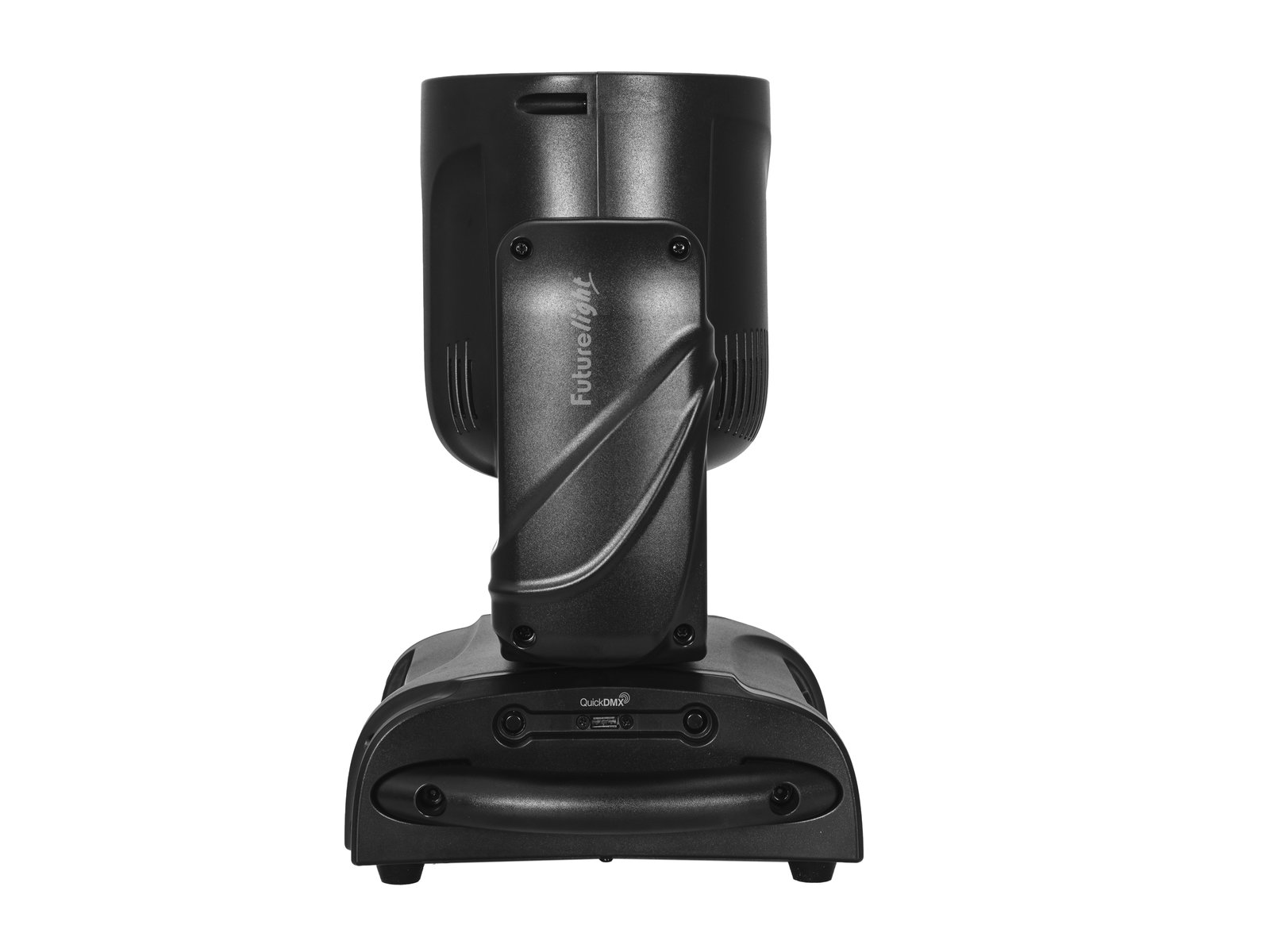

FUTURELIGHT EYE-740 MK2 QCL Zoom LED Moving Head Wash
SKU: 51841303
PRO Washlight with 40 W Osram Ostar RGBW LEDs, large zoom range and pixel control
- 7 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately - Compact lightweight
- Variable color temperature 2800 K - 10000 K
- Crossfade channel from any color to white
- Number of scenes can be changed individually
- Positioning within 540° PAN and 210° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Exact 16 bit resolution at Dimmer, color, zoom
- The device is cooled by temperature-controlled fan
- Control via stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); CRMX by LumenRadio upgradeable; RDM; Sound to light via Microphone
- Flicker-free
- With a beam angle of 1° - 48°
- Multicolor LCD display,
with battery buffering for easy controlling upgradeable - Zoom motor-driven
- Patterns animated; foreground color adjustable; background color adjustable; dimmer curves with adjustable response; pulse-width modulation variable; pulse effect adjustable; white balance; scenes user-definable; CTO correction filter virtual; Dim to warm; colors preset; Dimmer speed (step response) adjustable
- Strobe effect
- Very quiet working noise
- OSRAM LED installed
- Preprogrammed in Light Captain
- With Omega bracket
- Rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Wedding/gala/events; Stage; theater; Rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x xLR cable
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 210 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: | IP T-Con (F) mounting version |
| Device fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 7 x 40 W 4in1 QCL RGBW (homogenous color mix) |
| LED manufacturer: | OSRAM |
| Color temperature: | 2800K - 10000K adjustable |
| Max. TILT movement: | 210° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Flash rate: | 1 - 16 Hz |
| Equipment: | Zoom motor-driven |
| DMX channels: | 18; 25; 37; 26; 33; 45; 46; 53; 65 |

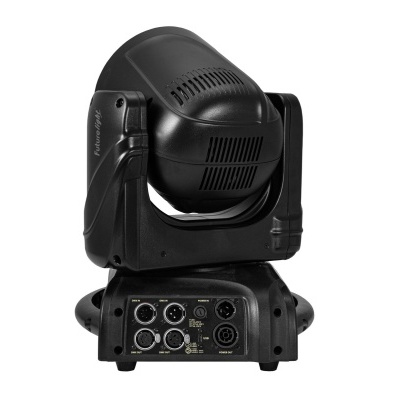

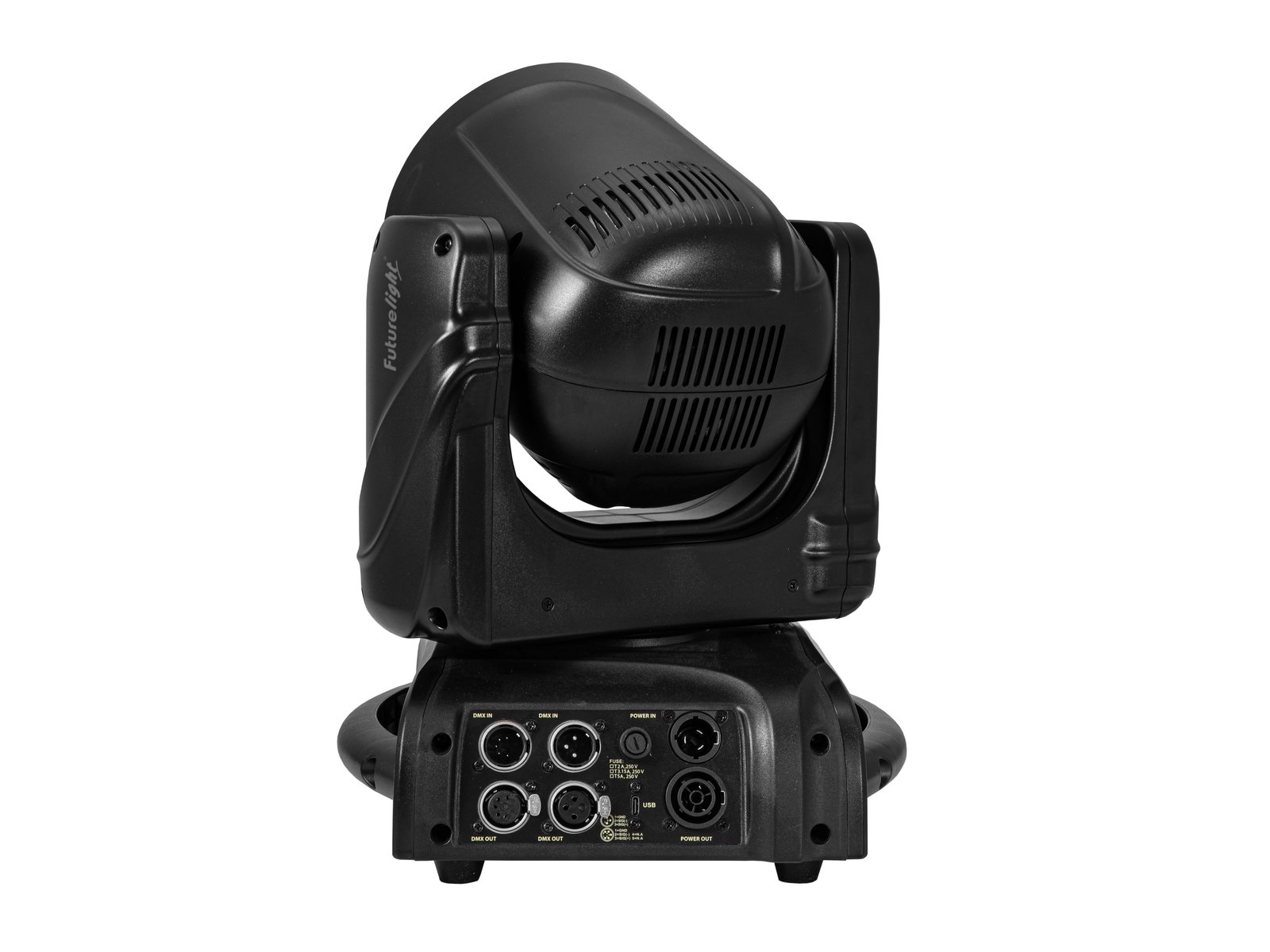

| DMX input: | 3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); CRMX by LumenRadio upgradeable; RDM; Sound to light via Microphone |
| Preprogrammed in: | Light Captain |
| Beam angle: | 1° - 48° |
| Beam angle (1/2 peak): | 1 - 32° |
| Beam angle (1/10 peak): | 5 - 48° |
| Illuminance in Lux (lx): | Narrow red (R) 3m: 6818 lx, 6m: 1758 lx Narrow green (G) 3m: 12807 lx, 6m: 3122 lx Narrow blue (B) 3m: 2513 lx, 6m: 21580 lx Narrow cold white (CW) 3m: 21580 lx, 6m: 5431 lx Narrow all 3m: 38576 lx, 6m: 9662 lx Wide red (R) 3m: 162 lx, 6m: 46 lx Wide green (G) 3m: 315 lx, 6m: 89 lx Wide blue (B) 3m: 85 lx, 6m: 25 lx Wide cold white (CW) 3m: 504 lx, 6m: 143 lx Wide all 3m: 915 lx, 6m: 259 lx |
| Housing color: | Black |
| Attachment system: | Omega bracket |
| Display type: | Multicolor LCD display battery buffering upgradeable |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 28,6 cm Depth: 24,5 cm Height: 37,2 cm |
| Weight: | 8,10 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
