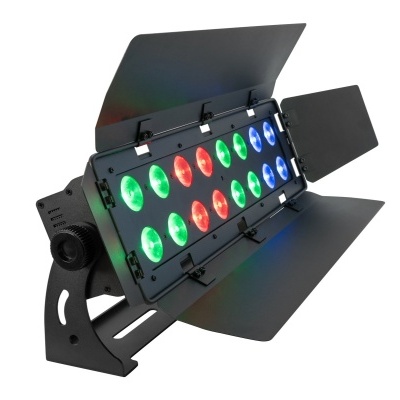

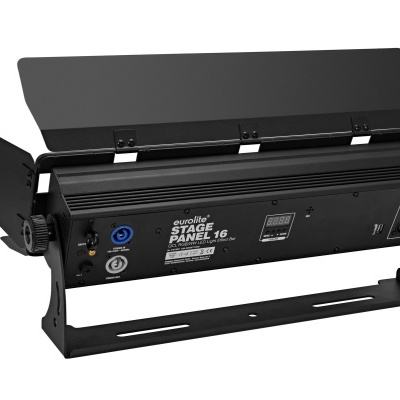

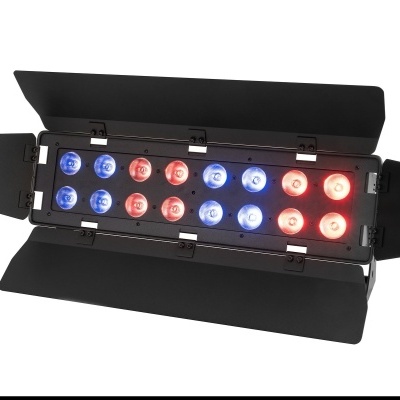

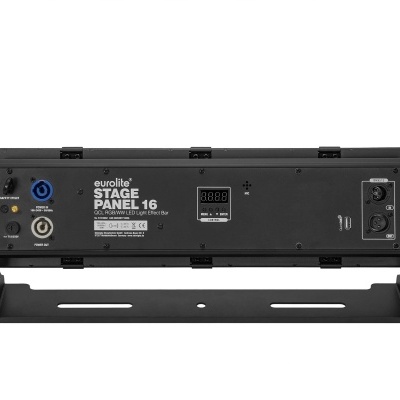

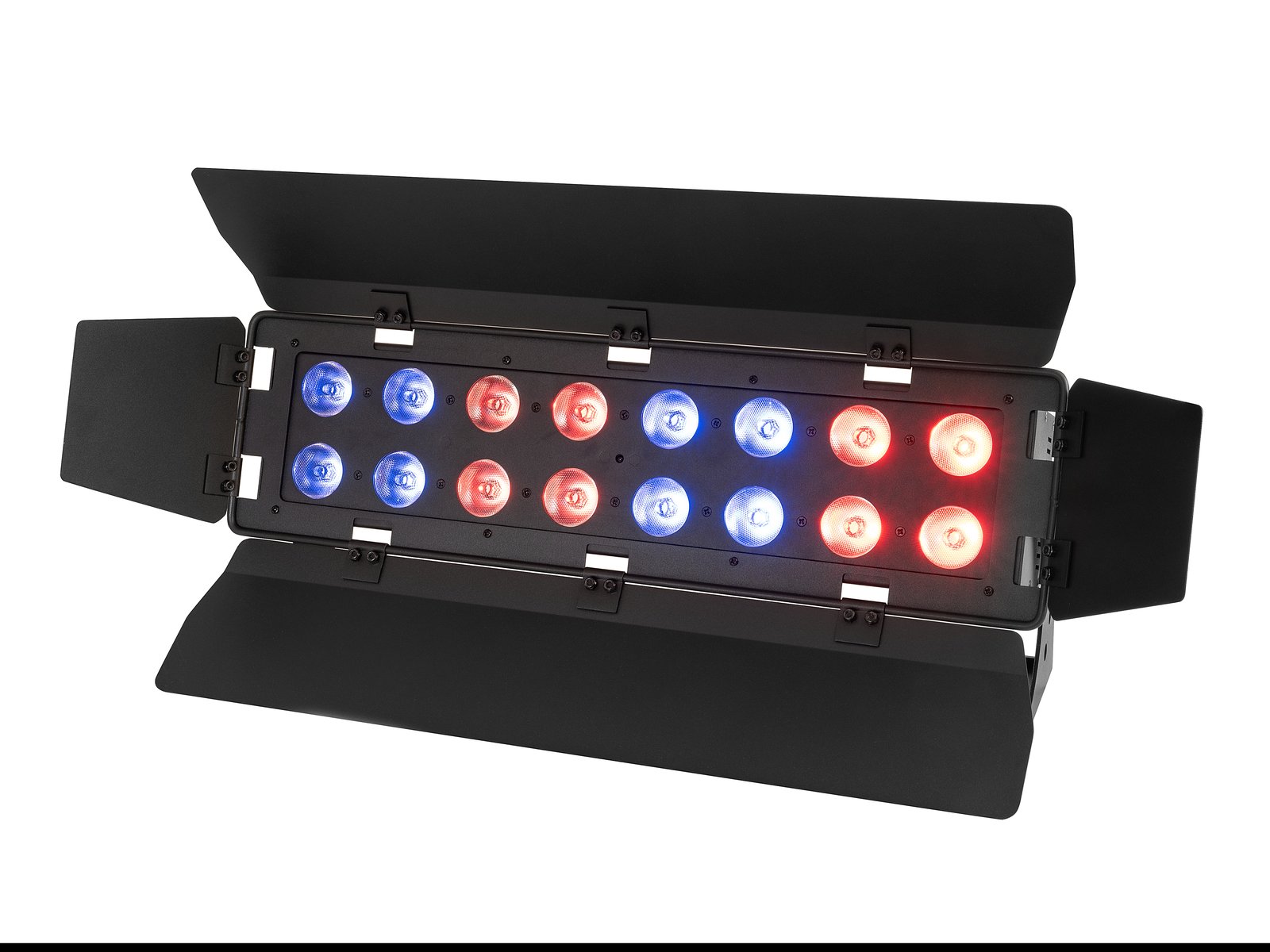

EUROLITE Stage Panel 16 QCL RGB/WW LED
EUROLITE Stage Panel 16 QCL RGB/WW LED
EUROLITE Stage Panel 16 QCL RGB/WW LED
EUROLITE Stage Panel 16 QCL RGB/WW LED
EUROLITE Stage Panel 16 QCL RGB/WW LED
EUROLITE Stage Panel 16 QCL RGB/WW LED

EUROLITE Stage Panel 16 QCL RGB/WW LED

SKU: 51913892



LED light effect bar with RGB/WW color mixing

  • 16 powerful LEDs 7 W SMD 4in1 QCL RGB/WW (homogenous color mix)
  • 9 integrated show programs
  • Direct color selection for 19 preset colors
  • The device is cooled by passive convection cooling
  • Control via stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); IR remote control
  • Flicker-free
  • With a beam angle of 15°
  • With Mounting bracket
  • 4 digit 7-segment LED display
  • 4 pixel groups for dynamic running light effects

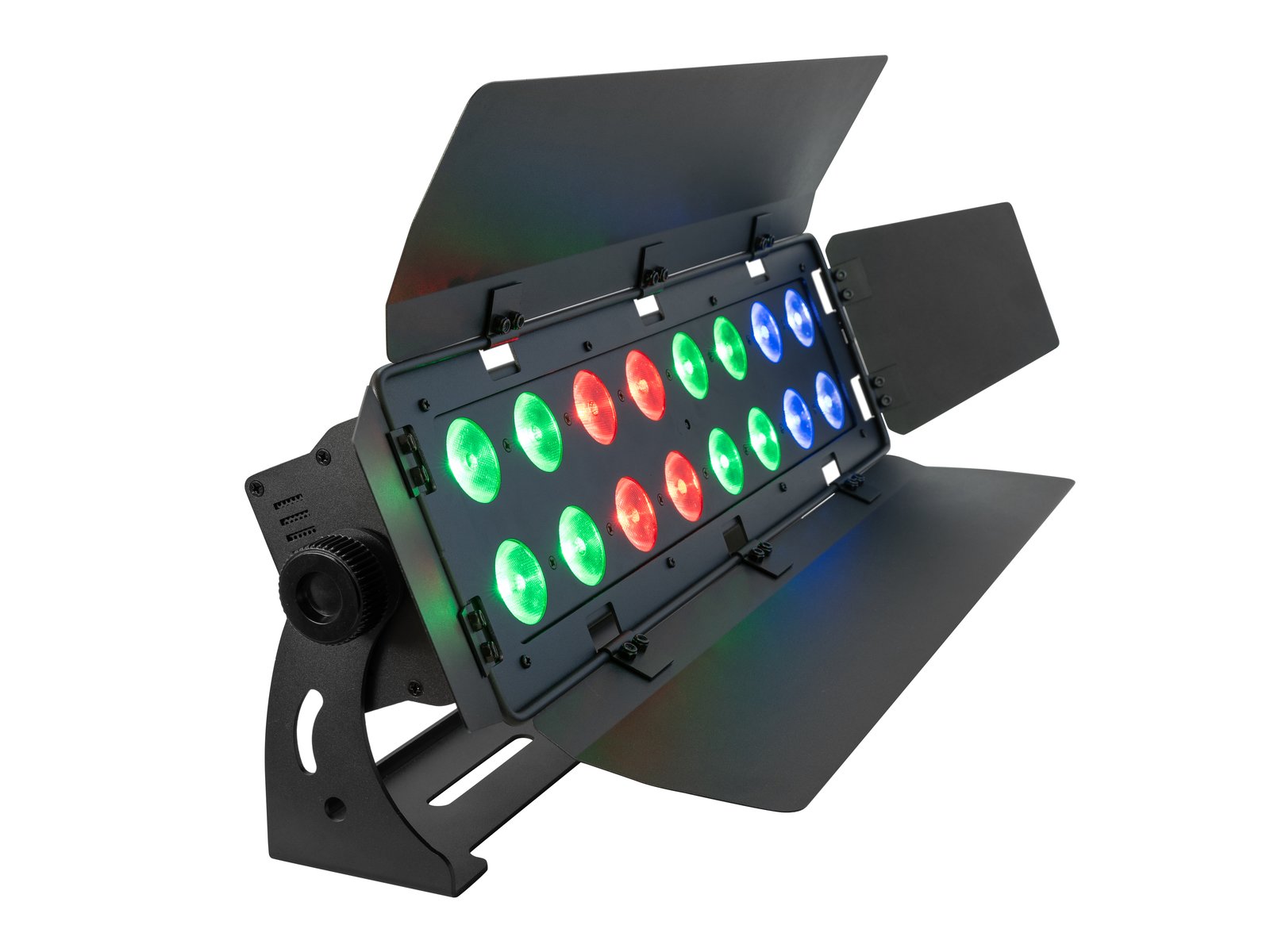

  • 4 barn doors to avoid blinding the audience and for protection during transport
  • Preprogrammed in Light Captain; Colorchief; EASY SHOW 2; EASY SHOW 3; Light´J
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Wedding/gala/events; Installation; Stage; mobile djs/entertainer; small rental
  • Silent operation
  • Application possibility: Standing; suspended; on tripod

Package contents

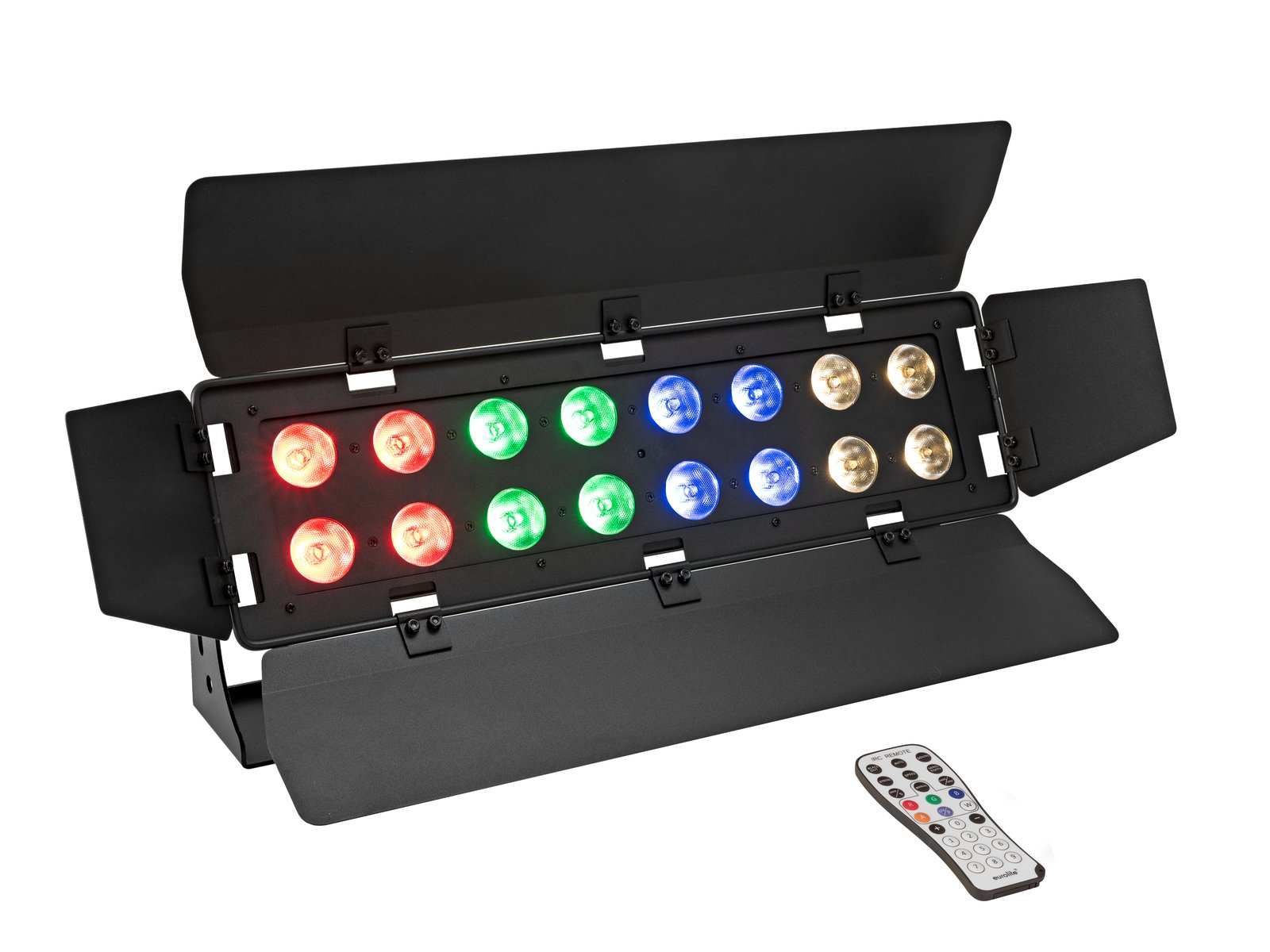

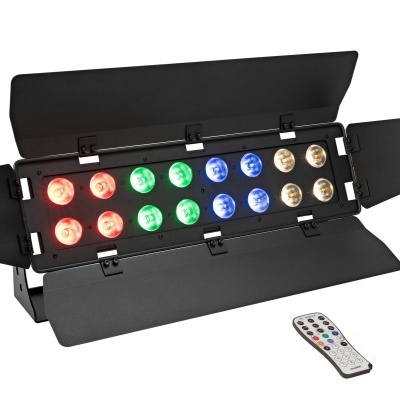

  • 1 x spotlight, 1 x power cord, 1 x barndoor, 1 x remote control, 1 x user manual


Power supply:100-240 V AC, 50/60 Hz
Power consumption:65 W
IP classification:IP20
Protection class:Protection class I

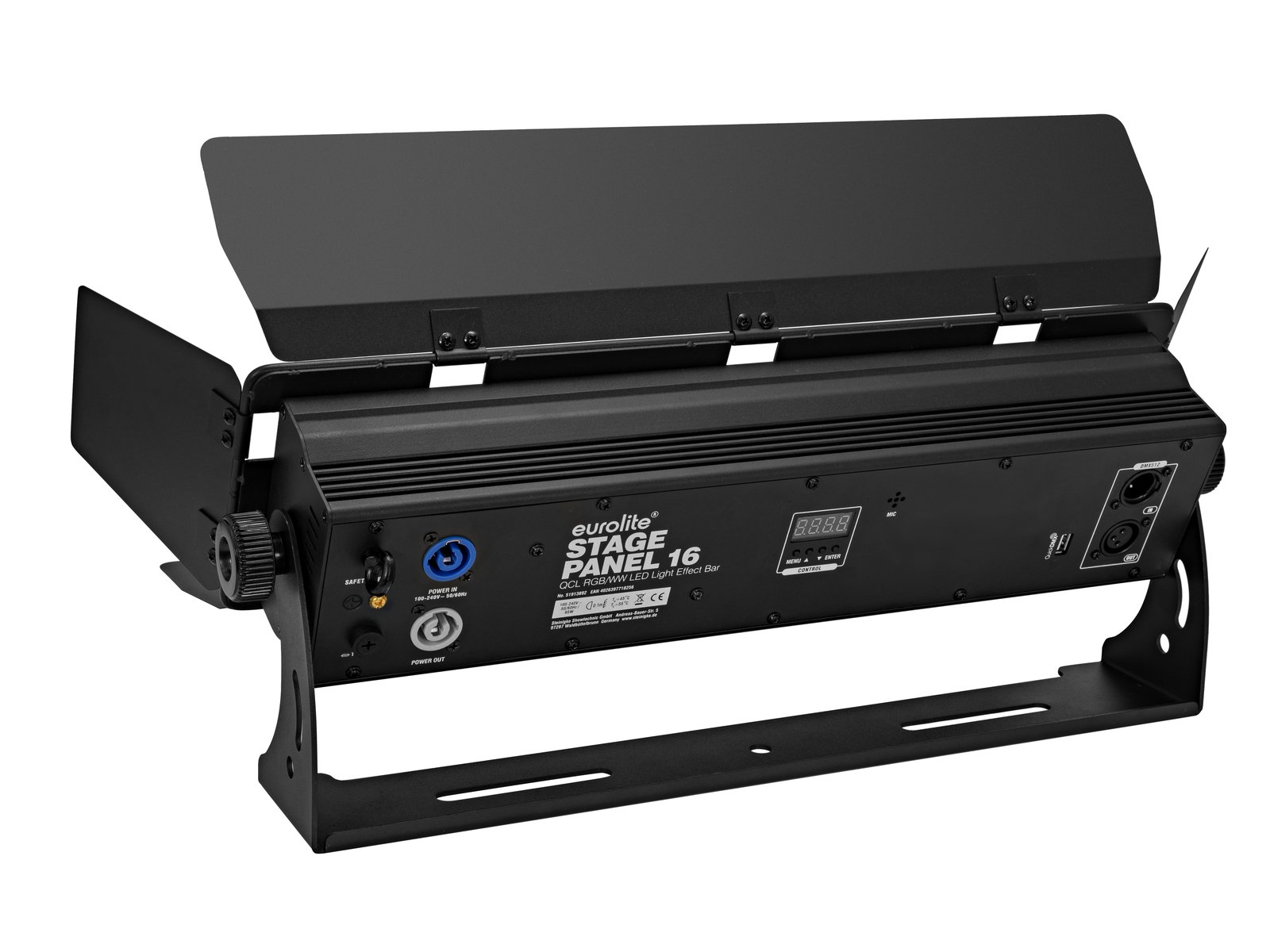

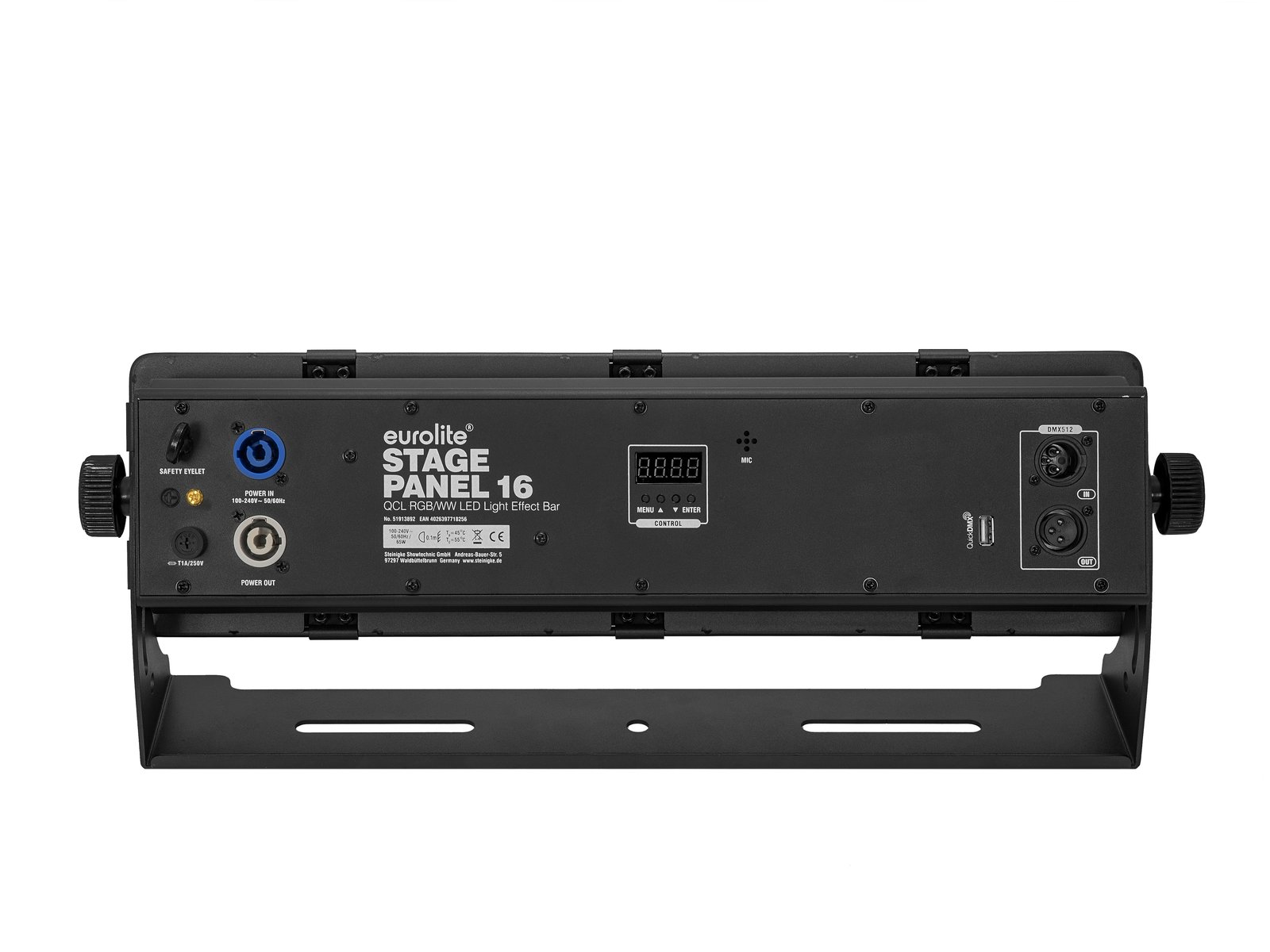

Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:P-Con (gray), mounting version
Fuse:T 1 A Fuse replaceable
Lamp type:LED lamp
LED:16 x 7 W SMD 4in1 QCL RGB/WW (homogenous color mix)
Flash rate:0 - 20 Hz
DMX channels:3; 4; 5; 6; 8; 9; 16; 24
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Passive convection cooling
Control:Stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); IR remote control
Preprogrammed in:Light Captain; Colorchief; EASY SHOW 2; EASY SHOW 3; Light´J
Beam angle:15°
Beam angle (1/2 peak):15°
Beam angle (1/10 peak):32°
Housing color:Black
Attachment system:Mounting bracket
Display type:4 digit 7-segment LED display
Dimensions:Width: 52,5 cm
Depth: 9,9 cm
Height: 18,1 cm
Weight:5,35 kg
Noise classification:Class 0 (no noise at all)
Remote control
Battery:Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
