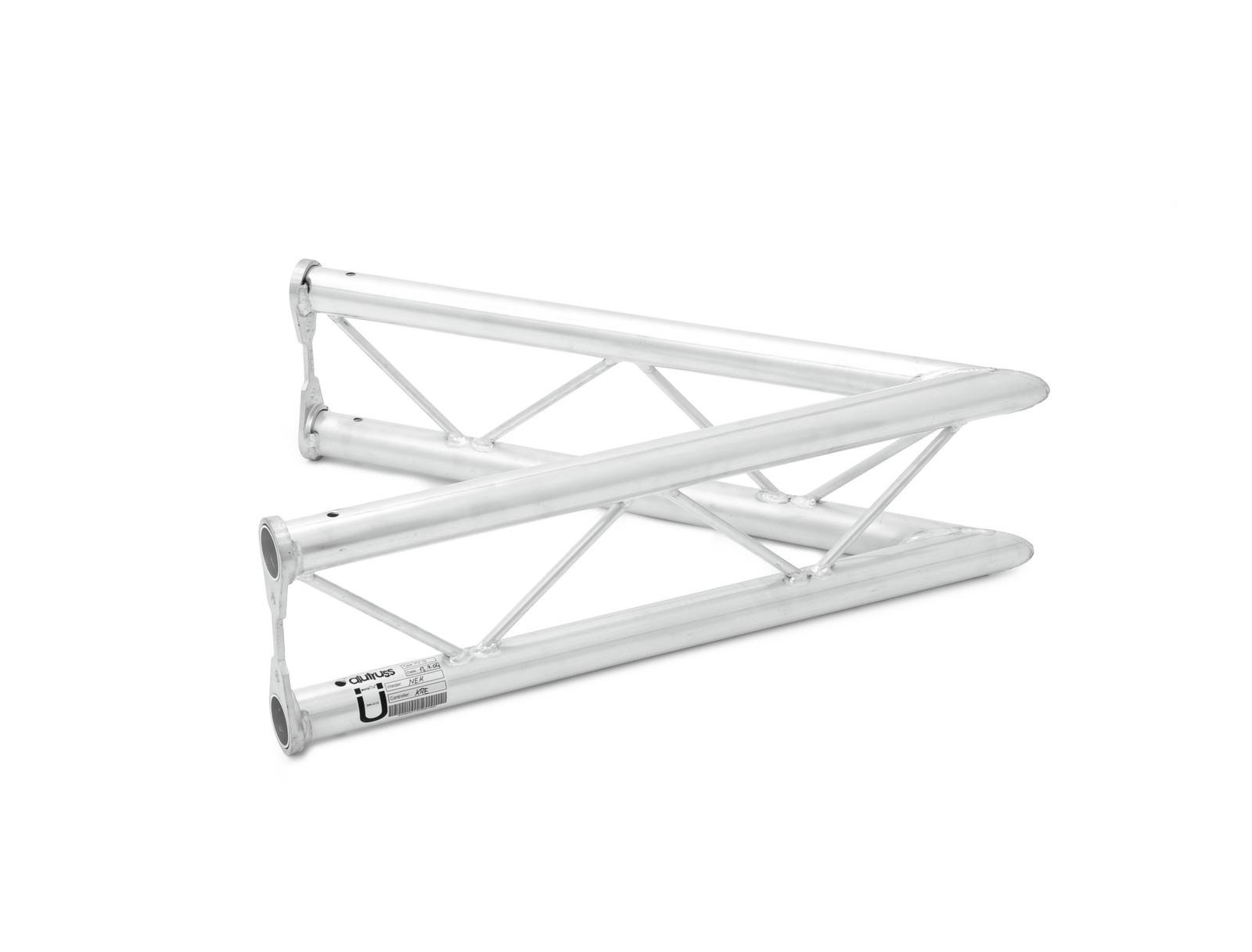

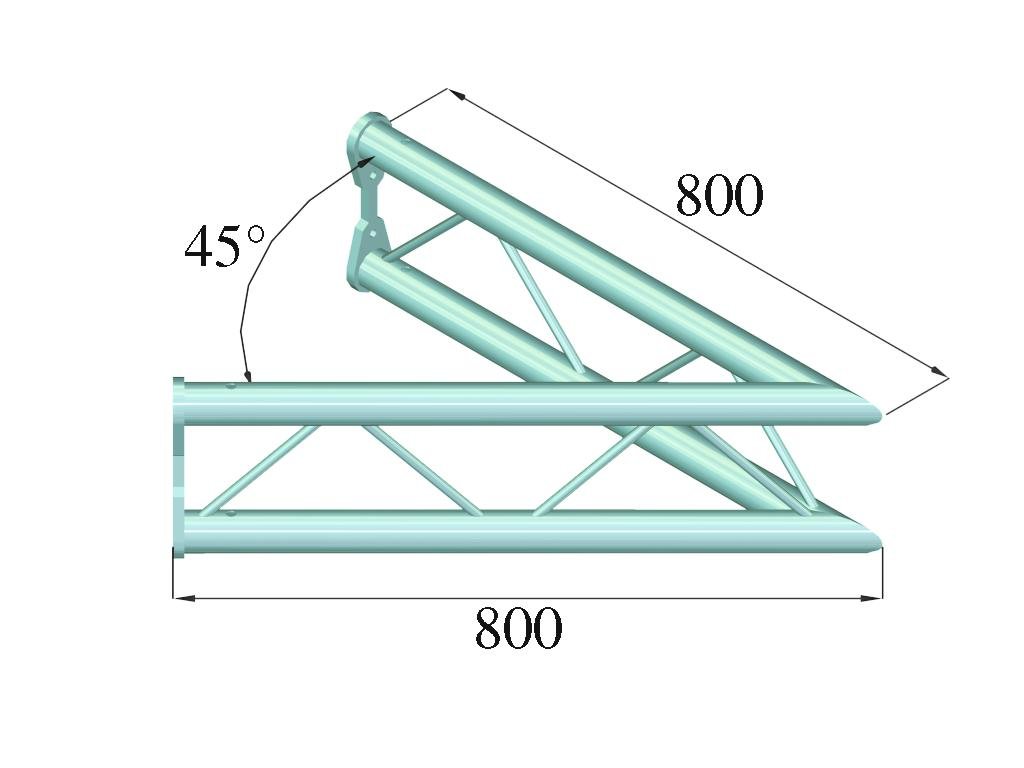

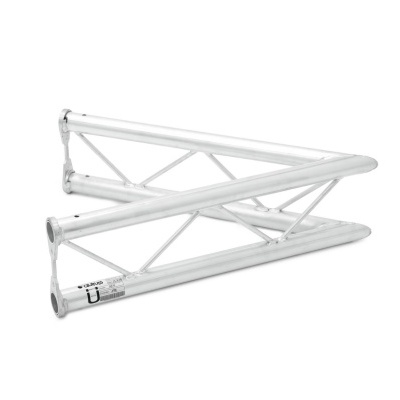

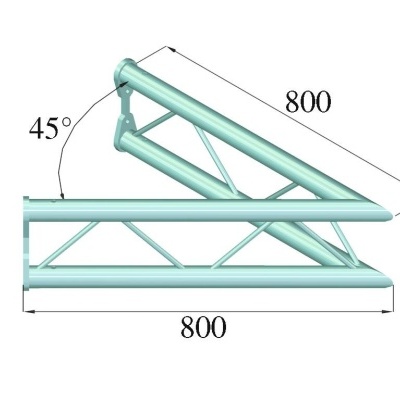

ALUTRUSS BISYSTEM PV-19 2-way 45° vertical
SKU: 60300650
BISYSTEM 2-point truss systemBISYSTEM is a 2-point truss system made of aluminum. The individual elements are connected via two tube fasteners and two M10 bolts and nuts.The two main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 12 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps.With 238 mm outer dimensions, BISYSTEM is a relatively compact truss system for higher loads. BISYSTEM is mainly designed for permanent installations in shops, discotheques and theatres.By using the optional rapid snap connectors, this system can also be used for fair installations and event installations.Altogether a universal truss system impressing with its wide range of standard system lengths, corners and accessory.
2-point truss system
- High-quality aluminum-tubes with 50 mm in diameter
- Low weight
- Easy installation
- Direction Vertical
- Trusspipe: 50 mm
- Made in Europe
- For application areas such as: Theater; Trade fair and shop fitting; Clubs/dancing school
Package contents
- 1 x connection Set
| Setup: | Easy installation |
| Trusspipe: | 50 mm x 2 mm |
| Welding technique: | TIG-welding |
| Welding material: | AlMg 5 |
| Alloy: | AlMgSi 0.5 |
| Color: | Alu colored |
| Strut diameter x thickness: | 12 x 2mm |
| Weight: | 3,15 kg |
