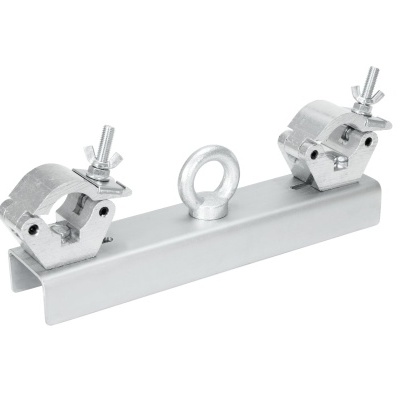

ALUTRUSS GI-1/Clamps Truss Adapter silver
ALUTRUSS GI-1/Clamps Truss Adapter silver
ALUTRUSS GI-1/Clamps Truss Adapter silver
ALUTRUSS GI-1/Clamps Truss Adapter silver

ALUTRUSS GI-1/Clamps Truss Adapter silver

SKU: 60320381



Truss mount

  • With two TPC-50 clamps
  • Trusspipe: 50 mm

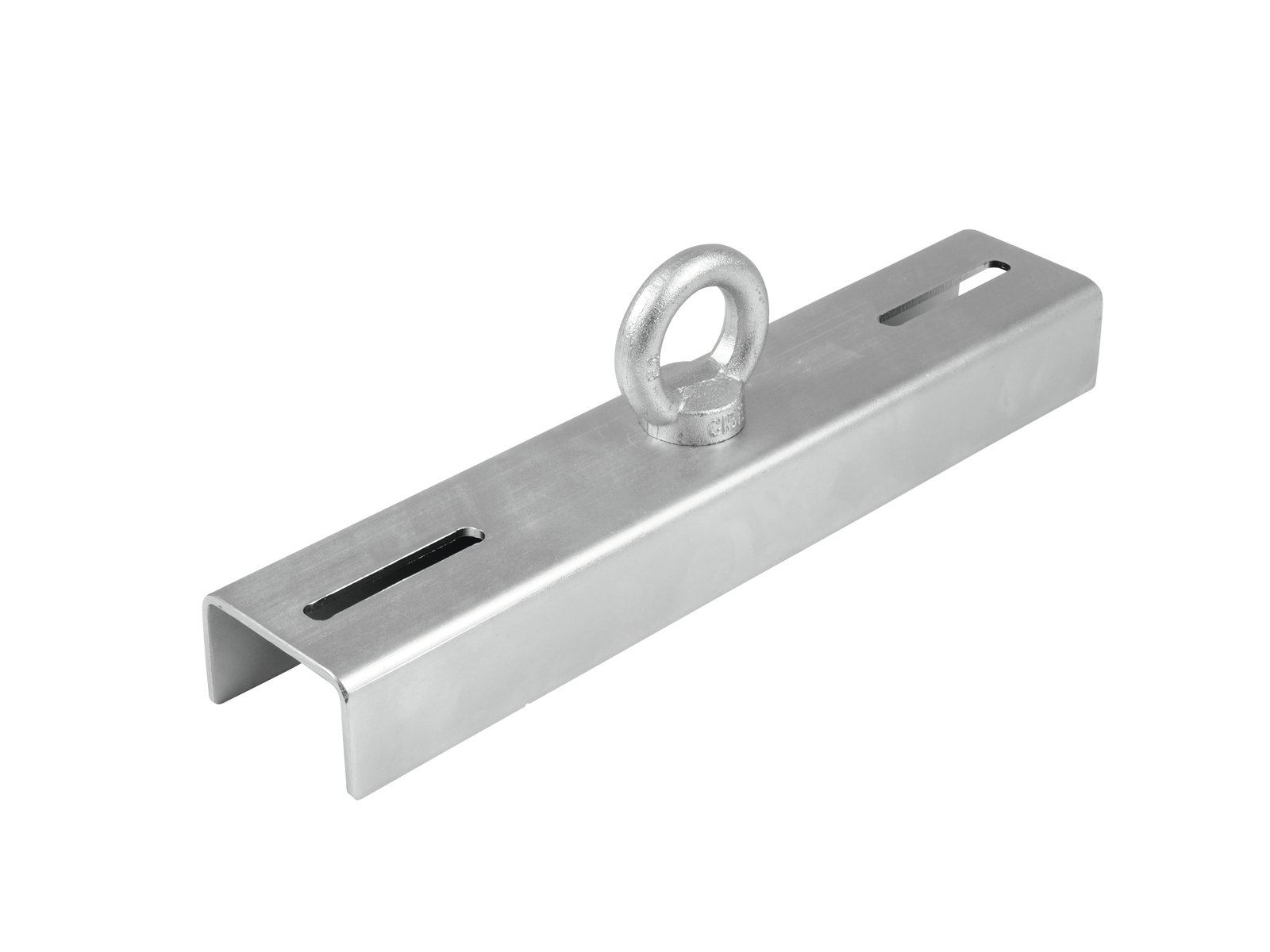

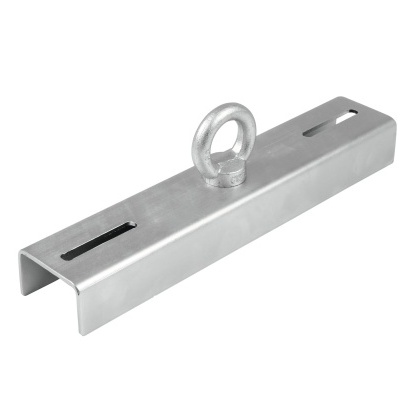

ALUTRUSS GI-1 Truss Adapter silver

Truss mount

  • U-profile for hanging truss from the ceiling
  • Designed for trusses from 25 to 40 cm
  • Thanks to its adjustable system, just one adapter can be used for different trusses
  • M20 ring bolt with washer and self-locking nut
  • Made in Europe

Package contents

  • 1 x device

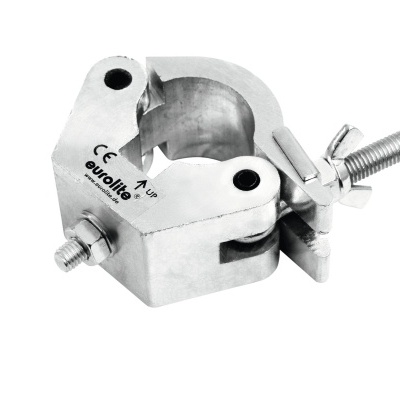

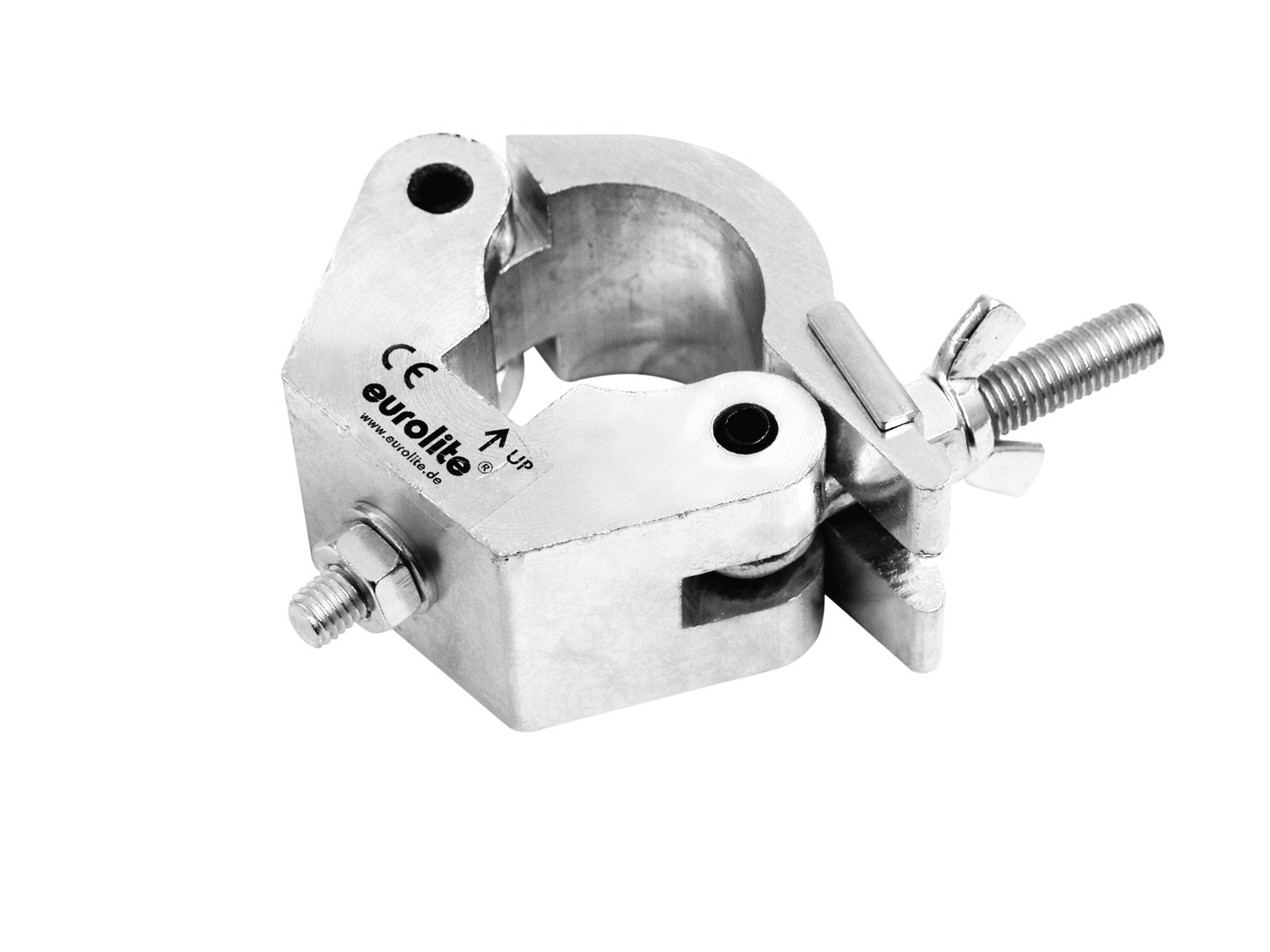

EUROLITE TPC-50 Half Coupler

Mounting coupler for 50 mm tube, maximum load WLL 800 kg



Trusspipe:50 mm
Dimensions:Height: 5 cm
Weight:3,86 kg
ALUTRUSS GI-1 Truss Adapter silver
Maximum load BGV C1 (8-fold):250 kg
Max. load WLL (4-fold):500 kg
Material:Steel, 3,5 mm
Color:Alu colored
Dimensions:Length: 40 cm
Width: 8 cm
Height: 12 cm
Weight:2,44 kg
EUROLITE TPC-50 Half Coupler
Maximum load BGV C1 (8-fold):400 kg
Max. load WLL (4-fold):800 kg
Tube diameter sector:45 - 50 mm
Material:Aluminum
Color:Silver
Mounting screw:M10
Dimensions:Length: 11 cm
Width: 5 cm
Depth: 11,50 cm
Weight:710 g
