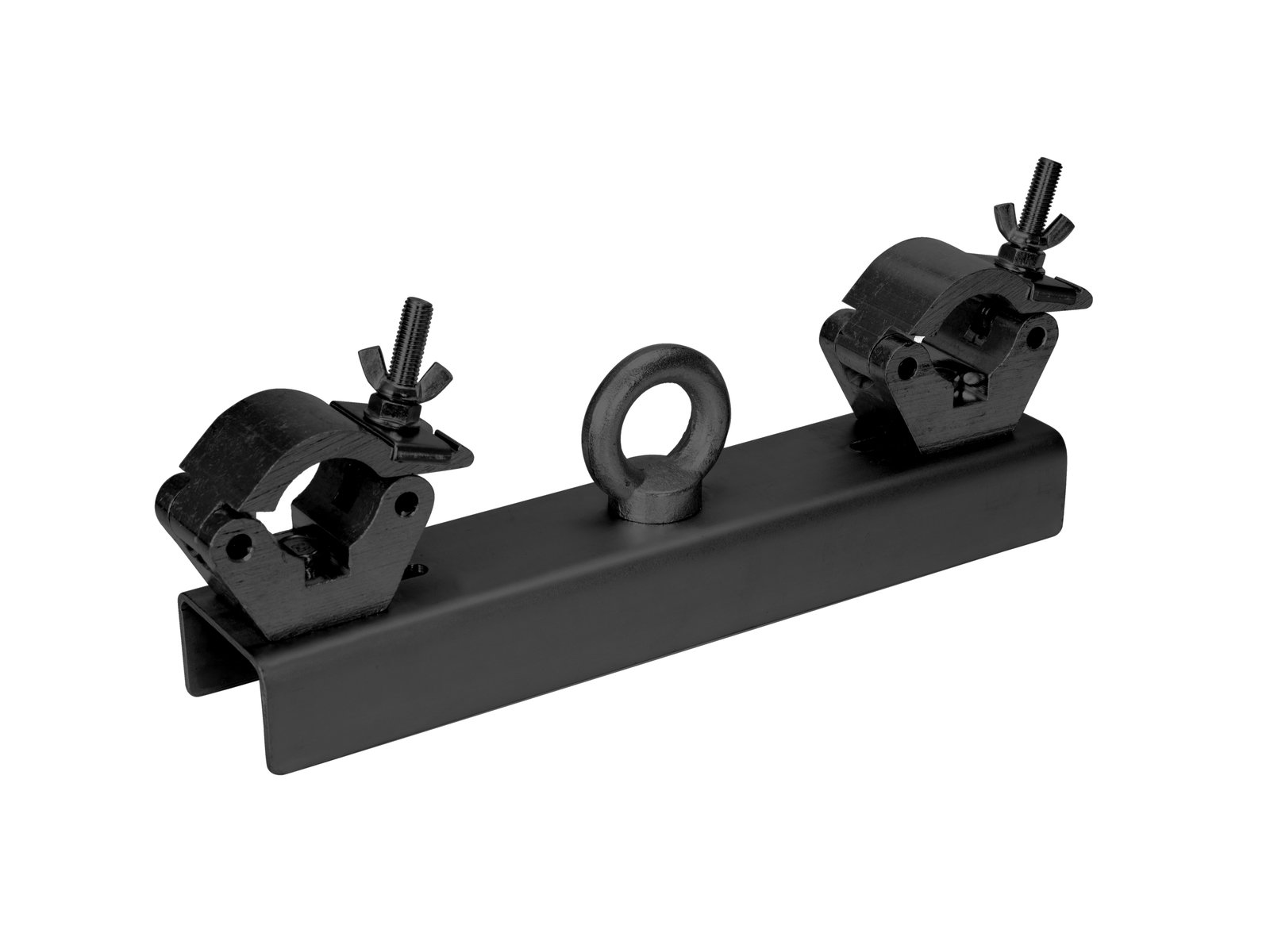

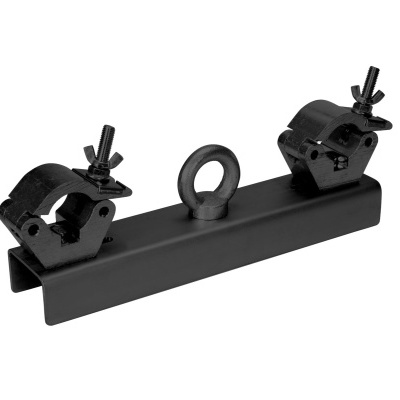

ALUTRUSS Gizmo/Clamps Truss Adapter black
ALUTRUSS Gizmo/Clamps Truss Adapter black
ALUTRUSS Gizmo/Clamps Truss Adapter black
ALUTRUSS Gizmo/Clamps Truss Adapter black

ALUTRUSS Gizmo/Clamps Truss Adapter black

SKU: 60320385

139,92 €
IVA included.
Contact

Add to wishlist



Truss mount

  • With two TPC-50 clamps
  • Trusspipe: 50 mm

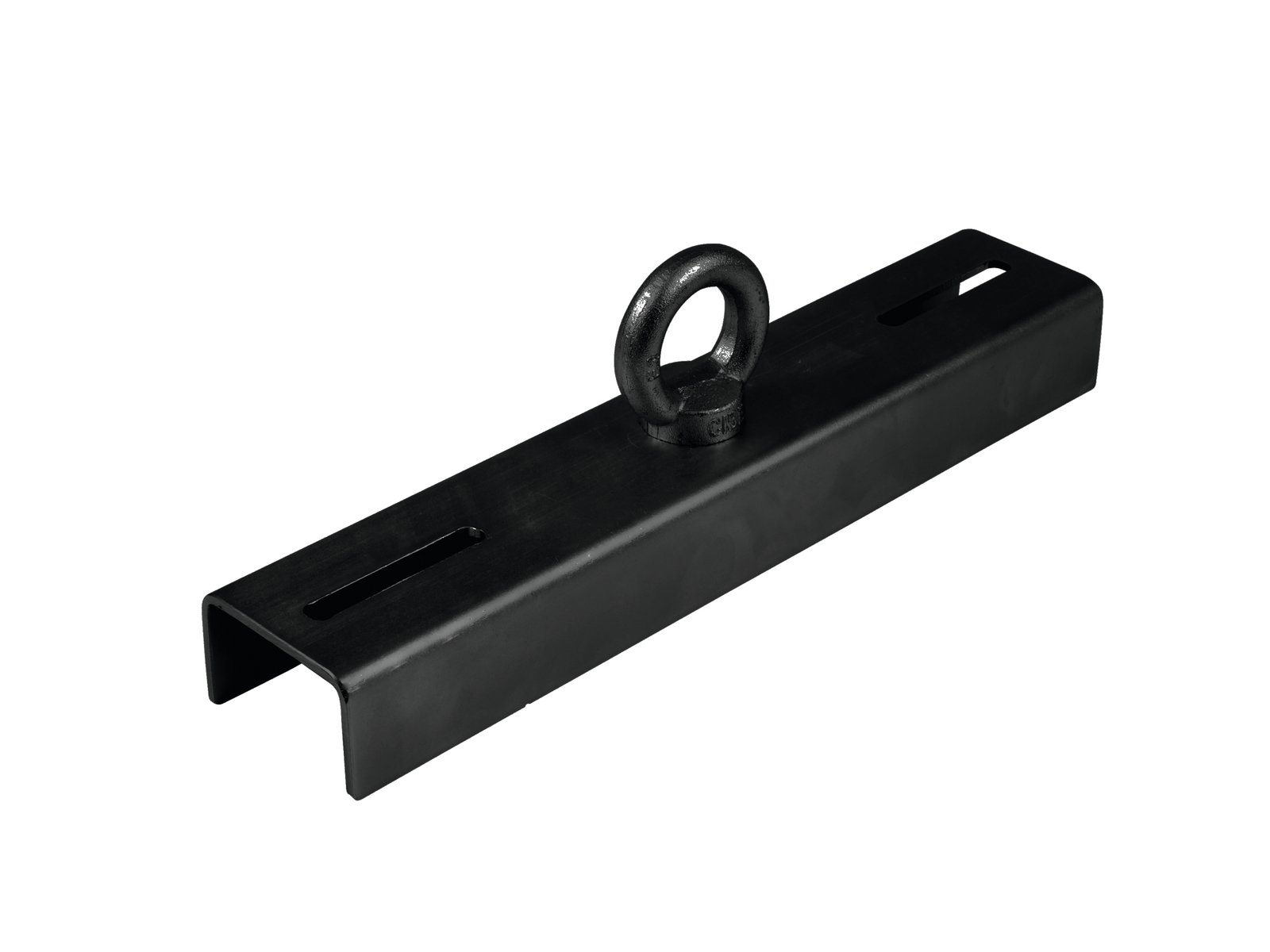

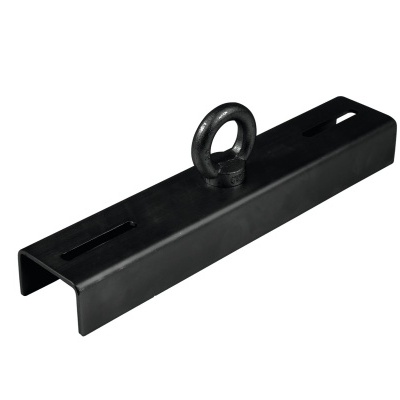

ALUTRUSS GI-1 Truss Adapter black

Truss mount

  • U-profile for hanging truss from the ceiling
  • Designed for trusses from 25 to 40 cm
  • Thanks to its adjustable system, just one adapter can be used for different trusses
  • M20 ring bolt with washer and self-locking nut
  • LGA tested

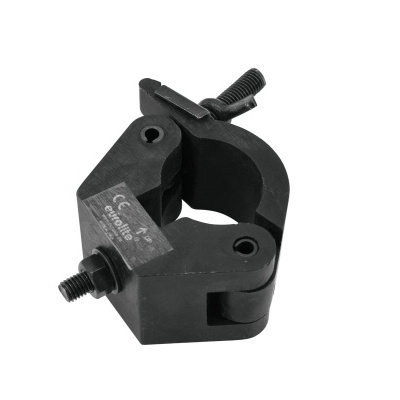

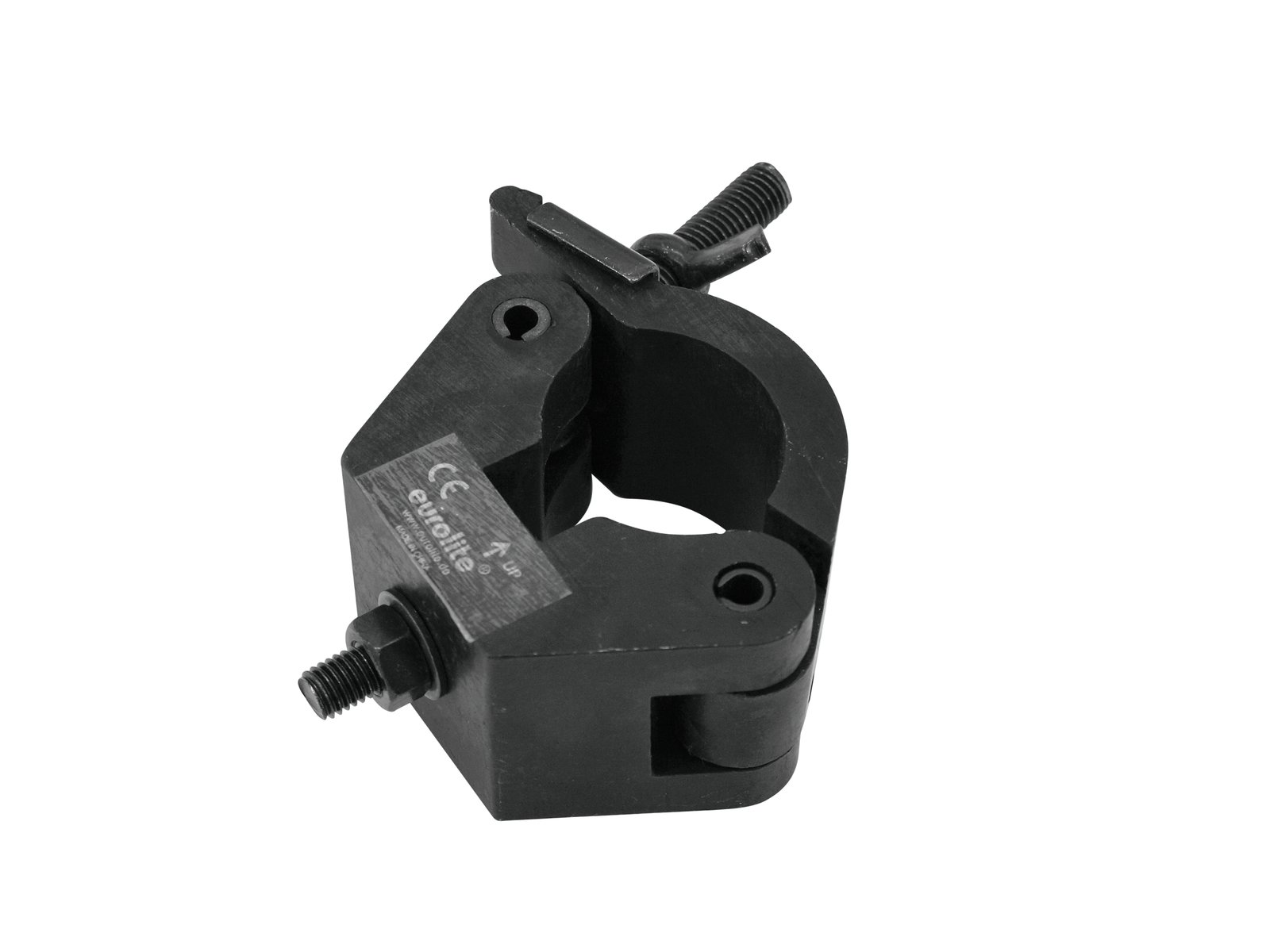

EUROLITE TPC-50S Half Coupler

Mounting coupler for 50 mm tube, maximum load WLL 800 kg

Package contents

  • 1 x device, 1 x user manual


Trusspipe:50 mm
Weight:3,87 kg
ALUTRUSS GI-1 Truss Adapter black
Maximum load BGV C1 (8-fold):250 kg
Max. load WLL (4-fold):500 kg
Color:Black
Material thickness:3,5 mm
Dimensions:Length: 40 cm
Width: 8 cm
Height: 5 cm
Weight:2,46 kg
EUROLITE TPC-50S Half Coupler
Maximum load BGV C1 (8-fold):400 kg
Max. load WLL (4-fold):800 kg
Tube diameter sector:45 - 50 mm
Material:Aluminum
Color:Black
Mounting screw:M10
Dimensions:Length: 11 cm
Width: 5 cm
Depth: 11,50 cm
Weight:710 g
Brand ALUTRUSS
