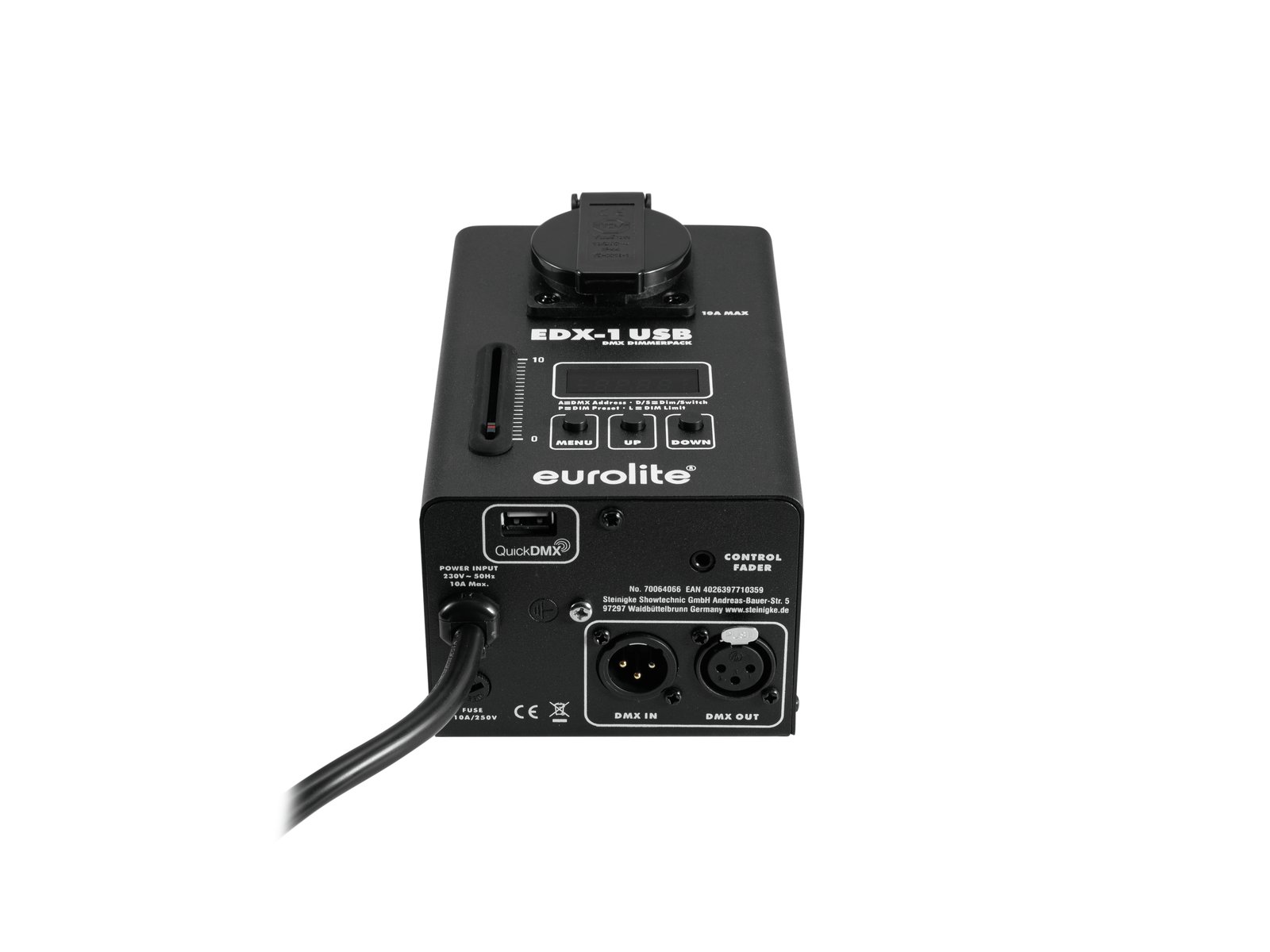

EUROLITE EDX-1 DMX USB Dimmer Pack
EUROLITE EDX-1 DMX USB Dimmer Pack
EUROLITE EDX-1 DMX USB Dimmer Pack
EUROLITE EDX-1 DMX USB Dimmer Pack
EUROLITE EDX-1 DMX USB Dimmer Pack
EUROLITE EDX-1 DMX USB Dimmer Pack

EUROLITE EDX-1 DMX USB Dimmer Pack

SKU: 70064066

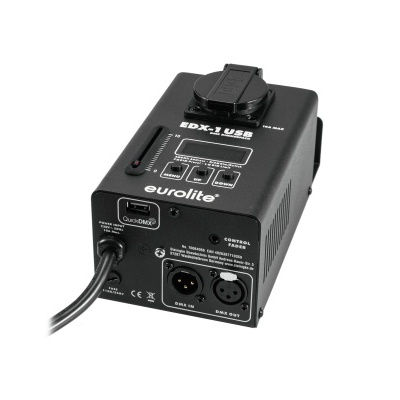

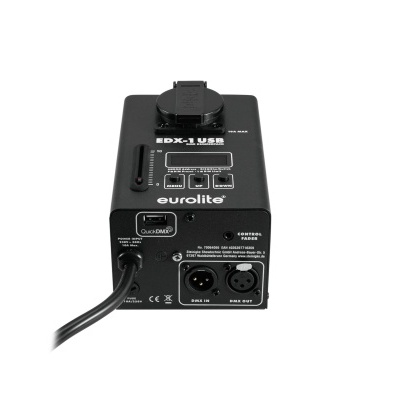

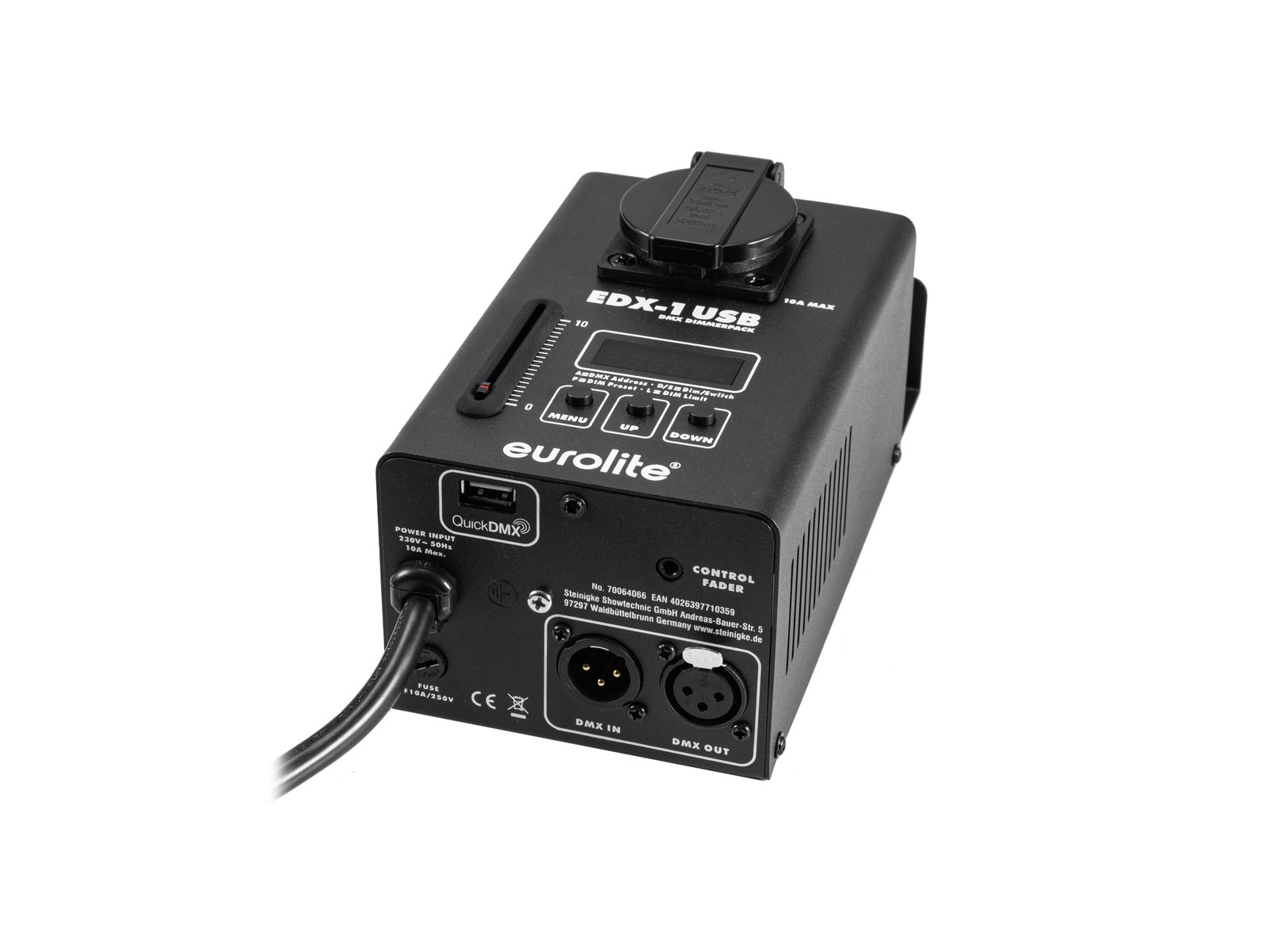

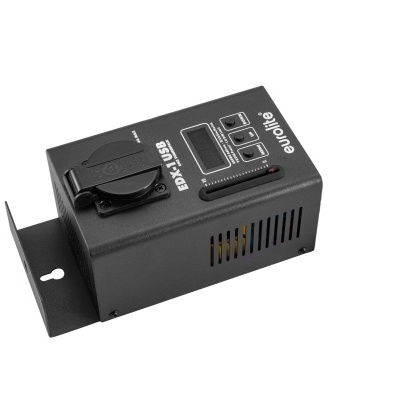

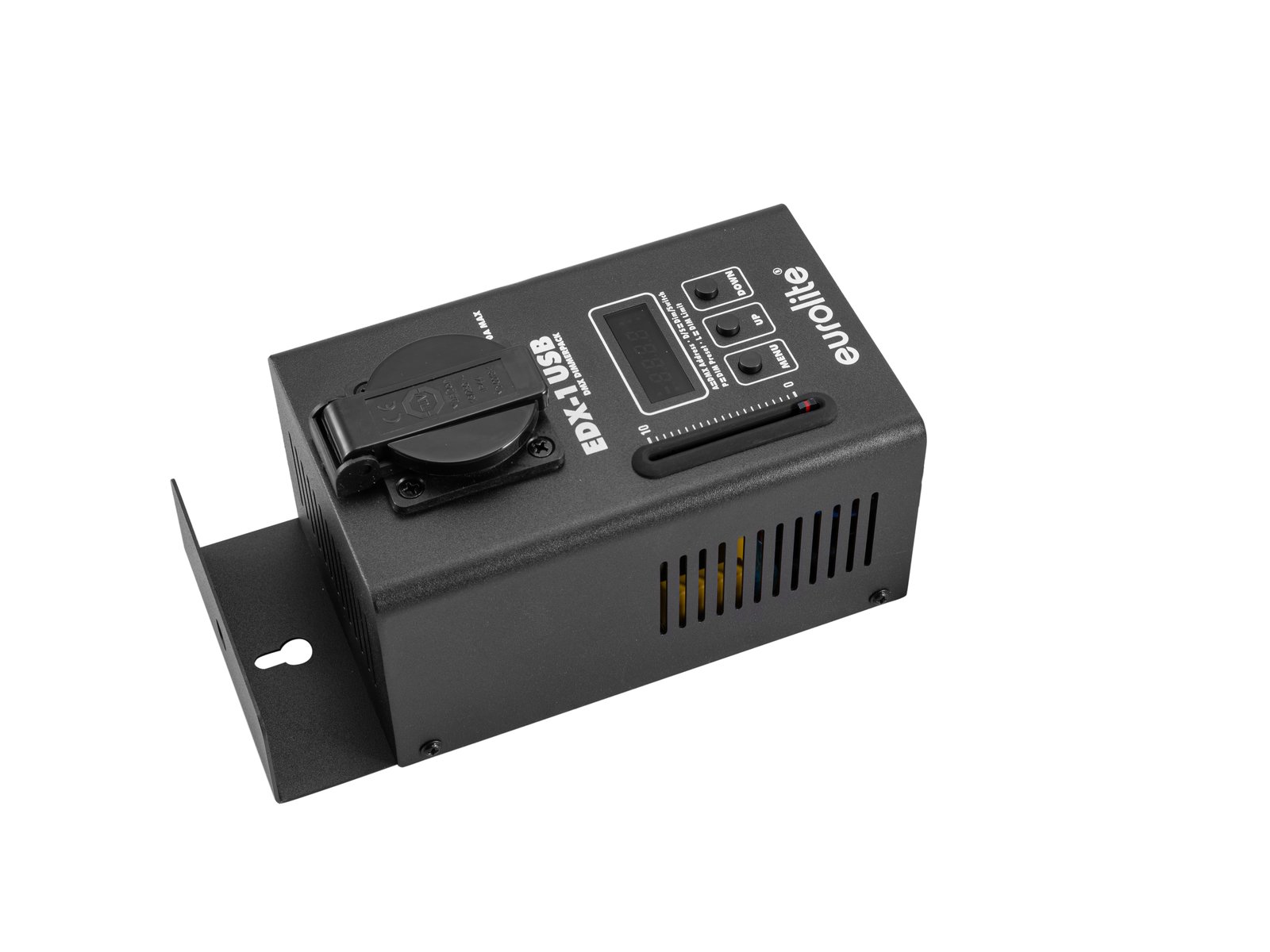

The EDX-1 DMX USB is a compact 1-channel dimmer to control the brightness of spotlights on stage or in clubs. It can be controlled via DMX signal from a light console and supports QuickDMX for wireless control. All menu settings can be made via the built-in control panel with LED display. The housing has threads for fixing the unit to a truss.

1-channel DMX dimmer pack with QuickDMX port

  • Selectable dimmer or switch pack operating mode
  • Control via QuickDMX via USB (optional); stand-alone; DMX; wired remote control; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • 4 digit 7-segment LED display
  • For application areas such as: Trade fair and shop fitting; theater; Rental; video and photography
  • Silent operation
  • Application possibility: Wall mounting

Package contents

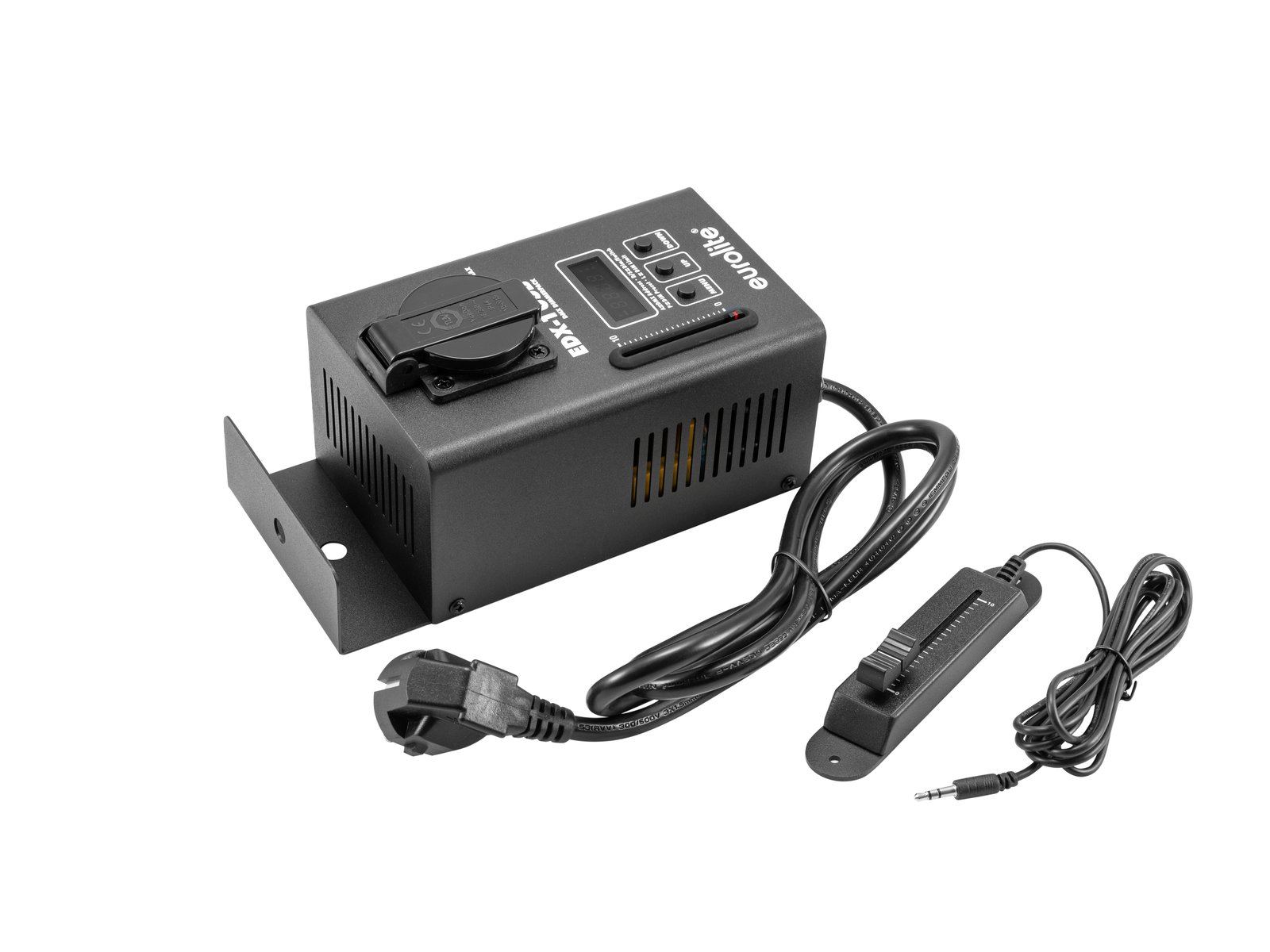

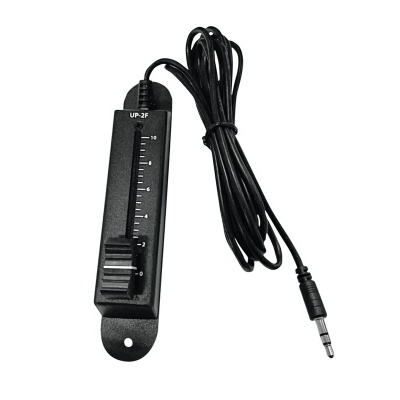

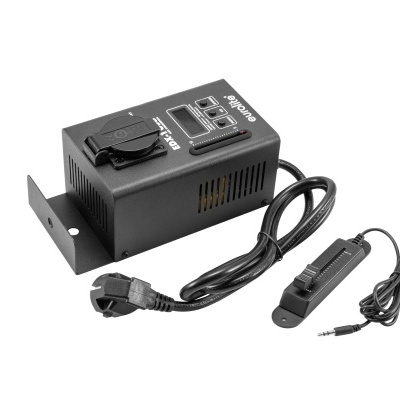

  • 1 x device, 1 x user manual, 1 x remote control


Power supply:230 V AC, 50 Hz
Output power:Max. 2300 W
Output current:Max. 10 A
Power connection:Fixed power supply cord with safety plug
Power output:1 x Safety contact (F), hinged lid mounting version
DMX channels:1
DMX input:3-pin XLR (M) mounting version
USB, type A
DMX output:3-pin XLR (F) mounting version
Control:QuickDMX via USB (optional); stand-alone; DMX; wired remote control; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Control channels:1
Display type:4 digit 7-segment LED display
Color:Black
Dimensions:Width: 18,2 cm
Depth: 9,2 cm
Height: 6,5 cm
Weight:1,56 kg
Noise classification:Class 0 (no noise at all)
