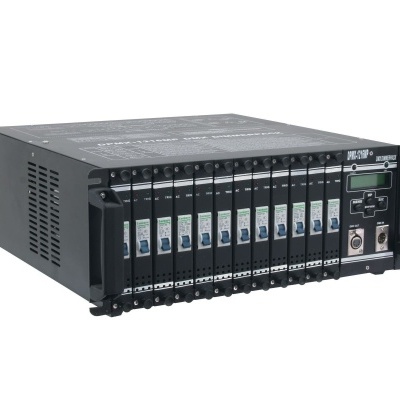

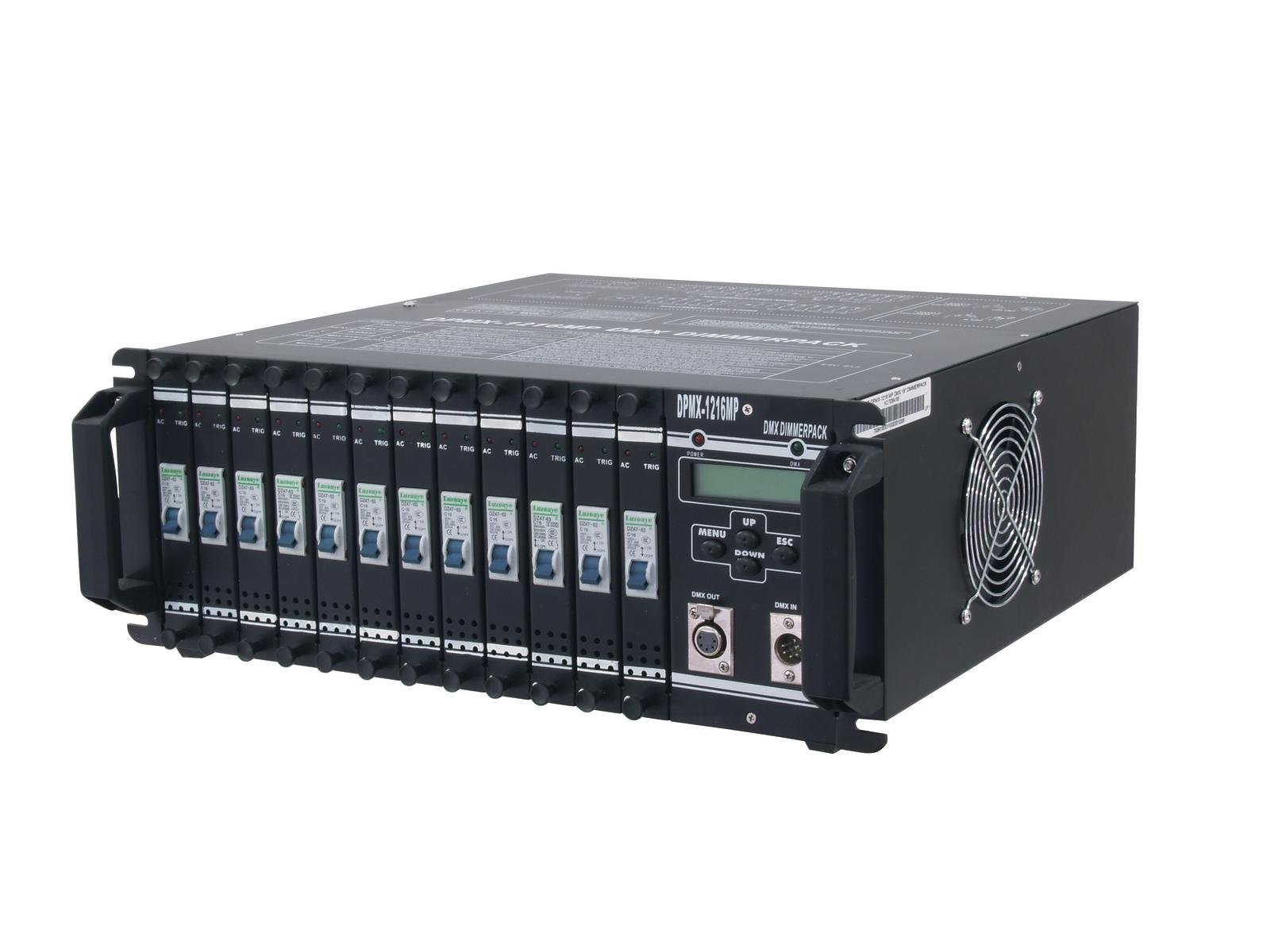

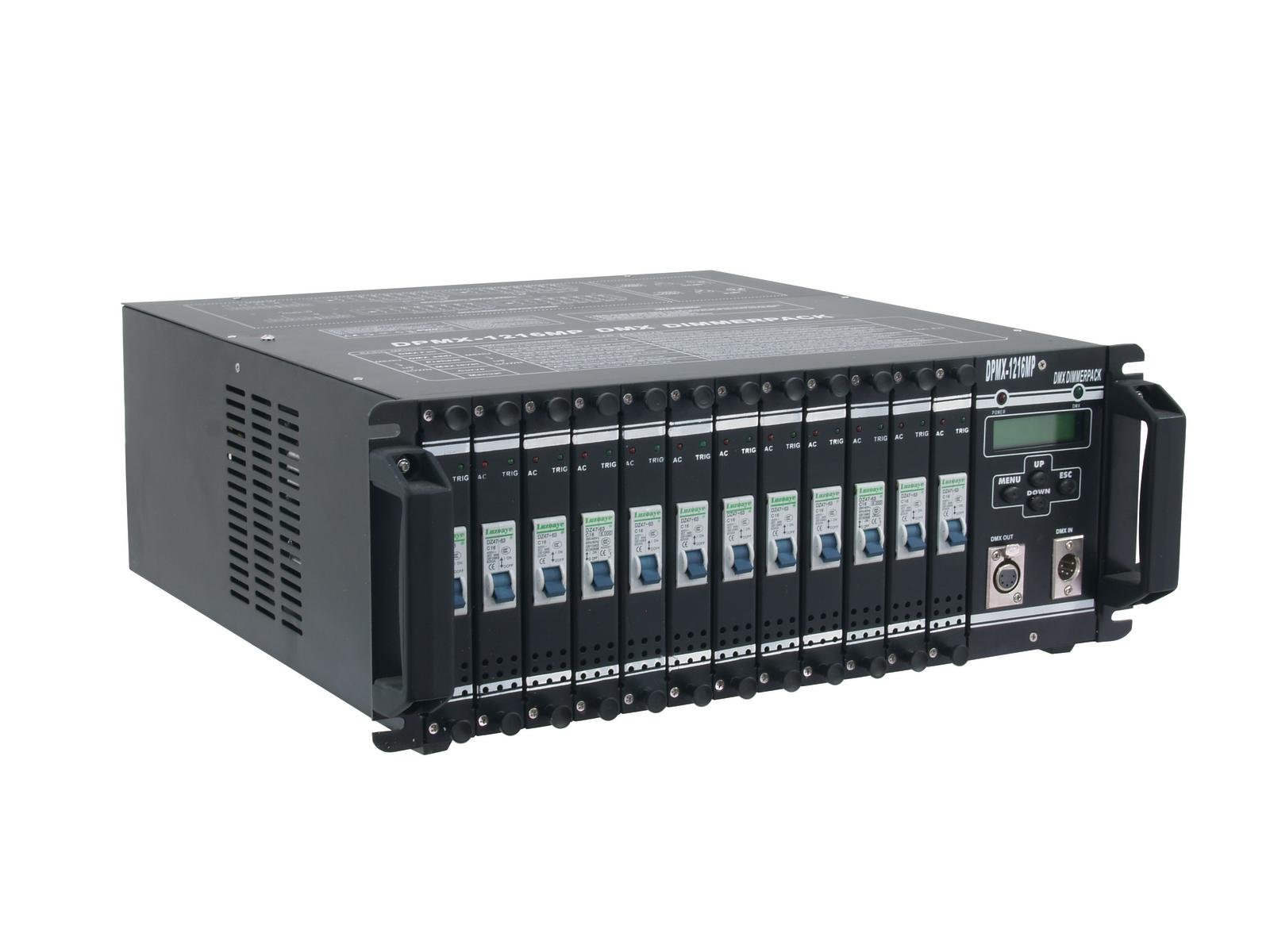

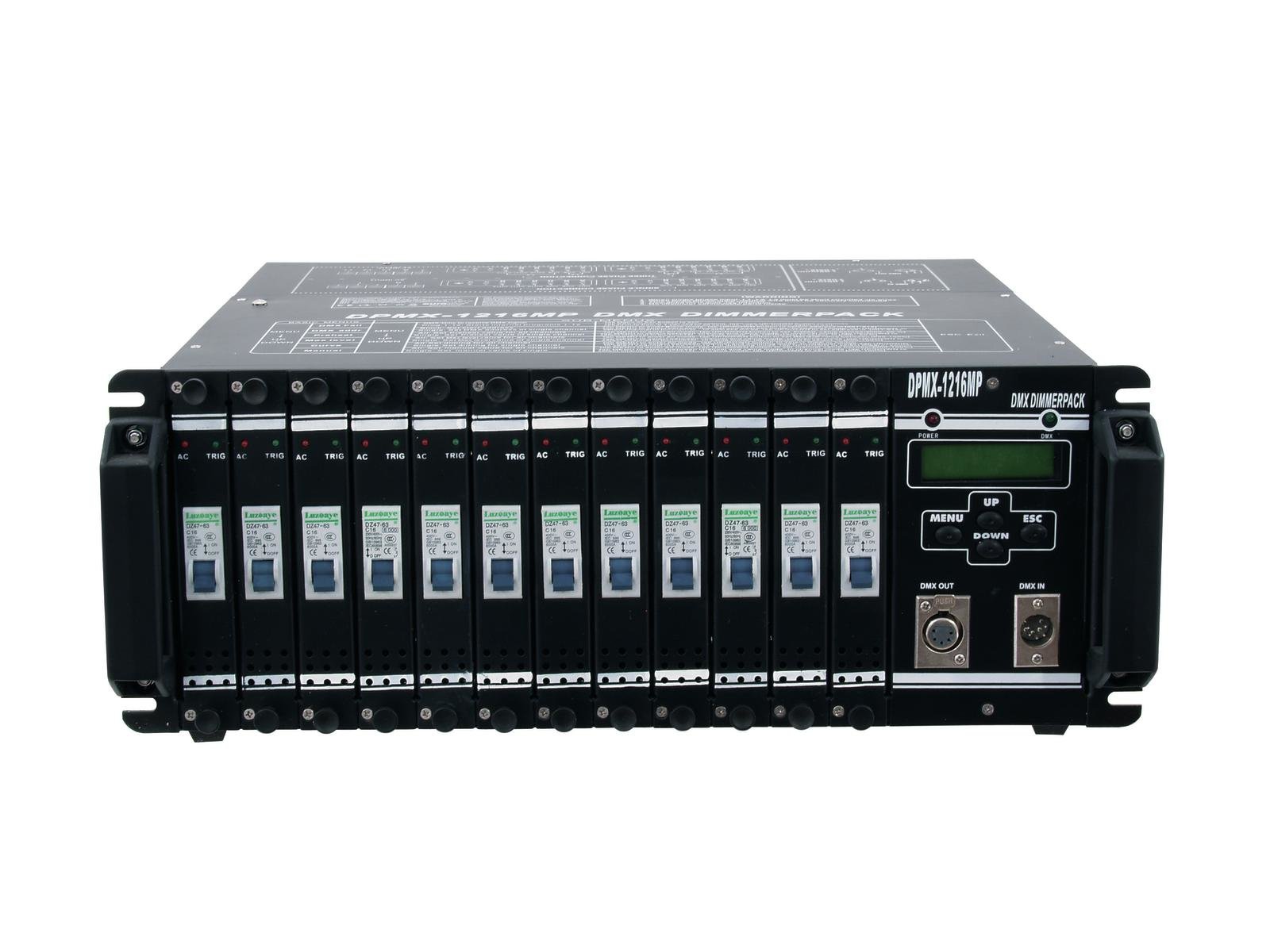

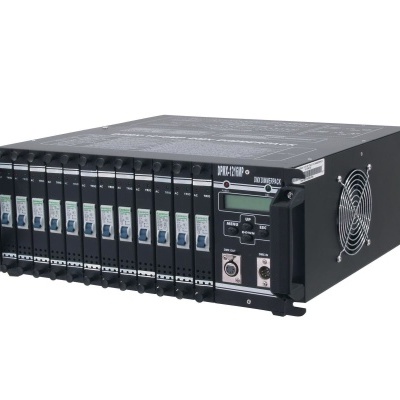

EUROLITE DPMX-1216 MP DMX Dimmer Pack

Reliability is always important. Especially at professional events the breakdown of any part of the equipment cannot be accepted. The DPMX-1216 dimmer pack series is the right answer here because it plays it safe: this universal output stage has an automatic circuit breaker on every channel, so single failures can be corrected without causing a complete blackout. Another benefit are the different outputs. Pole connector, safety plug, CEE or multipin: the DPMX-1216 19" serves really any kind.

12 x 16A dimmer, service friendly modules, two 16-pin multipin sockets

• 12-channel dimmer pack with up to 16 A output per channel

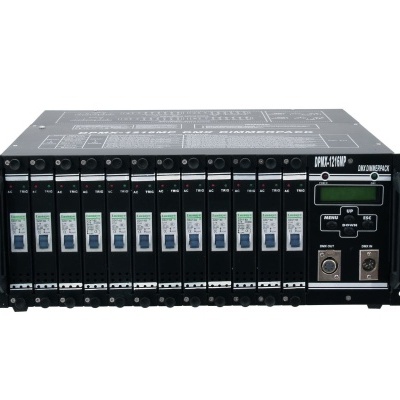

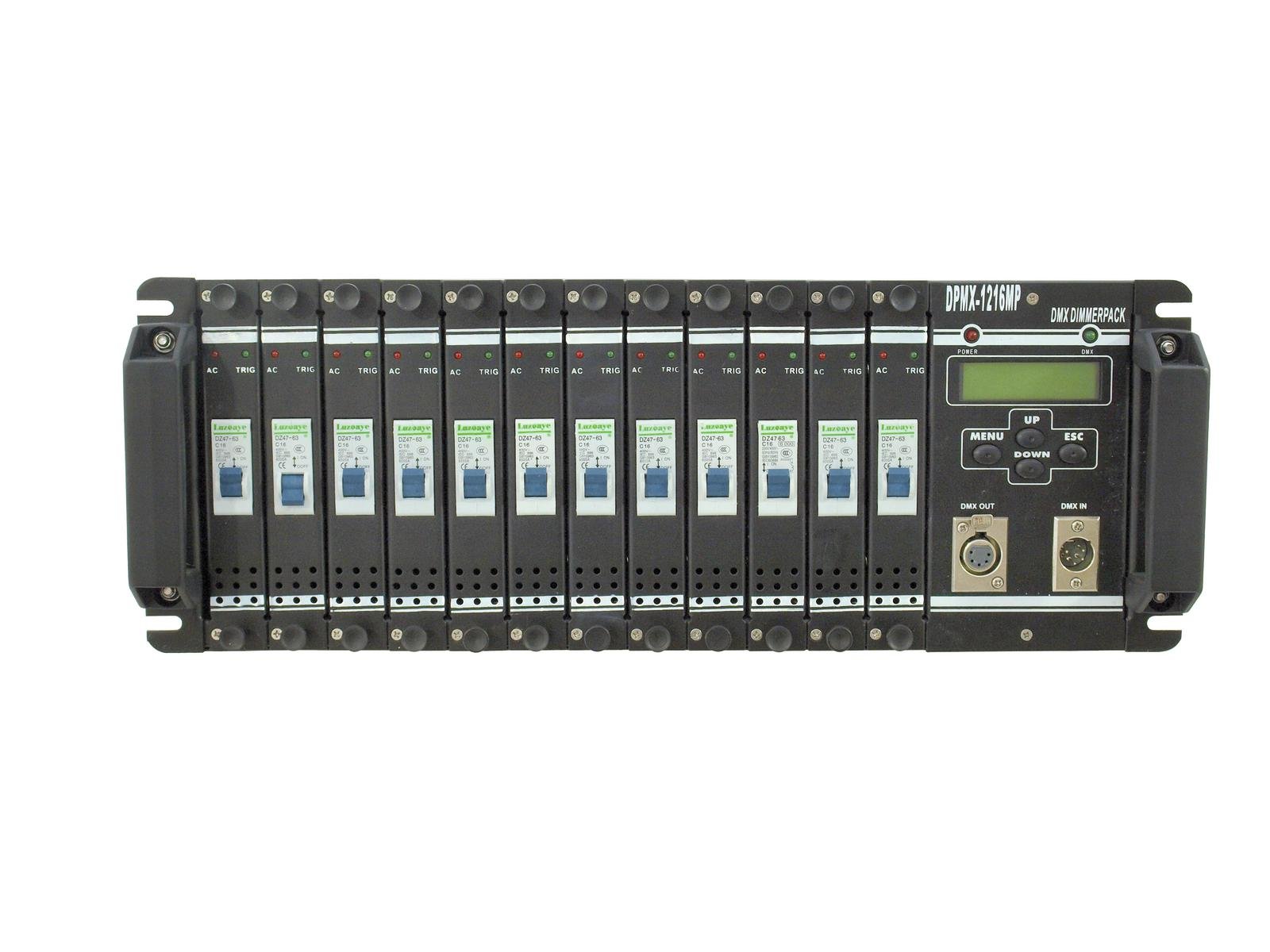

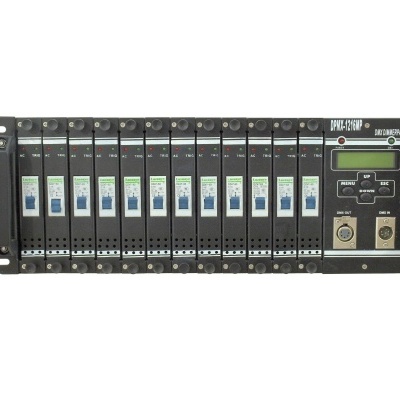

• Modular design of the individual dimmer modules for quick and easy change
• 3-phase or 1-phase power supply
• Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
• Curve function for selection of different fade modes
• Dim or switch option assignable to each channel
• DMX Fail function: automatic digital input check to detect DMX signal errors
• Manual mode for dimming capability without an external lighting controller
• Synchronization of several devices possible via DMX
• Automatic circuit breaker per channel (type C)
• Channel outputs on the rear panel via industrial sockets
• Only for professional use
• 12 integrated show programs
• Preprogrammed 12 chasers
• The device is cooled by cooling fan
• Control via stand-alone; DMX
• LCD display
• (19") 48.3 cm rack installation 4 U
• For application areas such as: Trade fair and shop fitting; Stage; theater; Rental
• Very quiet working noise

Package contents

• 1 x device, 1 x user manual

Power supply:	380-400V AC, 50Hz
Output power:	Max. 3680 W per channal Max. 43470 W
Output current:	Max. 189 A
Power connection:	Mains input via screw terminal

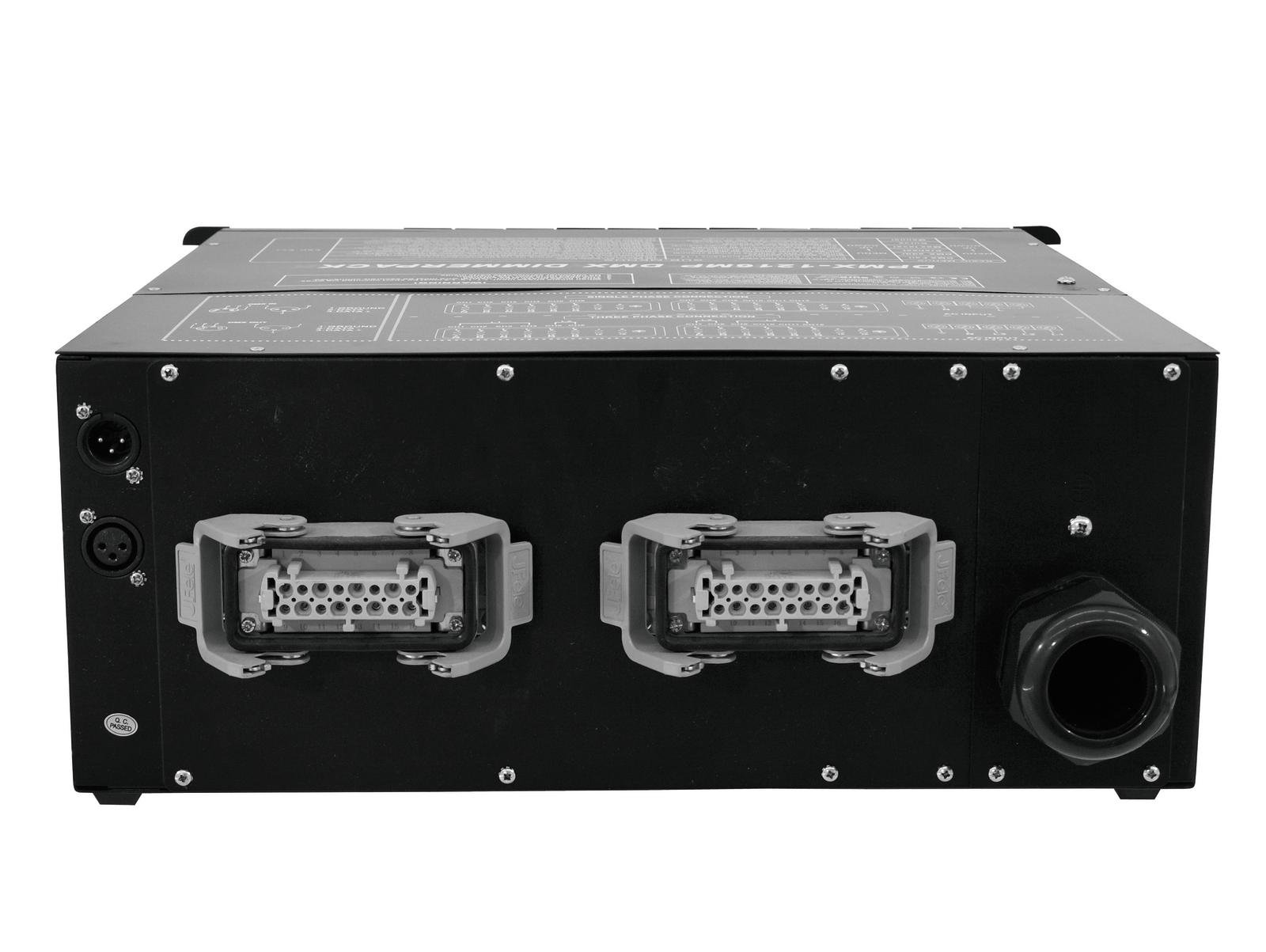

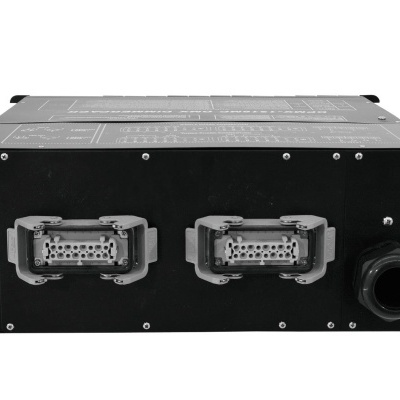

Power output:	2 x 16-pin multi-pin (F) fitted version
Power output fuse per channel:	C 16 A Fuse resettable
Programs:	Preprogrammed 12 Chasers
DMX channels:	12
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX
Control channels:	12
Display type:	LCD display
Color:	Black
Housing design:	(19") 48.3 cm rack installation 4 U
Dimensions:	Width: 48,3 cm Depth: 48,5 cm Height: 17,8 cm
Weight:	17,95 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
