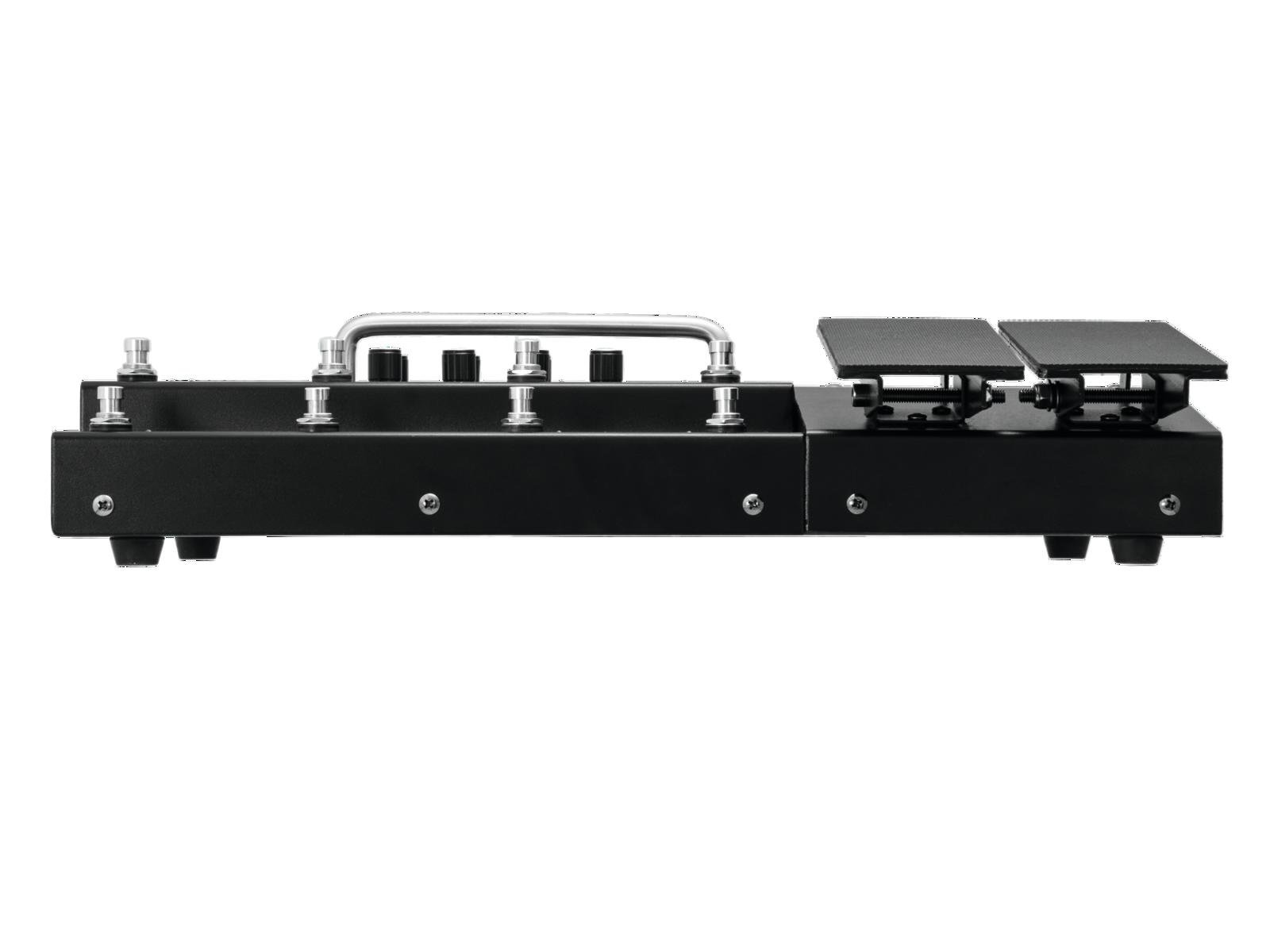

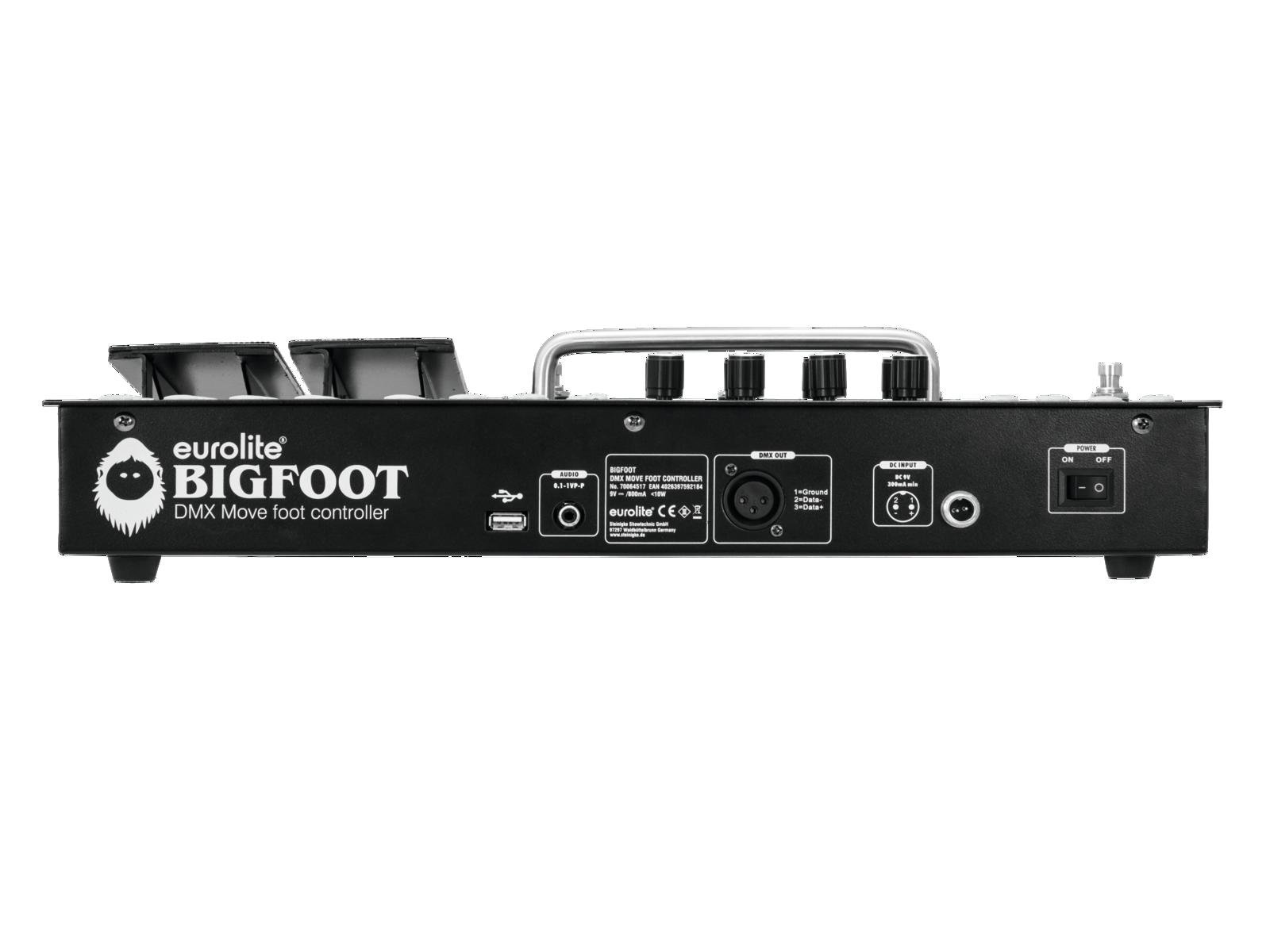

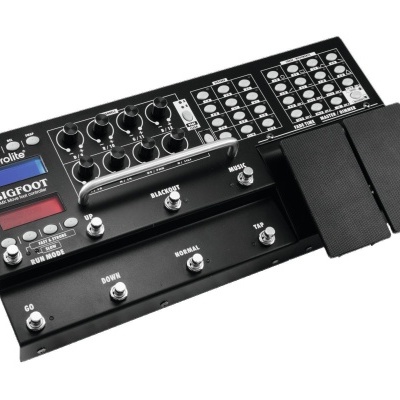

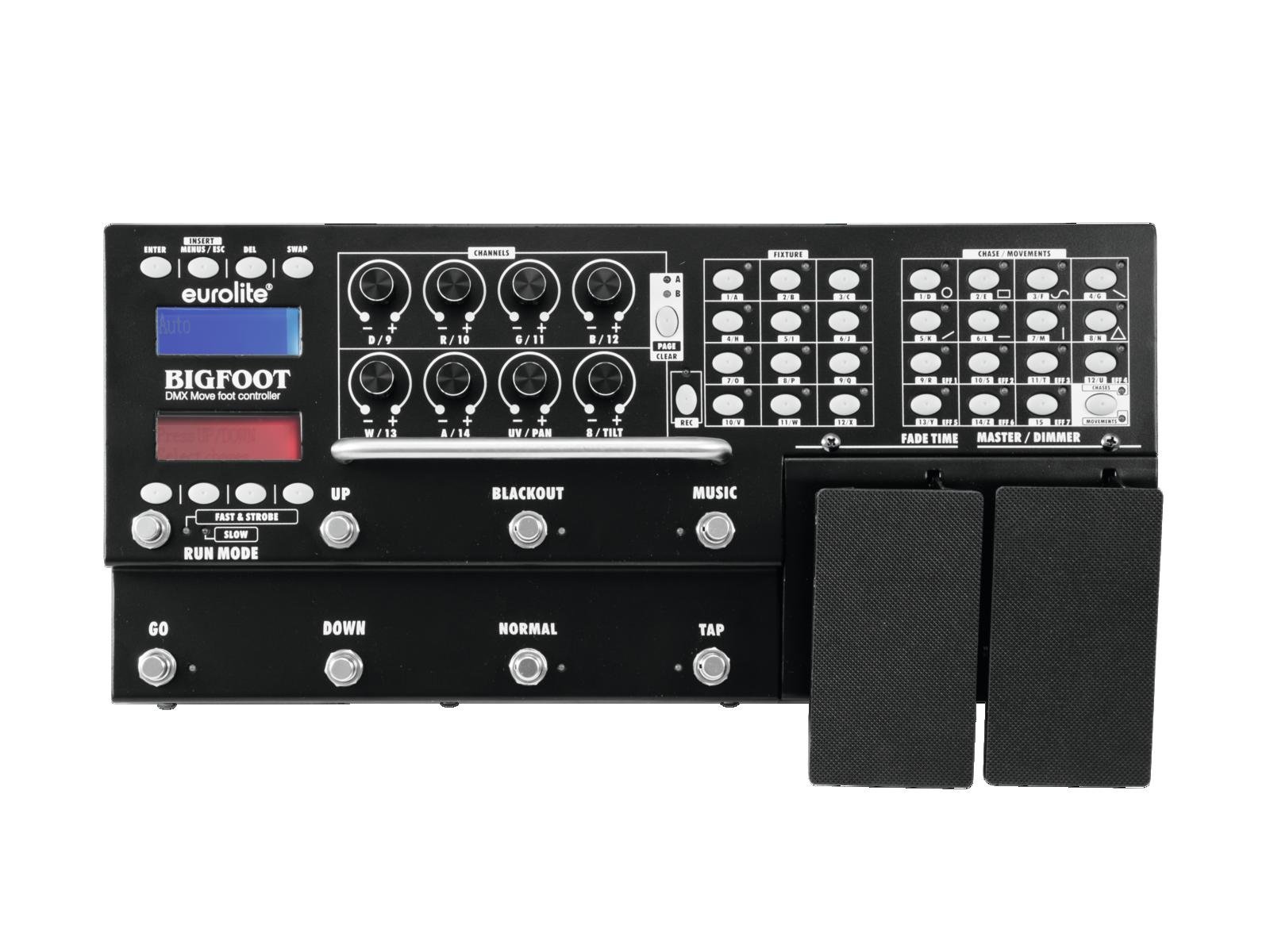

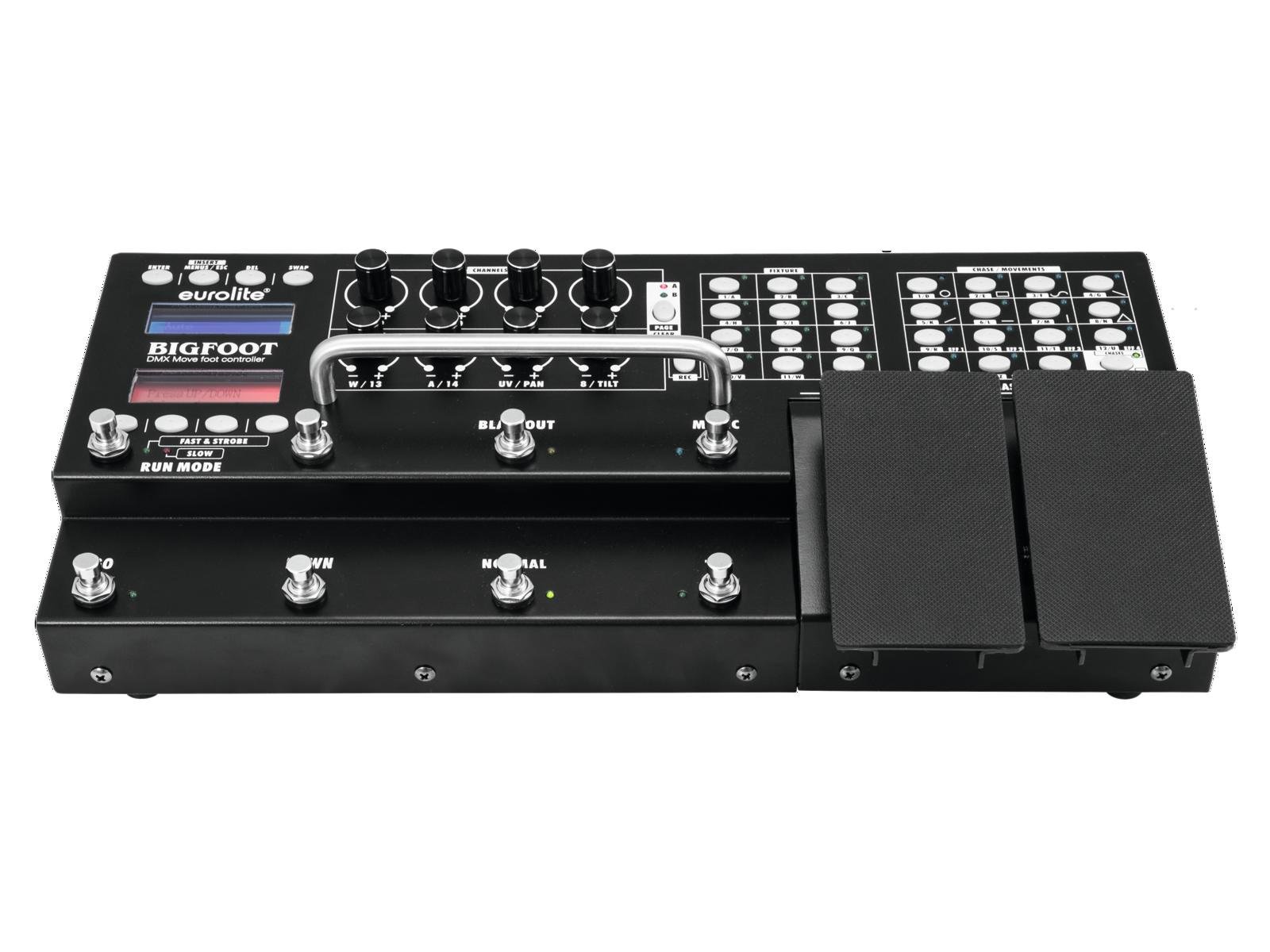

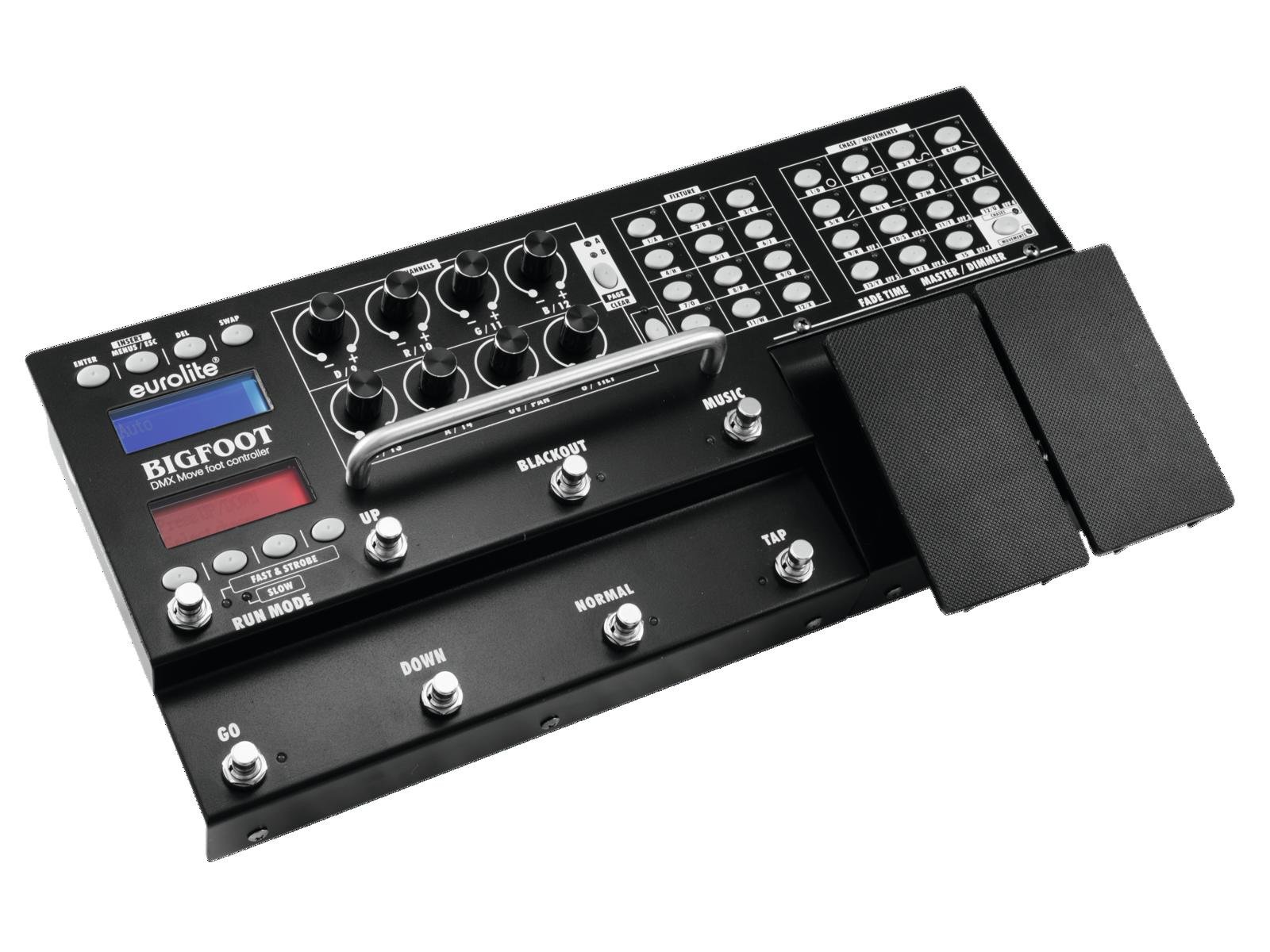

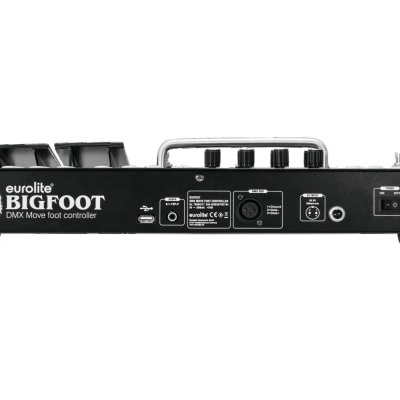

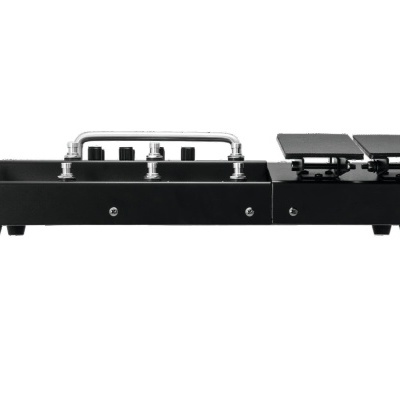

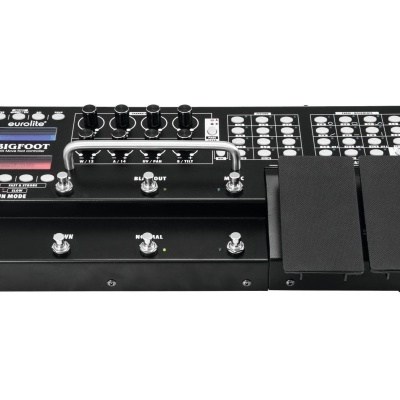

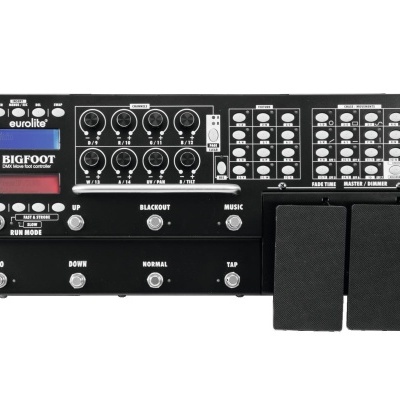

EUROLITE DMX Move Bigfoot Foot Controller 192
EUROLITE DMX Move Bigfoot Foot Controller 192
EUROLITE DMX Move Bigfoot Foot Controller 192
EUROLITE DMX Move Bigfoot Foot Controller 192
EUROLITE DMX Move Bigfoot Foot Controller 192
EUROLITE DMX Move Bigfoot Foot Controller 192

EUROLITE DMX Move Bigfoot Foot Controller 192

SKU: 70064517



A full-fledged DMX light controller in a foot bar, with FX generator

  • Fully programmable DMX foot controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
  • 192 DMX channels can be assigned and inverted as desired to 16 control channels (softpatch)
  • For 12 fixtures with max. 16 control channels each
  • USB port for storing program data
  • Quick programming thanks to the integrated FX generator with movement patterns and color effects
  • Several effects can be used simultaneously
  • Programs can be freely named
  • Simply preselect the desired program and trigger it with GO
  • Sound control via audio signal or TAP button
  • Convenient control of dimmer, fade time and other functions by foot
  • 8 encoders on 2 levels for adjusting DMX values
  • Blackout function
  • Firmware update via USB
  • Rugged metal housing
  • Programmable 15 sequencens each with 100 scenes
  • Can transmit up to 192 DMX channels
  • Control via DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version
  • Monochrome LCD display
  • Non-slip pedal housing
  • For application areas such as: Stage; mobile djs/entertainer; product presentations and lectures
  • Silent operation

Package contents

  • 1 x controller, 1 x user manual, 1 x external mains adapter


Power supply:100-240 V AC, 50/60 Hz
9 V DC 800 mA
Power consumption:10 W
IP classification:IP20
Protection class:Protection class III
Power connection:Mains input via 2-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided)
Programs:Programmable
15 Sequences
Each with 100 Scenes
DMX channels:Output 192
DMX output:1 x 3-pin XLR (F) mounting version
Control:DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version
Housing color:Black
Display type:Monochrome LCD display
Available storage media:USB devices (FAT 32)
USB port:Typ A
Color:Black
Housing design:Non-slip pedal housing
Dimensions:Width: 45 cm
Depth: 24 cm
Height: 10 cm
Weight:4,72 kg
Noise classification:Class 0 (no noise at all)
