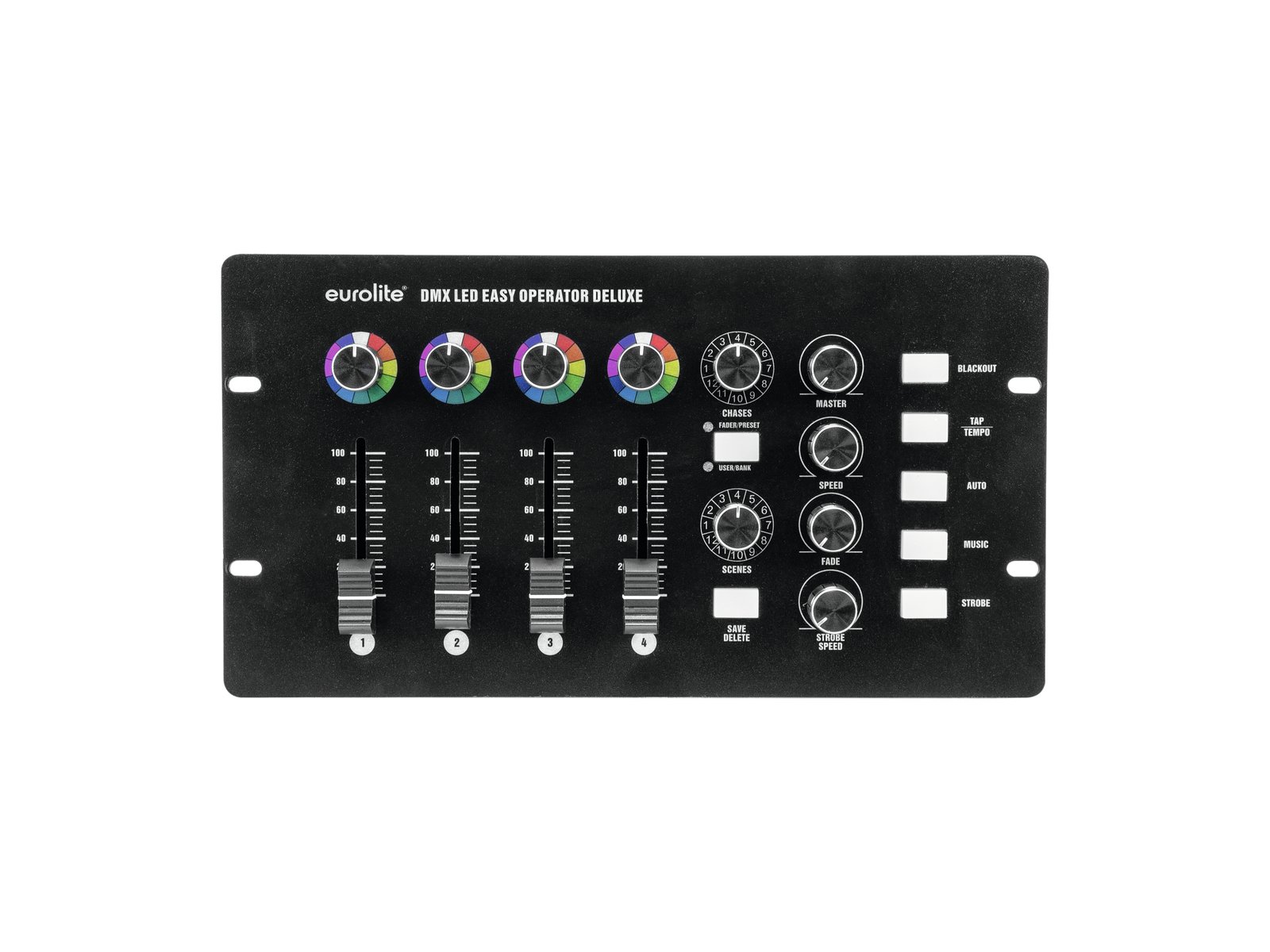

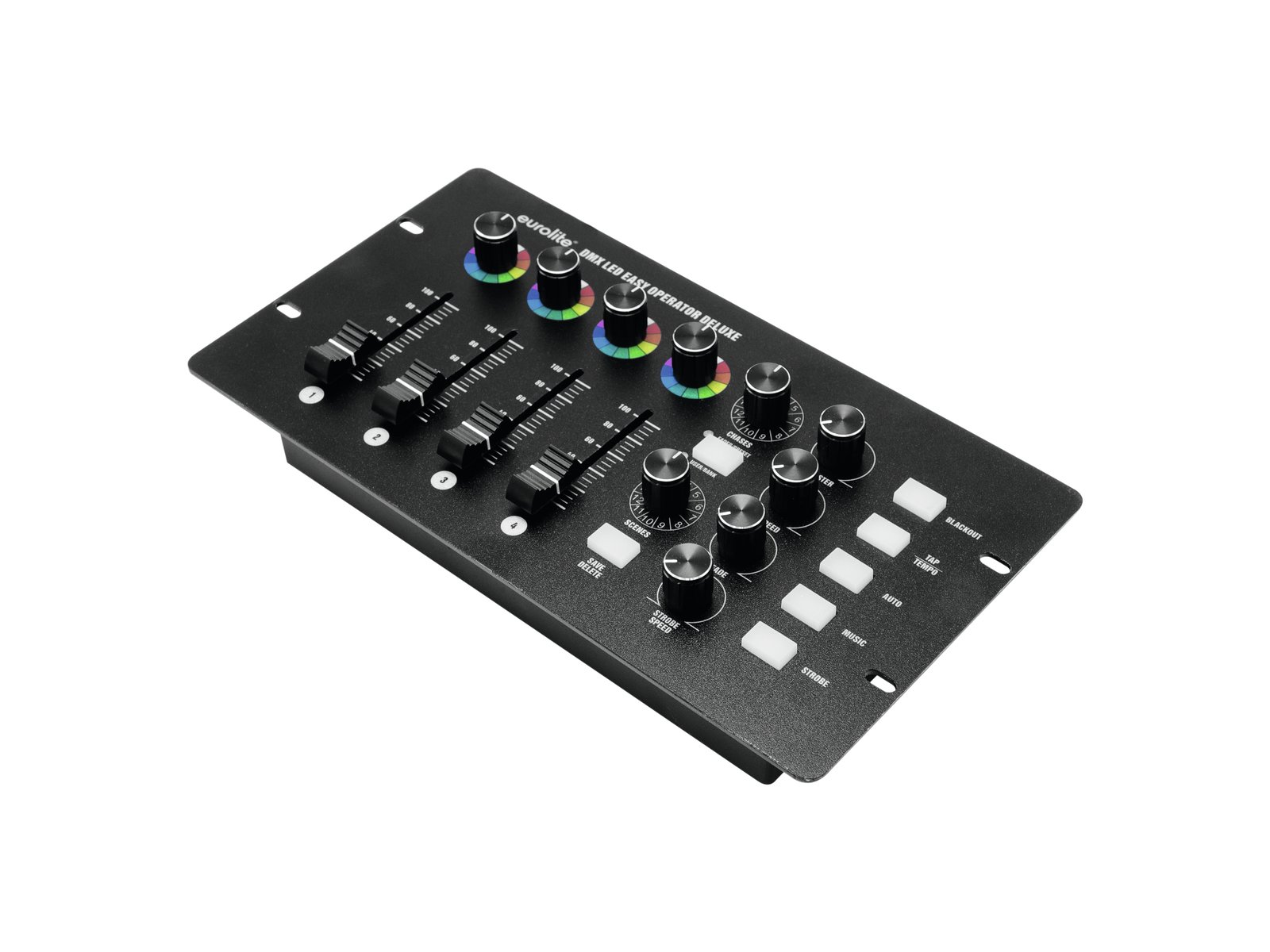

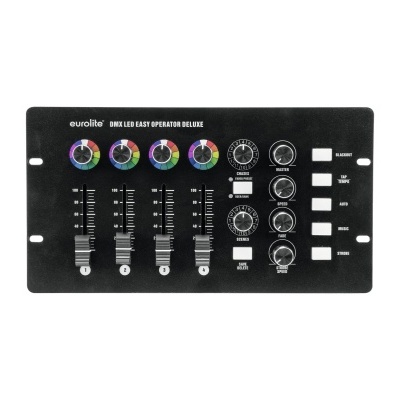

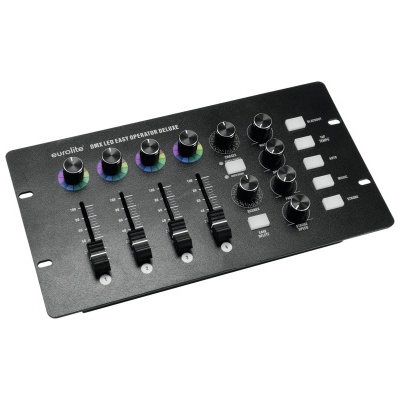

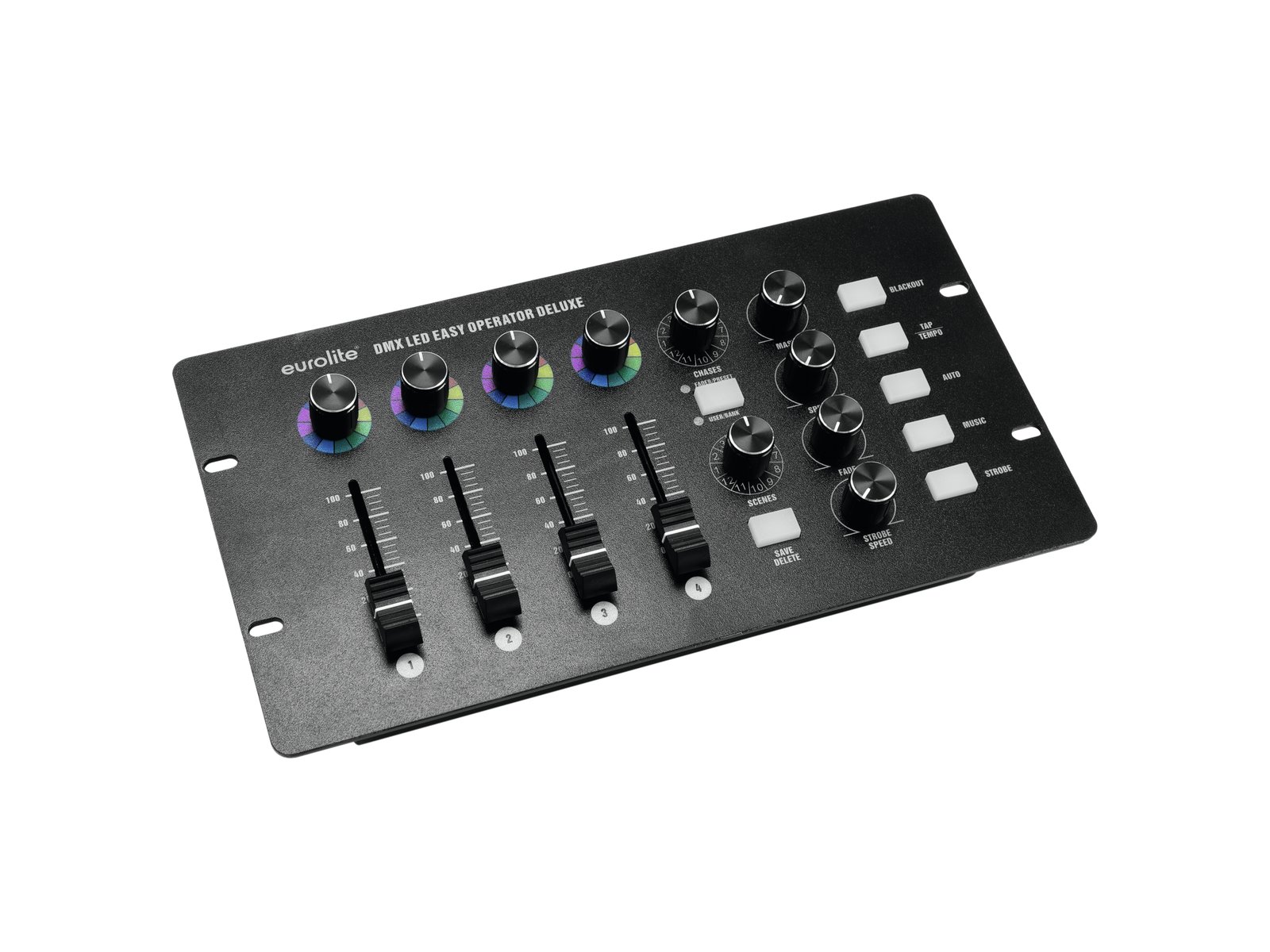

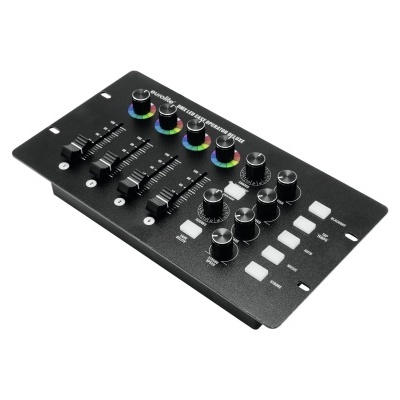

EUROLITE DMX LED EASY Operator Deluxe
SKU: 70064574
Controller for 4 colored LED spotlights or one KLS set with 4 segments
- DMX controller for standard LED spotlights
- Easy handling
- 4 LED spotlights or 1 KLS set with 4 fixtures can be controlled
- DMX channels for red, green, blue, amber, white, UV, strobe and master
- 9 different modes for the DMX channel sequence selectable
- 12 integrated preset programs and 12 user-definable programs (each with up to 12 scenes)
- 4 color controls with 12 colors each
- 4 brightness controls
- Function buttons for Blackout, TAP/Tempo, Auto, Music and Strobe
- Dimmer; program speed adjustable; color fade adjustable
- Strobe effect
- Can transmit up to 68 DMX channels
- Control via DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; stand-alone
- Desktop console housing
- For application areas such as: Party room; mobile djs/entertainer; restaurants, bars and hotels
- Silent operation
Package contents

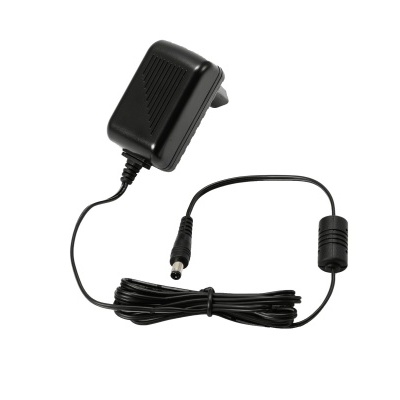

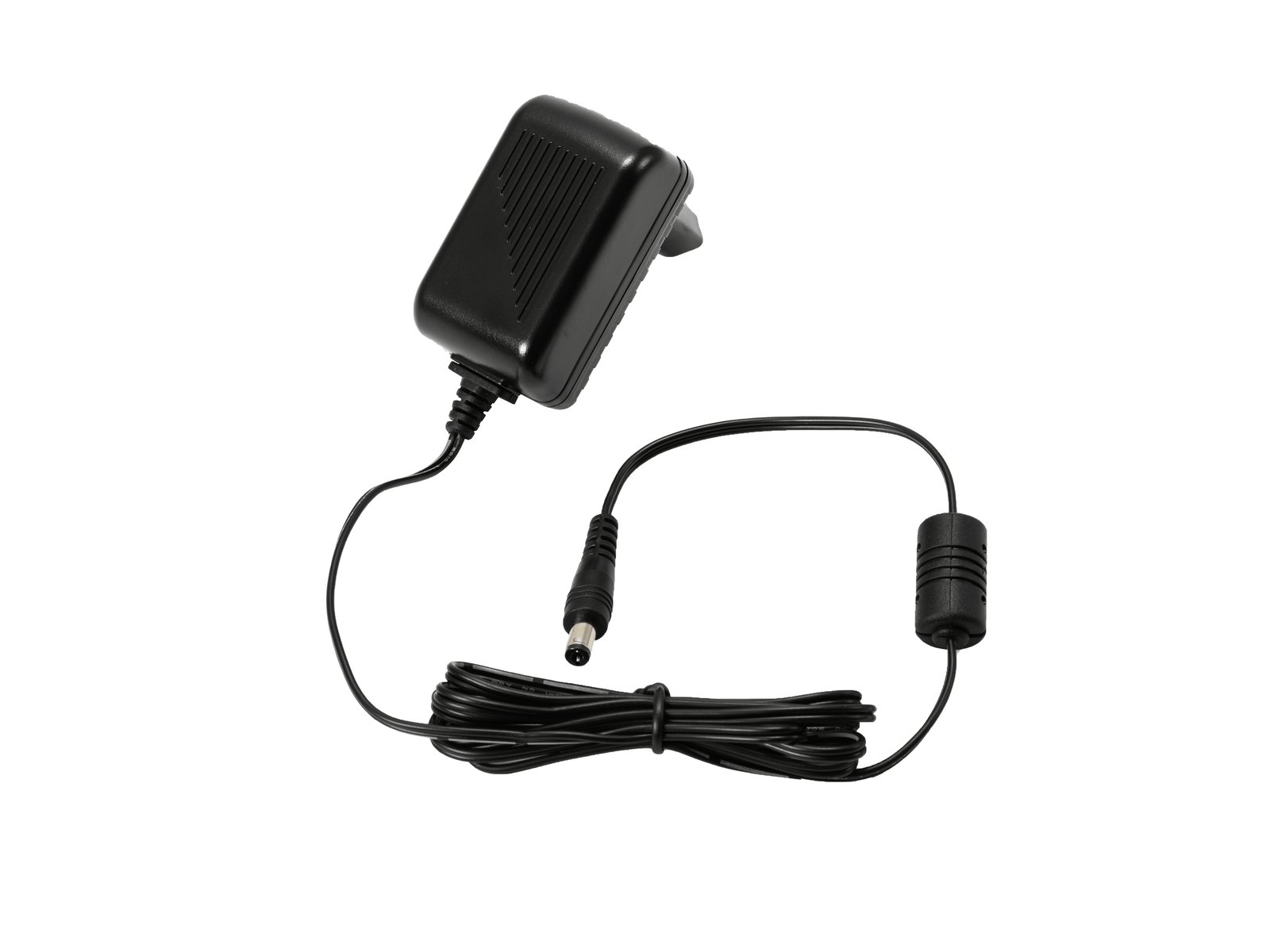

- 1 x controller, 1 x user manual, 1 x external mains adapter
| Power supply: | 100-240 V AC, 50/60 Hz 9 V DC 300 mA |
| Pin configuration: | Inside + / outside - |
| Power consumption: | < 10 W |
| IP classification: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| DMX channels: | Output 68 |

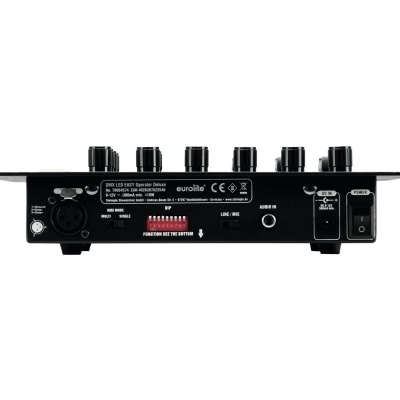

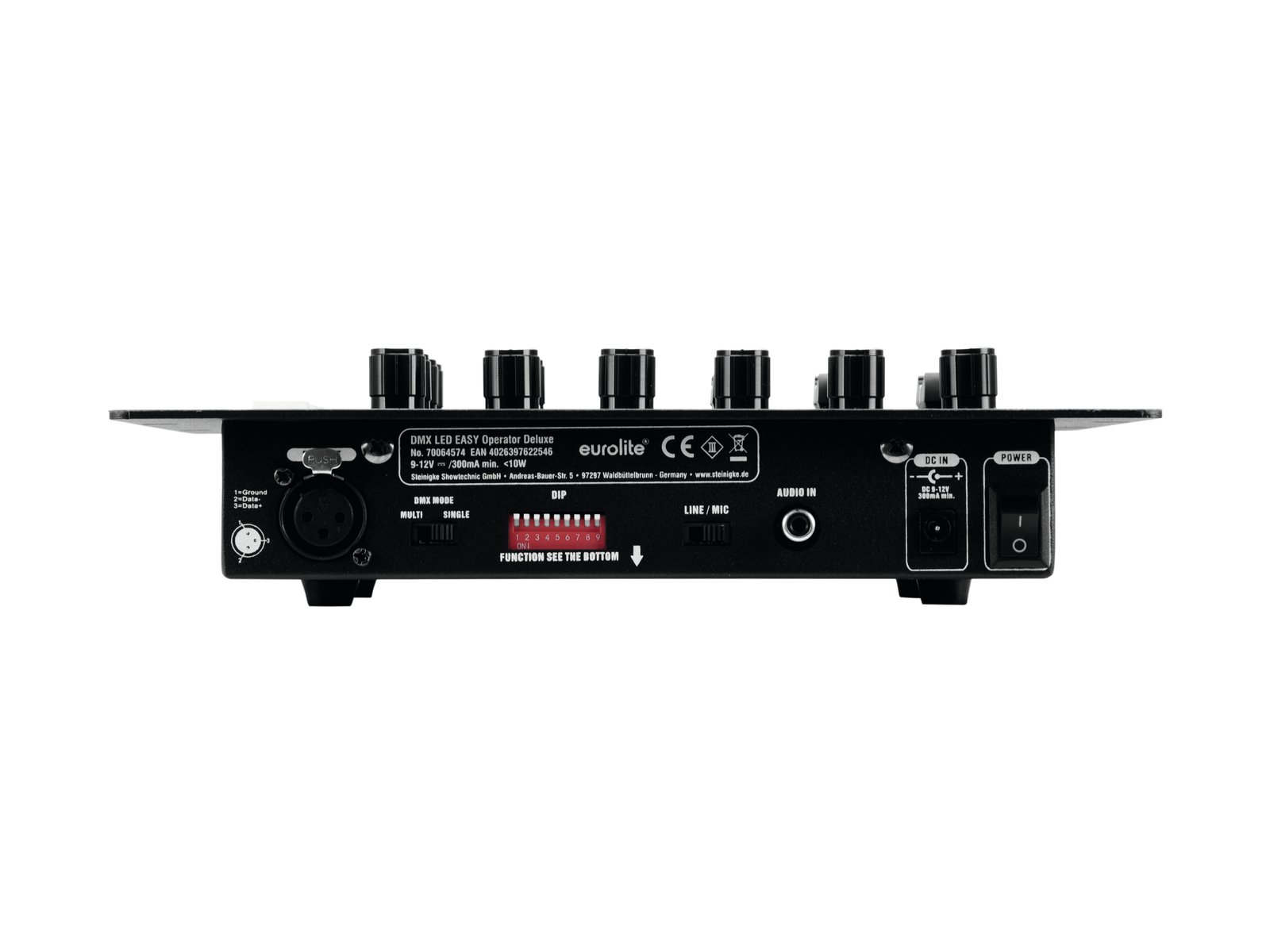

| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; stand-alone |
| Housing color: | Black |
| Color: | Black |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 26 cm Depth: 14 cm Height: 6,5 cm |
| Weight: | 1,17 kg |
| Noise classification: | Class 0 (no noise at all) |
