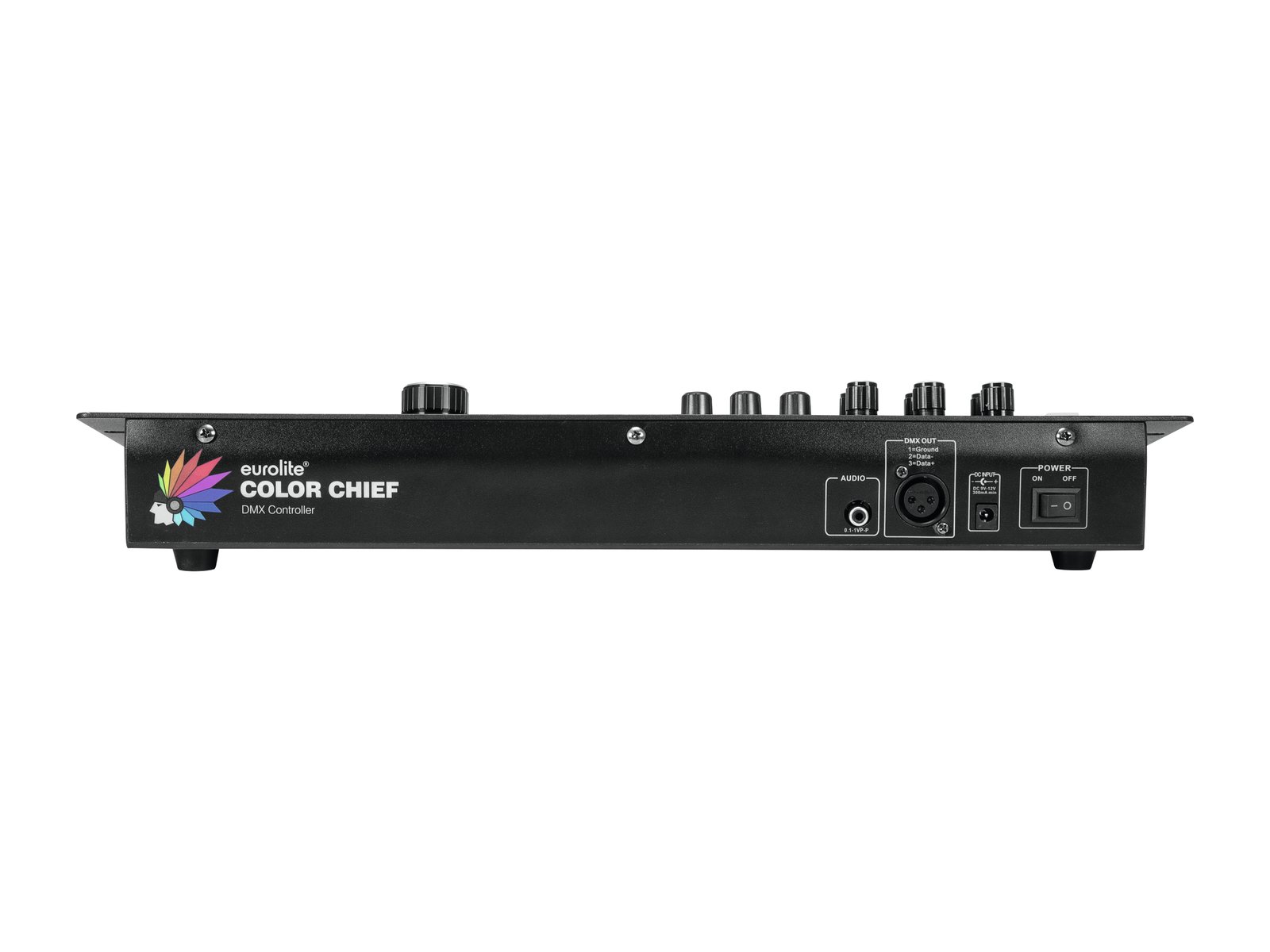

EUROLITE DMX LED Color Chief Controller
EUROLITE DMX LED Color Chief Controller
EUROLITE DMX LED Color Chief Controller
EUROLITE DMX LED Color Chief Controller
EUROLITE DMX LED Color Chief Controller
EUROLITE DMX LED Color Chief Controller

EUROLITE DMX LED Color Chief Controller

SKU: 70064575

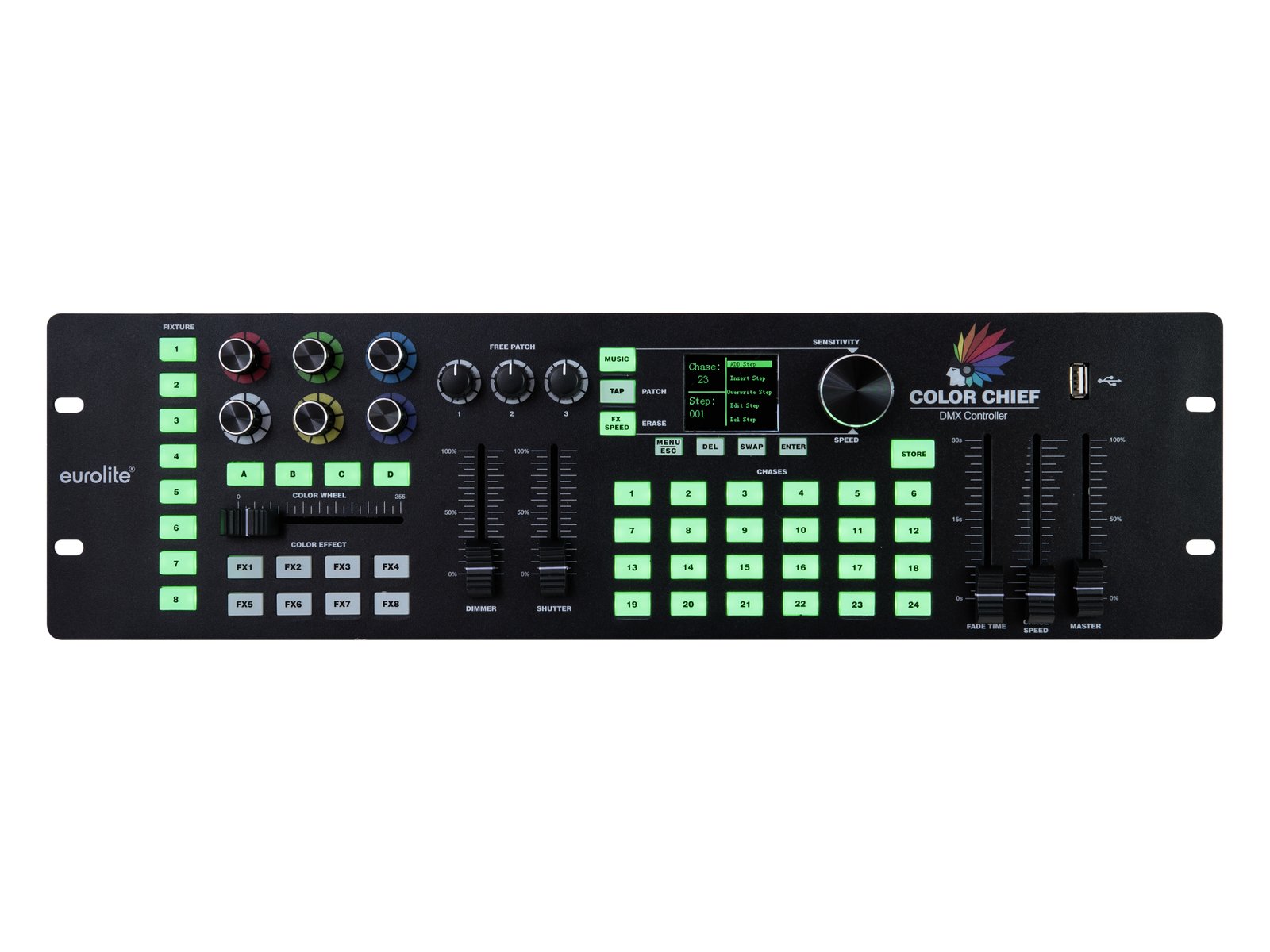

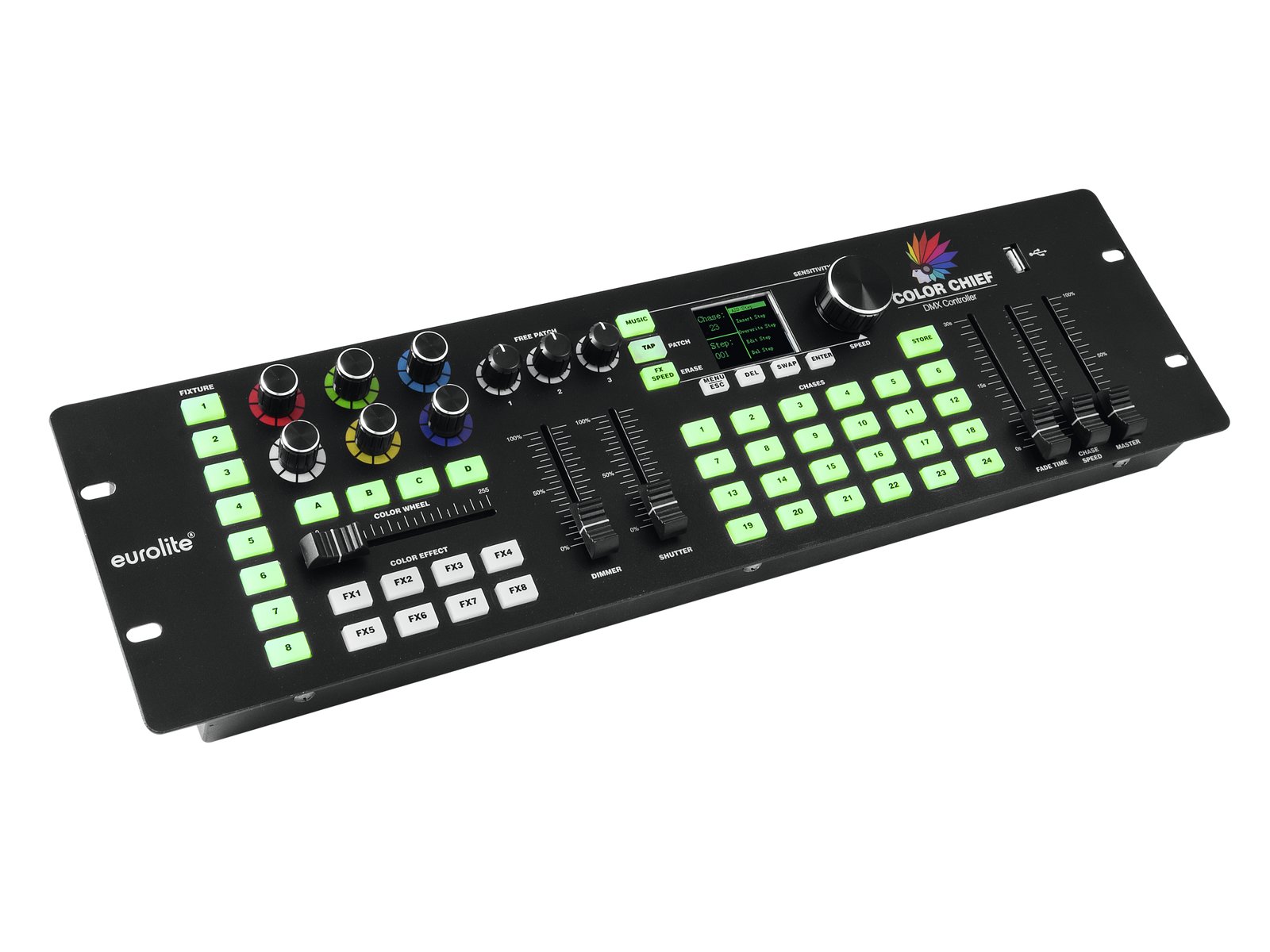

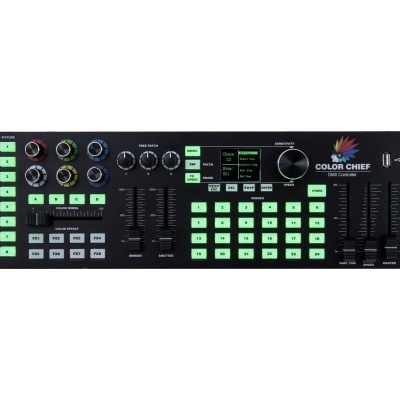

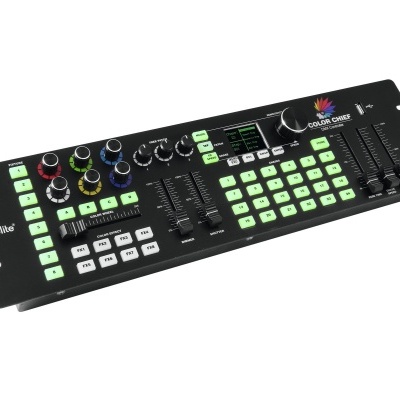

DMX lighting desk with innovative control concept for LED spotlights

  • Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
  • For 8 devices or device groups, each with up to 4 segments
  • Each device can occupy up to 30 channels
  • Quick and easy programming
  • Additional fixtures can be configured manually
  • 8 color effects directly selectable
  • 3 additional channels available per fixture (e.g. for rotations)

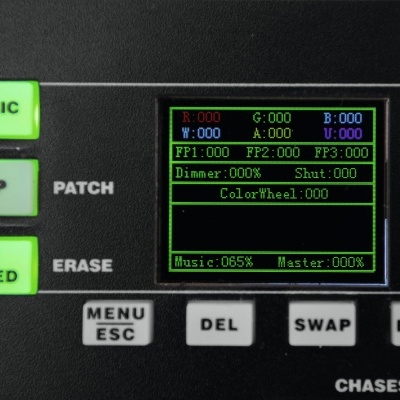

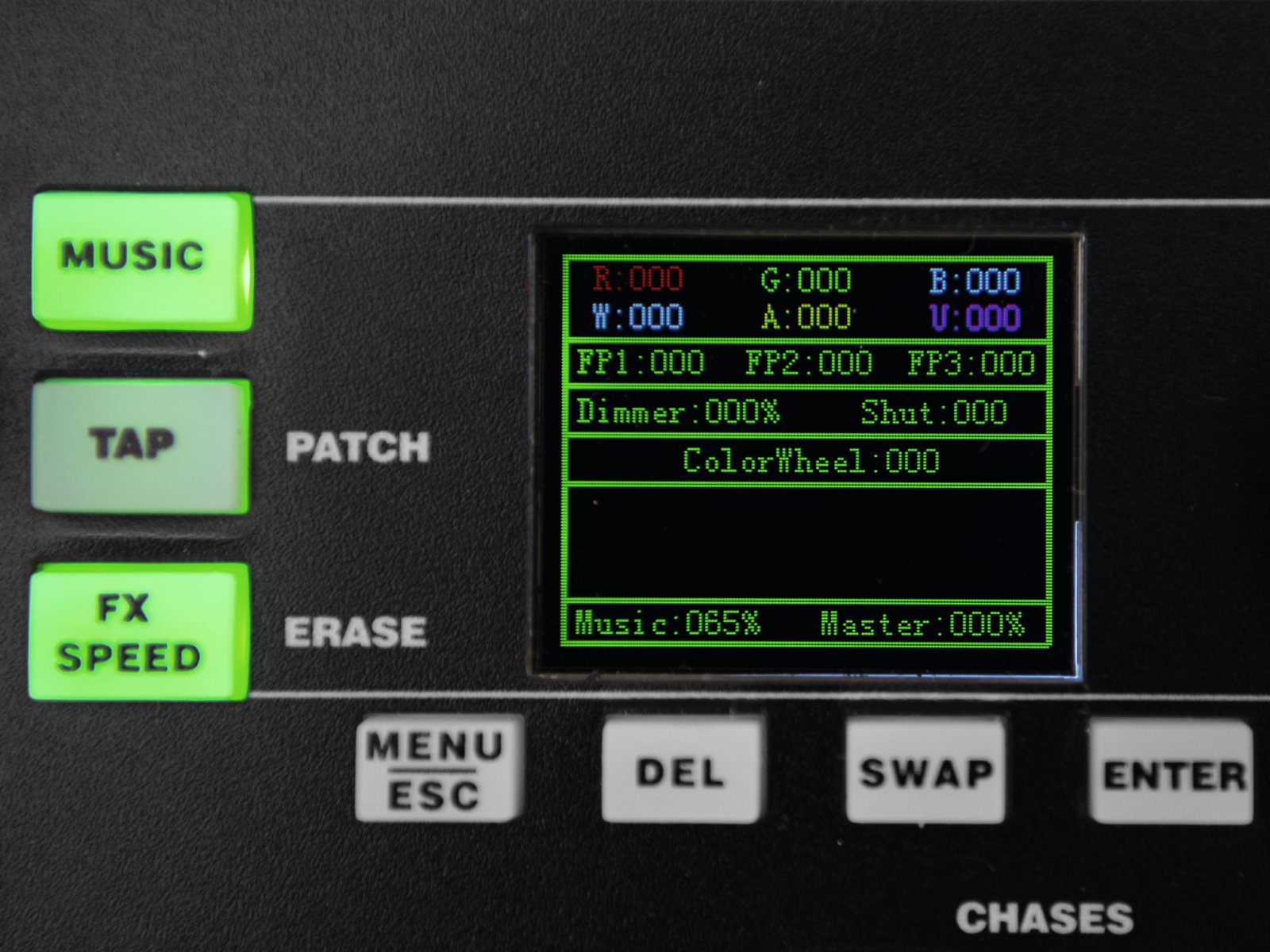

  • Color wheel selection and simulation

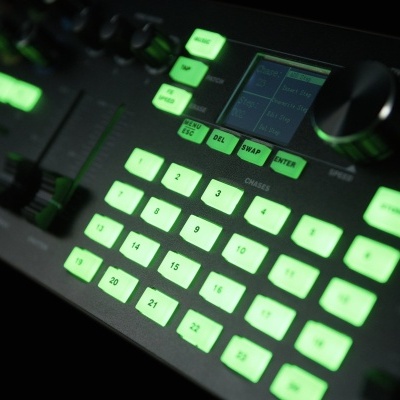

  • 24 memory spaces for scenes and chases
  • Several chases can be run simultaneously
  • USB port for storing program data
  • Sound control via audio signal or TAP button
  • Master dimming, fade time and run time easily adjustable
  • Firmware update via USB
  • Programmable 24 sequencens
  • Can transmit up to 240 DMX channels
  • Control via DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
  • (19") 48.3 cm rack installation 3 U
  • Desktop console housing
  • For application areas such as: Clubs/dancing school; Party room; Trade fair and shop fitting; mobile djs/entertainer; restaurants, bars and hotels
  • Silent operation

Package contents

  • 1 x controller, 1 x user manual, 1 x external mains adapter


Power supply:100-240 V AC, 50/60 Hz
9 V DC 800 mA
Power consumption:10 W
IP classification:IP20
Power connection:Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Programs:Programmable
24 Sequences
DMX channels:Output 240

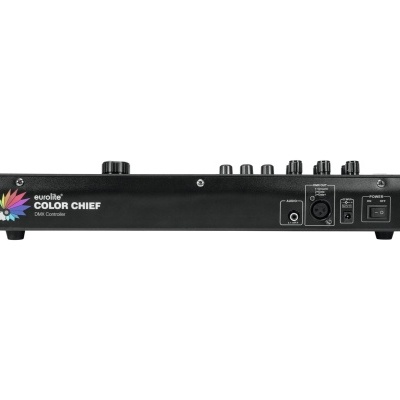

DMX output:1 x 3-pin XLR (F) mounting version
Control:DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
Housing color:Black
Available storage media:USB devices (FAT 32)
USB port:Typ A
Color:Black
Housing design:(19") 48.3 cm rack installation 3 U
Desktop console housing
Dimensions:Width: 48,3 cm
Depth: 13,35 cm
Height: 8,5 cm
Weight:2,25 kg
Noise classification:Class 0 (no noise at all)
