EUROLITE QuickDMX Wireless Receiver
SKU: 70064701
Compact DMX Wireless System 2.4 GHzThe Eurolite QuickDMX transmitter and receiver is used for wireless transmission of DMX512 signals. The complete technology is integrated in an extended 3-pole XLR connector (female) with a rotatable antenna. The device is constructed as a transceiver, so it can be used as any transmitter and receiver. The use of this device eliminates the necessity of time-consuming cabling between the DMX lighting control unit and the DMX-controlled devices.Due to the GFSK technology (Gaussian Frequency Shift Keying), interference-free operation is also possible besides other wireless Bluetooth and WiFi devices.The range is up to 400 meters with visual contact.Setup is very easy via Plug & Play with a button for connecting and disconnecting QuickDMX receivers.
Compact wireless DMX receiver 2.4 GHz

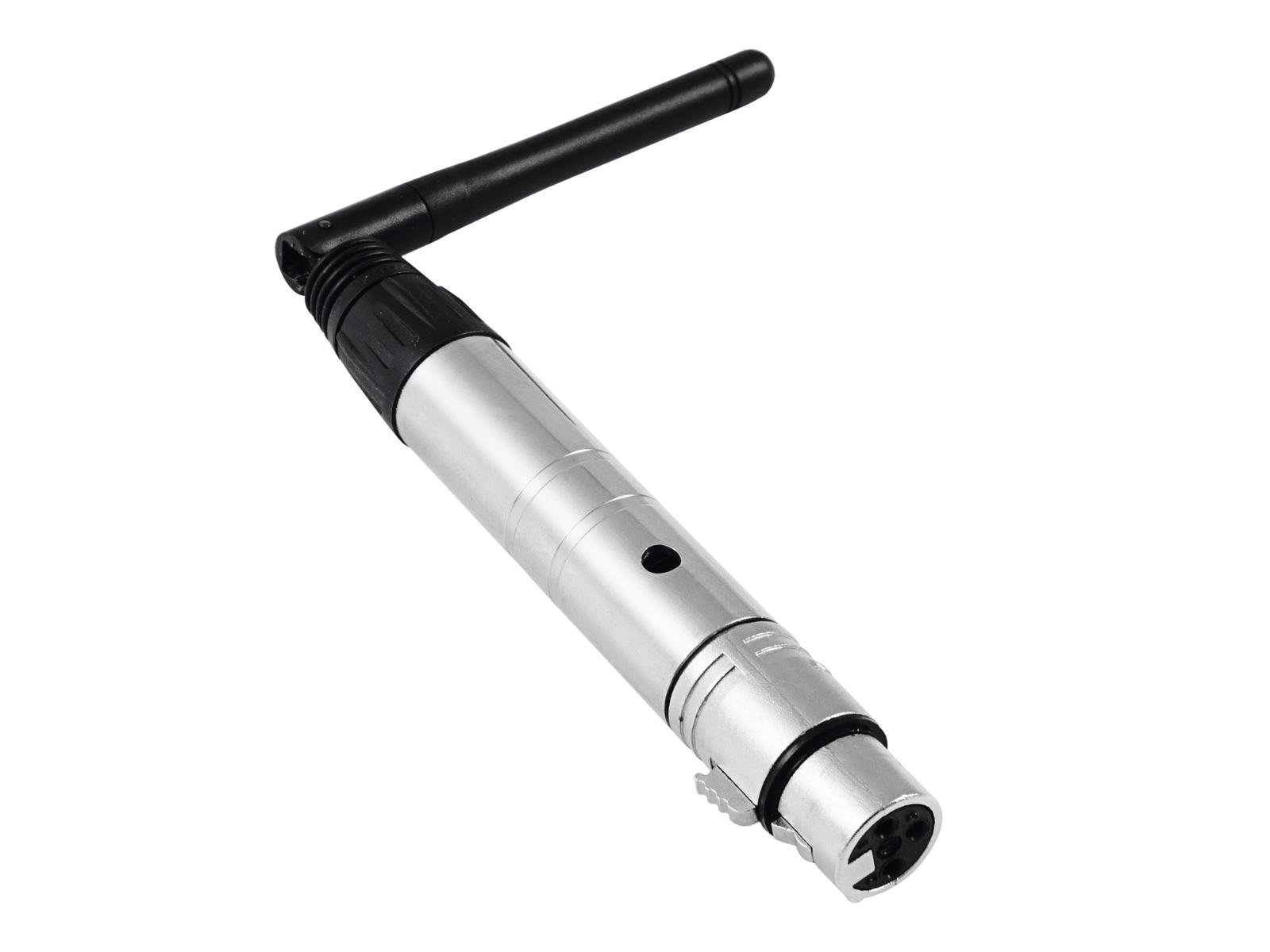

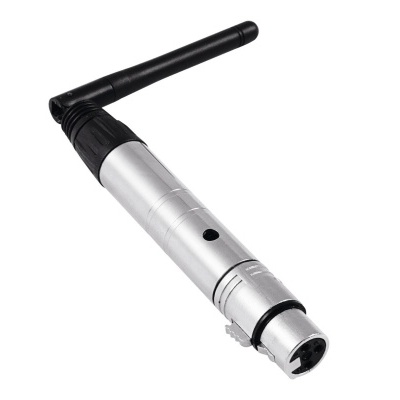

- User-friendly 3-pin XLR adapter (female) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can receive and process up to 512 DMX channels
- Control via QuickDMX; plug and play
- Operating range up to 400m
Package contents

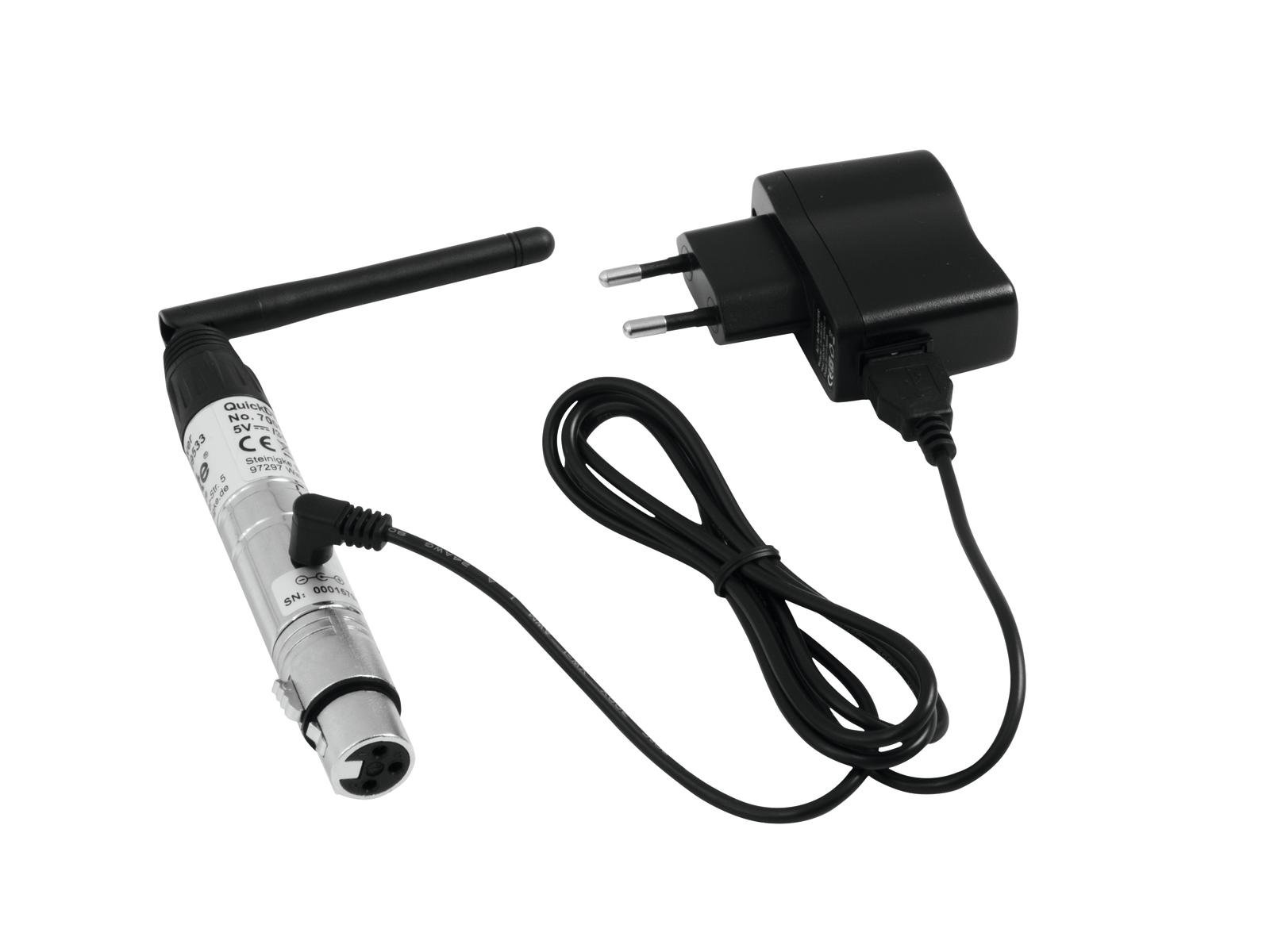

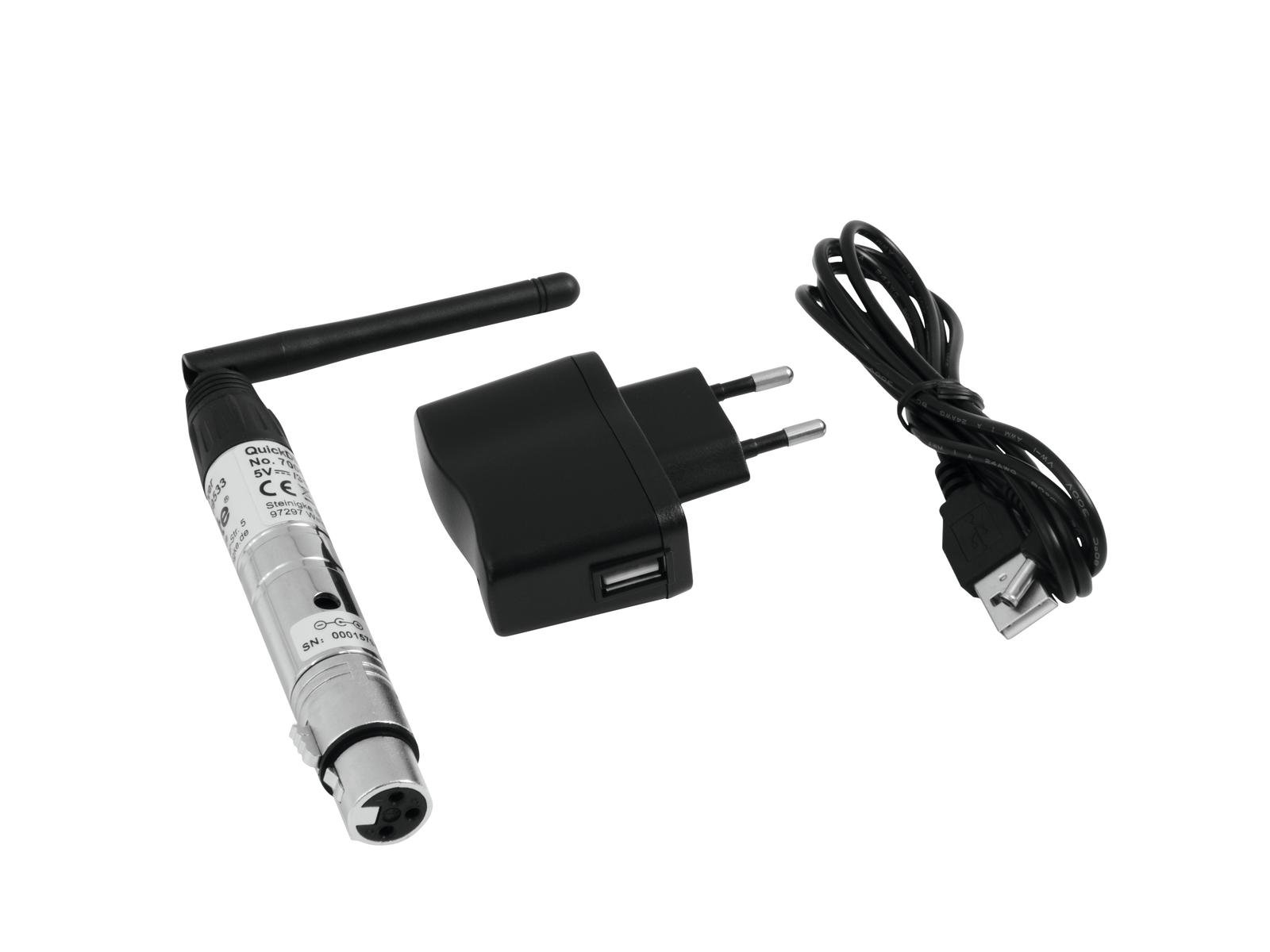

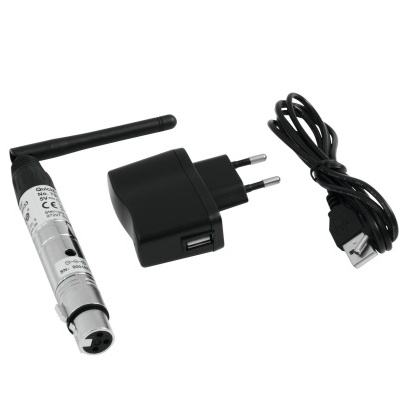

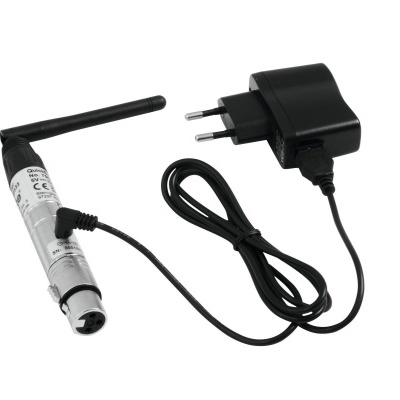

- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP20 |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Input 512 |
| DMX output: | 3-pin XLR (F) |
| Control: | QuickDMX; plug and play |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitter |
| Range: | Range up to 400m |
| Color: | Silver |
| Dimensions: | Length: 21,2 cm Diameter: Ø 1,8 cm |
| Weight: | 160 g |
