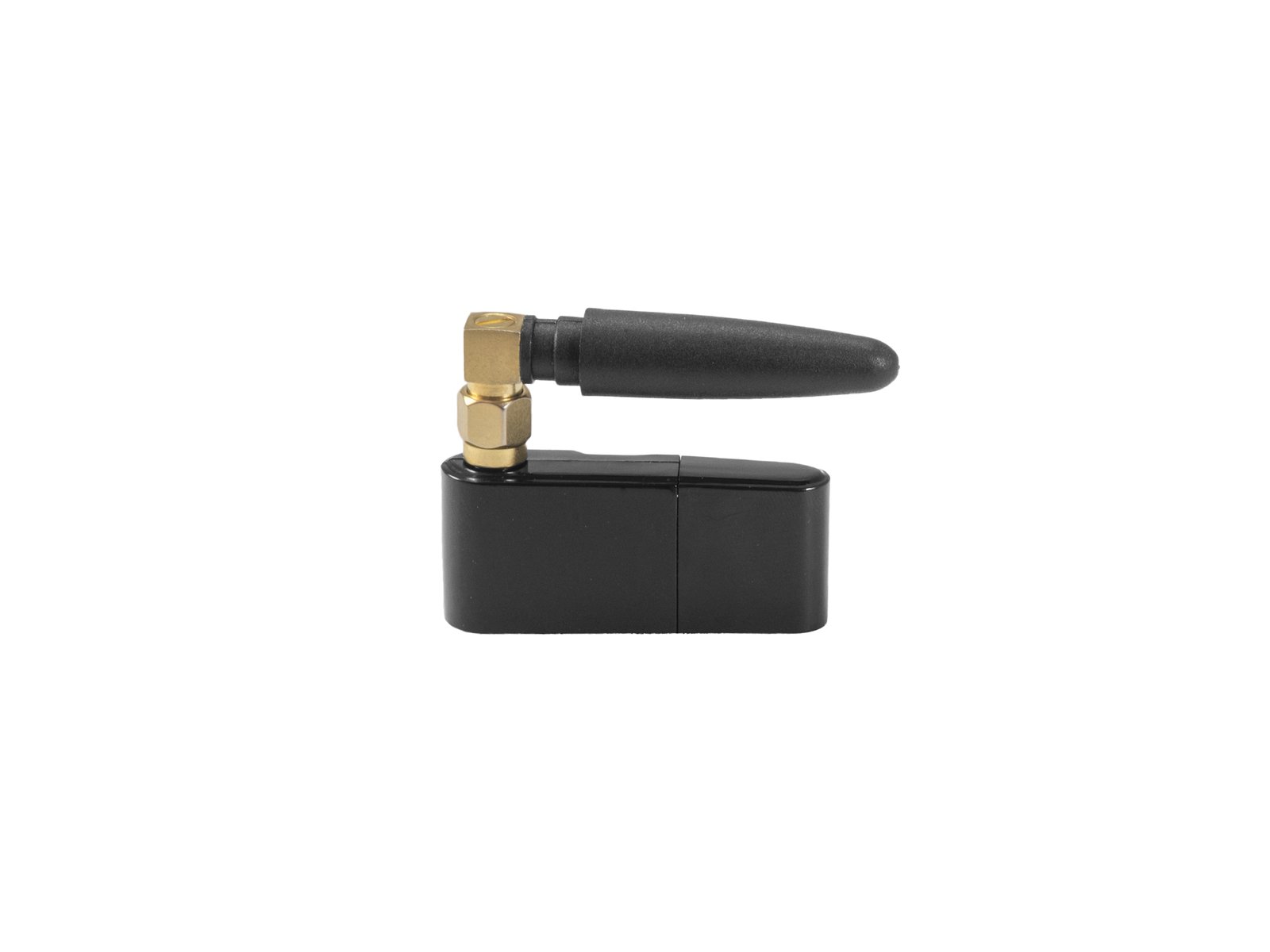

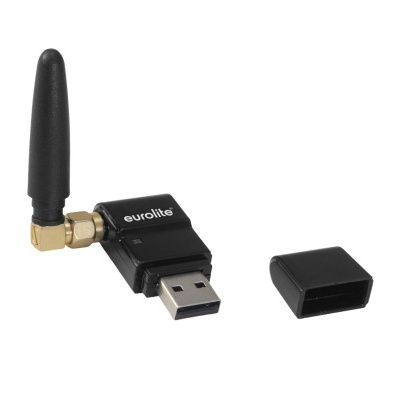

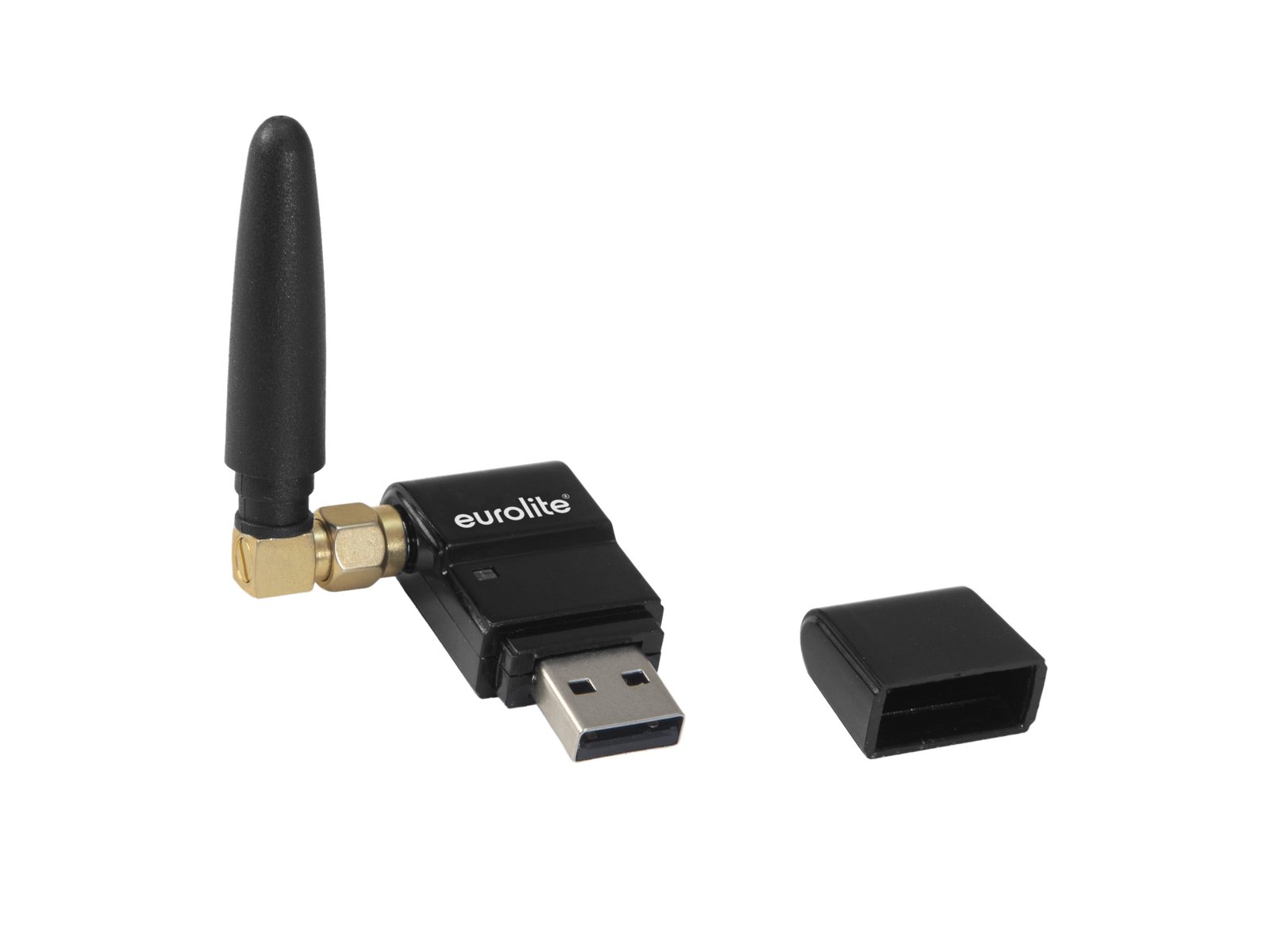

EUROLITE QuickDMX USB Wireless Transmitter/Receiver
EUROLITE QuickDMX USB Wireless Transmitter/Receiver
EUROLITE QuickDMX USB Wireless Transmitter/Receiver

EUROLITE QuickDMX USB Wireless Transmitter/Receiver

SKU: 70064704



Wireless miniature DMX transceiver 2.4 GHz, phantom powered

  • User-friendly USB plug with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
  • LED indication for functions
  • Transceiver, to be used as transmitter or receiver
  • Requires 5 V phantom power for operation
  • Can receive and process up to 512 DMX channels
  • Can transmit up to 512 DMX channels
  • Control via DMX; QuickDMX; plug and play
  • Operating range up to 400m with line-of-sight

Package contents

  • 1 x device, 1 x user manual, 1 x declaration of conformity


Power supply:5 V DC
IP classification:IP20
Power connection:Mains input via USB A (M) connectable version
DMX channels:Input 512
Output 512
DMX output:1 x USB, type A
Control:DMX; QuickDMX; plug and play
Carrier frequency:2,4 GHz
Modulation:GFSK
Parallel mode:Max. 6 transmitter
Range:Range up to 400m with line-of-sight
Color:Black
Dimensions:Width: 8,6 cm
Depth: 4 cm
Height: 1,1 cm
Weight:10 g
