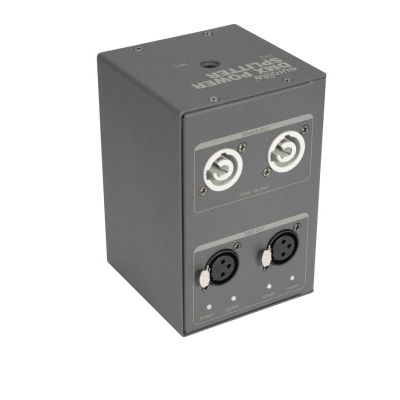

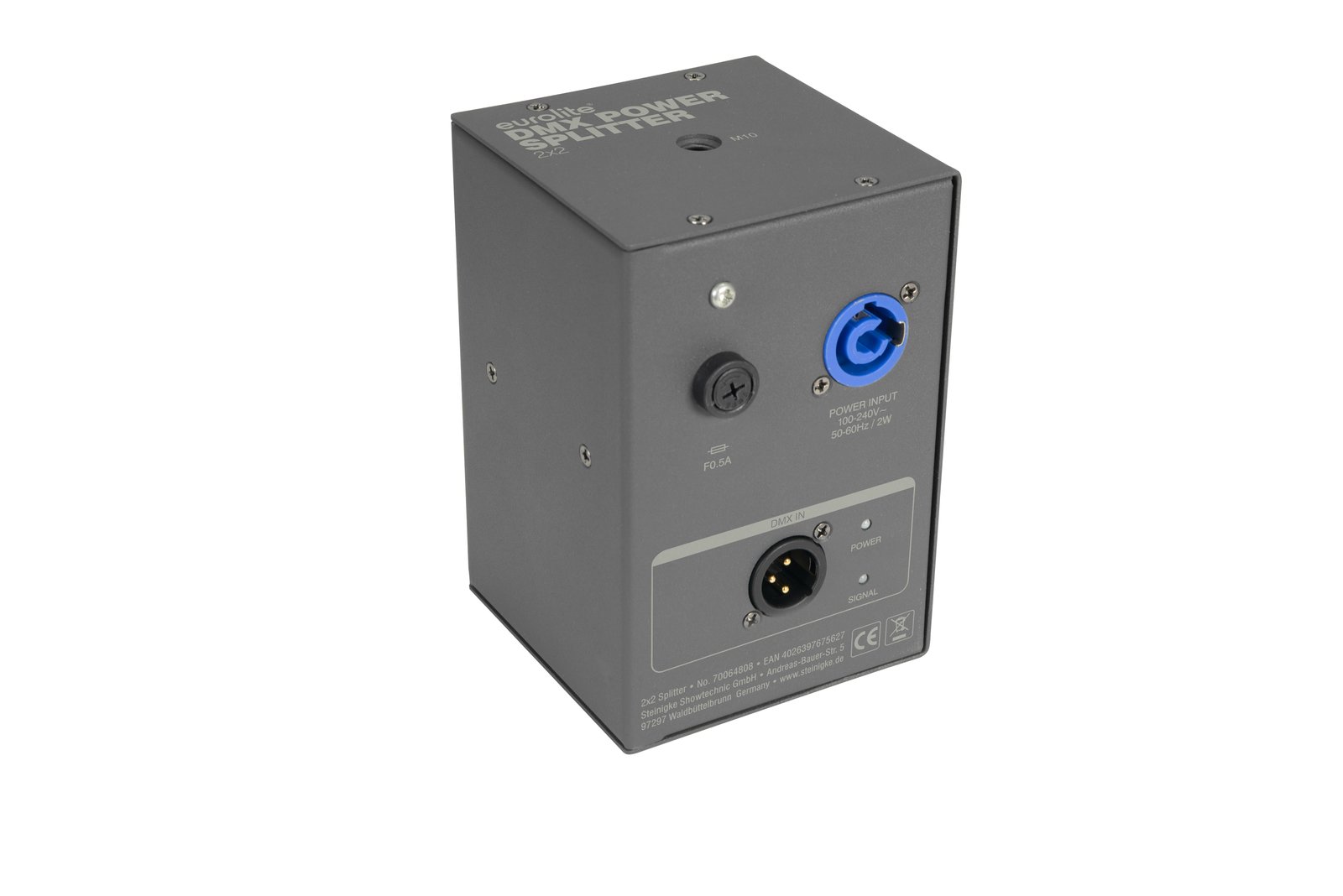

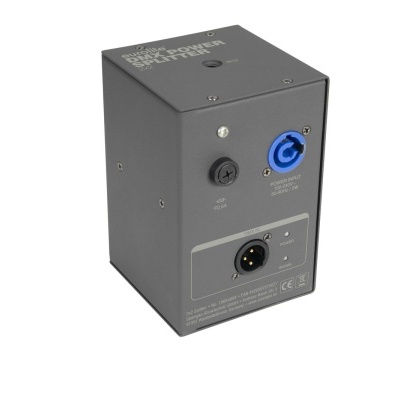

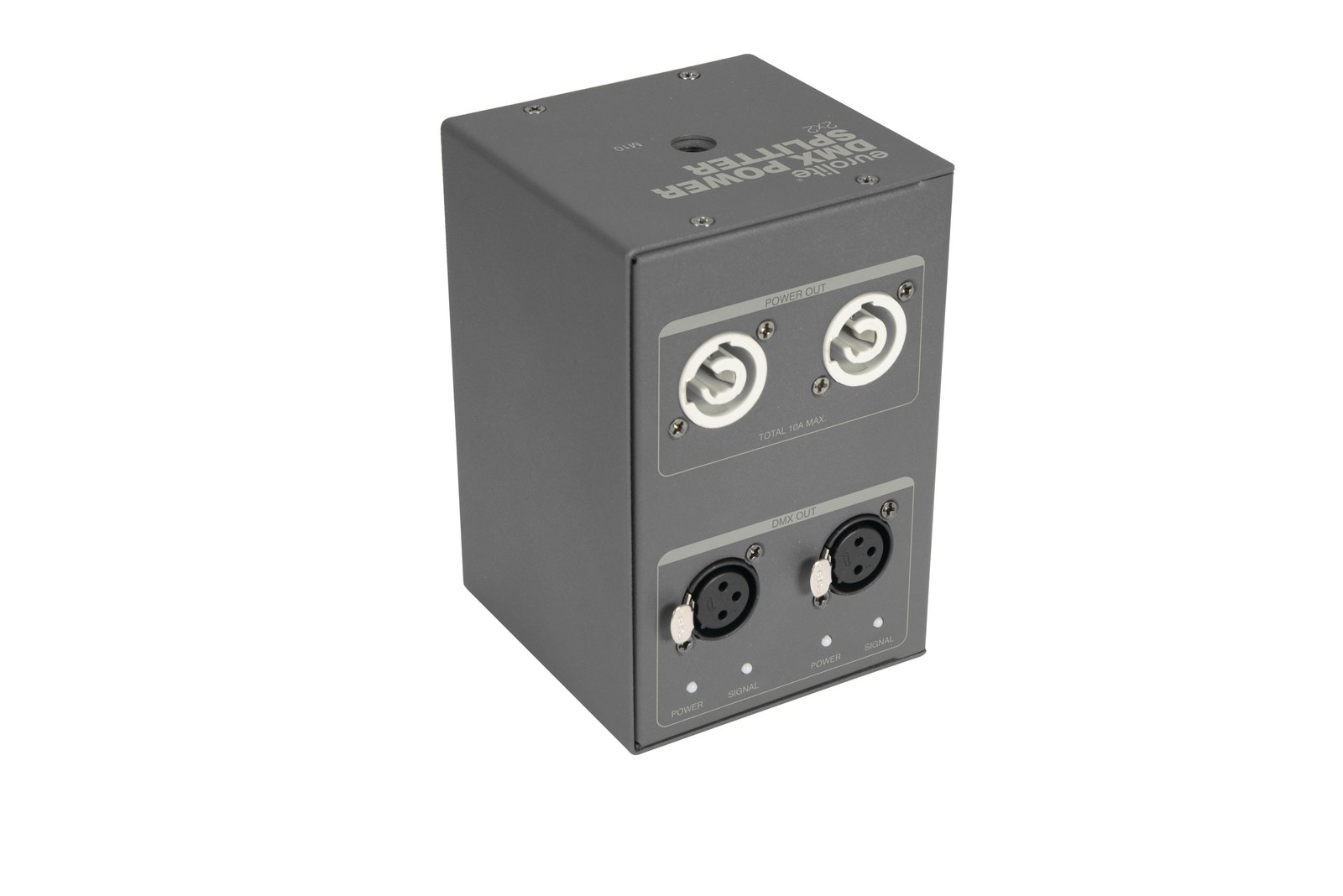

EUROLITE DMX Power Splitter 2x2
EUROLITE DMX Power Splitter 2x2
EUROLITE DMX Power Splitter 2x2

EUROLITE DMX Power Splitter 2x2

SKU: 70064808

114,95 €
IVA included.
Contact

Add to wishlist



2-fold power and DMX splitter for truss mounting

  • Reliable power and DMX distributor
  • 1 P-Con input to 2 outputs, max. 10 A
  • 1 DMX input to 2 outputs
  • Input and outputs galvanically isolated
  • Rugged metal housing
  • Each DMX output with independent driver and status indicator

Package contents

  • 1 x device, 1 x power cord, 1 x user manual


Power supply:100-240 V AC, 50/60 Hz
Power consumption:2 W
Output current:Max. 2 x 5 A per channal
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:2 x P-Con (gray), mounting version
DMX input:3-pin XLR (M)
DMX output:2 x 3-pin XLR (F) Separate (galvanic) with independent driver and status indicator
Status LED:Power, DMX
Dimensions:Width: 9 cm
Depth: 10 cm
Height: 13,6 cm
Weight:1,00 kg
Brand Eurolite
