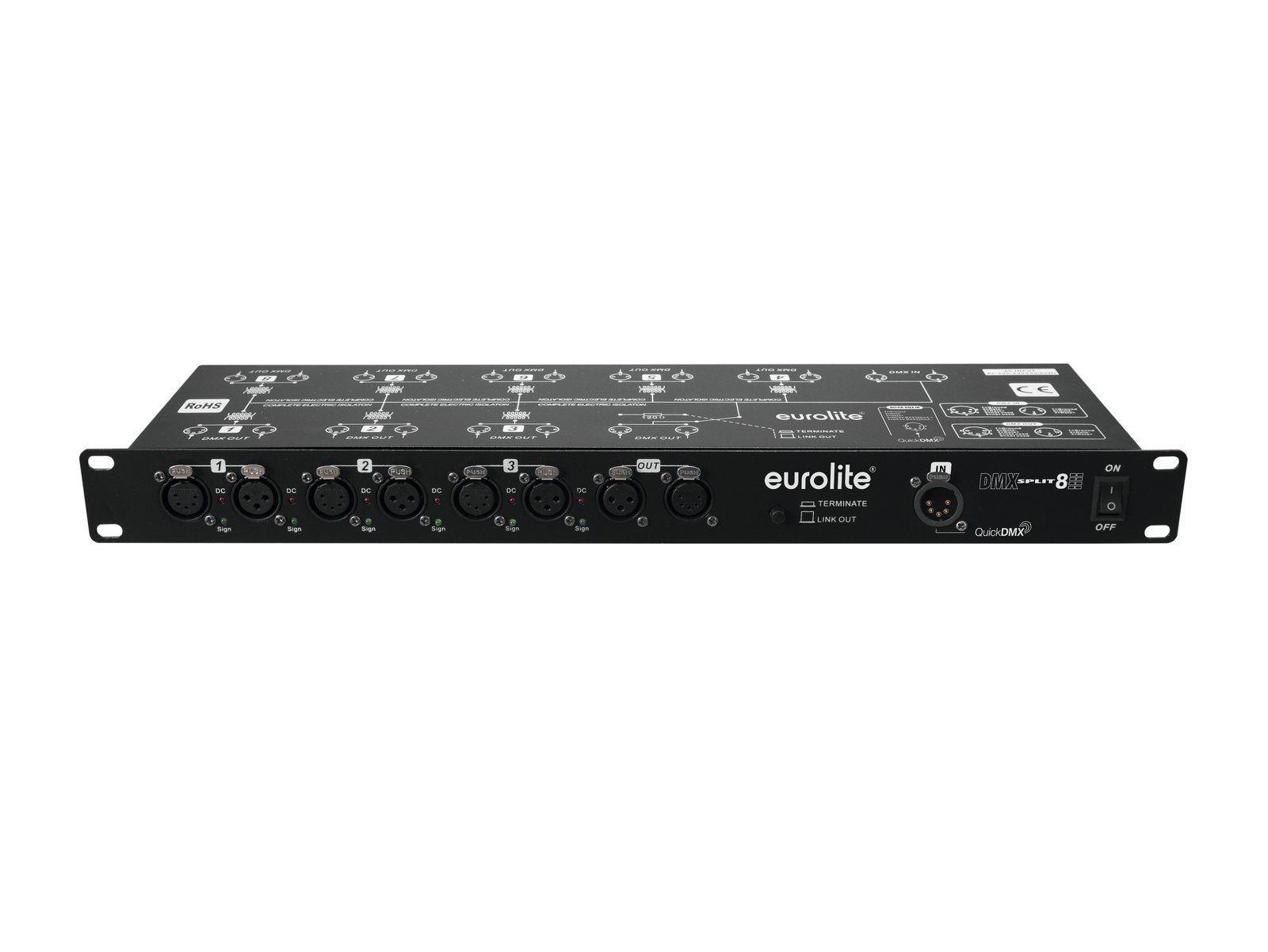

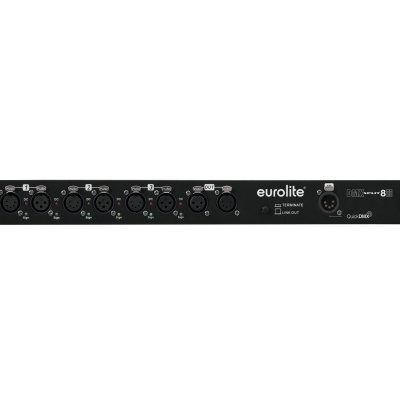

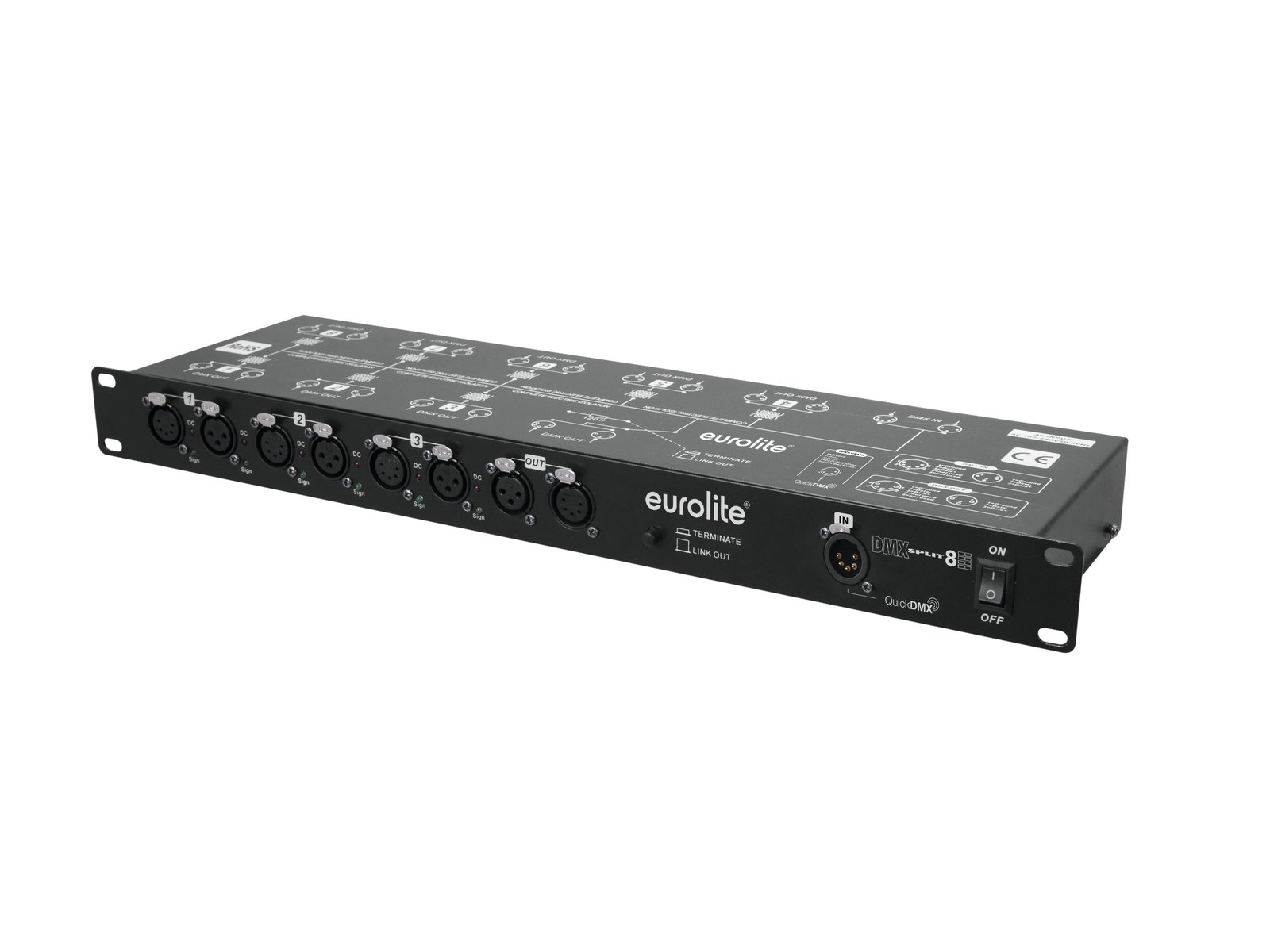

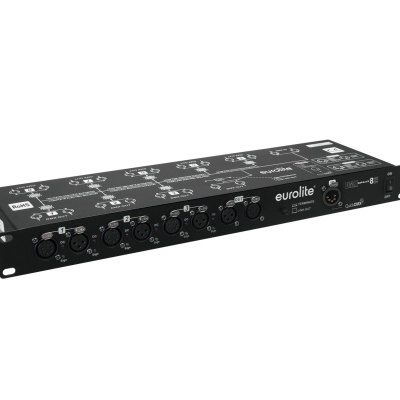

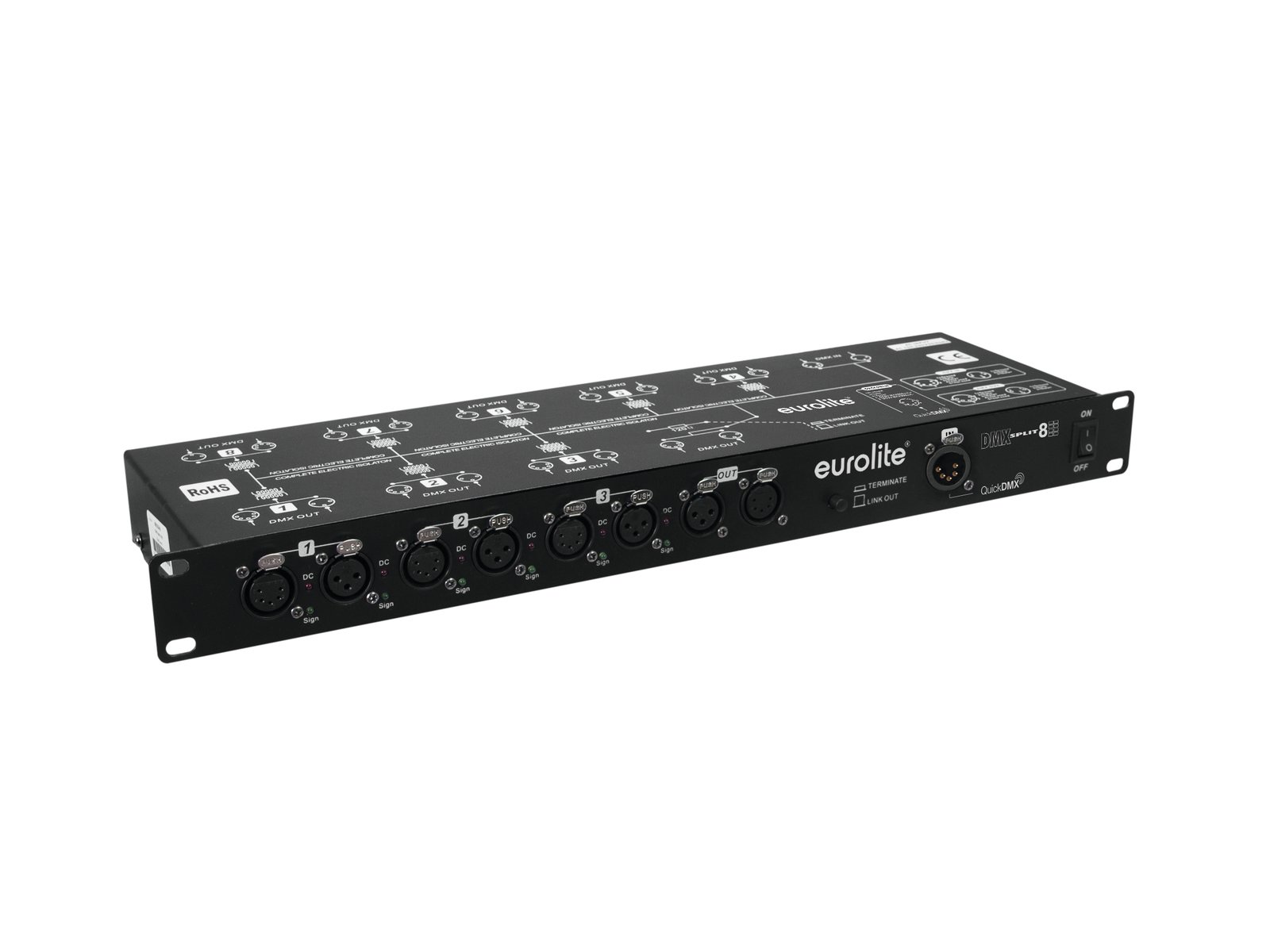

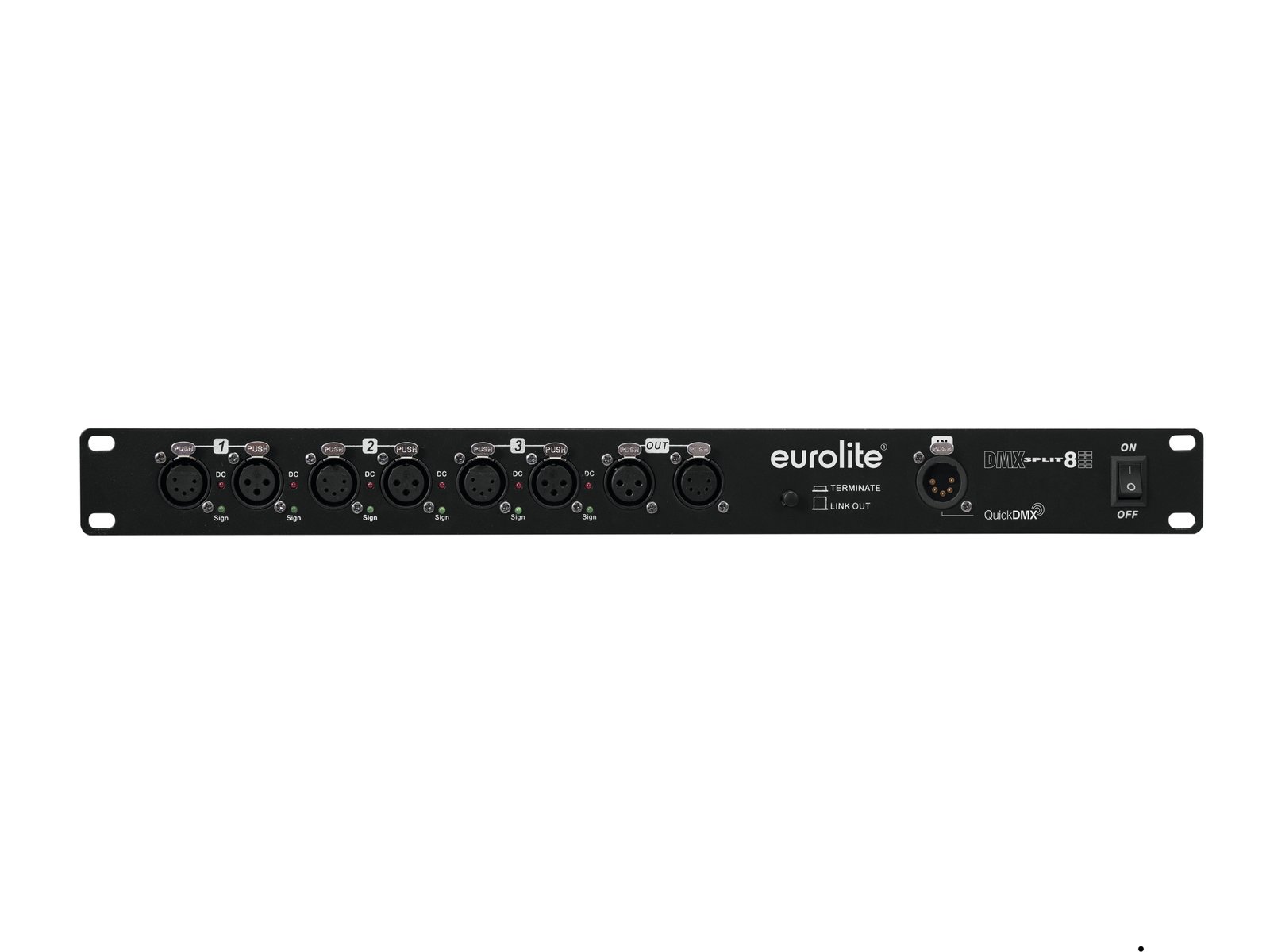

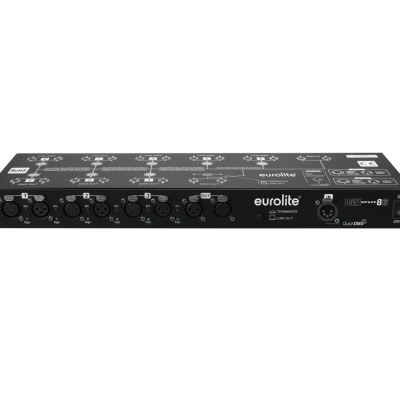

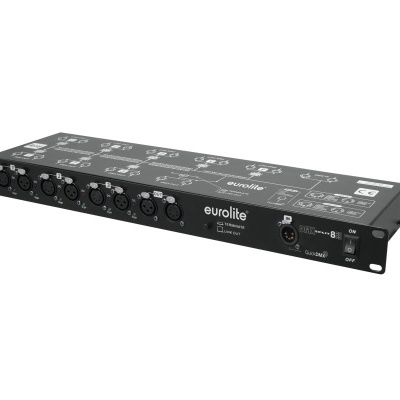

DMX splitter for splitting one DMX input signal to 8 DMX outputs
Input and outputs XLR 3-pin and 5-pin each
Each DMX output with independent driver and status indicator
Input and outputs galvanically isolated
Input and outputs with a set of respective power supply and internal fuse
Switchable termination resistor
Control via DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
(19") 48.3 cm rack installation 1 U
Package contents
1 x device, 1 x user manual, 1 x power cord
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
5 W
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
DMX input:

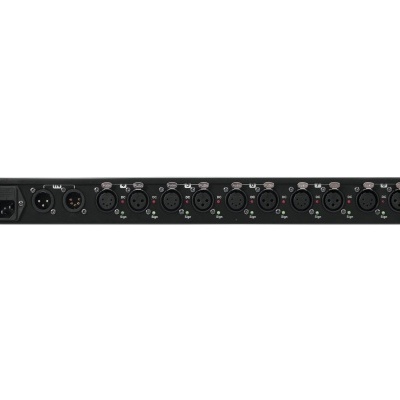

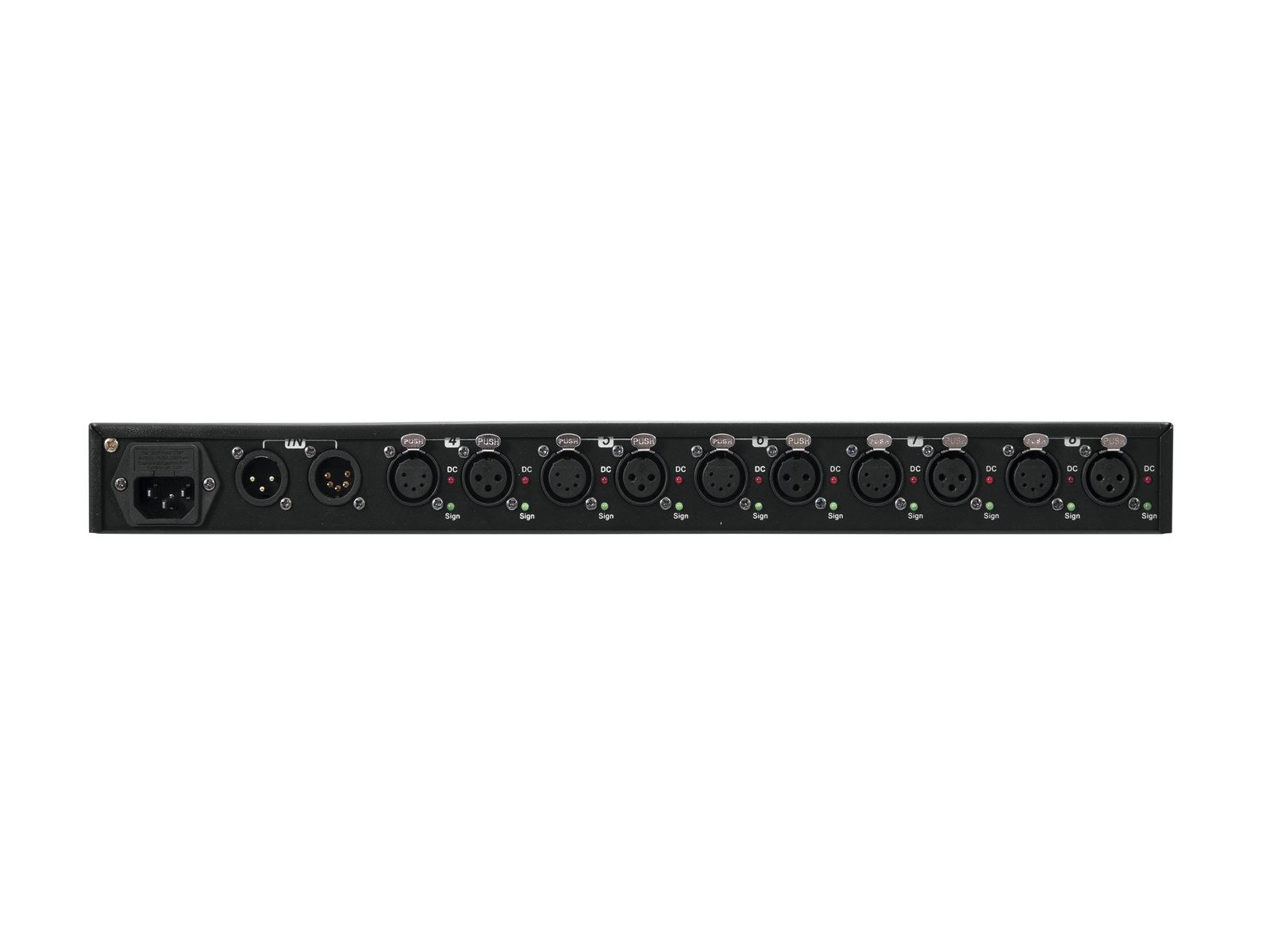

1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:
8 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator 8 x 5-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator 1 x 5-pin XLR (F) mounting version Bypass 1 x 3-pin XLR (F) mounting version Bypass
Control:
DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
