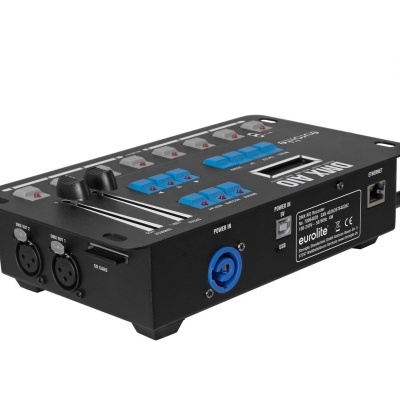

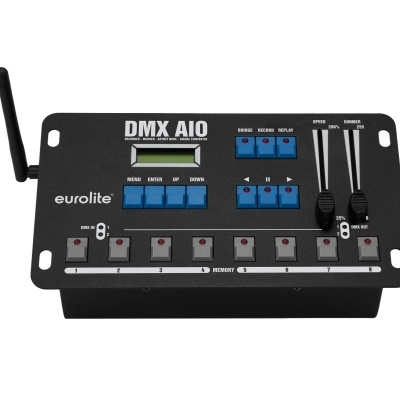

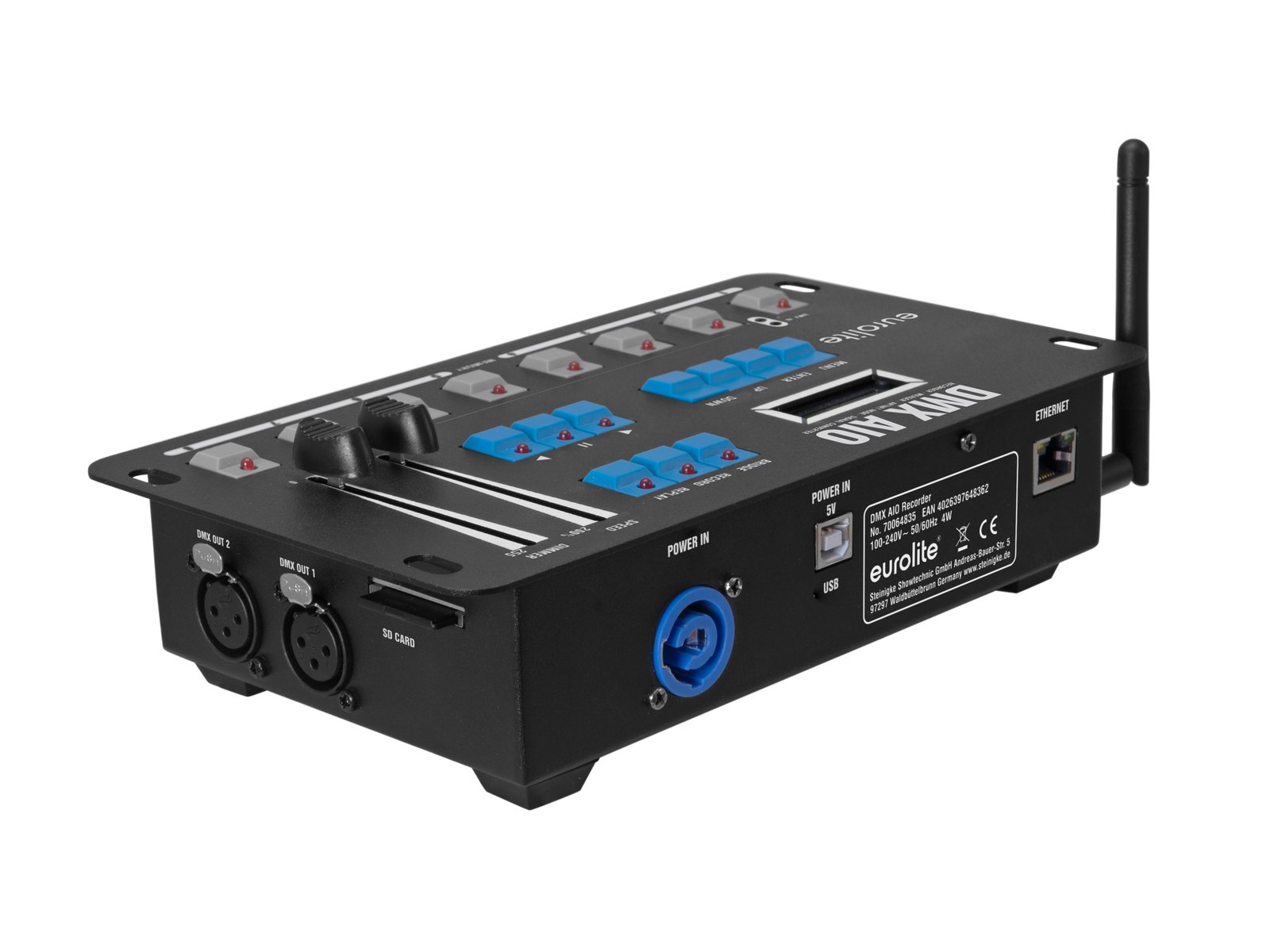

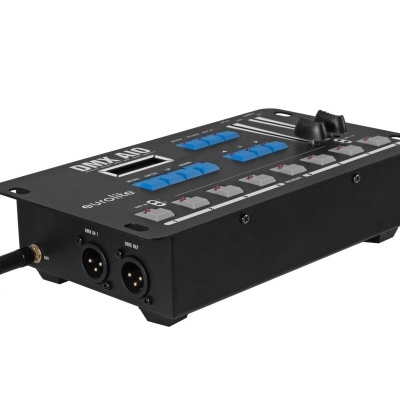

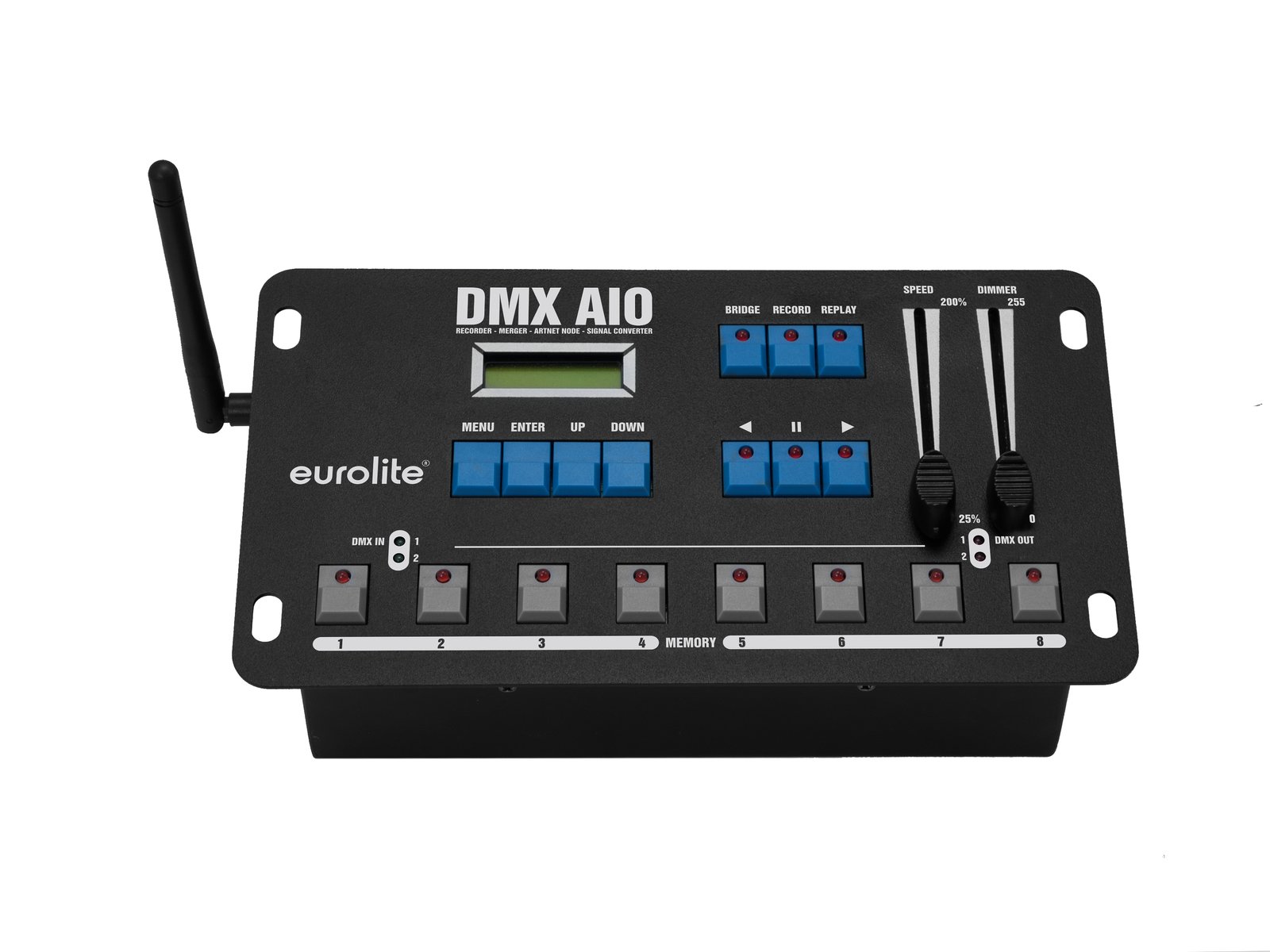

EUROLITE DMX AIO Recorder, Merger, Artnet Node, Signal Converter
SKU: 70064835
DMX recorder for 2 universes
- Wireless DMX recorder and Art-Net node
- Real-time recording and playback of light shows via DMX or Wi-Fi
- Records any Art-Net and DMX source
- Built-in access point
- Art-Net in/out via Wi-Fi or LAN
- 8 memory locations with up to 20 hours recording capacity each
- 2 recording modes: time recording or step-by-step recording
- 2 playback modes: solo run or loop run
- Dimmer and speed fader
- DMX merger (2 in > 1 out) with HTP, LTP, override and backup modes
- DMX splitter (1 in > 2 out)
- Rugged black metal housing
- Can receive and process up to 1024 DMX channels
- Control via DMX; Aurora DMX App; Photon App; ArtNetDmxRemote App
- LCD display
- The device can be connected via USB to the PC
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x antenna, 1 x memory card
| Power supply: | 100-240 V AC, 50/60 Hz Or 5 V DC 500 mA |
| Power consumption: | 4 W |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) Mains input via USB C (W) mounting version power supply cord for USB A mains connection (optional) |
| Power output: | 1 x P-Con (gray), mounting version |
| DMX channels: | Input 1024 |

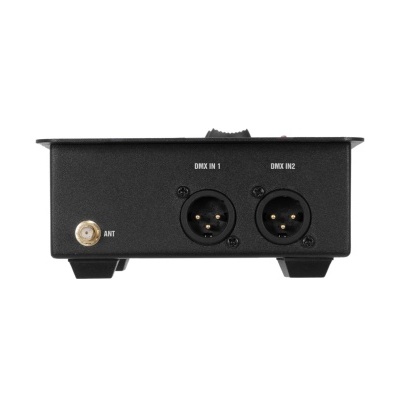

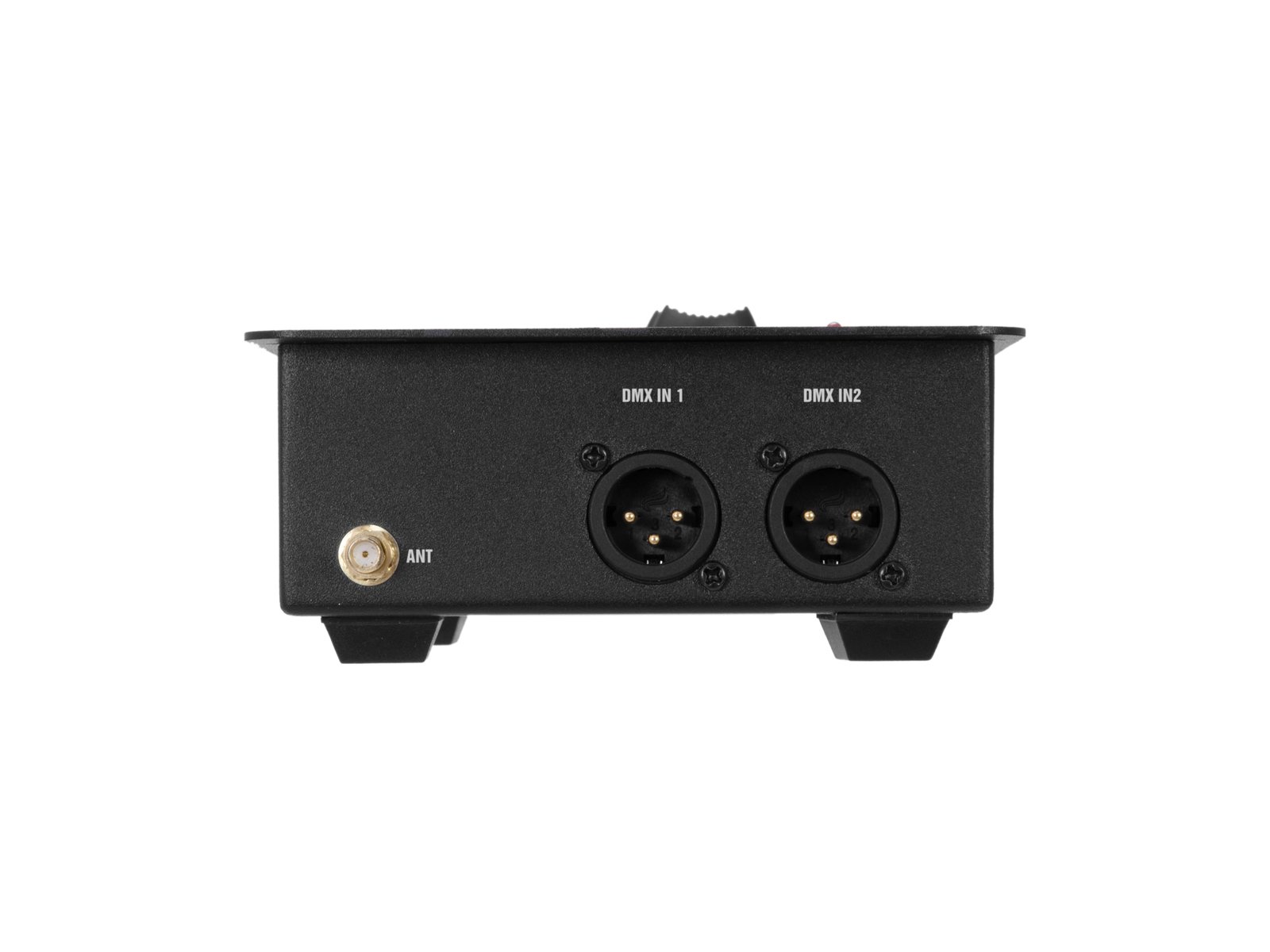

| DMX input: | 2 x 3-pin XLR (M) mounting version |
| DMX output: | 2 x 3-pin XLR (F) mounting version |
| Network connection: | 1x RJ-45 (F) mounting version |
| Control: | DMX; Aurora DMX App; Photon App; ArtNetDmxRemote App |
| Display type: | LCD display |
| USB port: | USB 2.0, Typ B |
| PC connect: | Via USB |
| Dimensions: | Width: 22,7 cm Depth: 13 cm Height: 7 cm |
| Weight: | 1,13 kg |
