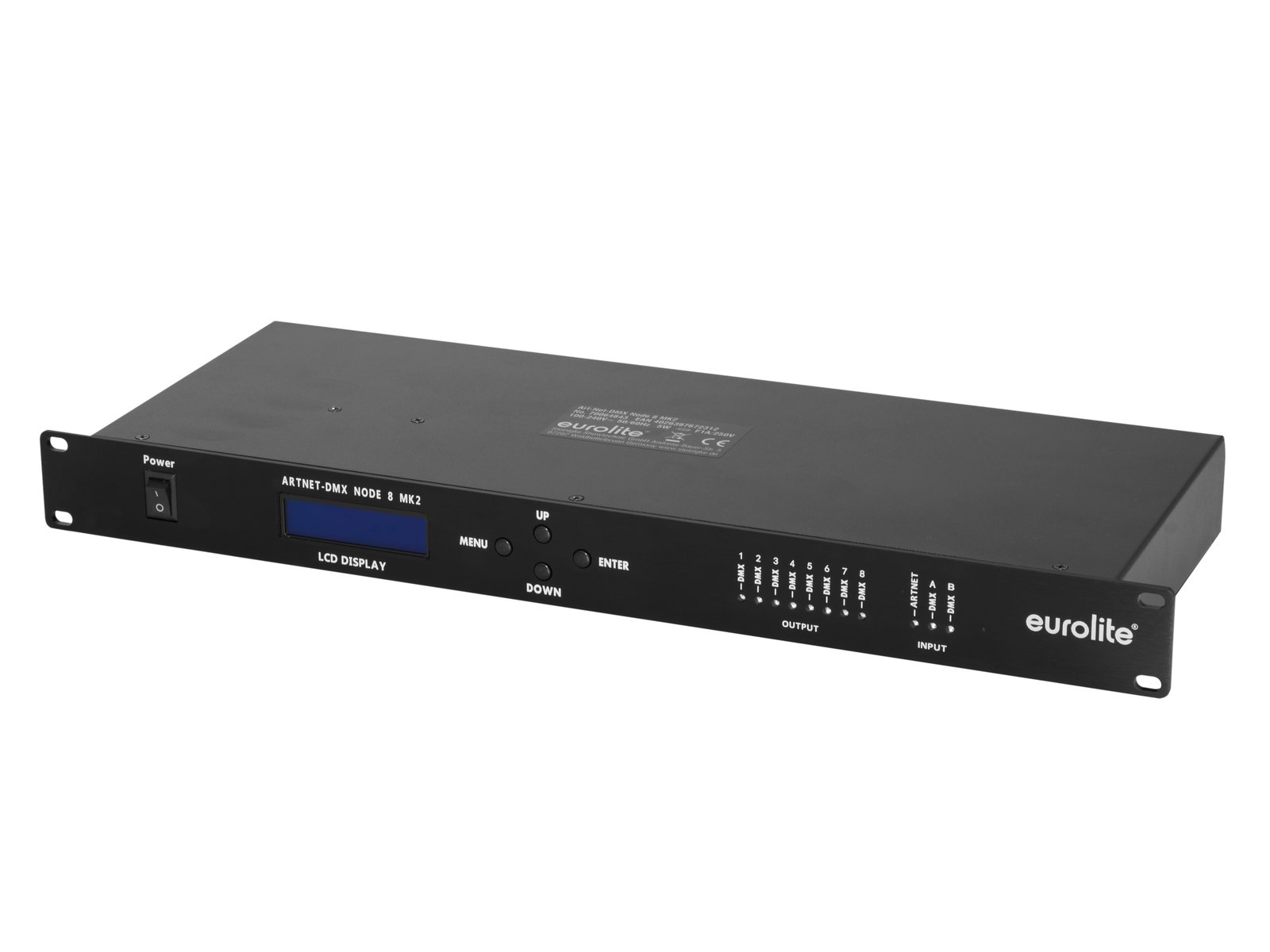

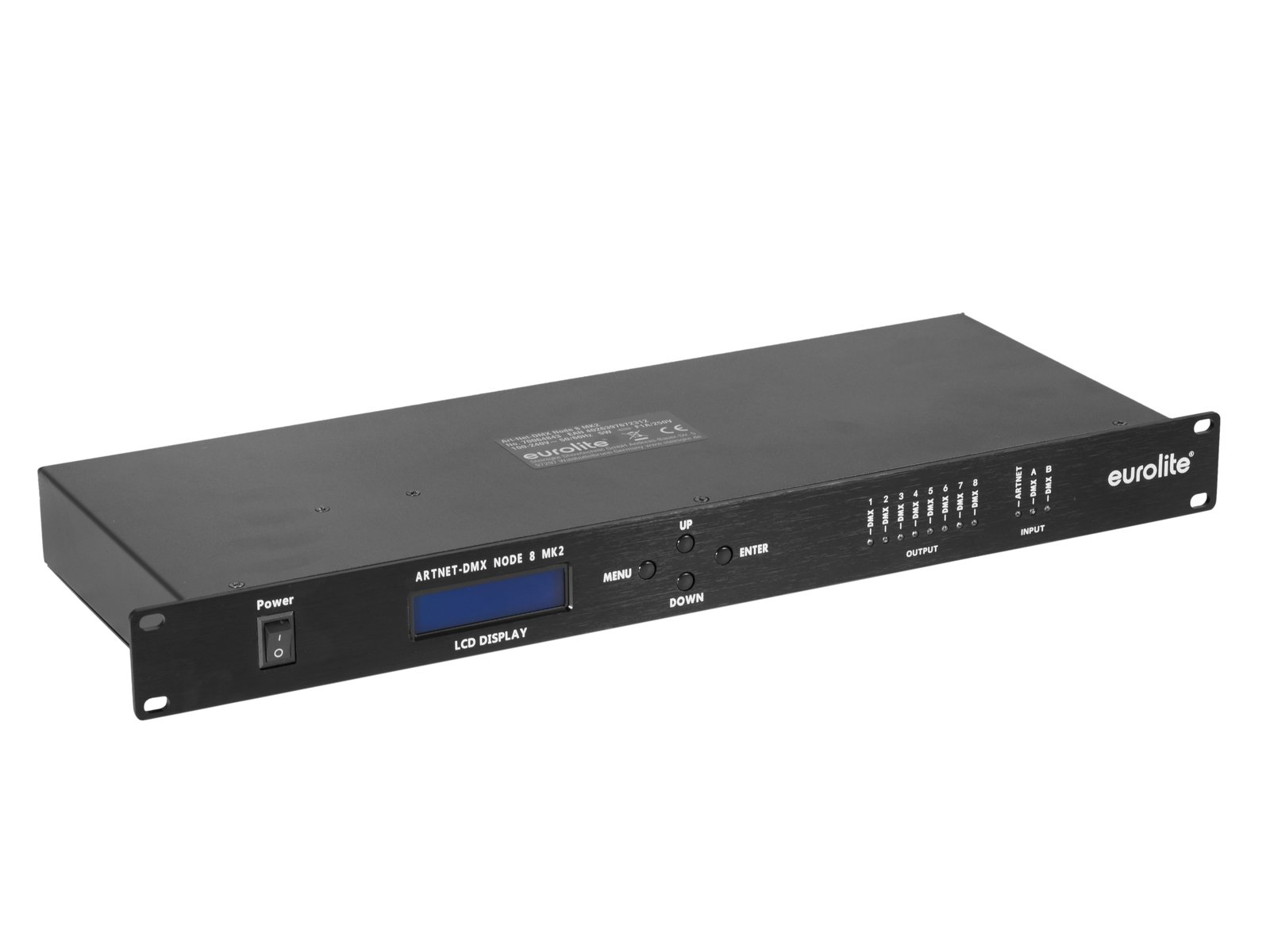

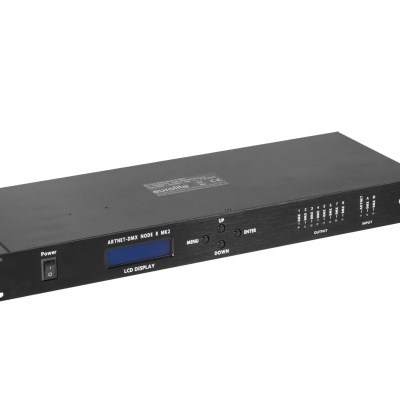

EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2

EUROLITE Art-Net/DMX Node 8 MK2

SKU: 70064843

529,59 €
IVA included.
Contact

Add to wishlist



Art-Net interface for output of 8 universes on XLR

  • Parallel DMX input possible (1024 channels)

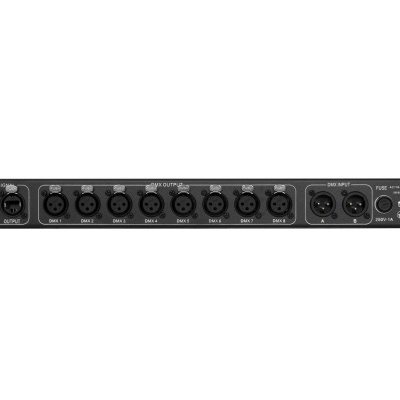

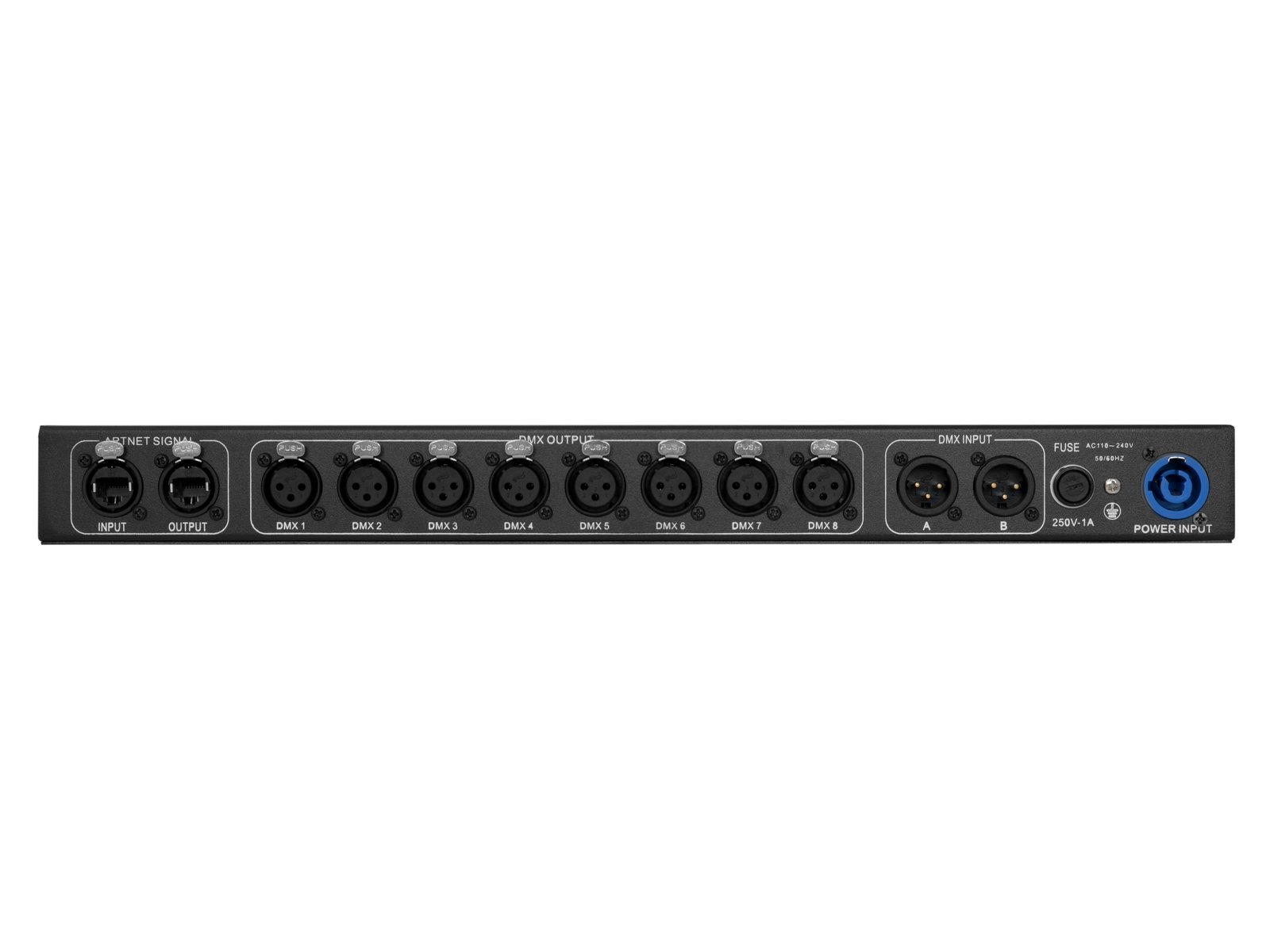

  • 8 optically isolated XLR plugs (3-pin) for DMX output
  • 2 XLR jacks (3-pin) for DMX input
  • Variable data routing capabilities for all DMX outputs

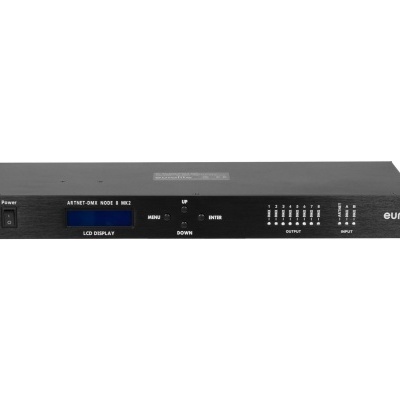

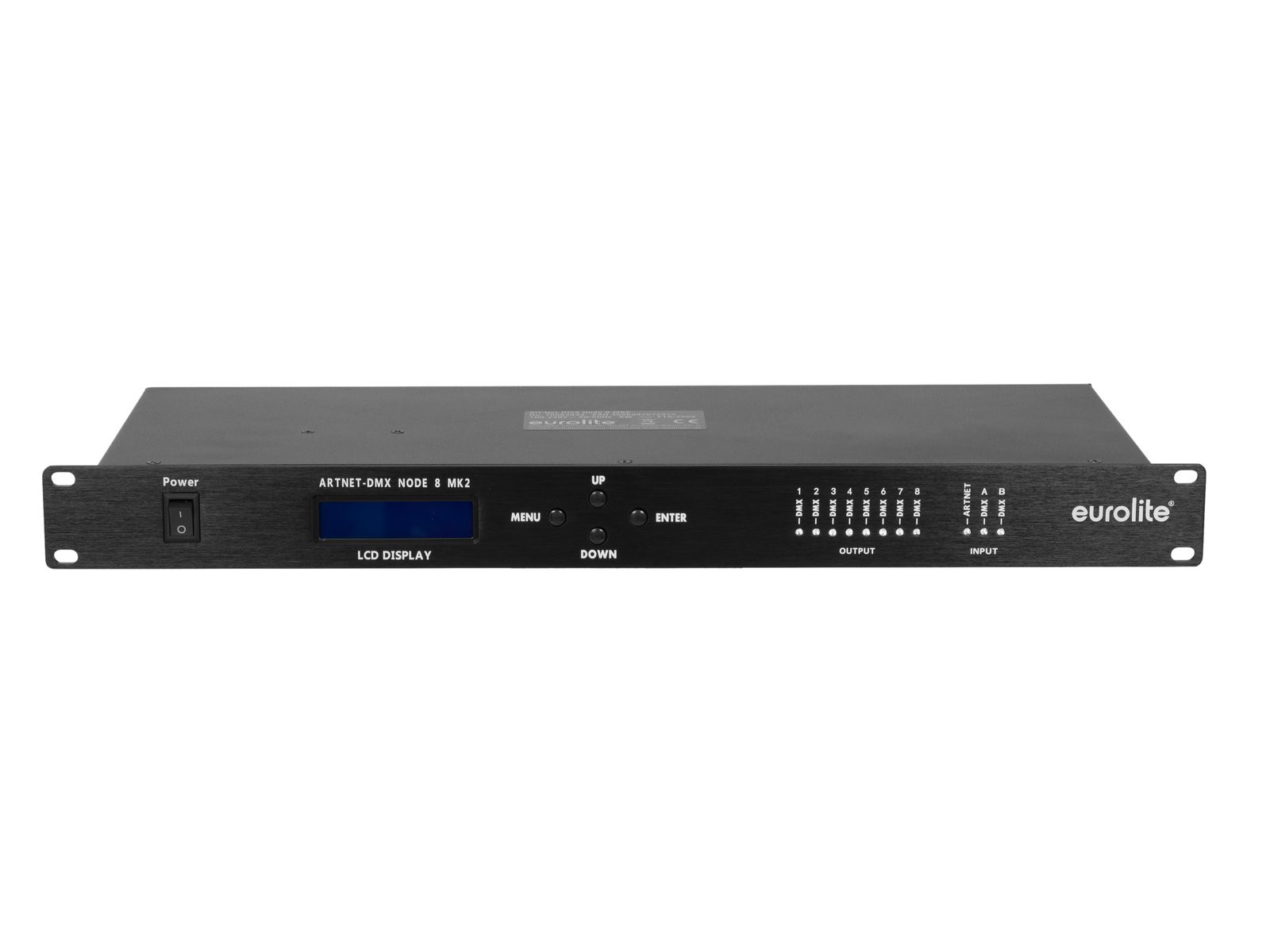

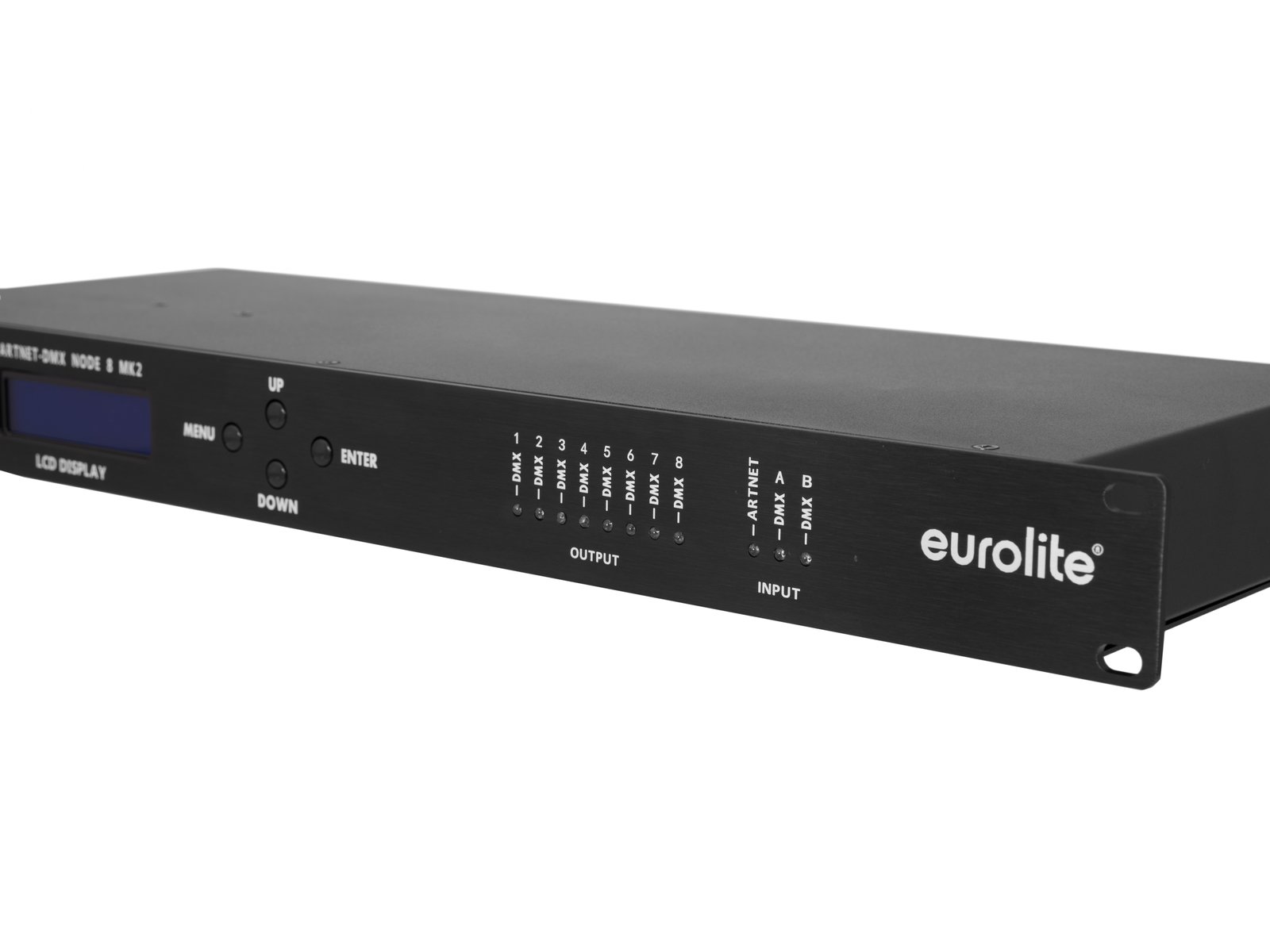

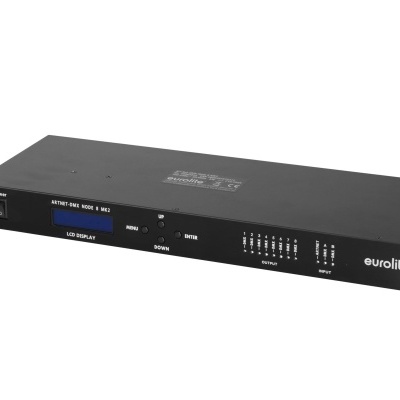

  • User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)

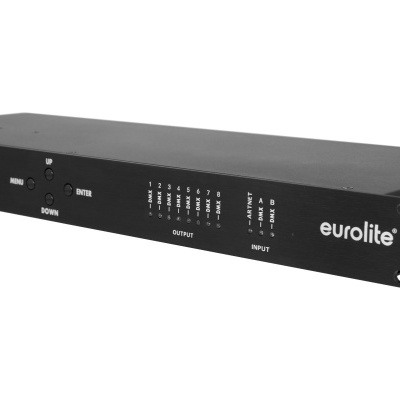

  • LED indication for functions
  • Splitter operation possible
  • Can transmit up to 4096 DMX channels
  • Control via ArtNet
  • The device can be connected via RJ-45 (F) mounting version to the PC
  • (19") 48.3 cm rack installation

Package contents

  • 1 x device, 1 x user manual, 1 x power cord


Power supply:100-240 V AC, 50/60 Hz
Power consumption:5 W
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
DMX channels:Output 4096
DMX input:2 x 3-pin XLR (M) mounting version
DMX output:8 x 3-pin XLR (F) mounting version
Network connection:Protocol: ArtNet 3 via 2x RJ-45 (F) mounting version
Control:ArtNet
Connections:2 x RJ-45 E-Con (F) mounting version
PC connect:Via RJ-45 (F) mounting version
Housing design:(19") 48.3 cm rack installation
Dimensions:Width: 48,3 cm
Depth: 17,5 cm
Height: 4,45 cm
Weight:2,40 kg
Brand Eurolite
