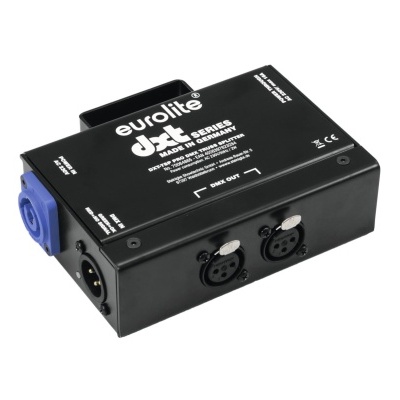

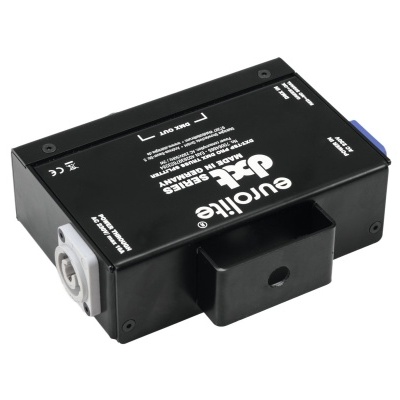

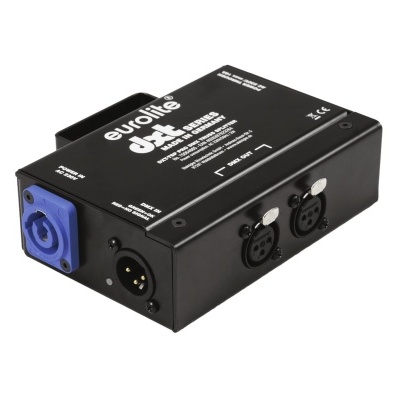

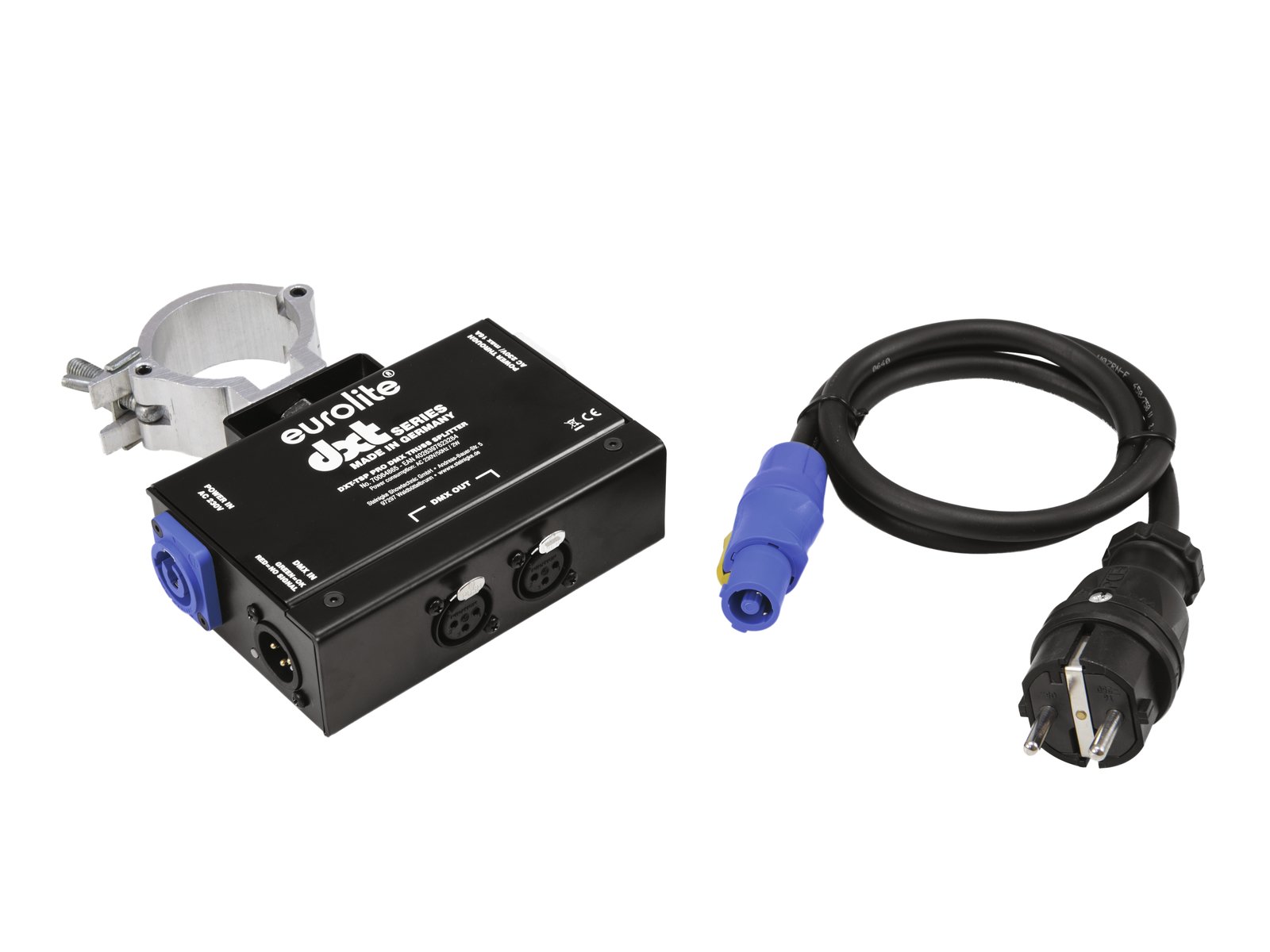

EUROLITE DXT-TSP 1in/2out PRO DMX Truss Splitter
EUROLITE DXT-TSP 1in/2out PRO DMX Truss Splitter
EUROLITE DXT-TSP 1in/2out PRO DMX Truss Splitter
EUROLITE DXT-TSP 1in/2out PRO DMX Truss Splitter
EUROLITE DXT-TSP 1in/2out PRO DMX Truss Splitter
EUROLITE DXT-TSP 1in/2out PRO DMX Truss Splitter

EUROLITE DXT-TSP 1in/2out PRO DMX Truss Splitter

SKU: 70064865



Splitter for truss mounting with 2 galvanically isolated outputs

  • DMX splitter and amplifier for truss use
  • Each DMX output with active signal processing
  • Input and outputs galvanically isolated
  • 50 mm coupler for truss installation
  • Rugged metal housing
  • Built with NEUTRIK connector
  • Made in Germany


Power supply:230 V AC, 50 Hz
Power consumption:2 W

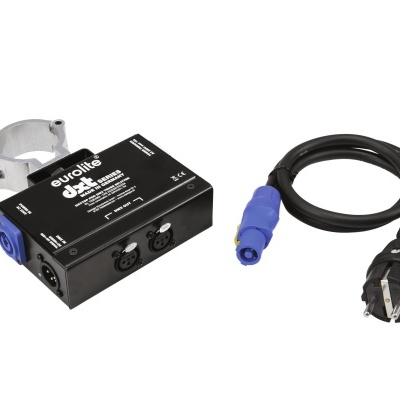

Power connection:Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:1 x PowerCON (gray)
DMX input:1 x 3-pin XLR (M) mounting version

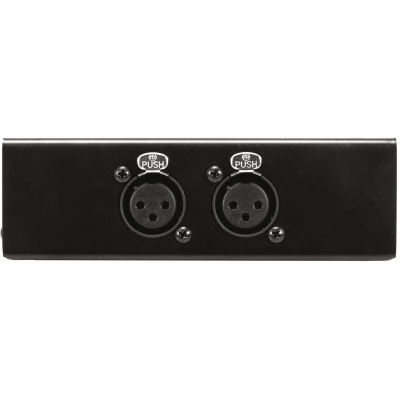

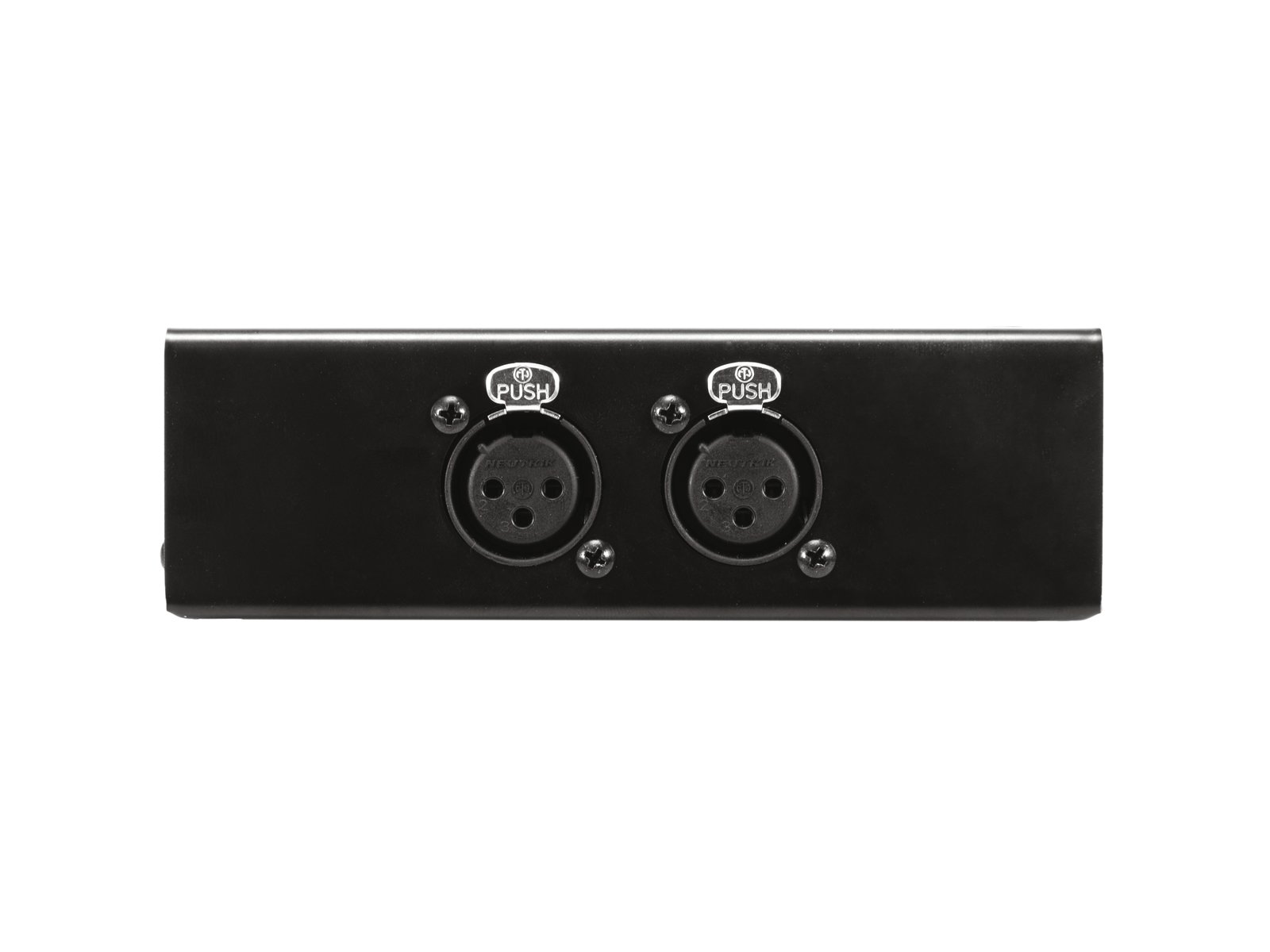

DMX output:2 x 3-pin XLR (F) mounting version Separate (galvanic) with active signal processing
Status LED:Signal
Use of brands:Built with NEUTRIK connector
Dimensions:Width: 14,1 cm
Depth: 11 cm
Height: 4,1 cm
Weight:1,05 kg
