EUROLITE DXT-SP 1in/2out PRO DMX RDM Splitter
SKU: 70064866
RDM-capable DMX splitter, 1in/2out with signal boost
- DMX splitter for splitting one DMX input signal to 2 DMX outputs
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Bypass function to process signals from older devices similar to DMX signals
- Output frequency adjustable: 22/44 Hz
- Outputs galvanically isolated
- Each DMX output can be connected to 32 DMX devices
- Control via RDM
- DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM - Built with NEUTRIK connector
- Made in Germany
- Each DMX output with active signal processing
- DMX fail mode (hold; blackout; null)
Package contents
- 1 x device, 1 x external mains adapter, 4 x foot, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| Power consumption: | 1,8 W |
| Power connection: | Fixed power supply cord with safety plug |

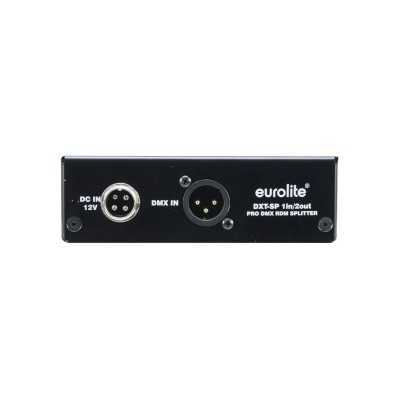

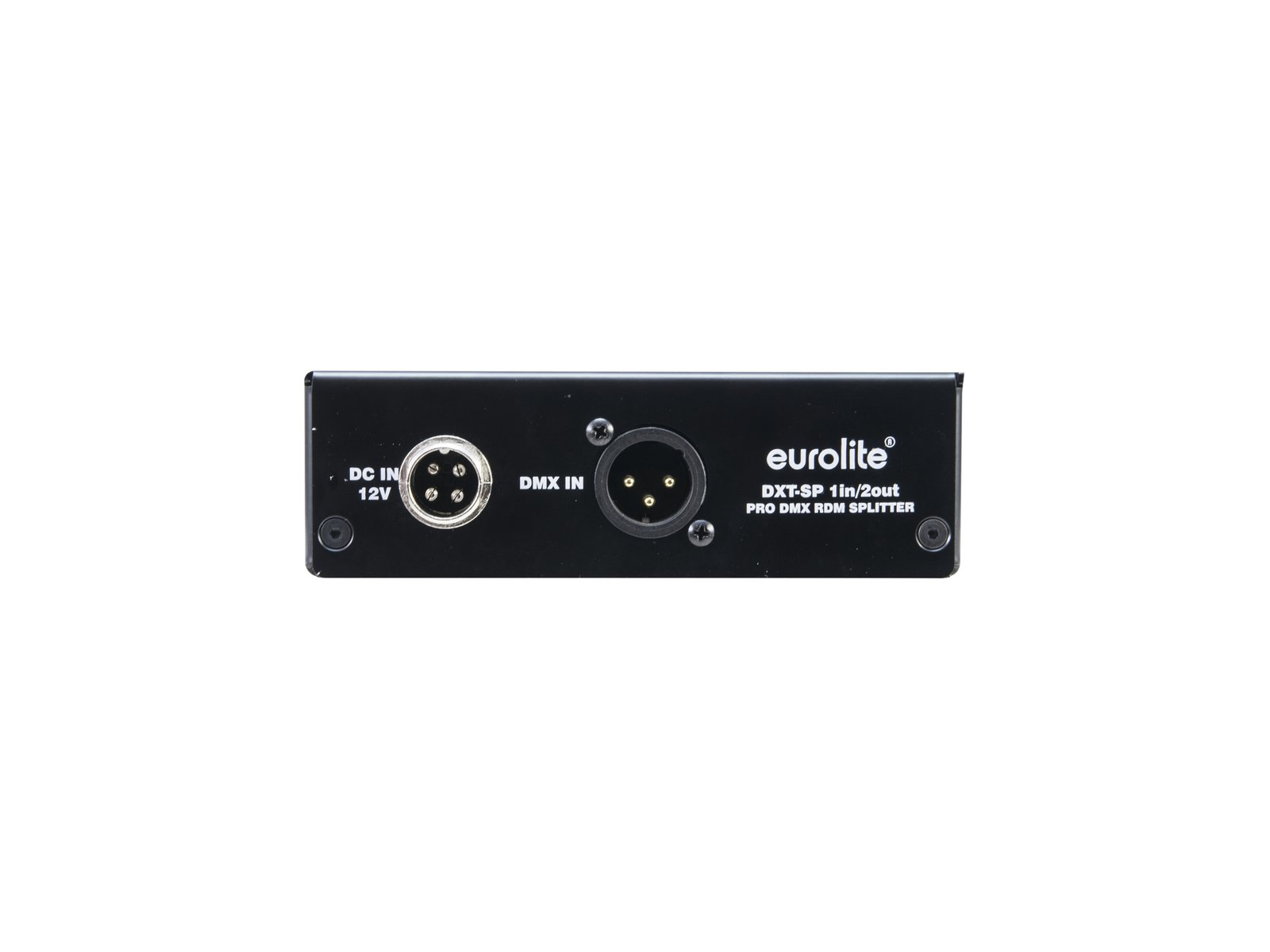

| DMX input: | 1 x 3-pin XLR (M) mounting version |

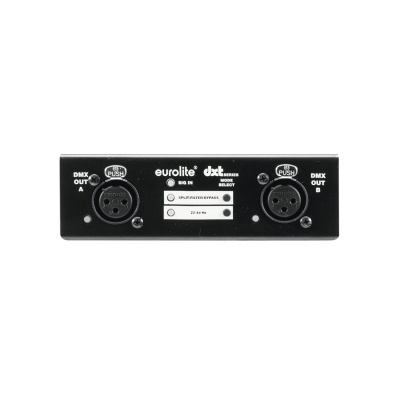

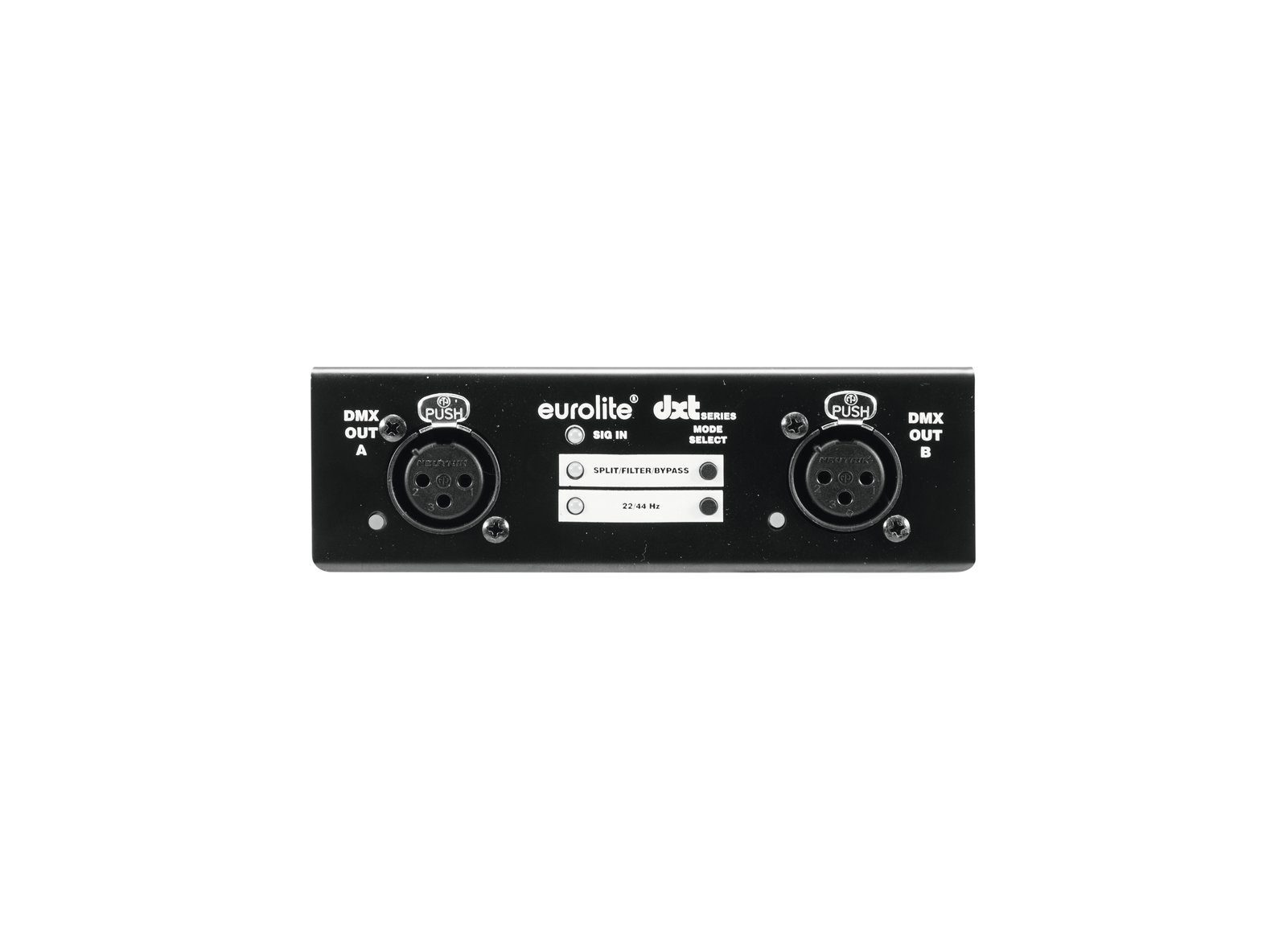

| DMX output: | 2 x 3-pin XLR (F) mounting version Separate (galvanic) with active signal processing |
| Control: | RDM |
| DMX features: | DMX feed-through for up to 32 further DMX devices RDM For bidirectional communication over the DMX line RDM switchable to prevent problems when using fixtures without RDM |
| DMX fail mode: | Hold; blackout; null |
| Use of brands: | Built with NEUTRIK connector |
| Dimensions: | Width: 13 cm Depth: 10 cm Height: 4,1 cm |
| Weight: | 650 g |
