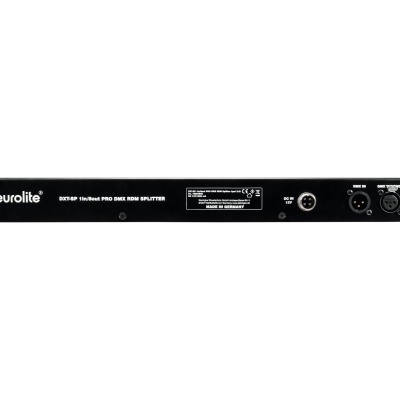

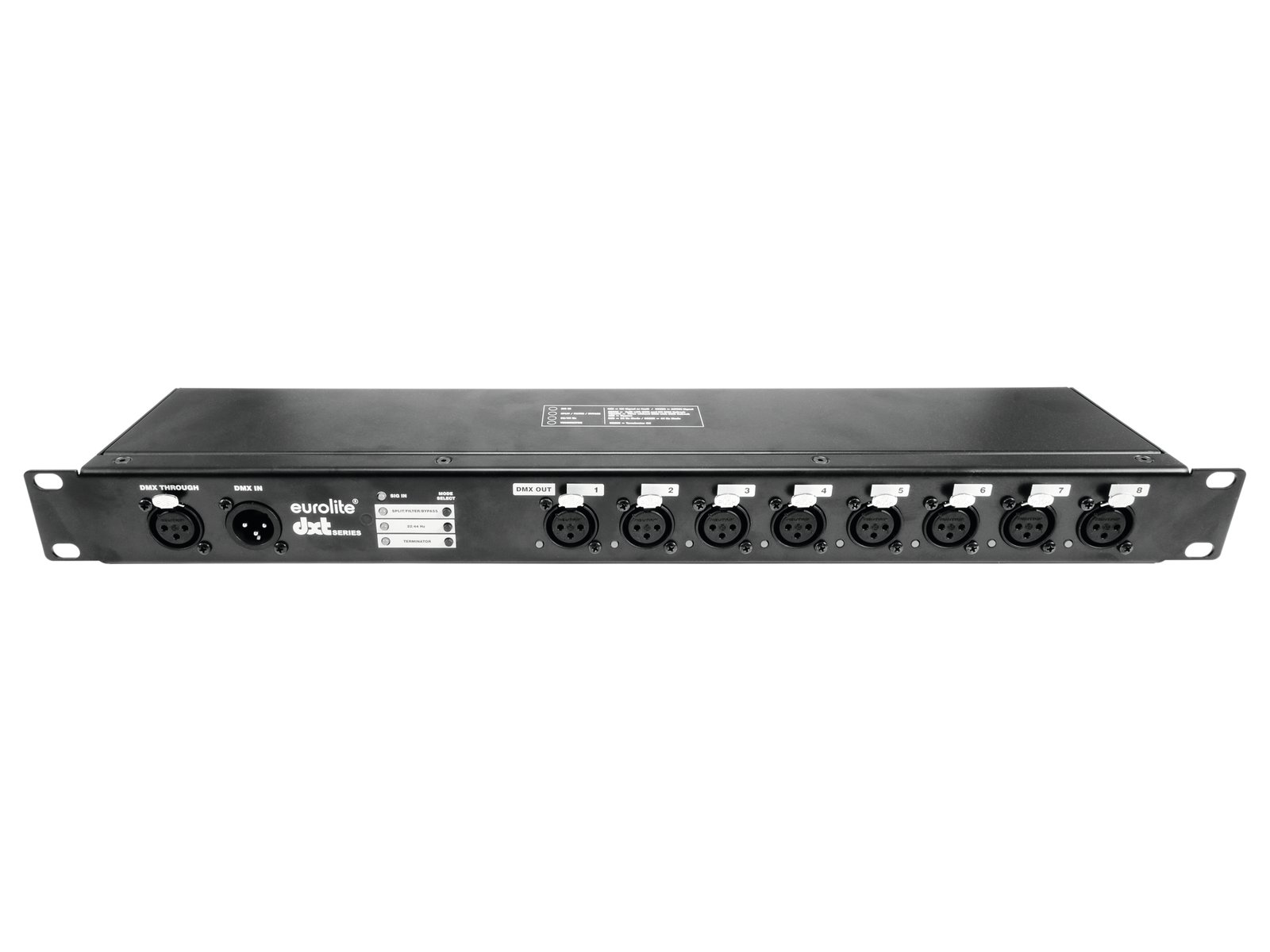

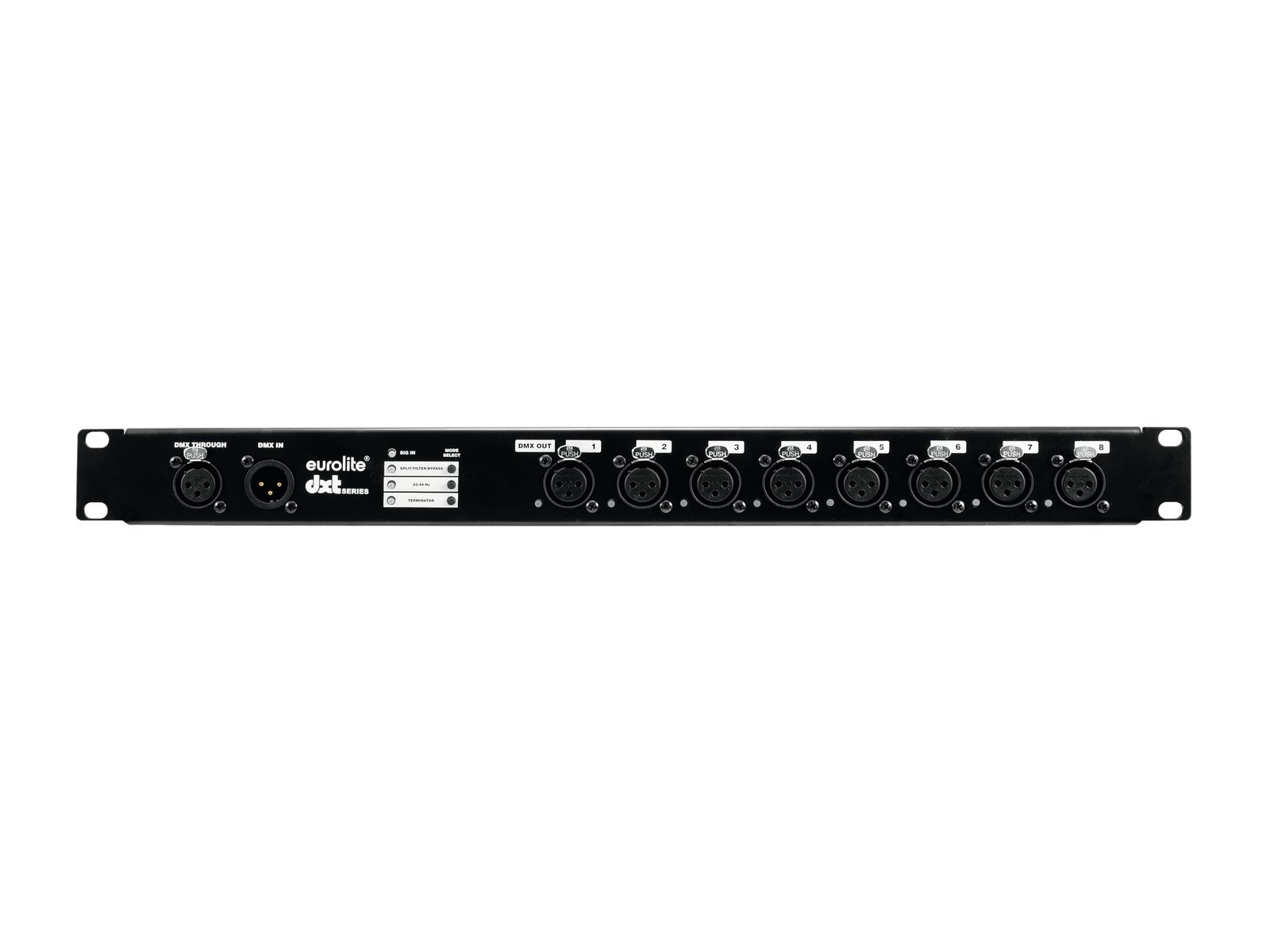

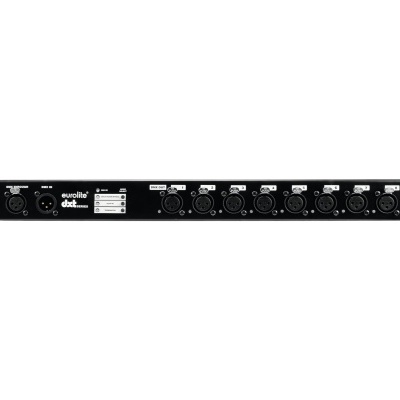

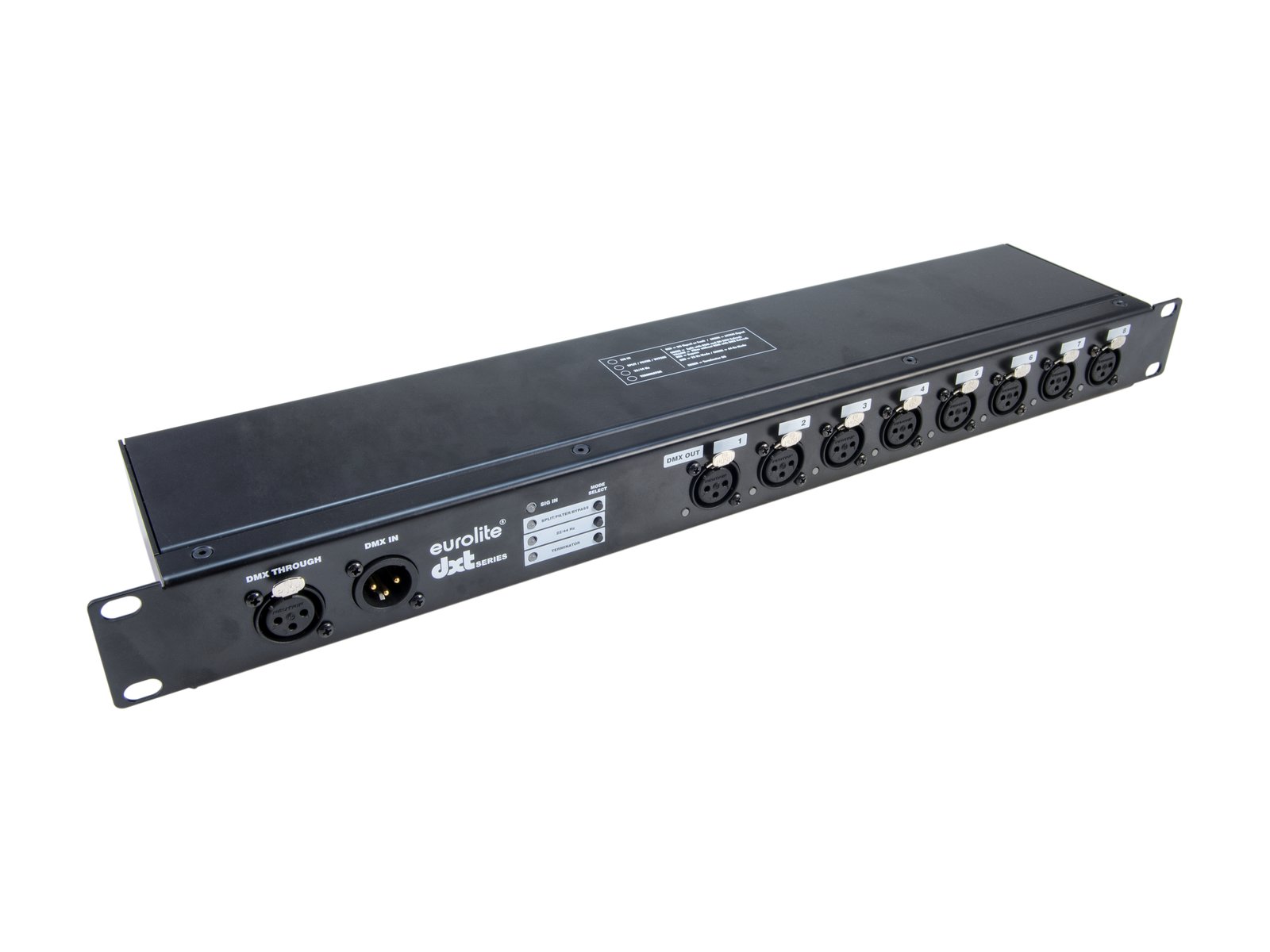

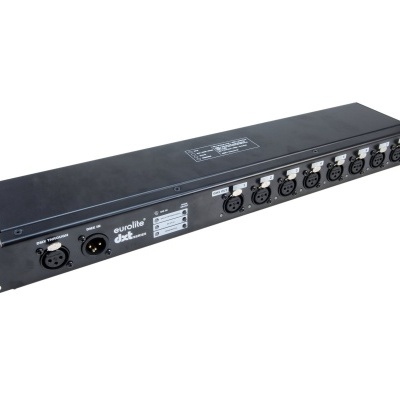

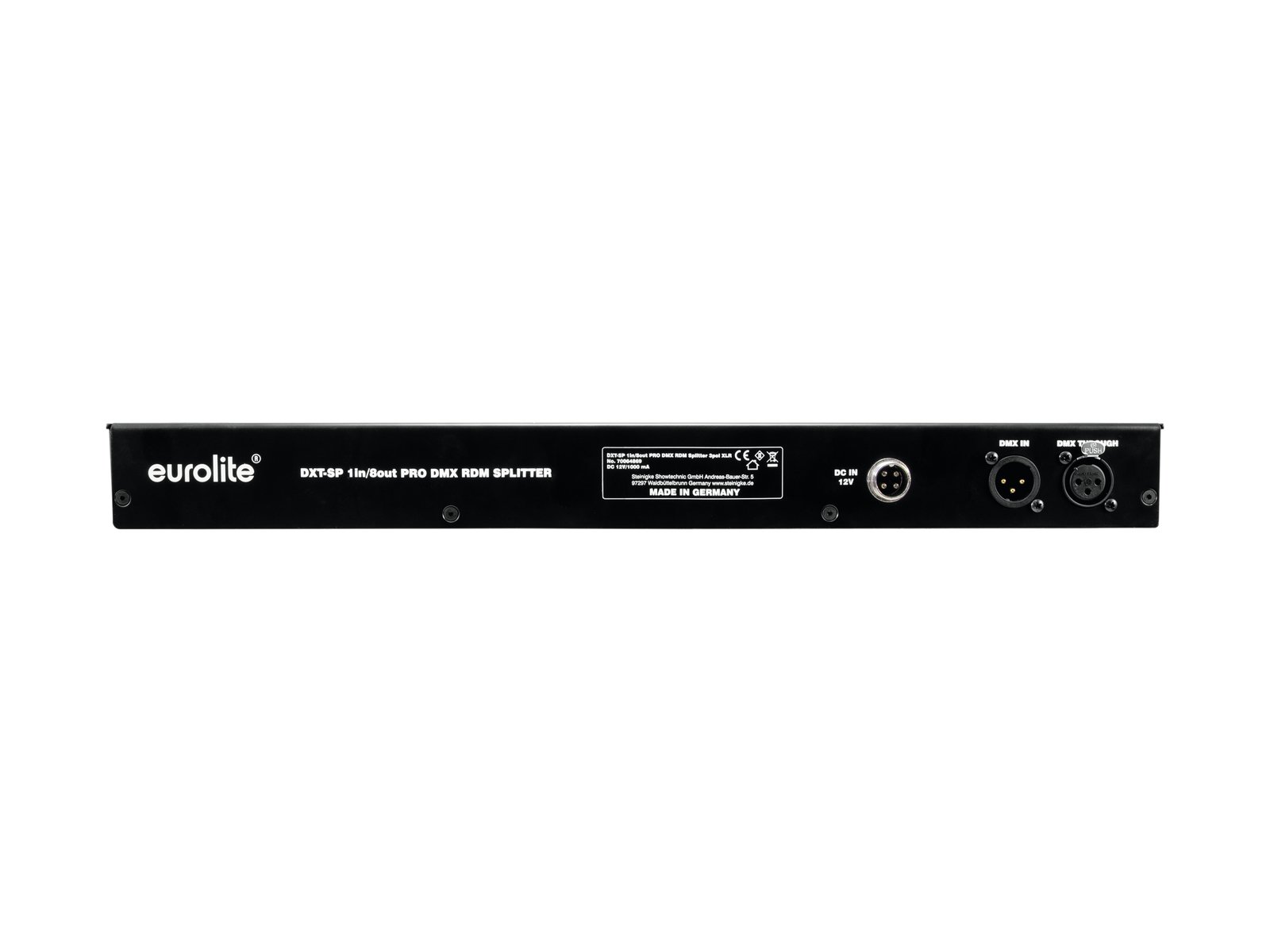

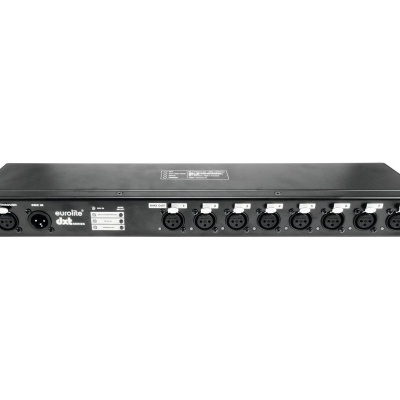

EUROLITE DXT-SP 1in/8out PRO DMX RDM Splitter 3pol XLR
SKU: 70064869
RDM-capable DMX splitter, 1in/8out with signal boost
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Input and feed-through output are duplicated on the front and rear panel and connected in parallel
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Bypass function to process signals from older devices similar to DMX signals
- Output frequency adjustable: 22/44 Hz
- Switchable termination resistor
- Outputs galvanically isolated
- Each DMX output with active signal processing
- Each DMX output can be connected to 32 DMX devices
- DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM - Built with NEUTRIK connector
- (19") 48.3 cm rack installation 1 U
- Made in Germany
- Control via RDM
- Preprogrammed in LED PC-Control 512
Package contents
- 1 x device, 1 x external mains adapter, 4 x foot, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| Power consumption: | 6 W |
| Power connection: | Power supply cord with AC adapter (provided) |
| DMX input: | 2 x 3-pin XLR (M) mounting version |
| DMX output: | 8 x 3-pin XLR (F) mounting version Separate (galvanic) with active signal processing 2 x 3-pin XLR (F) mounting version Bypass |
| Control: | RDM |
| Preprogrammed in: | LED PC-Control 512 |
| DMX features: | DMX feed-through for up to 32 further DMX devices RDM For bidirectional communication over the DMX line RDM switchable to prevent problems when using fixtures without RDM |
| Use of brands: | Built with NEUTRIK connector |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm Depth: 10 cm Height: 4,45 cm |
| Weight: | 1,94 kg |
