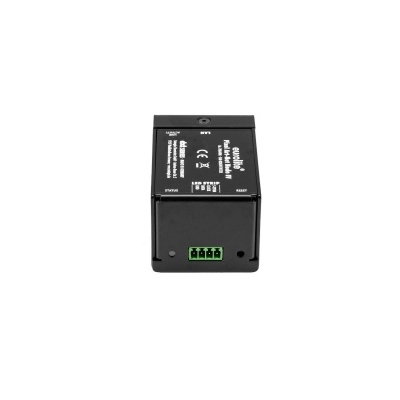

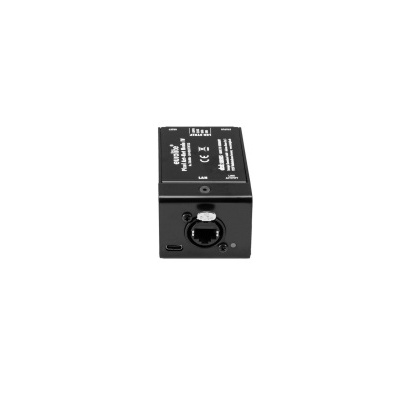

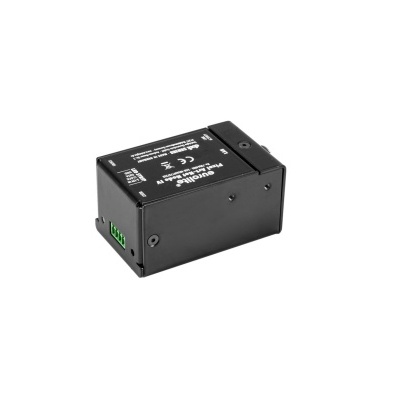

EUROLITE DXT Pixel Art-Net Node IV
SKU: 70064886
Art-Net interface for control of 50000 digital LED channels
- Can receive and process up to 2048 DMX channels
- 1 to 6 colors per pixel
- Supports pixel groups (1 - 9999)
- Control via ArtNet; sACN
- Configuration with website or Art-Net
- Useable for WS2801; WS2811, WS2812, SK6812; APA102 LED´s
- Does not require a separate adapter - power supply is via LED strip (5-12 V)
- Rugged metal housing
- Desktop console housing
- Made in Germany
- The device can be connected via RJ-45 etherCON (F) mounting version to the PC in connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
- Built with NEUTRIK connector
| Power supply: | 5-12 V DC |
| Pin configuration: | Pin1 (GND) / Pin2 (DATA) / Pin3 (CLOCK) / Pin4 (VIN) |
| Power consumption: | 1 W |
| IP classification: | IP20 |
| Power connection: | Mains input via 4-pin screw plug connector (M) mounting version |
| DMX channels: | Input 2048 |
| Network connection: | Protocol: Ethernet TCP/IP via 1x RJ-45 etherCON (F) mounting version, 10 Mbit/s Standard: IEEE 802.3u |
| Control: | ArtNet; sACN |
| Control channels: | 50000 |
| Housing color: | Black |
| Status LED: | Signal, link |
| Connections: | Input: 1 x RJ-45 etherCON (F) mounting version Output: screw plug-in terminal |
| Use of brands: | Built with NEUTRIK connector |
| PC connect: | F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) via RJ-45 etherCON (F) mounting version |
| Housing design: | Desktop console housing |
| Dimensions: | Length: 7,8 cm Width: 5,0 cm Height: 4,2 cm |
| Weight: | 250 g |
