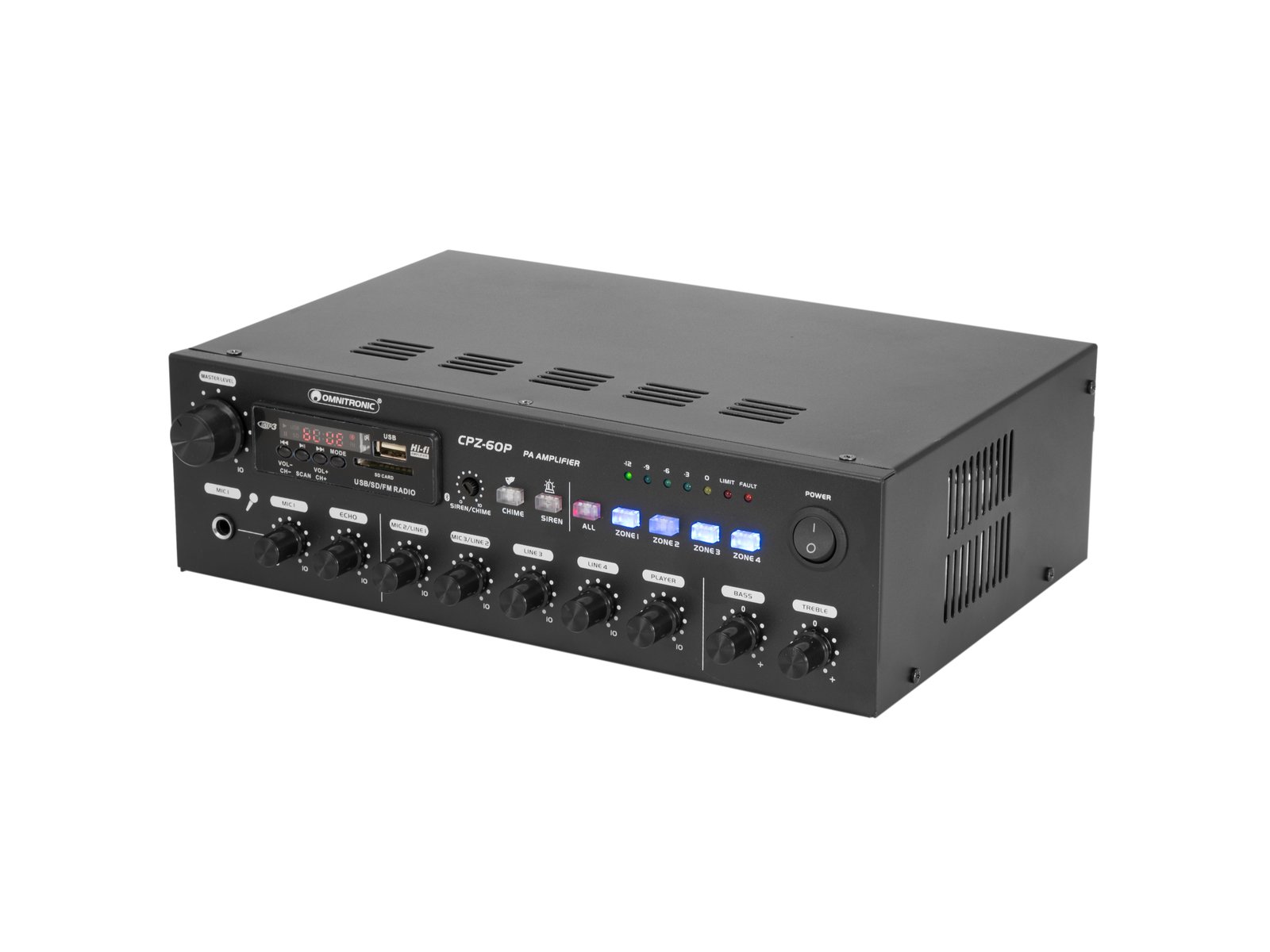

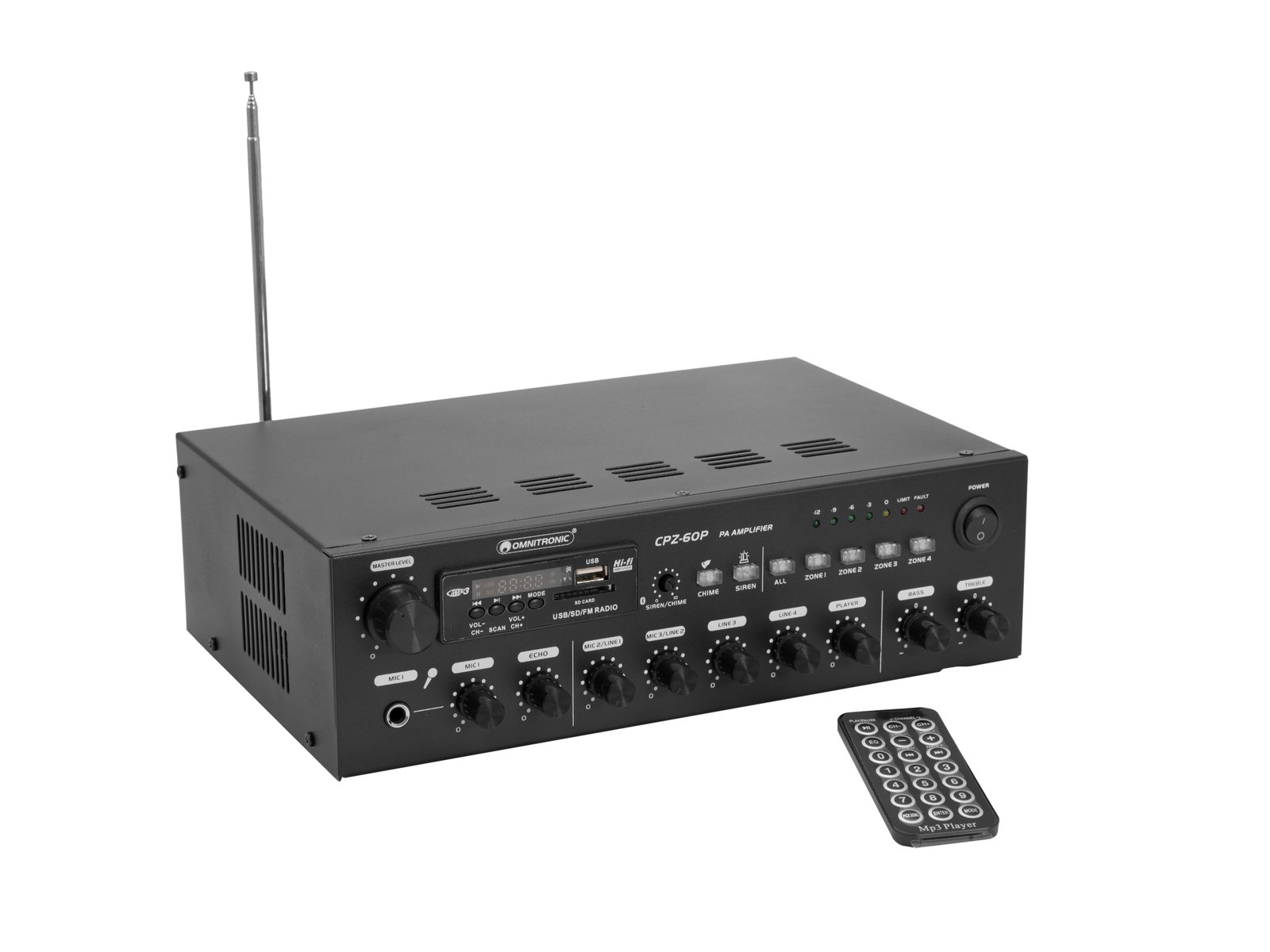

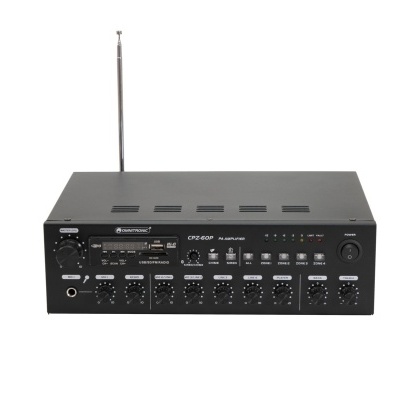

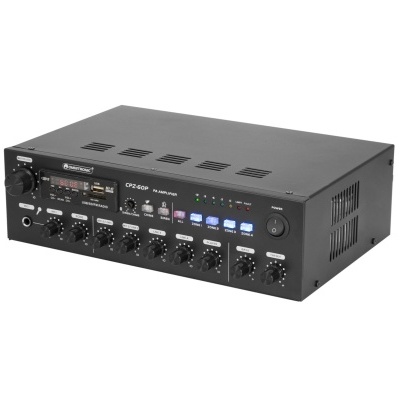

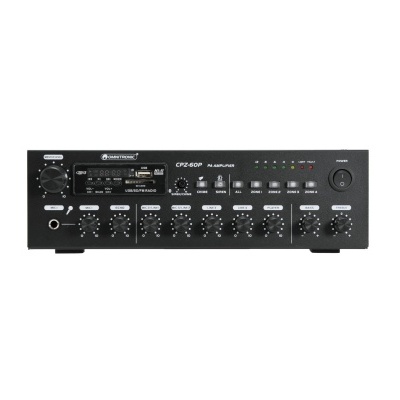

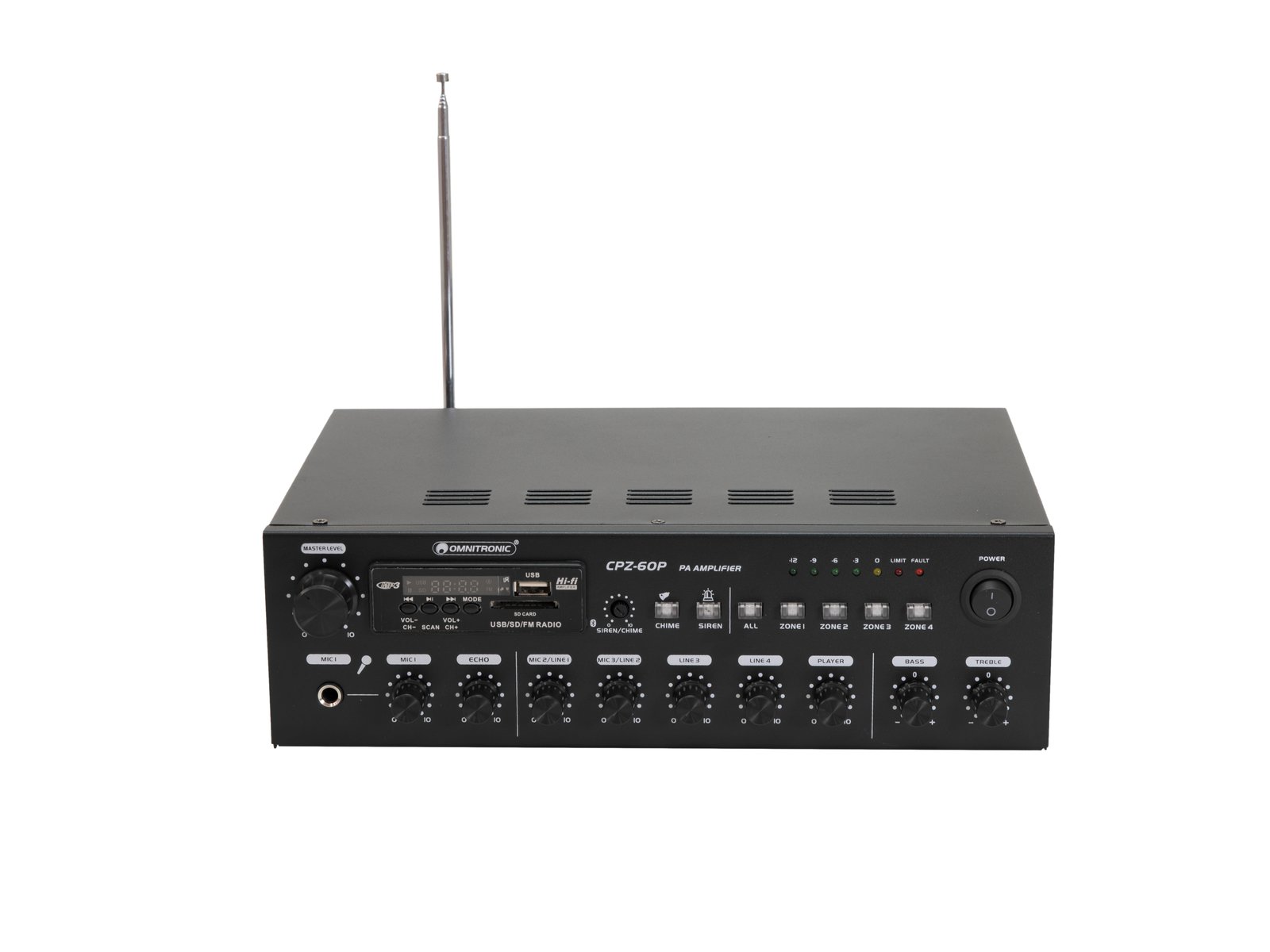

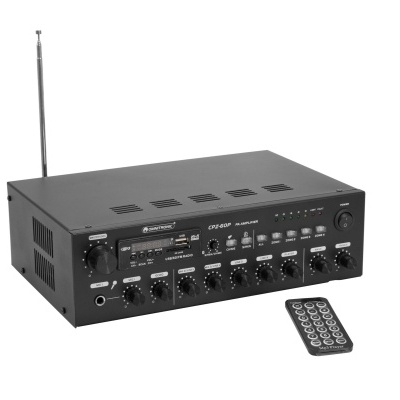

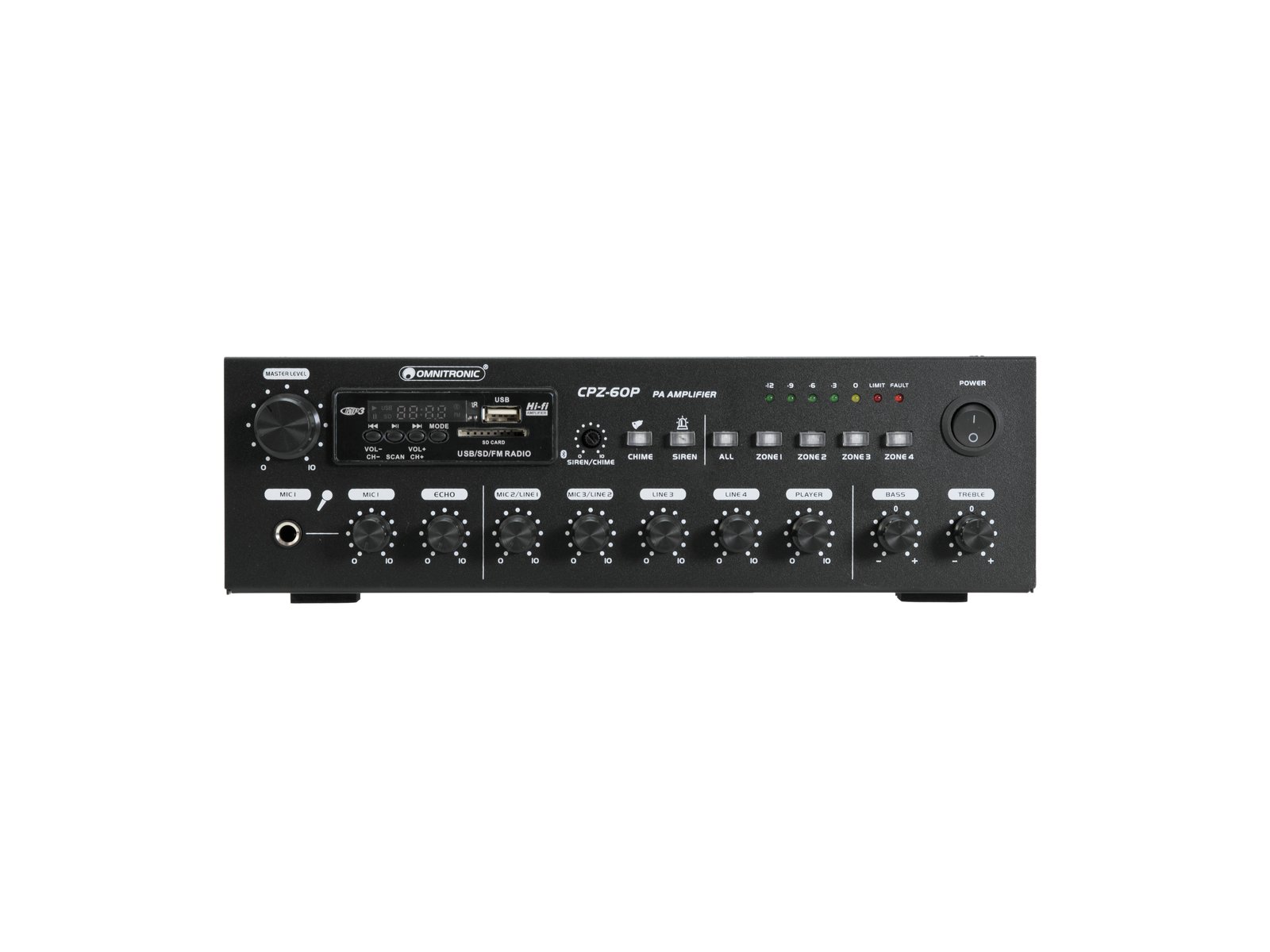

OMNITRONIC CPZ-60P PA Mixing Amplifier
SKU: 80709703
4-zone-PA mixing amplifier with audio player, IR remote control and Bluetooth, switchable zones, 60 W RMS
- 4 PA zone outputs, independently switchable on the front panel
- Output for low-impedance speakers (4-16 ohms)
- SD card slot and USB port
- FM tuner with auto scan
- 3 microphone inputs with separate level controls
- Mic 1 with phantom power, priority circuit and echo effect
- Mic 2 and 3 switchable mic/line
- 2 line inputs with separate level controls
- 1 line output
- Siren and chime, adjustable
- Treble and bass and master controls for the output signal
- 5-digit LED level meter
- Mains operation and 24 V emergency power operation
- Control via Bluetooth; IR remote control
- 2 U
- Desktop console housing
Package contents
- 1 x amplifier, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x antenna, 1 x remote control, 1 x battery
| Power supply: | 100-240 V AC, 50/60 Hz Or 24 V |
| Power consumption: | 120 W |
| Protection class: | Protection class I |
| Output power: | 60 W RMS |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack (not included) |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Impedance: | Public address systems 100V; Public address systems 70V; 4-16 ohms |
| Control: | Bluetooth; IR remote control |
| Audio player: | USB + SD + Bluetooth + FM Radio, |
| Zone output: | 4 switchable zones |
| Circuitry: | Class D |
| Controls: | Overload; short-circuit; limiter; overheat |

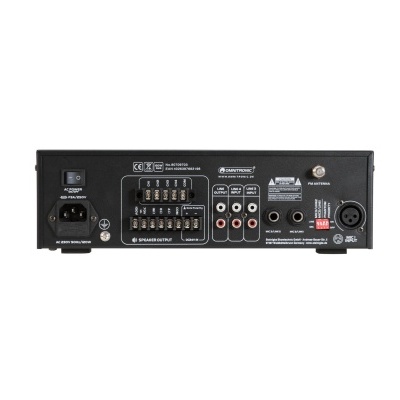

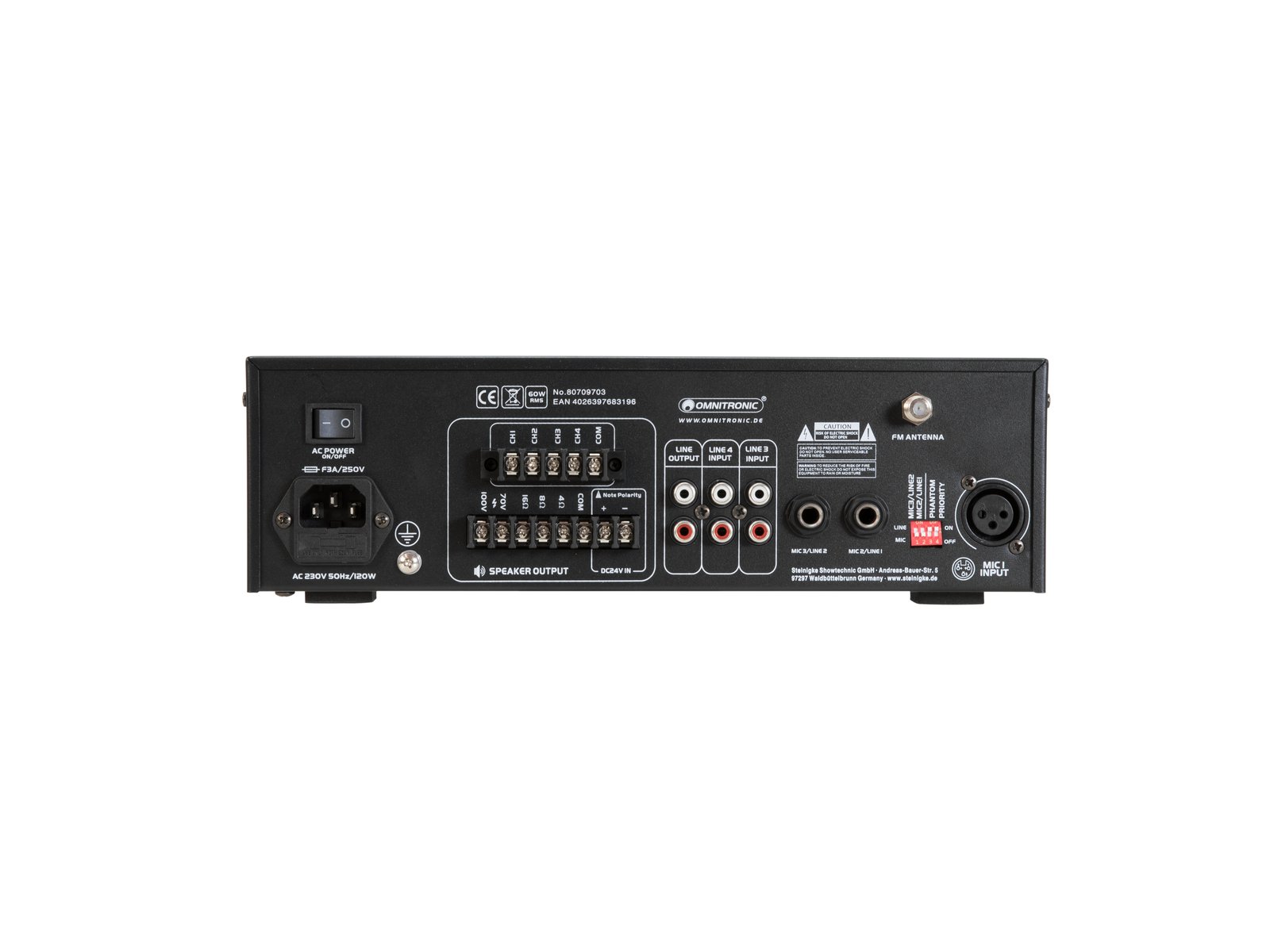

| Connections: | Input: Microphone via 1 x 3-pin XLR Input: mic/line via 2 x 6.3 mm jack socket (stereo) mounting version Input: line via 2 x stereo RCA Output: line via 1 x stereo RCA 0,774 V Output: speaker via screw terminal |
| Equalizer: | Master: 1 x 2-band tone control |
| Music format: | MP3 |
| Housing design: | 2 U Desktop console housing |
| Dimensions: | Width: 30,3 cm Depth: 22 cm Height: 9,1 cm |
| Weight: | 3,60 kg |
