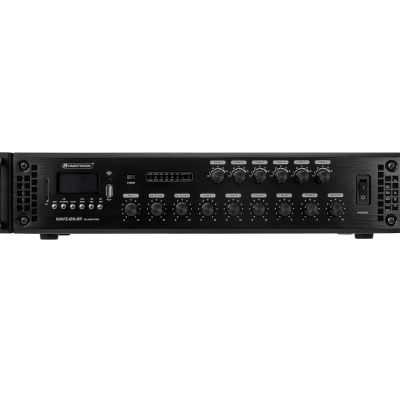

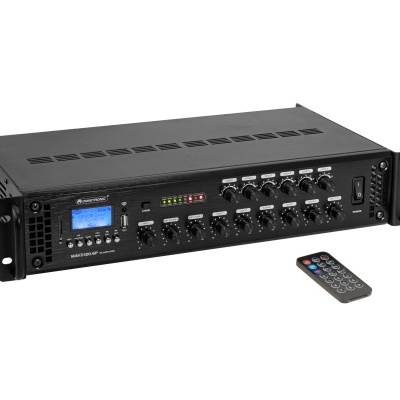

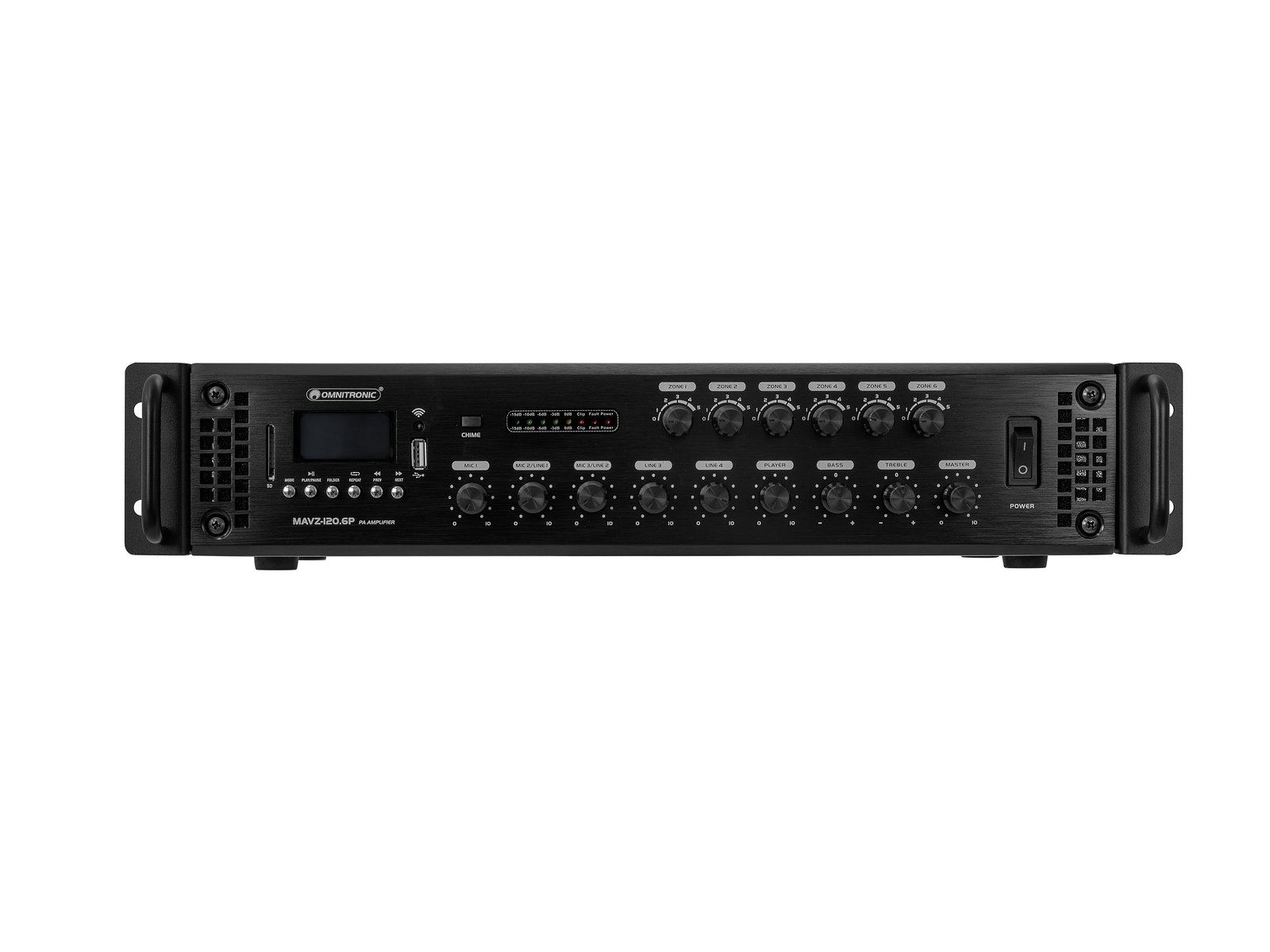

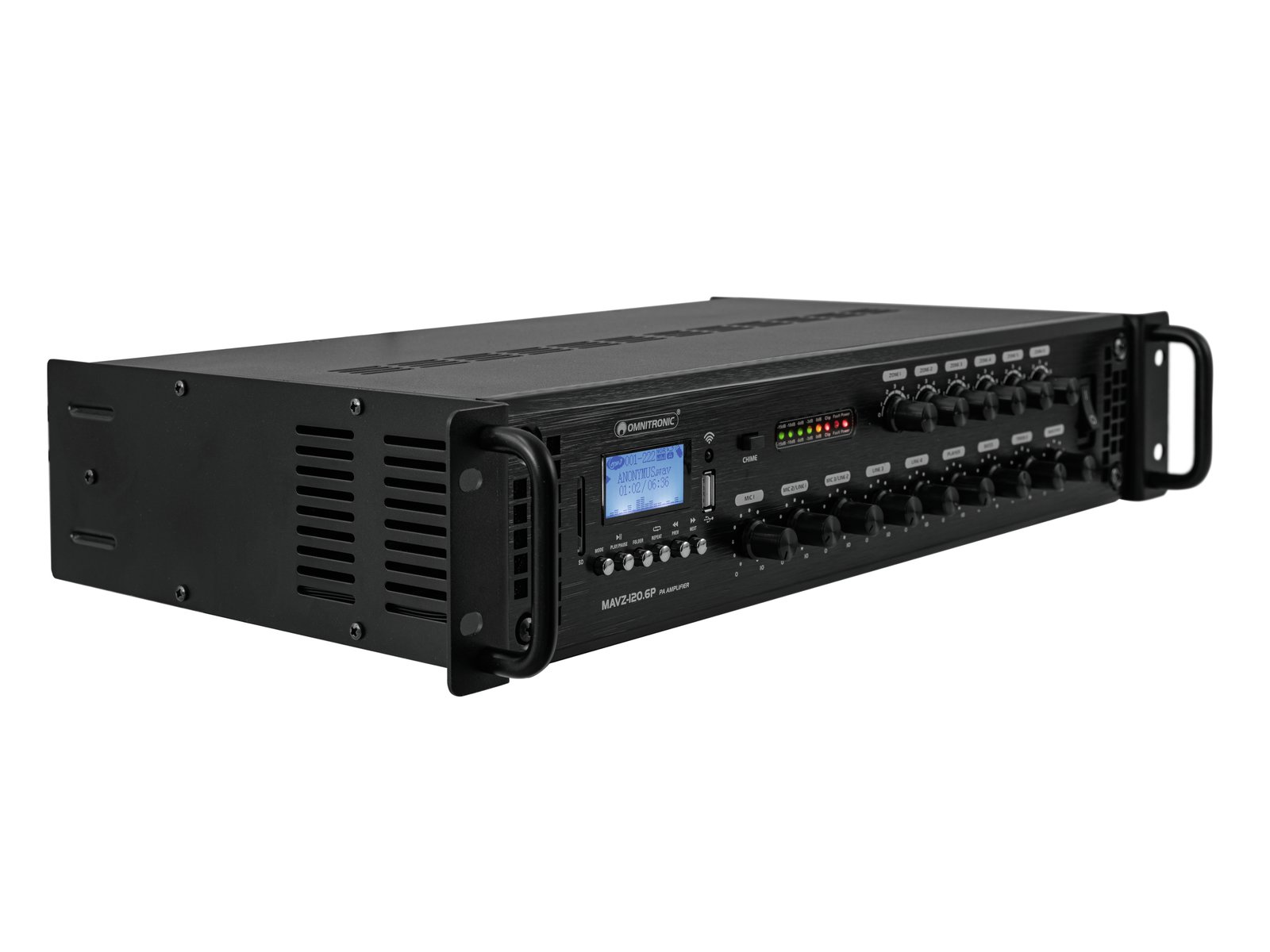

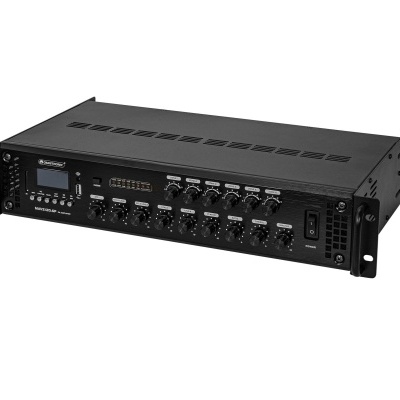

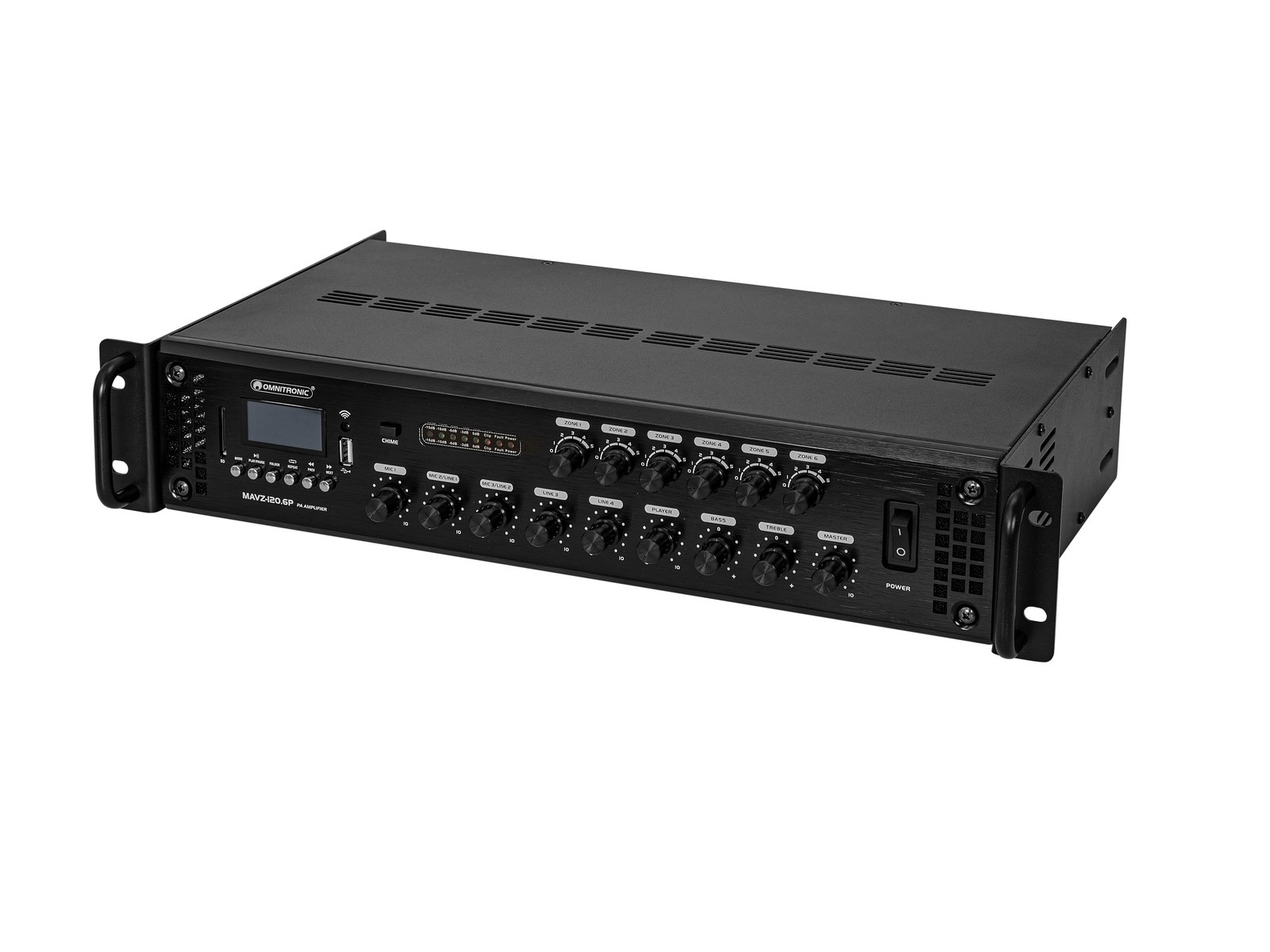

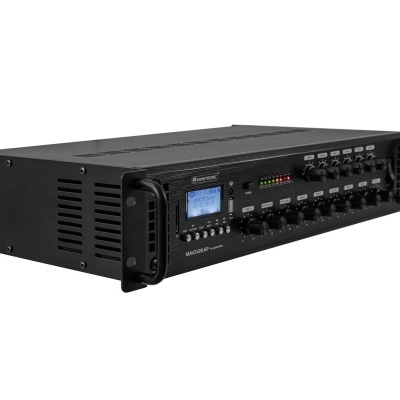

OMNITRONIC MAVZ-120.6P PA Mixing Amplifier
SKU: 80709788
6-zone-PA mixing amplifier with audio player and remote control, adjustable zones, 120 W RMS
- Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs with separate 5-step level controls
- Output for low-impedance speakers (4-16 ohms)
- SD card slot and USB port
- Folder navigation, repeat functions and random play
- 3 microphone inputs with separate level controls
- Mic 1 with phantom power and priority circuit
- Mic 2 and 3 switchable mic/line
- 2 line inputs with separate level controls
- 1 line output
- Treble and bass and master controls for the output signal
- 5-digit LED level meter
- Chime, switchable
- The device is cooled by cooling fan
- Control via IR remote control; Bluetooth
- LCD display
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x amplifier, 1 x user manual, 1 x remote control, 1 x battery, 2 x holder, 4 x screw
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 240 W |
| Output power: | 120 W RMS |
| Power connection: | Fixed power supply cord with safety plug |
| Frequency range: | 50 - 18000 Hz |
| S/N ratio: | >75 dB Microphone >85 dB line |
| THD: | <0,5 % at 1 kHz |
| Cooling: | Cooling fan |
| Impedance: | Public address systems 100V; 4-16 ohms; Public address systems 70V |
| Control: | IR remote control; Bluetooth |
| Audio player: | USB + SD + Bluetooth, |
| Zone output: | 6 adjustable zones |
| Circuitry: | Class AB |
| Display type: | LCD display |
| Controls: | Current limiting; short-circuit; power on/off transient; power on/off transient; Overvoltage; short-circuit |
| Status LED: | Power, fault, level meter |

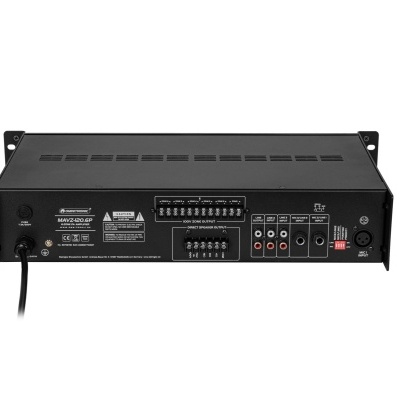

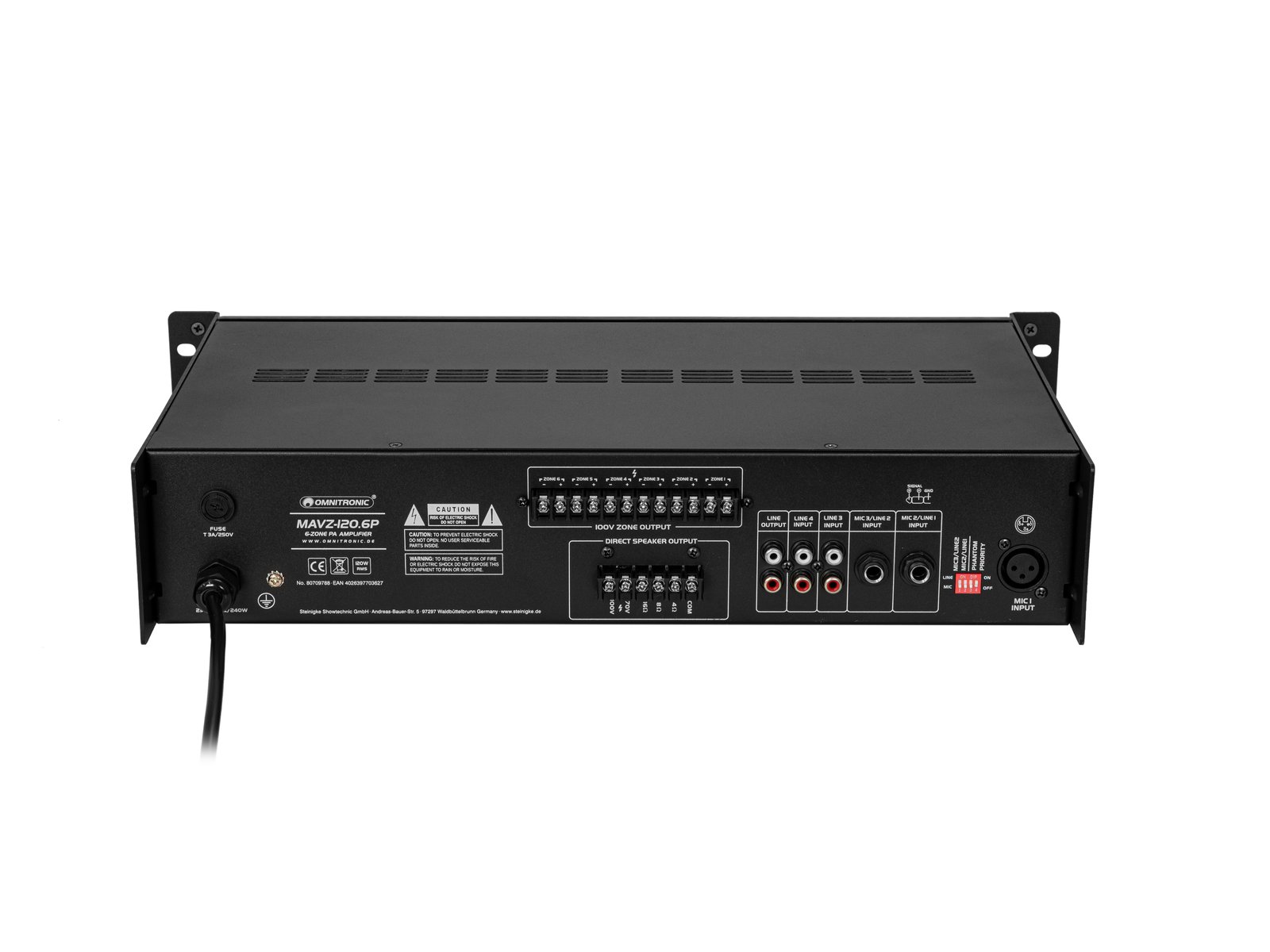

| Connections: | Input: Microphone via 1 x 3-pin XLR Input: Microphone via 2 x 6.3 mm plug (unbal.) Input: line via 2 x stereo RCA 0,3 V Output: line via 1 x stereo RCA Output: speaker via screw terminal |
| Equalizer: | Master: 1 x 2-band tone control mono |
| Music format: | MP3 |
| Number of files: | Max. 999 |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 32 cm Height: 9,2 cm |
| Weight: | 5,70 kg |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
