OMNITRONIC MAVZ-360.6P PA Mixing Amplifier
OMNITRONIC MAVZ-360.6P PA Mixing Amplifier
OMNITRONIC MAVZ-360.6P PA Mixing Amplifier
OMNITRONIC MAVZ-360.6P PA Mixing Amplifier
OMNITRONIC MAVZ-360.6P PA Mixing Amplifier
OMNITRONIC MAVZ-360.6P PA Mixing Amplifier

OMNITRONIC MAVZ-360.6P PA Mixing Amplifier

SKU: 80709793

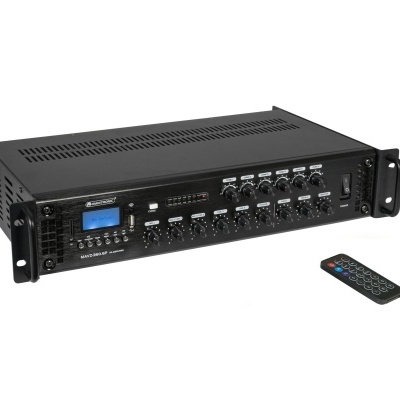

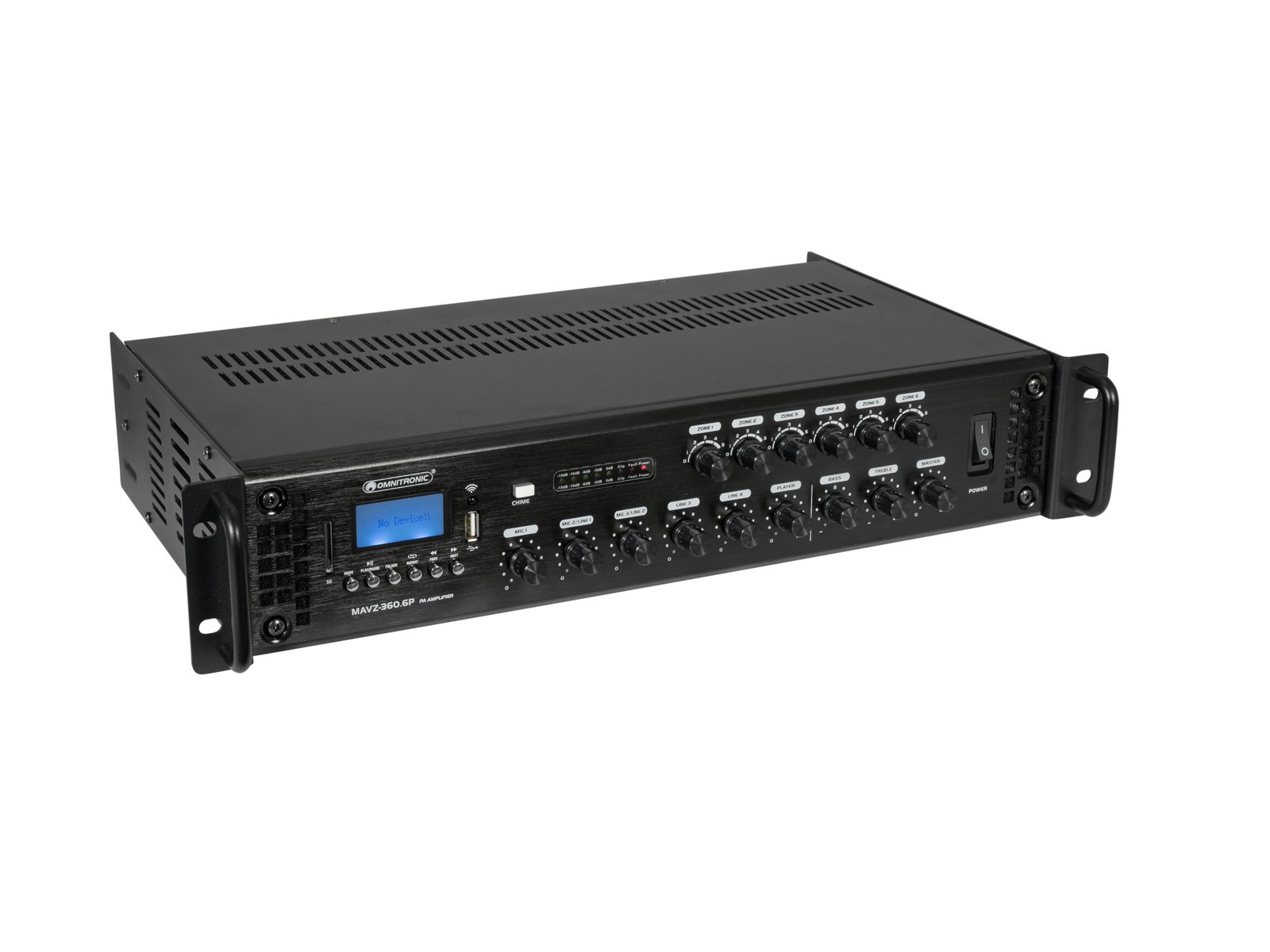

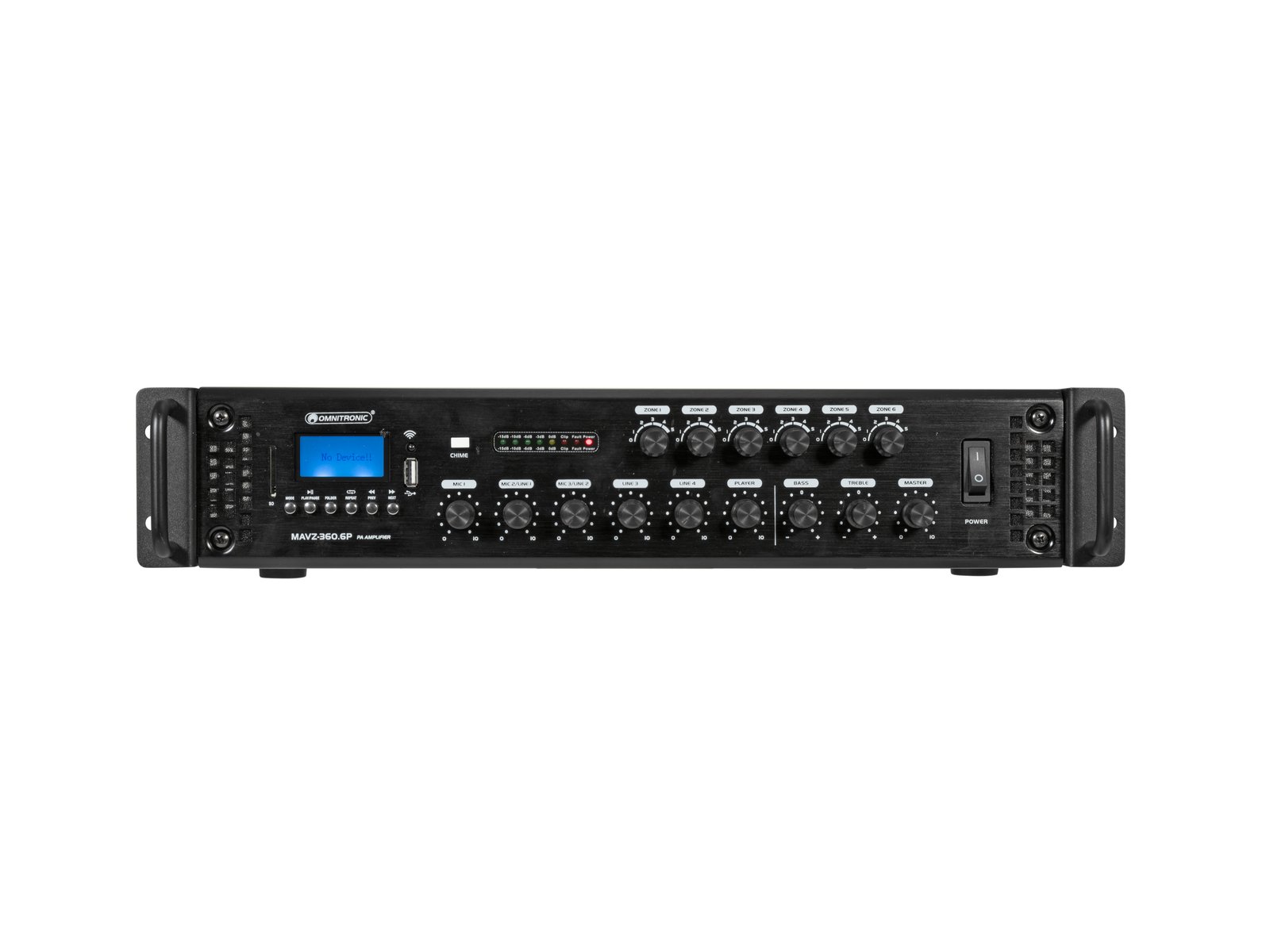

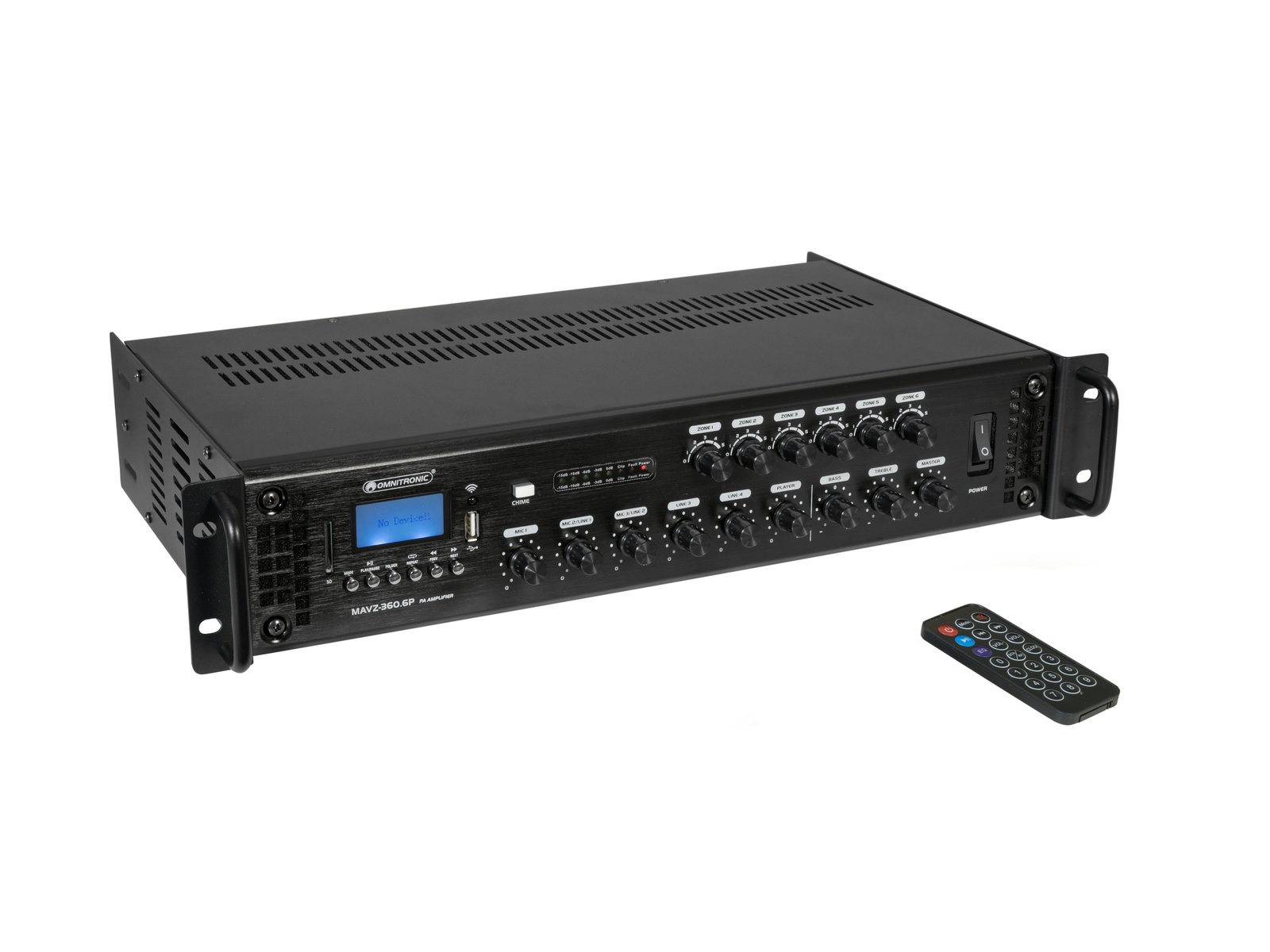

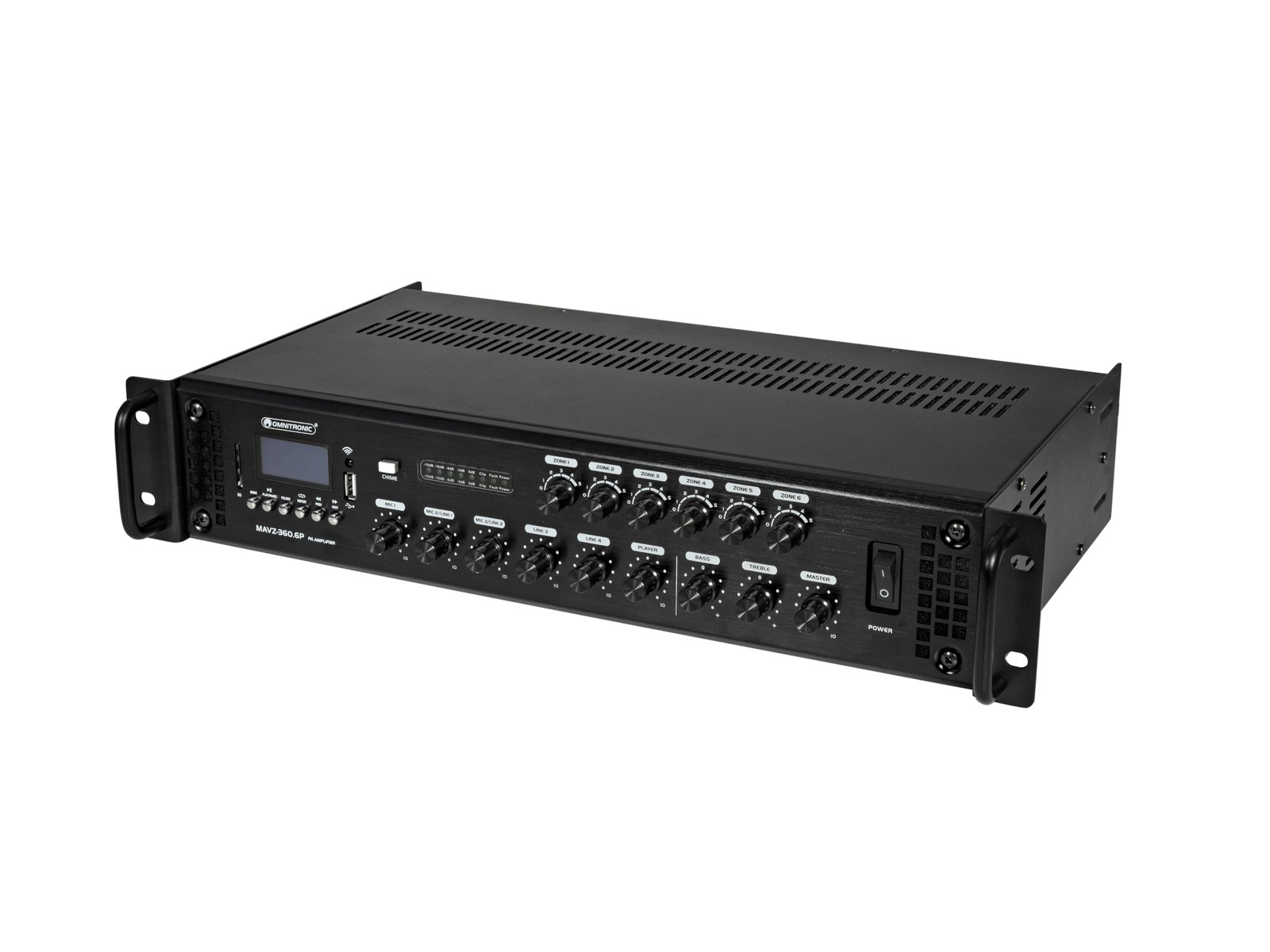

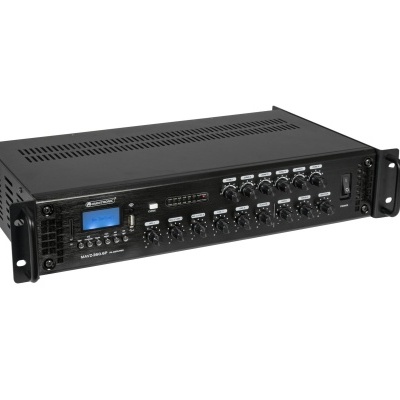

6-zone-PA mixing amplifier with audio player, IR remote control and Bluetooth, adjustable zones, 360 W RMS

  • Comfortable control of PA speakers via 6-zone technology
  • 6 PA zone outputs with separate 5-step level controls
  • Output for low-impedance speakers (4-16 ohms)
  • SD card slot and USB port
  • Folder navigation, repeat functions and random play
  • 3 microphone inputs with separate level controls
  • Mic 1 with phantom power and priority circuit
  • Mic 2 and 3 switchable mic/line
  • 2 line inputs with separate level controls
  • 1 line output
  • Treble and bass and master controls for the output signal
  • 5-digit LED level meter
  • Chime, switchable
  • The device is cooled by cooling fan
  • Control via IR remote control; Bluetooth
  • (19") 48.3 cm rack installation 2 U

Package contents

  • 1 x amplifier, 1 x user manual, 1 x remote control, 1 x battery, 2 x holder, 4 x screw


Power supply:230 V AC, 50 Hz
Power consumption:720 W
Output power:360 W RMS
Power connection:Fixed power supply cord with safety plug
Frequency range:50 - 18000 Hz
S/N ratio:>75 dB Microphone
>85 dB line
THD:<0,5 % at 1 kHz
Cooling:Cooling fan
Impedance:Public address systems 100V; 4-16 ohms; Public address systems 70V
Control:IR remote control; Bluetooth
Audio player:USB + SD + Bluetooth,
Zone output:6 adjustable zones
Controls:Power on/off transient; Overvoltage; short-circuit

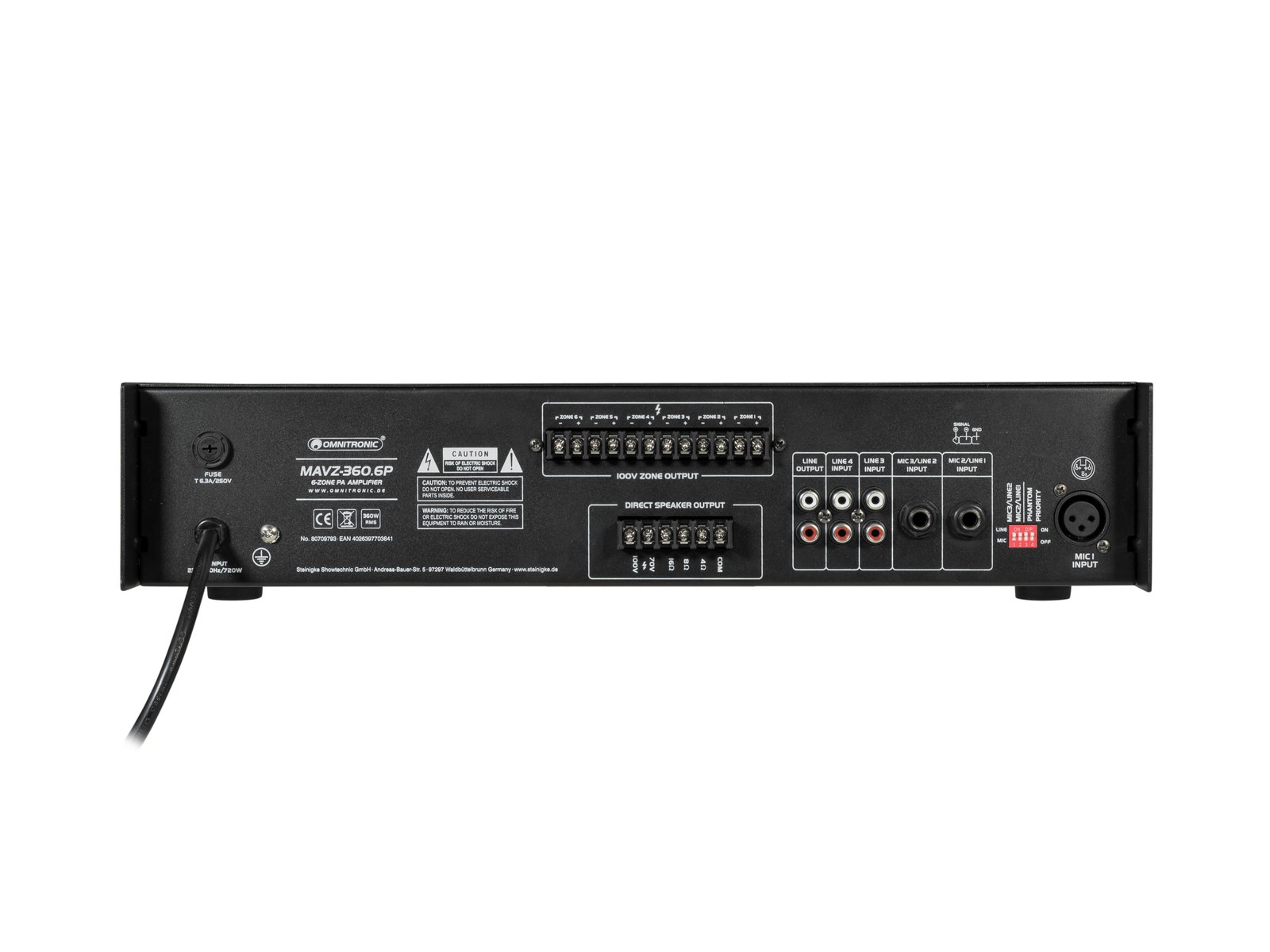

Connections:Input: Microphone via 2 x 6.3 mm plug (unbal.)
Input: Microphone via 1 x 3-pin XLR
Input: line via 3 x stereo RCA 0,3 V
Output: line via 1 x stereo RCA 0,3 V
Output: speaker via screw terminal
Equalizer:Master: 1 x 2-band tone control mono
Music format:MP3
Number of files:Max. 999
Available storage media:USB devices/SD cards max. 32GB (FAT 32)
Housing design:(19") 48.3 cm rack installation 2 U
Dimensions:Width: 48,3 cm
Depth: 27,5 cm
Height: 9,6 cm
Weight:7,15 kg
Remote control
Battery:1 x Button cell 3.0 V CR2025 lithium manganese built-in
