1 feed-through output (optionally XLR or 6.3 mm jack)

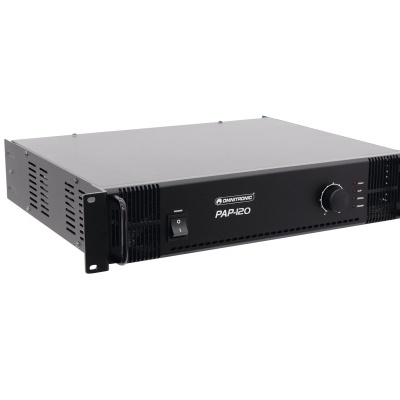

Master control
LED indicators for power, level, clip and fault
Load detection and power control
Highly efficient Air flow from front to rear
The device is cooled by temperature-controlled fan
(19") 48.3 cm rack installation 2 U
Package contents
1 x amplifier, 1 x user manual
Power supply:
230 V AC, 50 Hz
Output power:
120 W RMS
Power connection:
Fixed power supply cord with safety plug
Frequency range:
60 - 16000 Hz
S/N ratio:
>90 dB
THD:
<0,5 % at 1 kHz
Cooling:
Temperature-controlled fan , Air flow from front to rear
Impedance:
4-16 ohms speaker; Public address systems 100V speaker; Public address systems 70V
Circuitry:
Class AB
Control elements:
Level control, power switch
Controls:
Softstart; overheat; overload; short-circuit; DC voltage
Status LED:
Power, signal, fault, clip

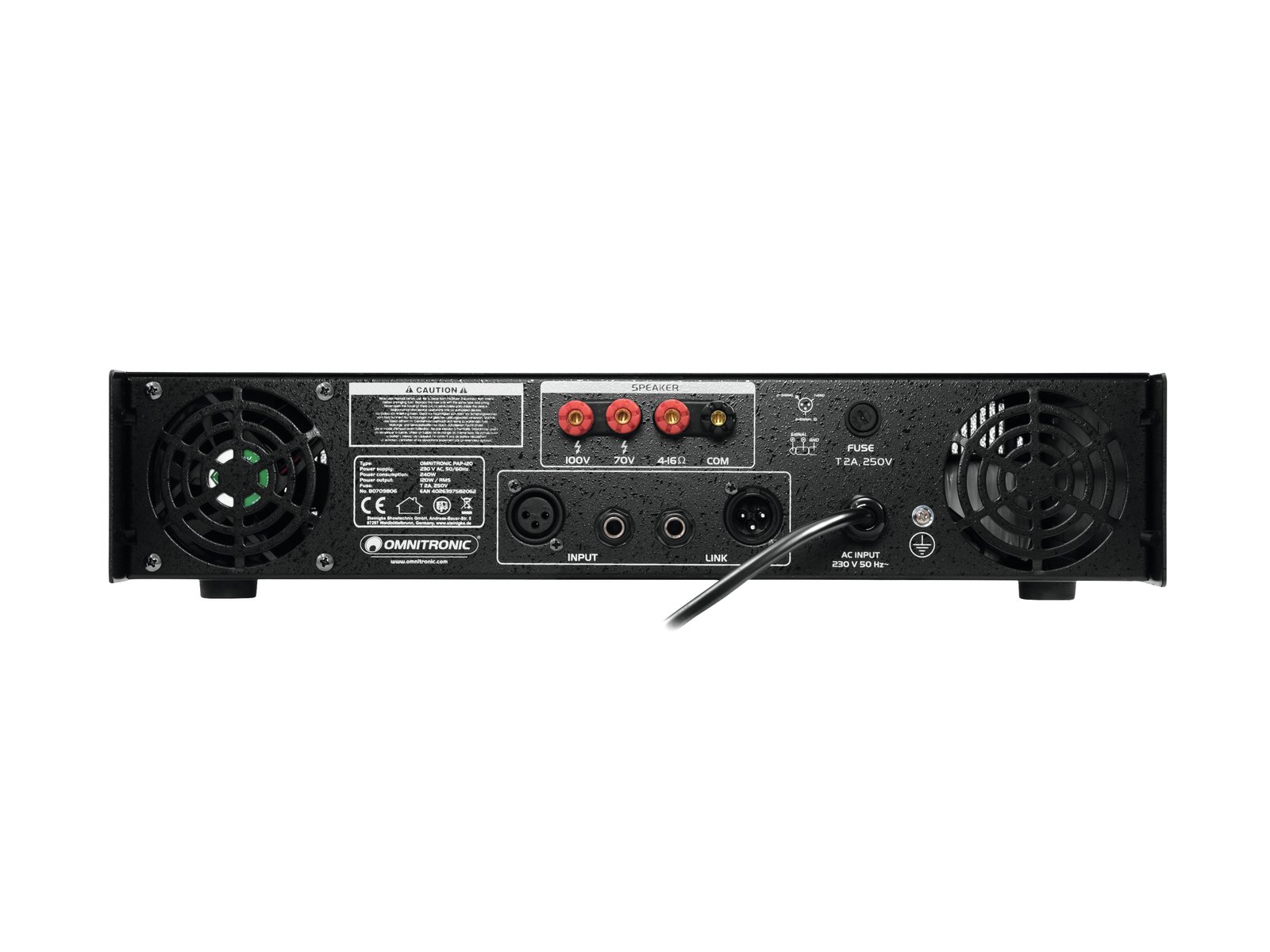

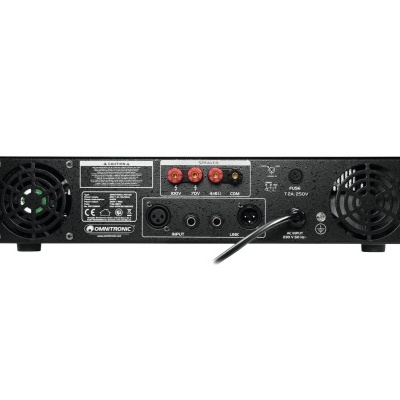

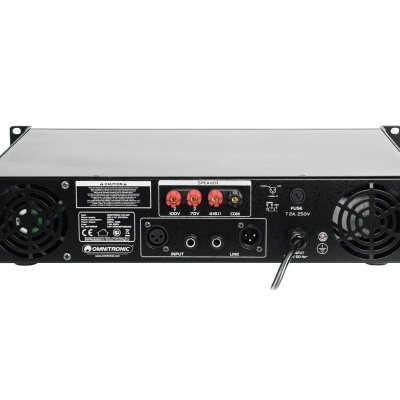

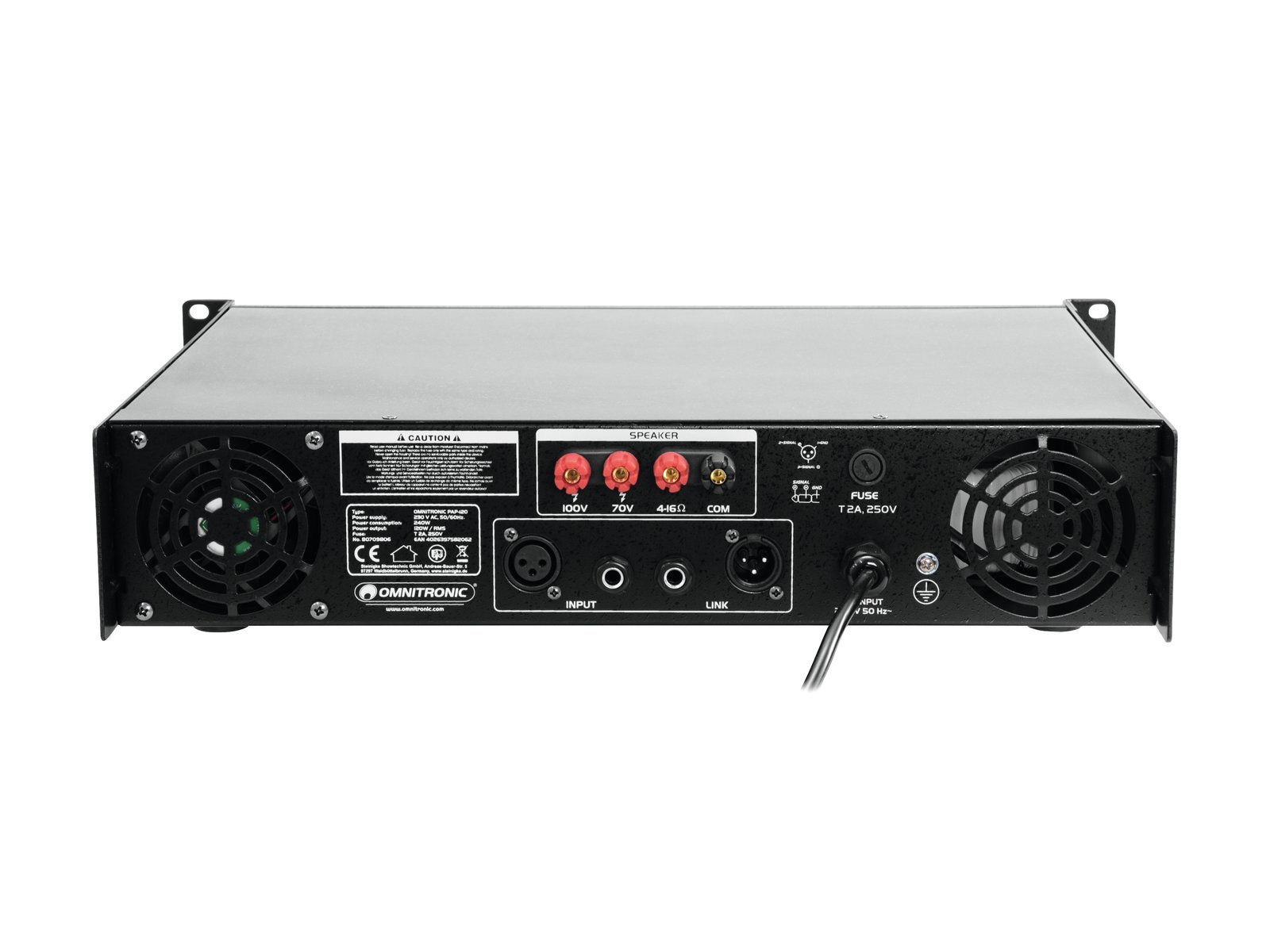

Connections:
Input: line via 1 x 6.3 mm jack socket (mono) mounting version Input: line via 1 x 3-pin XLR (F) mounting version 0,8 V Output: line via 1 x 6.3 mm jack socket (mono) mounting version Output: line via 1 x 3-pin XLR (M) mounting version Output: speaker via screw terminal
