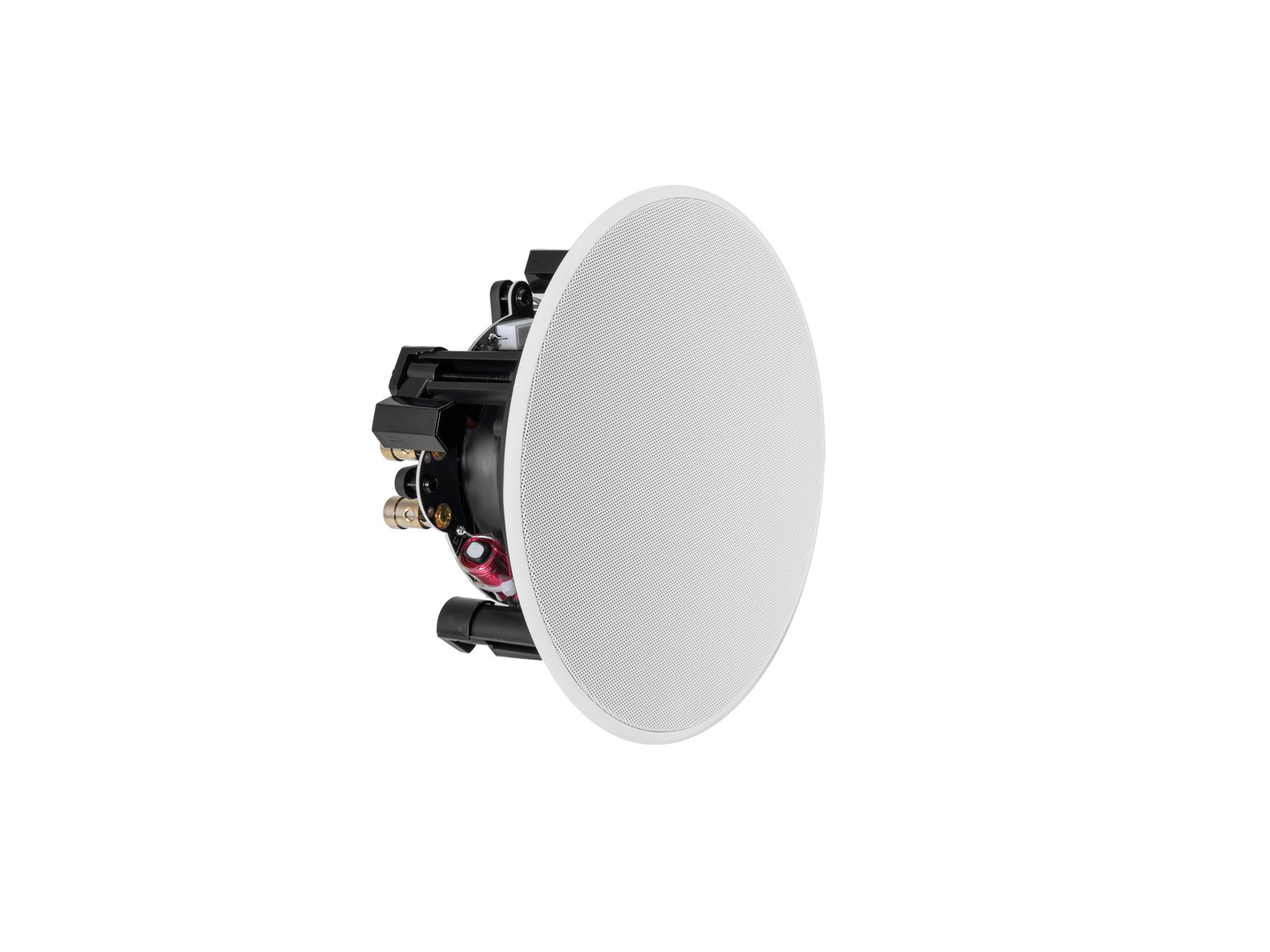

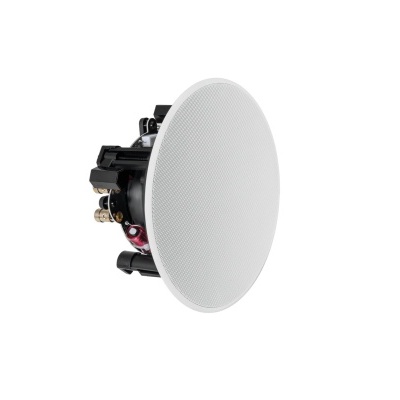

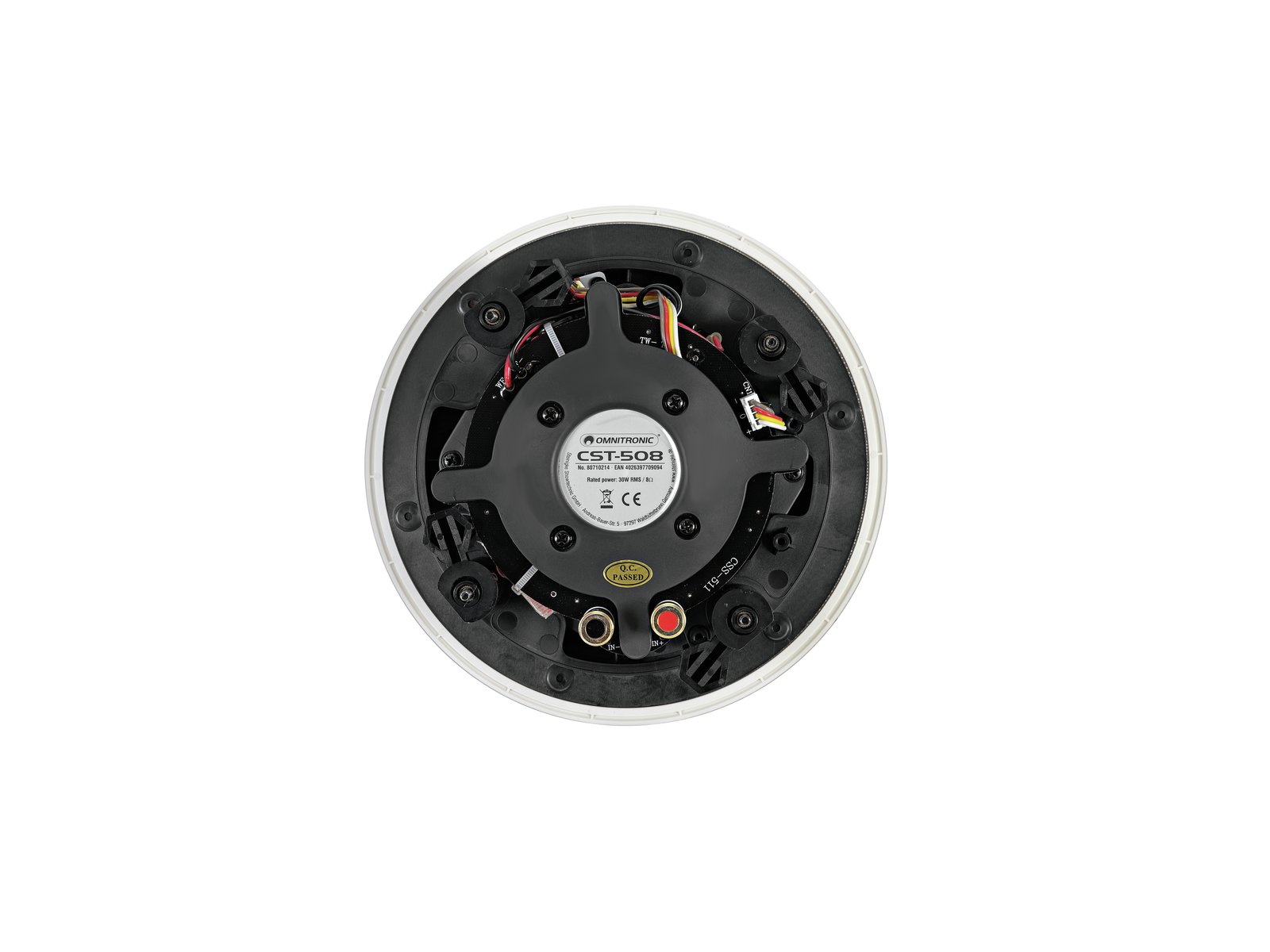

OMNITRONIC CST-508 2-Way Ceiling Speaker
SKU: 80710214

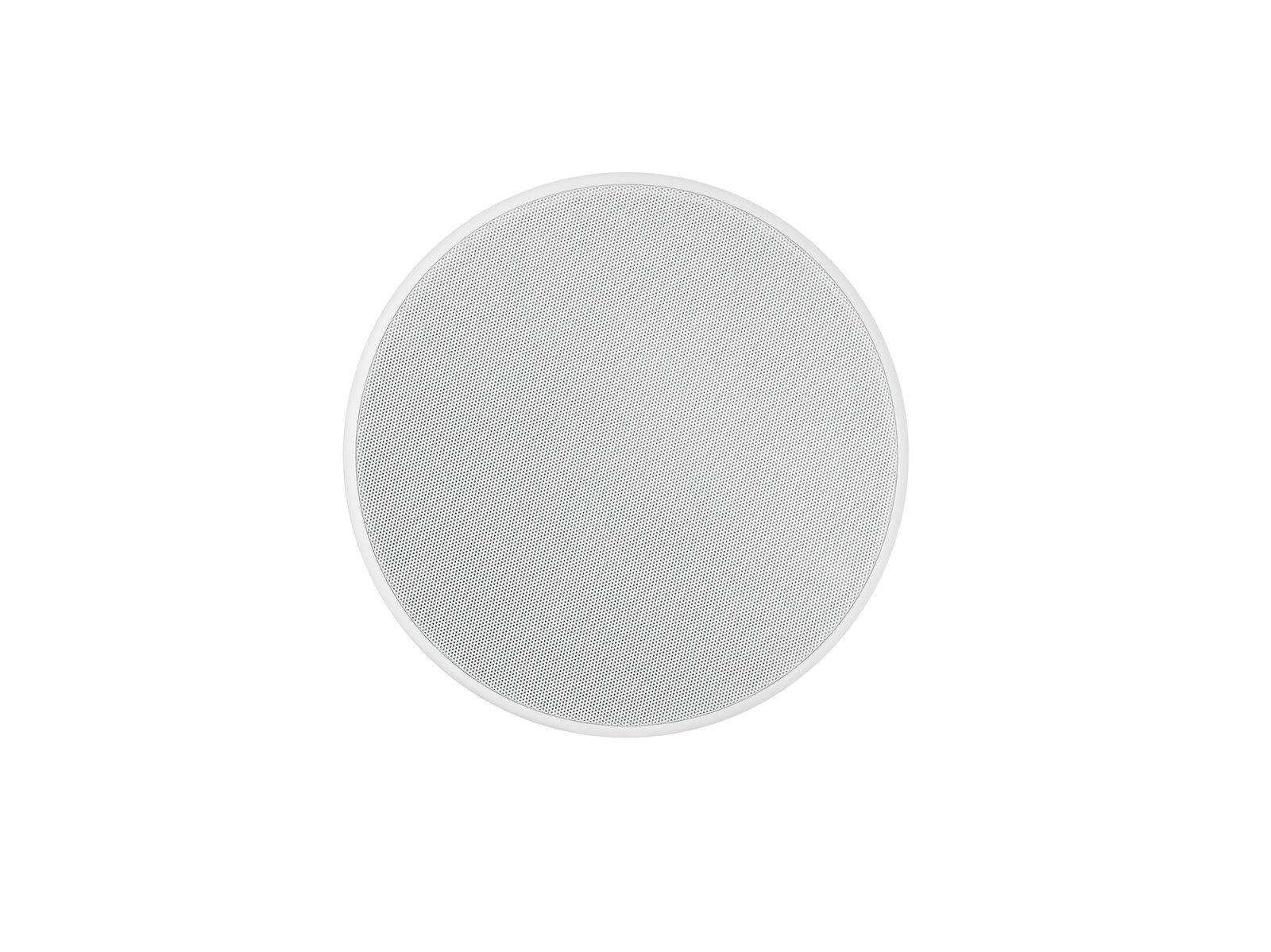

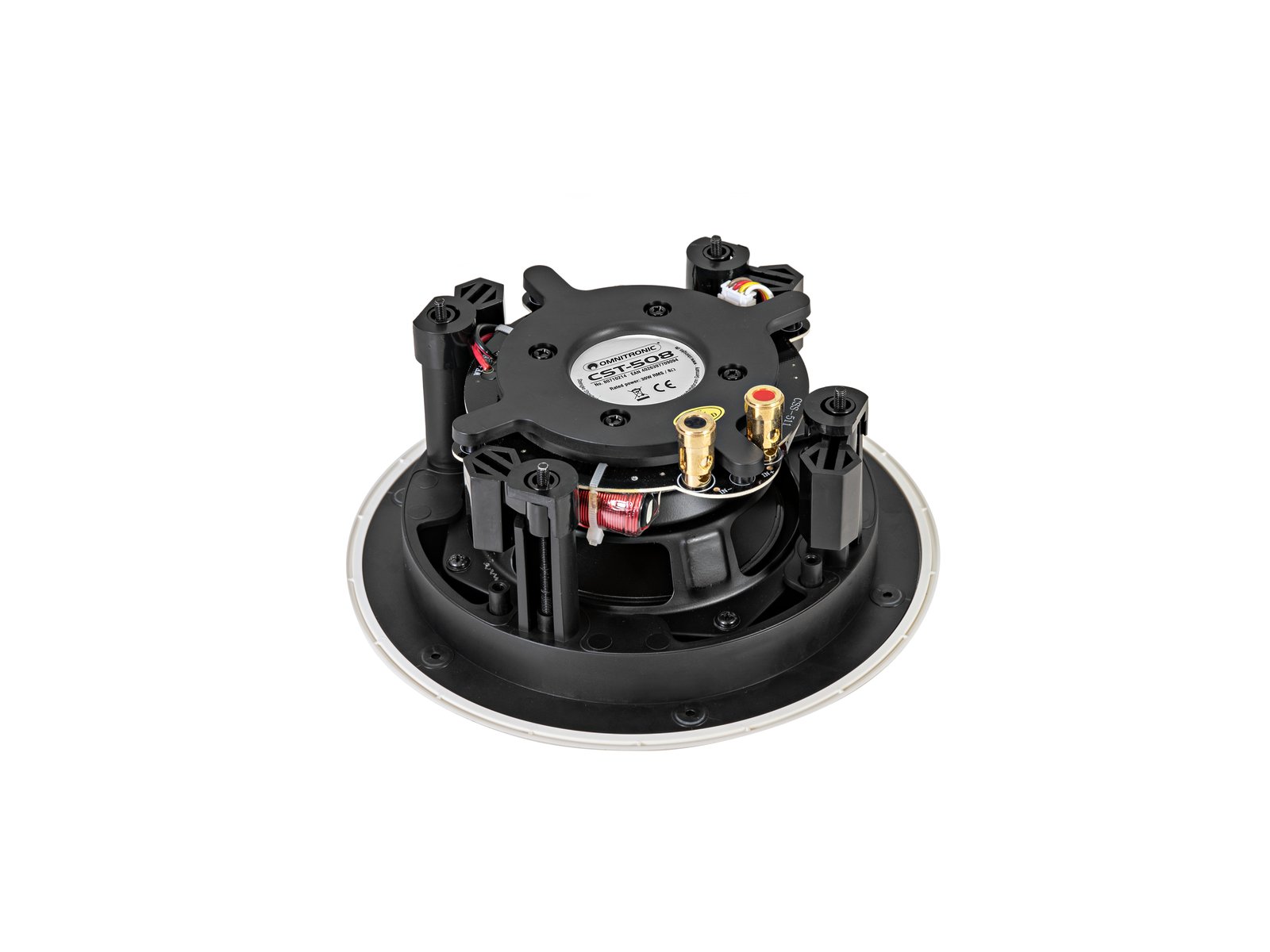

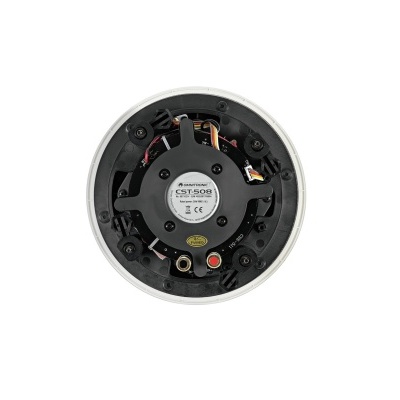

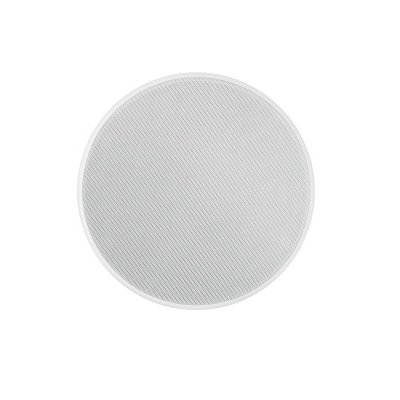

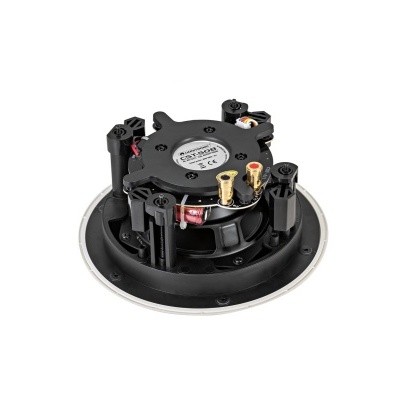

The models of the CST series are frameless in-ceiling speakers with a particularly discreet appearance for installation in hotels, restaurants, bars, foyers, training and conference rooms or shopping centers. The 2-way coaxial systems have a frequency response of up to 20 kHz, balanced sound and excellent speech intelligibility. The tweeter is protected against overload by a PTC and can be tilted 30 degrees to adapt to local conditions, as well as freely rotated by 360°. Secure mounting clamps allow for fast and easy attachment. The front grille is exchangeable.

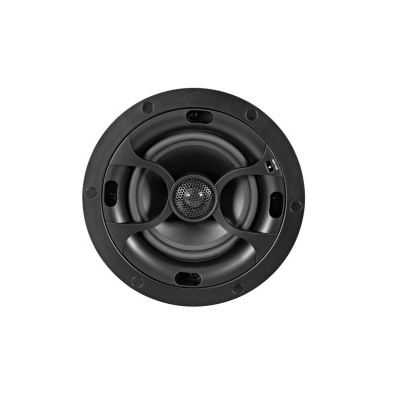

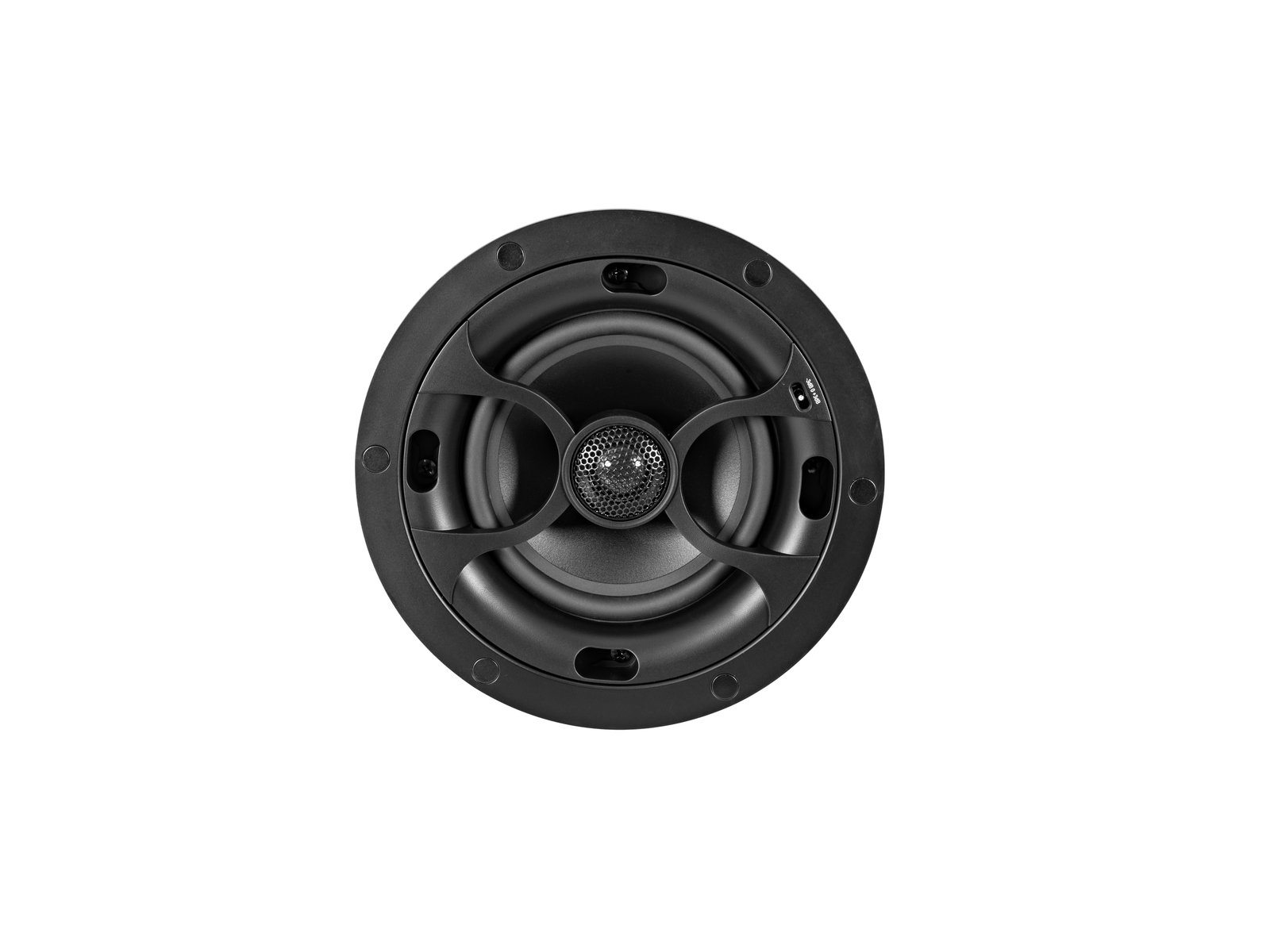

Frameless 2-way coaxial speaker, LF: 5" HF: 0.75", 8 ohms, 30 W RMS
- Excellent sound playback
- With passive 2-way crossover, PTC tweeter protection
- Swivel tweeter
- Level matching switch -3 dB/0 dB/+3 dB
- For speech and background music in indoor PA systems
- Scratchproof and shockproof
Package contents
- 1 x speaker, 1 x user manual
| Power: | Program: 60W Rated: 30W RMS |
| Frequency range: | 50 - 20000 Hz |
| Sensitivity: | 86 dB (1W/1m) |
| Max. SPL: | 104 dB |
| Dispersion angle: | 165° Omnidirectional |
| Impedance: | 8 ohms |
| Speaker: | 1 x woofer (5.3") approx. 13.5 cm Tweeter (0.75") approx. 1.91 cm |
| Type of speaker: | Flush-mount speaker |
| Material: | ABS Acrylonitrile butadiene styrene |
| Color: | White, scratchproof and shockproof |
| Mounting dimensions: | 9,5 cm Ø 17,2 cm |
| Dimensions: | Height: 9,6 cm Diameter: Ø 21,1 cm |
| Weight: | 1,24 kg |
