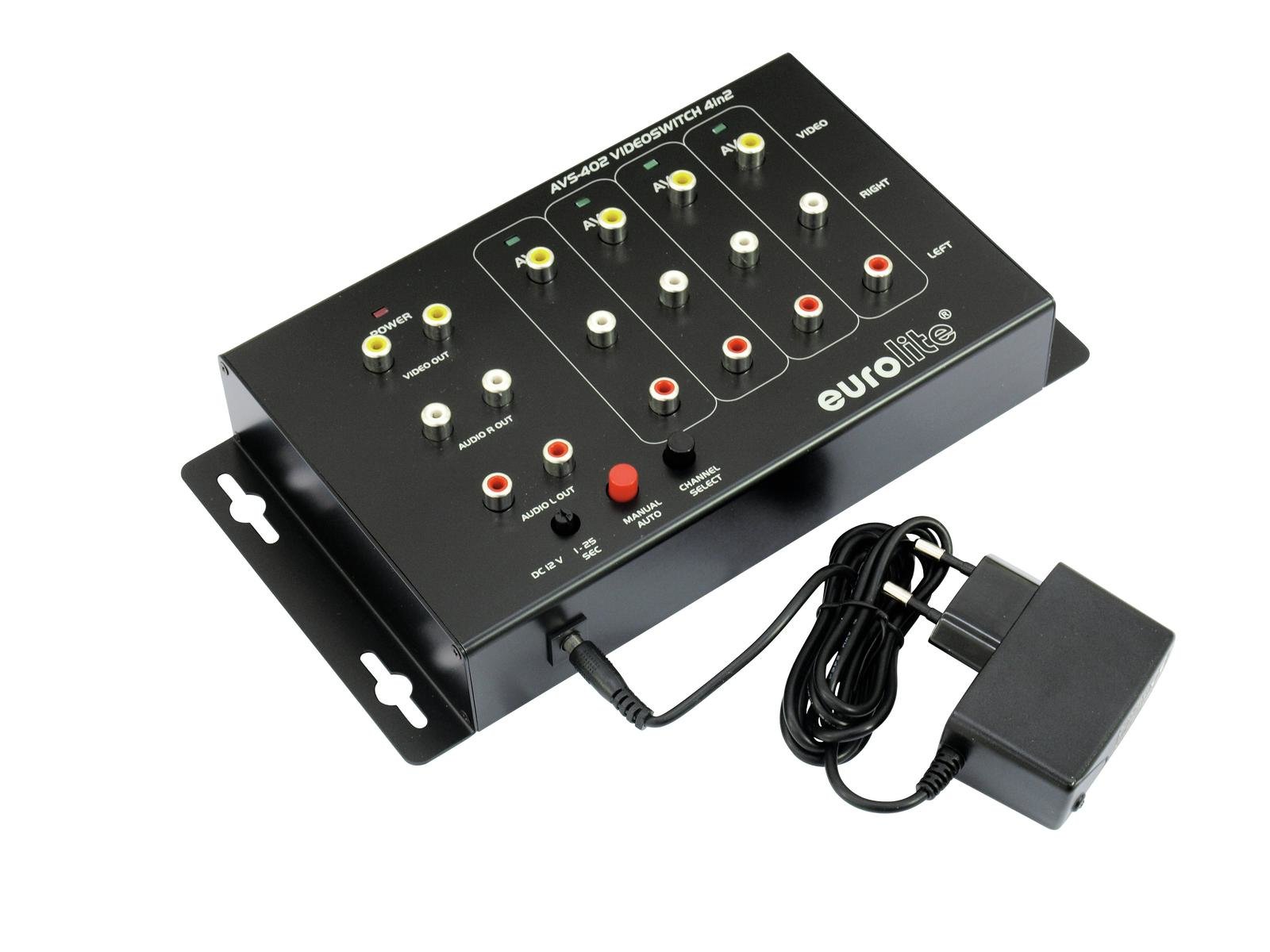

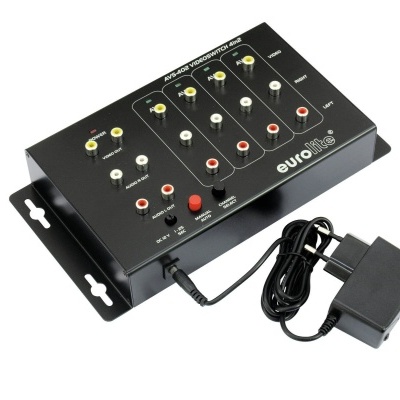

EUROLITE AVS-402 Video switch 4in2
EUROLITE AVS-402 Video switch 4in2

EUROLITE AVS-402 Video switch 4in2

SKU: 81013101



4-way AV switch

  • For switching four AV sources (audio, composite video and s-video television signals) up to two television monitors
  • 4 inputs (RCA), manually or automatically switchable
  • Automatic switching time adjustable from 1 to 25 seconds
  • Simultaneous recording to one or two video or DVD recorders
  • A stereo system can be connected via the second output
  • For application areas such as: Trade fair and shop fitting; Clubs/dancing school; restaurants, bars and hotels


Power supply:100-240 V AC, 50/60 Hz
Power consumption:6,00 W
Frequency range:20 - 100 Hz
S/N ratio:>100 dB
THD:<0,05 % at 1 kHz
Dimensions:Width: 24,2 cm
Depth: 12,8 cm
Height: 5 cm
Weight:750 g
Video:
4 x inputs:1 Vpp/ 75 ohms, composite RCA
2 x outputs:1 Vpp/ 75 ohms, composite RCA
Gain:2 V, 1 V (terminated)/ 75 ohms
Return loss:>18 dB
Video bandwidth:>100 MHz
Audio:
4 x inputs:22 kohms, stereo RCA
2 x output:1 kohms, stereo RCA
Gain:nominal 0 dB
Channel separation:>75 dB
