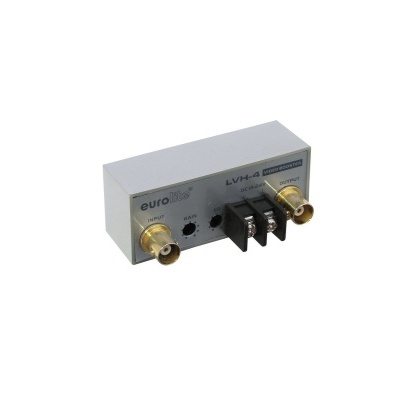

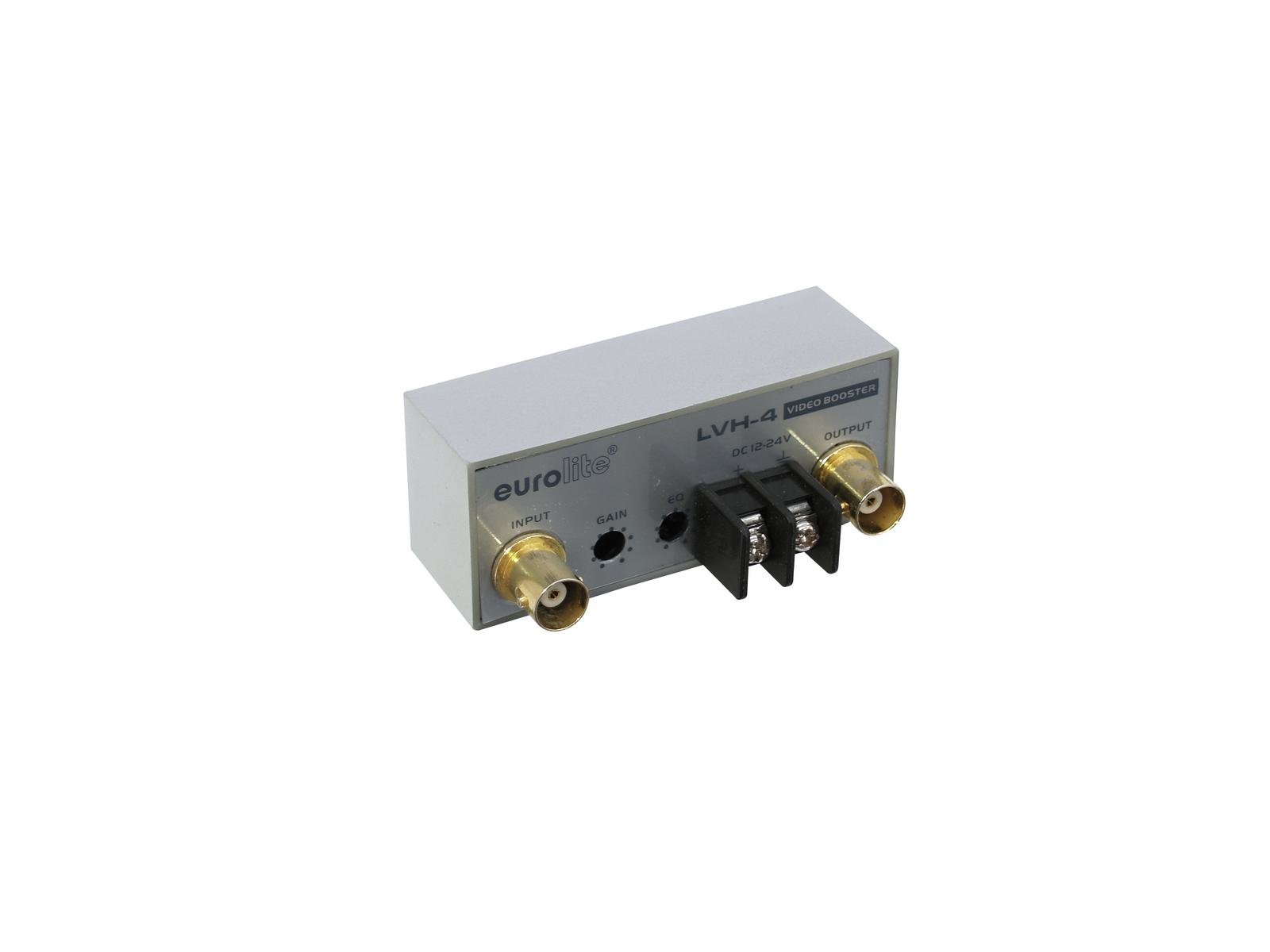

EUROLITE LVH-4 Video booster
EUROLITE LVH-4 Video booster

EUROLITE LVH-4 Video booster

SKU: 81013204

54,91 €
IVA incluído.
Contactar

Adicionar à wishlist

The Video Booster amplifies your signal to keep the quality high even over long distances of up to 600 meters. Of course, it can also be used to amplify a naturally weak signal to reach the desired quality standard. All this comes in an extremely compact design.

Video line amplifier with equalizer

  • Equalizes and compensates for signal losses inherent in long cable runs (max. 600 m)
  • 75 ohms input and outputs via BNC plugs
  • Separate controls for amplification and equalization
  • Ultra compact


Power supply:12-24 V DC 30 mA
12-24 V AC 30 mA
S/N ratio:>70 dB
Dimensions:Width: 7,6 cm
Depth: 4,1 cm
Height: 3,1 cm
Weight:70 g
1 x video input:1 Vpp/ 75 ohms, BNC
1 x video output:1 Vpp/ 75 ohms, BNC
Gain:adjustable to +5 dB
Bandwidth: 10 MHz
Equalization adjustment:0 dB to +4 dB/ 3.58 MHz
0 dB to +7 dB/ 5 MHz
Marca Eurolite
