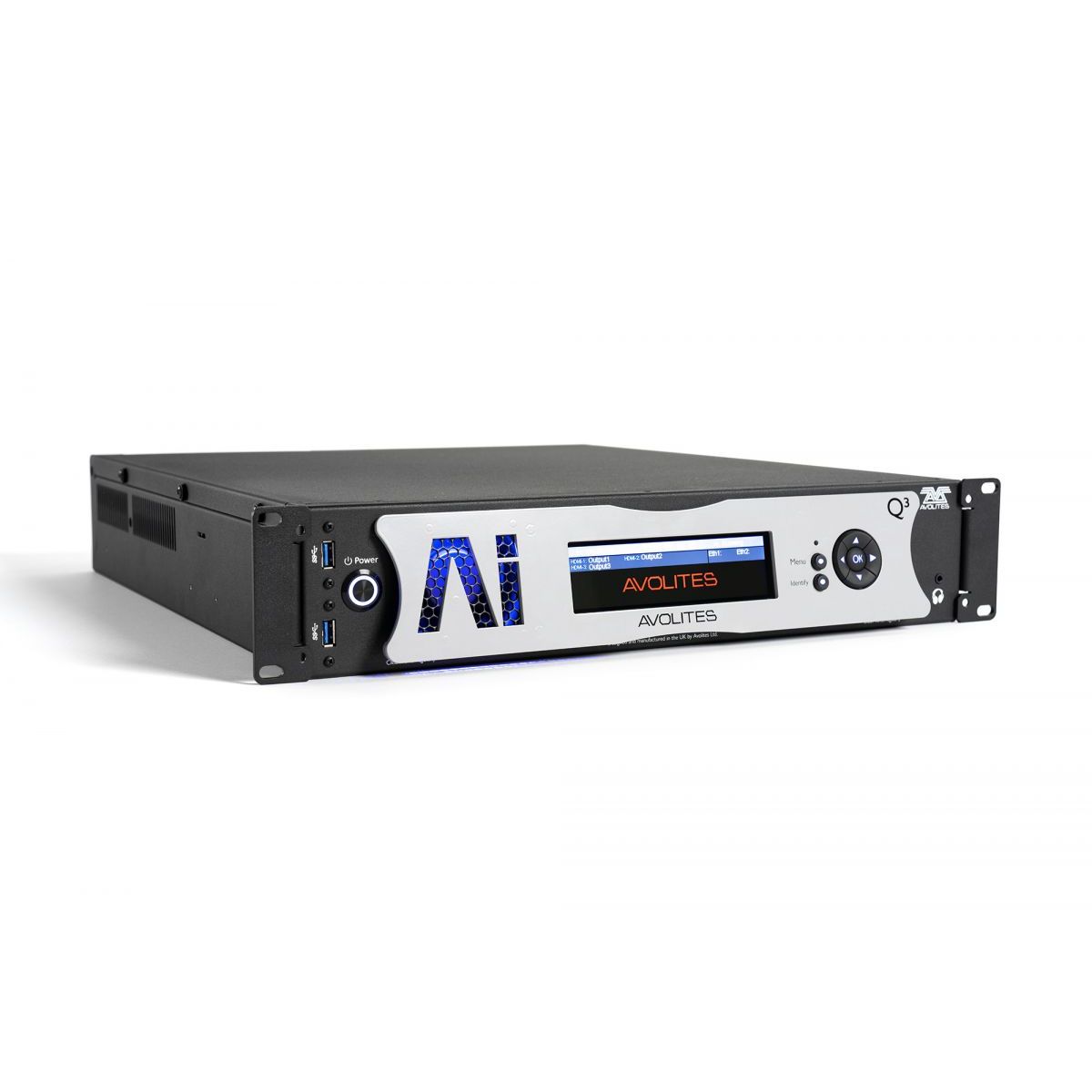

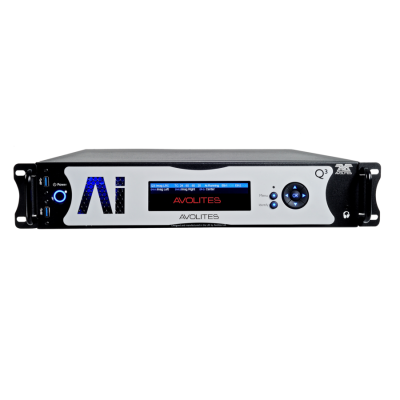

Avolites - AI Q3 Core server
SKU: AV640021
Avolites - AI Q3 Core server
The Avolites Ai Q3 is a small server with big features, including hardware EDID, 1TB of NVMe media storage and 1 x 4K and 2 x HD outputs. The Q3 is the perfect solution to power live events, installs and anywhere else that live video manipulation is required.
Features
1 x 4k and 2 x HD outputs, plus a dedicated GUI output
Hardware EDID on all outputs

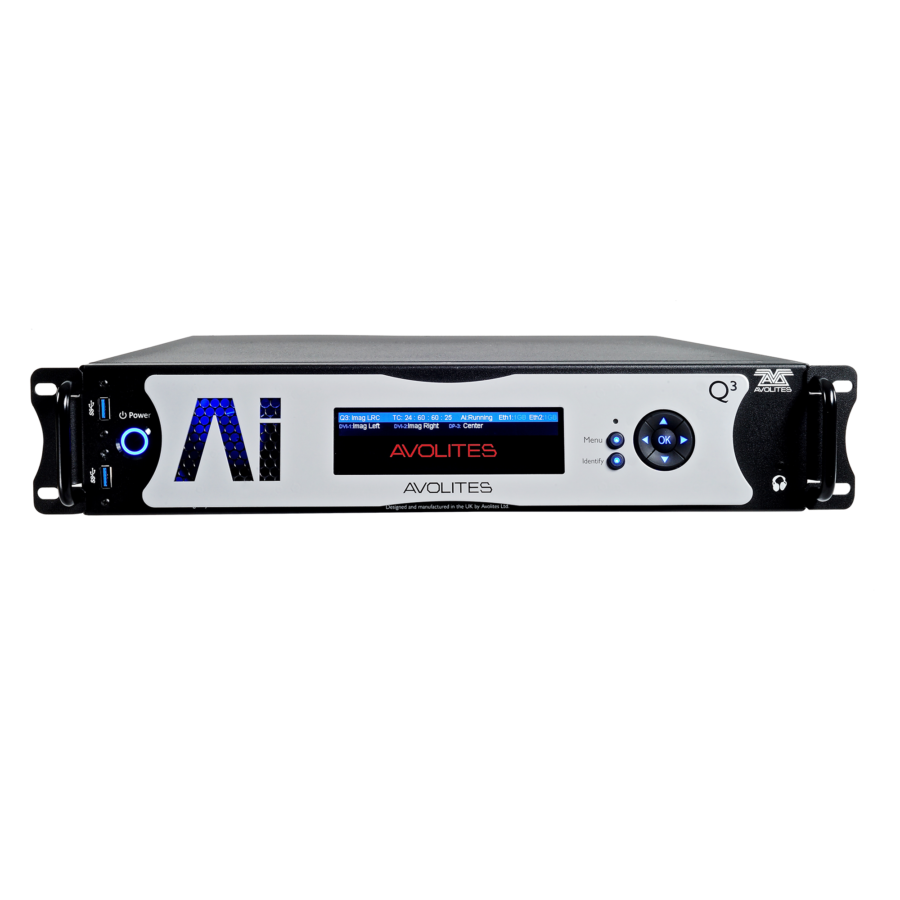

Front panel screen for configuring outputs
Node-based programming for flexibility with Salvation
Send or recieve video over IP with NDI® by NewTek
3D projection mapping
Supports Notch (licence required)
Easily set-up projector blending with AutoBlend
AiM media transcoder
Synergy with Avolites Titan

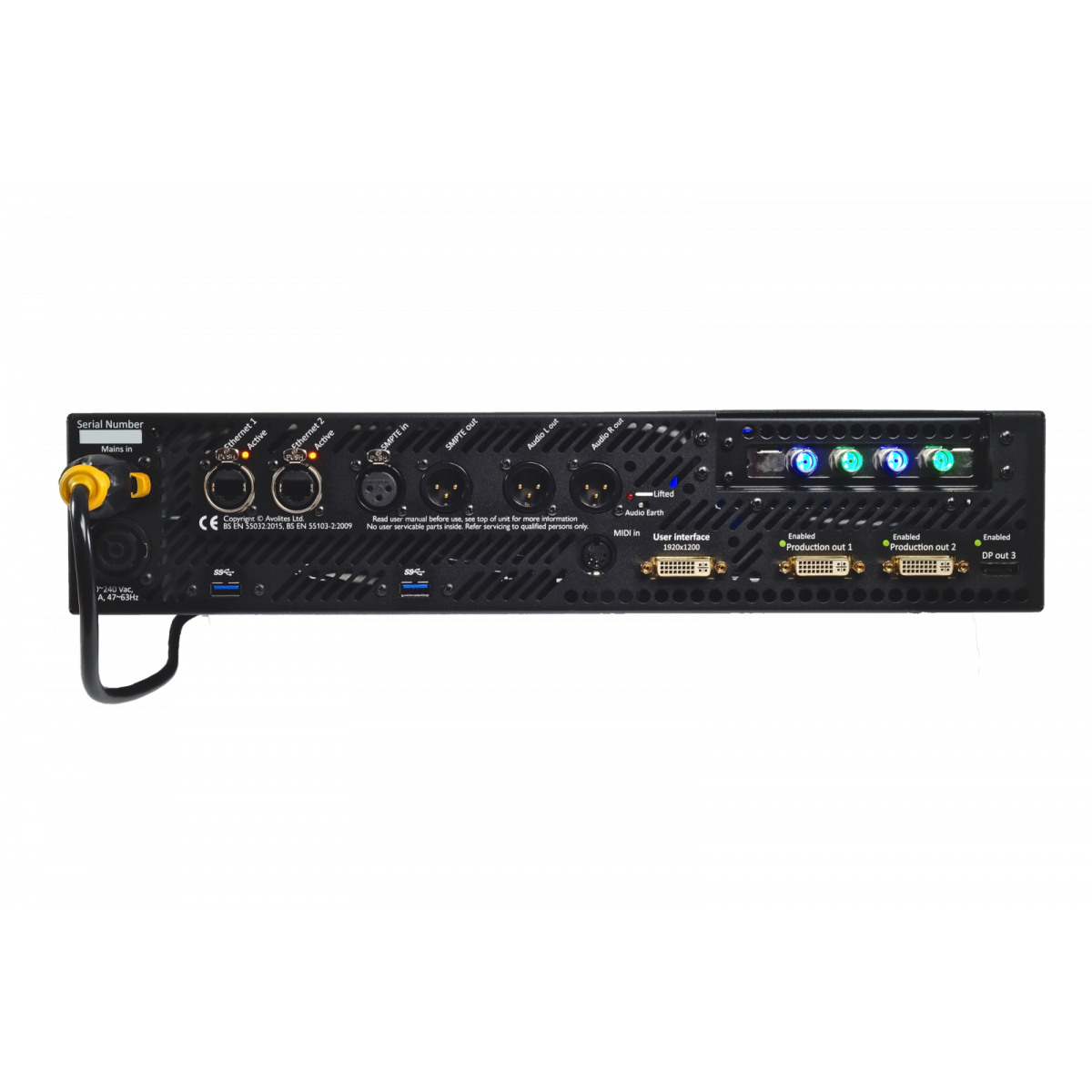

Connectivity
Production Outputs: 1 x 4k & 2 x HD HDMI 2.0 outputs at 60 fps
SMPTE Timecode XLR: In/Thru
MIDI: 1 x DIN 5 MIDI Input
GUI Outputs: HDMI 1920 x 1200
Supported Protocols: 1 x 1 Gigabit LAN
Data / Perphierals: 4 x USB 3.0 Type-A
Audio: Audio out L&R Balanced XLR
Network Capacity: 2 x 1GbE
Genlock: Optional
Capture Cards: Up to 4 x 3G-SDI OR 2 x HDMI
Hardware specification
CPU: Intel Core i5
EDID Management: Hardware EDID managed, HDMI 2.0 outputs
Power Consumption: 275W, 4~2.8A (110~240V AC) (max), Thermal Data: 933 BTU/h
Tolerances: Operating temperature range: 0-40 °C or 32-104°F, Max humidity: 95% relative humidity, non-condensing
GPU: AMD Radeon ProWX 7100
Operating System: Windows 10 IoT Enterprise
Mount System: 19” 2U x 486mm depth
Storage: 1TB NVMe
Physical specification
Unit Dimensions: 490 x 520 x 88mm (19.29” x 20.47” x 3.46”) (Including rack ears)
Unit Weight: 11 Kg / 24.3 lbs
Packed Dimensions: 655mm x 600mm x 290mm (25.8” x 23.7” x 10.7”)
Packed Unit Weight: 12.5 Kg / 27.6 lbs
Rack Units: 2
Delivery 7 weeks approximately
Entrega 7 semanas aproximadamente
| Brand | AVOLITES |
|---|
