Avolites - D7-330
Taking off from the D9
Next in line to the revered flagship Diamond 9, the Diamond 7 console is available in two variants: D7-330 and D7-215.
Each is based on the D9’s design language and control capabilities, making it the perfect companion console to ensure your show integrity and continuity while travelling.
Fly with your D7 to live shows without compromising sophistication of your lighting design. The latest in the Diamond series has been custom designed for multi-purpose venues, mid-sized studio and broadcast studio, and mid to high end corporate shows.
Let the show unfold
A novel yet robust clam shell LCD panel design reduces transport size, with quick positive locking mechanism and adjustable screen panel articulation in 6 degrees intervals – 90 to 155 degrees from vertical.
Unparalleled connectivity
Extensive and flexible array of inputs allows the D7 to handle whatever your show demands.
Form and function
The D7 features a fully customised and backlit integrated keyboard with a concealed yet accessible power button when the draw is extended.
Ultimate portable control
The most powerful console with the smallest footprint. The D7 has been designed to offer maximum control & programming capability with minimal weight. At under 32kgs it can be packed into a standard Peli Air case and checked in as hold luggage to fly anywhere you go.
Built for muscle memory
The D7’s physical user interface closely follows other consoles in the Diamond series, facilitating user muscle memory for seamless switching between consoles.
Illuminated ideas
Optimised for travel, the need for the traditional desk light is removed by one that’s integrated.
Less parts to pack, and no visual obstruction when the console is in operation. Although, for die hard desk light fans 2 x 3 pin XLR sockets are located on the rear panel, along with a white LED strip work light.
Features

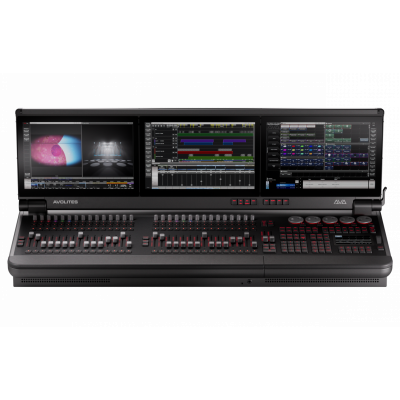

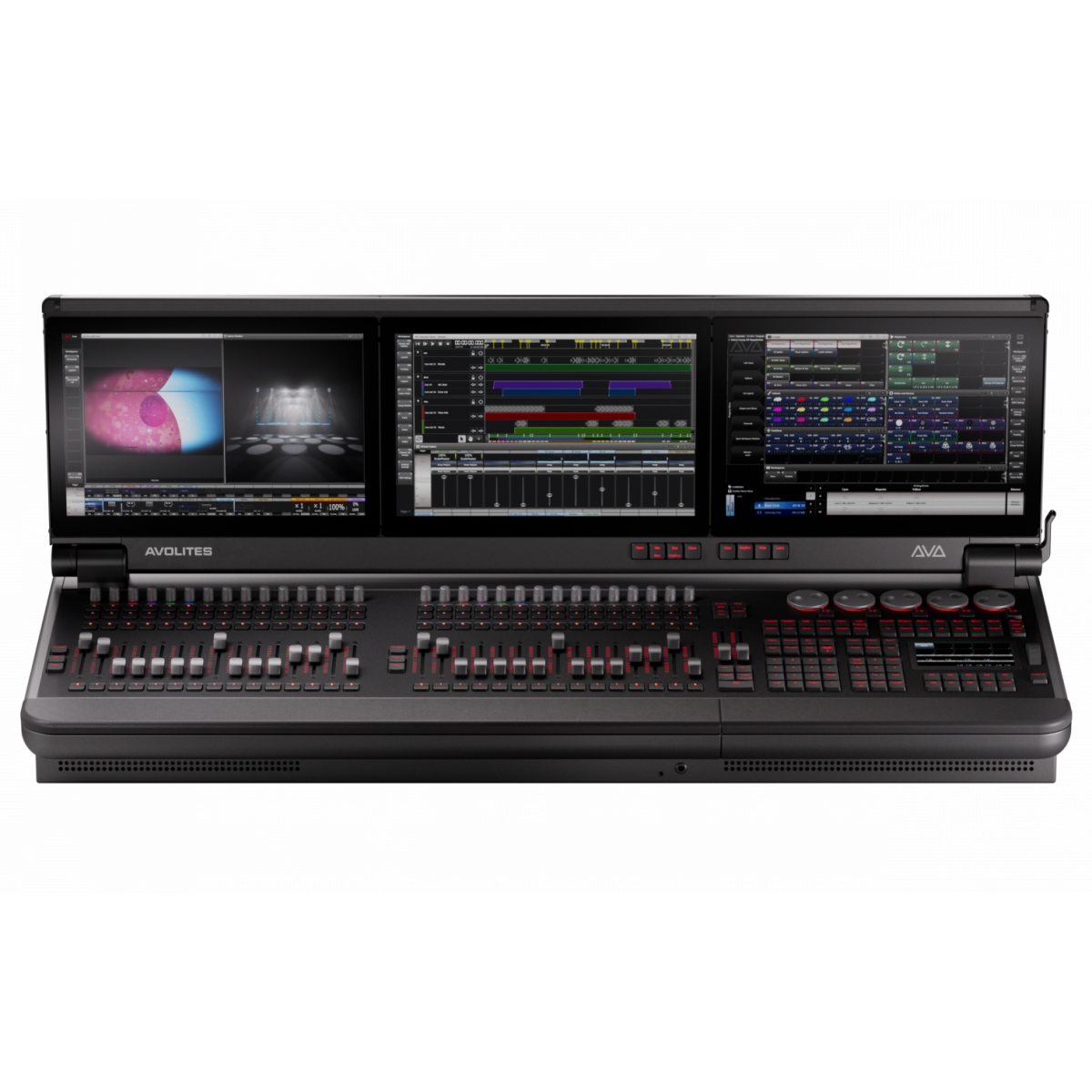

Control surface
30 motorised touch-sensitive faders, with designer fader cap
Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons
Single rgb led halo indicator alongside each fader
30 ultra high resolution touch sensitive playback encoders with push function
Rgb halo indicator for each encoder
120 c&k playback function buttons with positive haptics for timing designer key cap
Paging for playback section
3 x 14” 850 nits 1920x1200 capacitive touch main screens with adjustable brightness
1 x 4.3” 850 nits 800x480 capacitive touch macro and workspace screen with adjustable brightness
10 backlit macro / executor key & 10 soft macro buttons with legend on macro screen
Programming buttons all rgb backlit, short travel cherry® mx low profile switches
5 custom rgb backlit attribute encoders
Dedicated level wheel and onscreen level indication
Full custom backlit qwerty keyboard in drawer
Supports one additional external displayport 1920*1080 touchscreen
Construction
All aluminium construction to reduce weight
Clam shell lcd panel design to reduce transport size, with positive locking mechanism, adjustable screen panel articulation in 6 degrees steps from – 90 to 155 degrees from vertical
Comfortable armrest
Exclusively manufactured button caps, fader caps, encoder knobs, encoder wheels and level wheel
All screens flush-mounted
Can be transported in a custom peli air 1754 case
Hardware
Processing
Custom processing hardware and cooling to get the best processing performance and cooling with the addition of features including industry standard xlr connectors for networking and protected outlets.
Unit dimensions
(w x d x h)
1070 x 440 x 240 mm (screens up)
1070 x 440 x 160 mm (screens down)
Weight
Under 32kg / 70 lbs

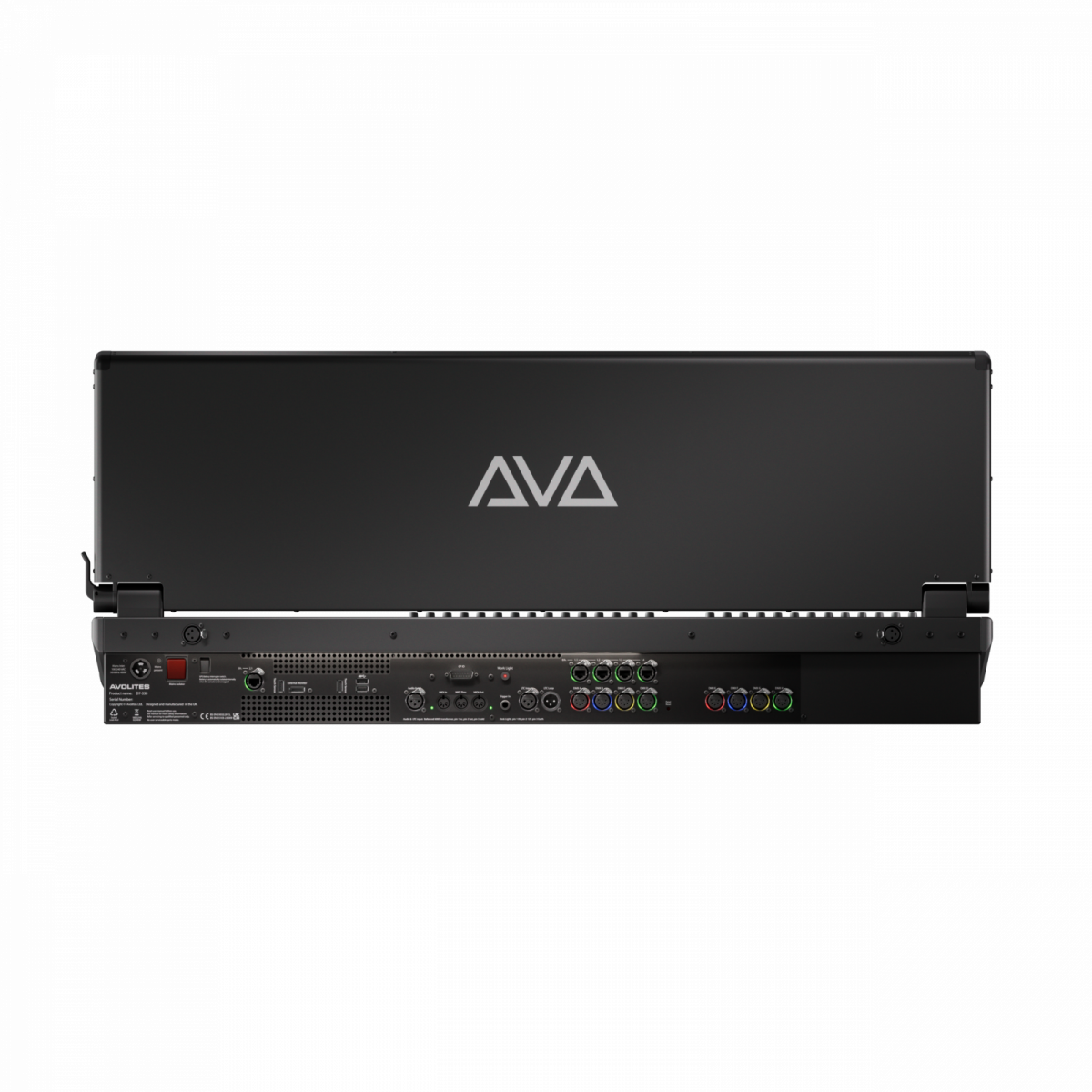

Connectivity
Dmx 512
4 x neutrik 5-pin xlr , optically and galvanically isolated with halo assignment indicators
Network
4 x neutrik xlr on the primary port, internally switched & managed
1 x neutrik xlr secondary network port
Peripherals
1 x usb 3.0 right hand side handle
2 x usb 3.0 back panel
2 x usb 2.0 assigned for external touch screens
External display
2 x hdmi up to 1920*1080
Smpte
1 x 3-pin ltc timecode in and loop out via 3 pin xlr with transformer isolation
Trigger inputs
Gipo 4 in/4 out, isolated, and dry contacts on 15 pin d sub connector
¼” jack for footswitch
Audio input for 7 x band triggers, via 3-pin xlr with transform isolation
Midi
In, thru, out on 5-pin din with signal and enabled indicators, Usb midi supported
Rear work light
White led strip with red led button to aid quick location
2 x 3 pin xlr desk light sockets
Mains power
Neutrik true1®
