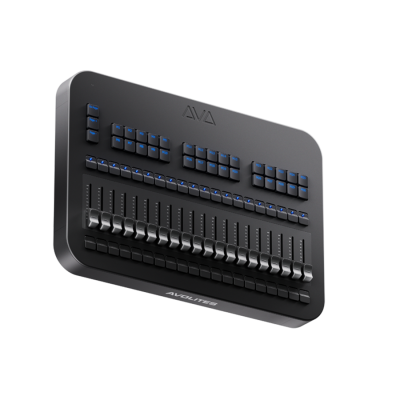

Avolites - Titan T3 Fader Wing
SKU: AV200211 | EAN: 4026397587005
Avolites - Titan T3 Wing
Expand your Avolites T3 console for even more live performance space.
Generative, animation-based pixel mapping
Quicksketch labelling for ultimate personalisation
Powerful multi-user networking with any Titan console
Create huge effects in seconds with Key Frame Shapes
Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
Expand DMX channel capacity with Titan Net Processors
Synergy-ready. Add any Ai product to unlock seamless video integration
CONNECTS WITH A SINGLE CABLE
Connected with the main unit with a single USB-C cable, the wing unit dramatically expands the control surface.
20 X PLAYBACK FADERS
Triple the number of faders available for your show for more complex productions on the road.
30 X MACRO/EXECUTOR BUTTONS
More than triple the number of Macro / Executor buttons allow for even more elaborate show designs.
EXPANDS YOUR EXISTING TRAVEL SERIES
Avolites T3 Wing can be connected to an Avolites T2 and your PC.
Features
Control surface
15 motorised touch-sensitive faders, with designer fader cap
Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons
Single rgb led halo indicator alongside each fader
15 ultra high resolution touch sensitive playback encoders with push function
Rgb halo indicator for each encoder
60 c&k playback function buttons with positive haptics for timing designer key cap
Paging for playback section
2 x 14” 850 nits 1920x1200 capacitive touch main screens with adjustable brightness
1 x 4.3” 850 nits 800x480 capacitive touch macro and workspace screen with adjustable brightness
10 backlit macro / executor key & 10 soft macro buttons with legend on macro screen
Programming buttons all rgb backlit, short travel cherry® mx low profile switches
5 custom rgb backlit attribute encoders
Dedicated level wheel and onscreen level indication
Full custom backlit qwerty keyboard in drawer
Supports two additional external displayport 1920*1080 touchscreens
Construction
All aluminium construction to reduce weight
Clam shell lcd panel design to reduce transport size, with positive locking mechanism, adjustable screen panel
Articulation in 6 degrees steps from – 90 to 155 degrees from vertical
Comfortable armrest
Exclusively manufactured button caps, fader caps, encoder knobs, encoder wheels and level wheel
All screens flush-mounted
Can be transported in a custom peli air 1650 case, allowing for most airlines checked in luggage use
Hardware
Processing
Custom processing hardware and cooling to get the best processing performance and cooling with the addition of features including industry standard xlr connectors for networking and protected outlets.
Unit dimensions
(w x d x h)
680 x 450 x 240 mm (screens up)
680 x 450 x 150 mm (screens down)
Weight
Under 32kg / 70 lbs
Connectivity
Dmx 512
4 x neutrik 5-pin xlr , optically and galvanically isolated with halo assignment indicators
Network
4 x neutrik xlr on the primary port, internally switched & managed
1 x neutrik xlr secondary network port
Peripherals
1 x usb 3.0 right hand side handle
2 x usb 3.0 back panel
2 x usb 2.0 assigned for external touch screens
External display
2 x hdmi up to 1920*1080
Smpte
1 x 3-pin ltc timecode in and loop out via 3 pin xlr with transformer isolation
Trigger inputs
Gipo 4 in/4 out, isolated, and dry contacts on 15 pin d sub connector
¼” jack for footswitch
Audio input for 7 x band triggers, via 3-pin xlr with transform isolation
Midi
In, thru, out on 5-pin din with signal and enabled indicators, Usb midi supported
Rear work light
White led strip with red led button to aid quick location
2 x 3 pin xlr desk light sockets
Mains power
Neutrik true1®
Neutrik true1®
Delivery 7 weeks approximately
