BenQ - LH720 - Conference Room Projector
SKU: BQ0022
BenQ - LH720 - Conference Room Projector
Precision-Aligned High-Output Laser Source
Zero-deviation alignment of BlueCore laser diodes boosts luminous flux into the light tunnel, improving efficacy.
Secondary Yellow-Infused Color Wheel
Dual synchronized BlueCore color wheel utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.
Hermetically Sealed DLP Chip
Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 100,000 hours without degradation.
Dual Color Wheels Produce 90% Rec.709 Color Coverage for Optimal Color Performance
LH720’s powerful BlueCore laser projection utilizes a dual color wheel system to produce unparalleled color performance that achieves a 90% Rec.709 color coverage. By increasing color ratios and the purity of RGBY color, LH720 dramatically enhances color saturation to ensure superior presentation quality.
Advanced Infographic Mode for Supreme Presentation Quality
BenQ Infographic Mode perfectly fits the current corporate trend of mastering infographic-heavy presentations that all modern enterprises are striving for. Infographic Mode is great for showcasing the text and graphics of infographic in detail due to LH720’s high brightness and better color gradation through the 90% Rec.709 color coverage, ensuring more saturated and lively color performance than presentation mode. Additionally, Vivid Mode is designed for supreme color performance during video or image presentation.
Specifications
More Information
Display
- Brightness (ANSI lumens): 4000
- Native Resolution: 1080P (1920x1080)
- Native Aspect Ratio: 16:9
- Contrast Ratio (FOFO): 100,000:1
- Display Color: 30-bit (1.07 billion colors)
- Light Source: Laser
- Light Source Life: a. Normal 20000 hrs
Optical
- Throw Ratio: 1.38~2.13
- Zoom Ratio: 1.5x
- Lens: F /#= 2.42-2.97, f = 20.7 - 31.05 mm
- Projection Offset (Full-Height): 116%
- Keystone Adjustment: 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees
- Lens Shift Vertical: Vertical: 116% +14%
- Rec. 709 Coverage: 90%
- Picture Modes: 3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Vivid
Compatibility
- Input Lag: 51 ms (1080p@60Hz)
- Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

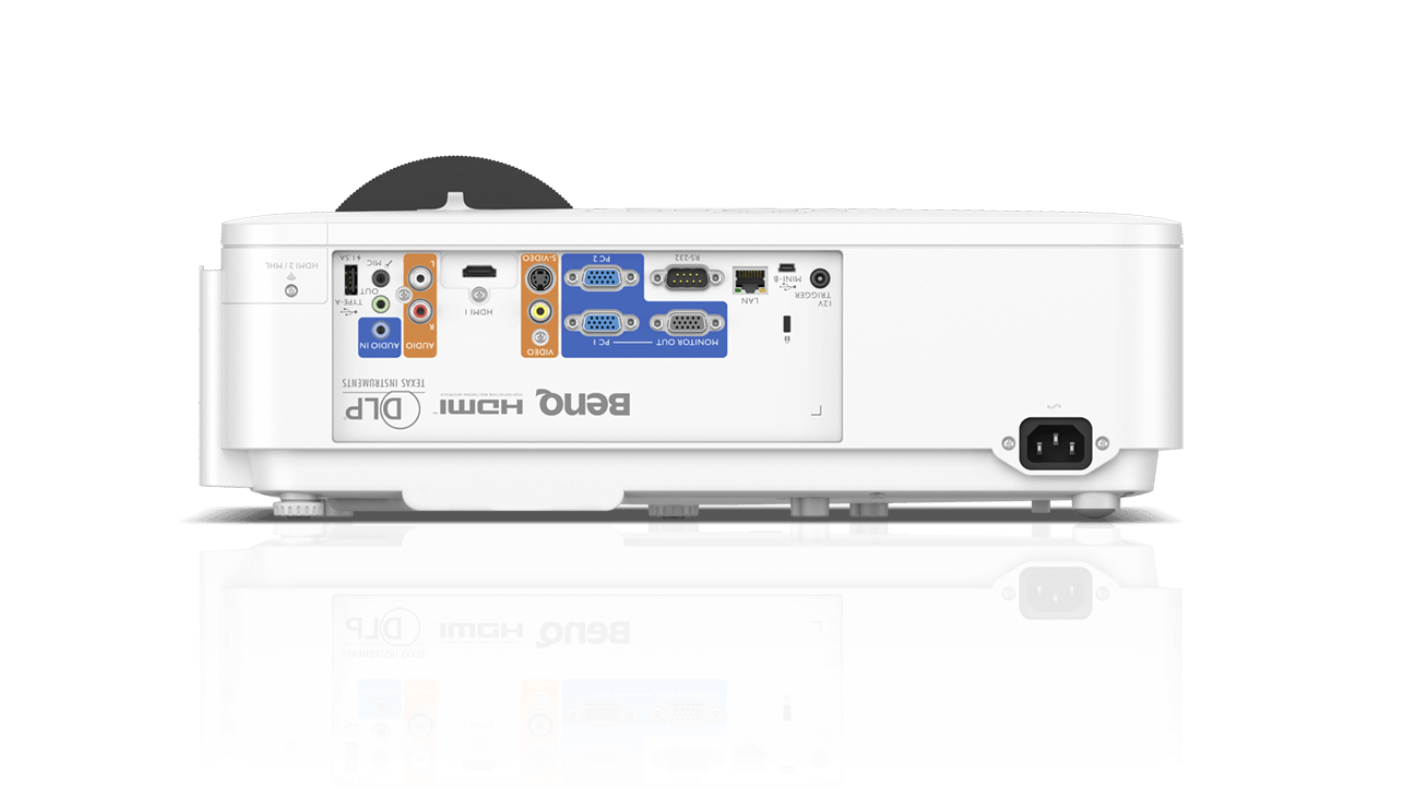

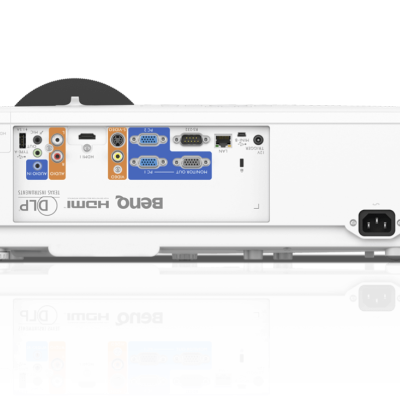

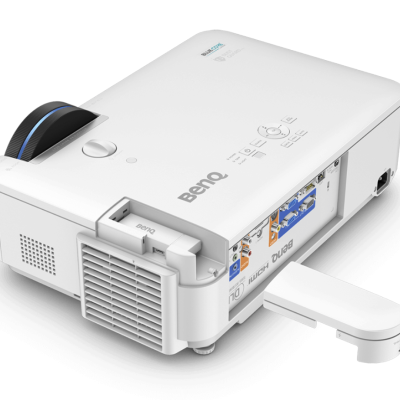

I/O Interface
- PC in (D-sub 15pin): (x2)
- Monitor out (D-sub 15pin): (x1)
- Composite Video in (RCA): (x1)
- S-Video in (Mini DIN 4pin): (x1)
- HDMI in: (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4/MHL)
- USB Type A: (x1)
- USB Type Mini B: (x1)
- RS232 in (DB-9pin): (x1)
- DC 12V Trigger (3.5mm Jack): (x1)
Audio
- Speaker: (x1), 10W
- Audio in (3.5mm Mini Jack): 1
- Audio out (3.5mm Mini Jack): 1
- Microphone in (Mini Jack): 1
Environment
- Operating Temperature: 0~40℃
- Power Supply: AC 100 to 240 V, 50/60 Hz
- Typical Power Consumption (110V): 300
- Stand-by Power Consumption: <0.5W
- Network Stand-by Power Consumption: <2W
- Acoustic Noise (Typ./Eco.)(dB): 33 /29
Accessories
- Remote Control w/ Battery: RCE015
- Power Cord (by region): x1 (3.0M)
- VGA(D-sub 15pin) Cable: (Standard), 1 (1.5m)
- User Manual CD: 1 (24L)
- 3D Glasses: (Optional), DGD5
- Quick Start Guide: 1 (18L)
- Warranty Card (by region): Yes
- Lens cover:Yes
- Anti-dust Filter: (Optional), Yes

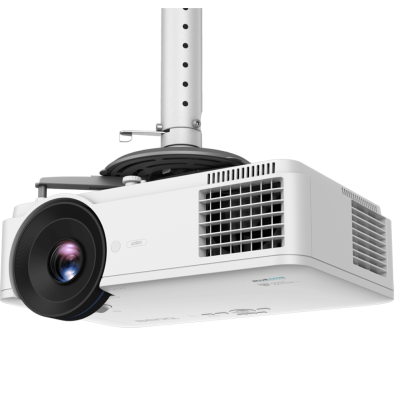

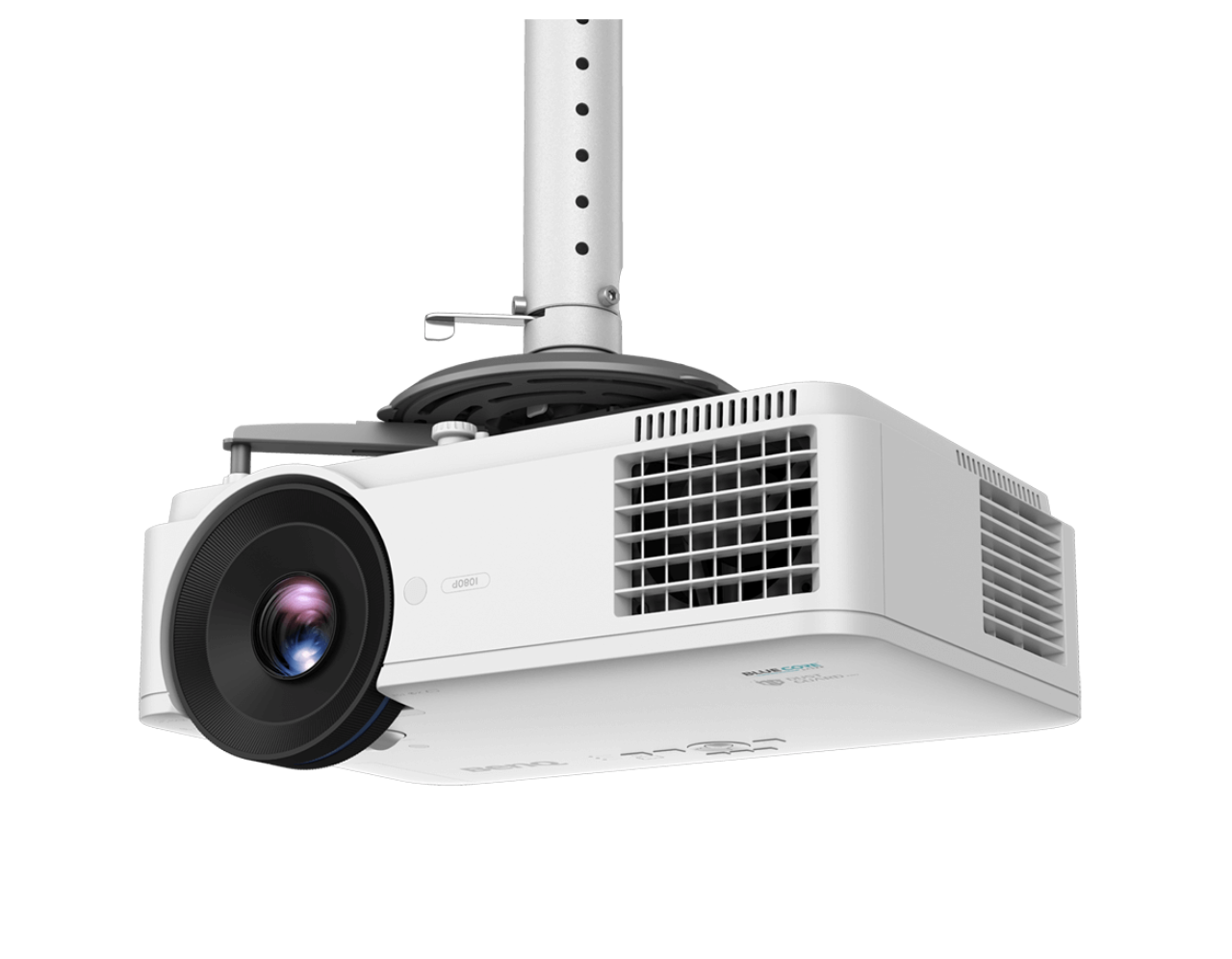

- Universal Ceiling Mount: (Optional), Yes, CMG3
Dimension & Weight
- Dimensions (WxHxD) (mm): 410 x 158 x 272 mm
- Net Weight (kg): 5.6 kg
Projection System
- Projection System: DLP
| Brand | BENQ |
|---|
