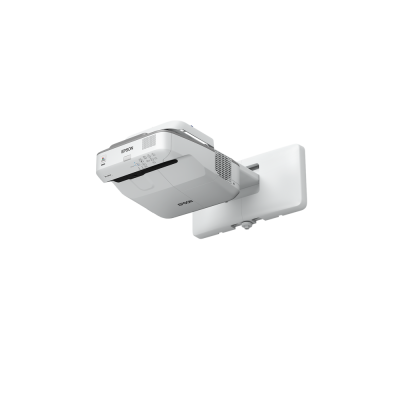

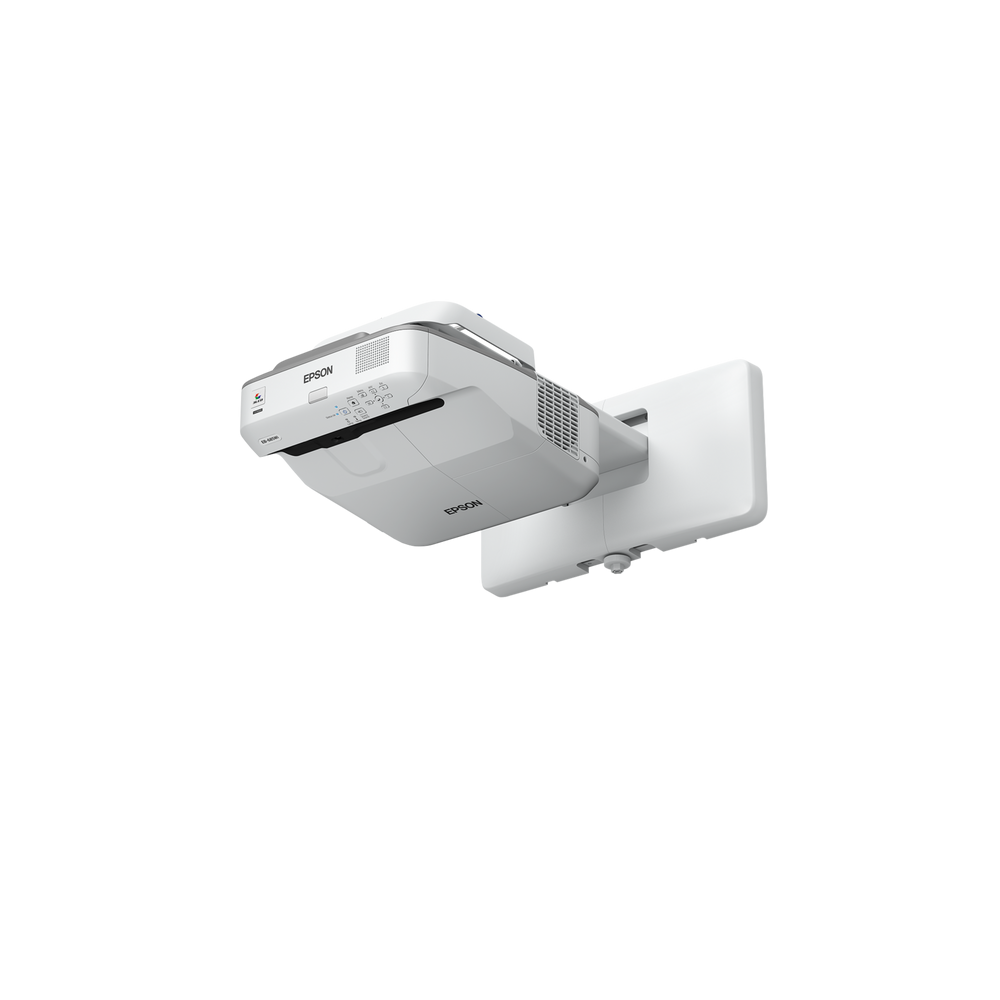

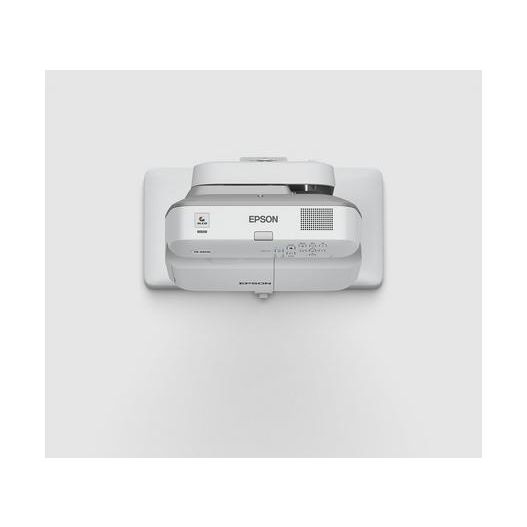

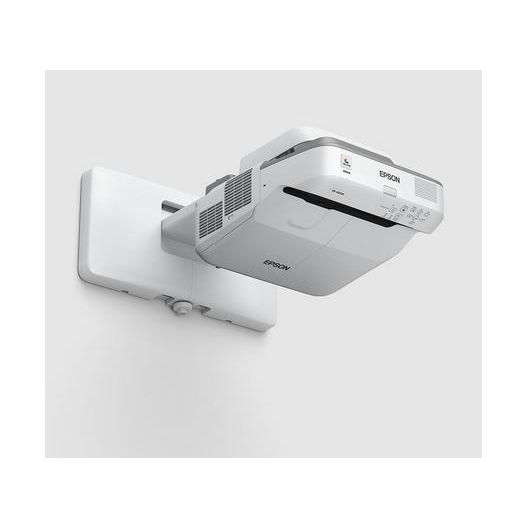

Epson - EB-685W - Short-throw projector 3500 lumen WXGA
SKU: EP0020
Epson - EB-685W - HD-ready classroom projector
Innovative teaching solution with a large scalable screen size of up to 100 inches to display HD-ready WXGA content for enhanced learning.
The EB-685W's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.
High-quality, bright images
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors.
Keep costs down
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
Enhanced learning
Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.
Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.
Document camera compatibility
Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.
Key Features
Up to 100-inch display and outstanding quality HD-ready WXGA resolution with Epson 3LCD technology
Reliable Improved reliability and a longer lamp life
Wireless Connectivity (Optional) Allows content to be shown from a range of devices
Long lamp life Up to 10,000 hours in eco mode
Ultra short throw projection For maximum installation flexibility
Technology
Projection System: 3LCD Technology
LCD Panel: 0,59 inch with D9
Color Light Output: 3.500 Lumen- 2.900 Lumen (economy) In accordance with IDMS15.4
White Light Output: 3.500 Lumen - 2.900 Lumen (economy) In accordance with ISO 21118:2020
Resolution: WXGA 2
High Definition: HD ready
Aspect Ratio: 16:10
Contrast Ratio: 14.000 : 1
Light source: Lamp
Lamp: 250 W, 5.000 h durability, 10.000 h durability (economy mode), 9.000 h durability (economy mode)
Keystone Correction: Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Video Processing: 10 Bits
2D Vertical Refresh Rate: 100 Hz - 120 Hz
Colour Reproduction: Upto 1.07 billion colours
Optical
Throw Ratio: 0,28 - 0,37:1
Zoom: Digital, Factor: 1 - 1,35
Lens: Optical
Screen Size: 60 inches - 100 inches
Projection Distance Wide: 0,4 m ( 60 inch screen
Projection Distance Tele: 0,6 m ( 100 inch screen
Projection Lens F Number: 1,6
Projection Lens Focal Length: 3,7 mm
Projection Lens Focus: Manual
Offset: 6 : 1
Connectivity
USB Display Function: 3 in 1: Image / Mouse / Sound

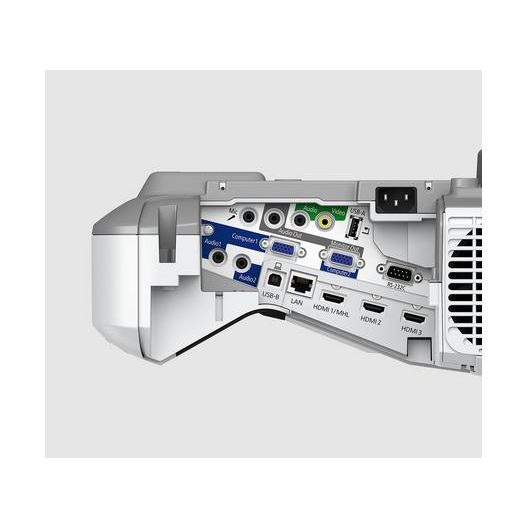

Interfaces: USB 2.0-A, USB 2.0, RS-232C, HDMI in (3x), Composite in, RGB in (2x), RGB out, Jack plug out, Jack plug in (3x), Microphone input, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out, MHL
Epson iProjection App: Ad-Hoc / Infrastructure
Advanced Features
Security: Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
2D Colour Modes: Dynamic, Cinema, Presentation, sRGB, Blackboard
Other features: Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Long lamp life, Split-Screen-Function, Wireless LAN capable
Interactivity: No
Video Color Modes: Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard
Projector control: via: AMX, Crestron, Control4
General
Power consumption: 354 Watt, 309 Watt (economy), 0,37 Watt (standby), On mode power consumption as defined in JBMS-84 301 Watt
Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions: 367 x 400 x 149 mm (Width x Depth x Height)
Product weight: 5,7 kg
Noise Level: Normal: 35 dB (A) - Economy: 30 dB (A) - Eco2: 29 dB (A)
Supported Temperature: Operation 5° C - 40° C, Storage -10° C - 60° C
Supported Humidity: Operation 20% - 80%, Storage 10% - 90% If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Included Software: EasyMP Multi PC Projection, Epson Projector Management
Options: Air filter ELPAF38, Connection and control box, Document camera, External Speaker, USB extension cable, Wireless LAN unit
Compatible Operating Systems: Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1
Loudspeaker: 16 Watt
What's in the box: CD Manual, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Safety Cable, Wall hanging bracket, Warranty card
Room Type / Application: Meeting room / Classroom
Positioning: Wall Mounted
Colour: White / Grey
TCO Certified: For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf
Other
Warranty: 60 months Carry in or 8.000 h, Lamp: 60 months or 1.000 h (whichever comes first)
| Brand | Epson |
|---|
