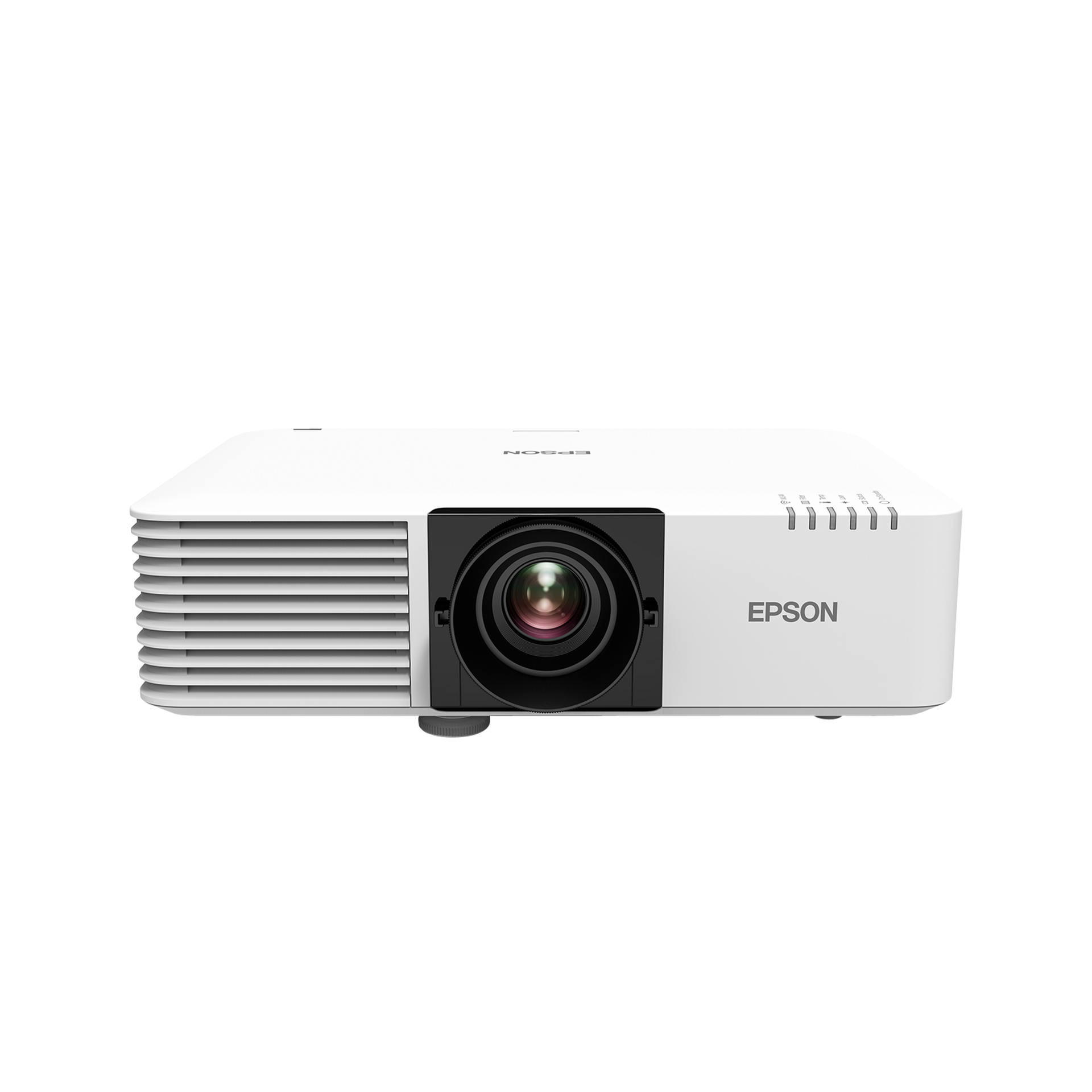

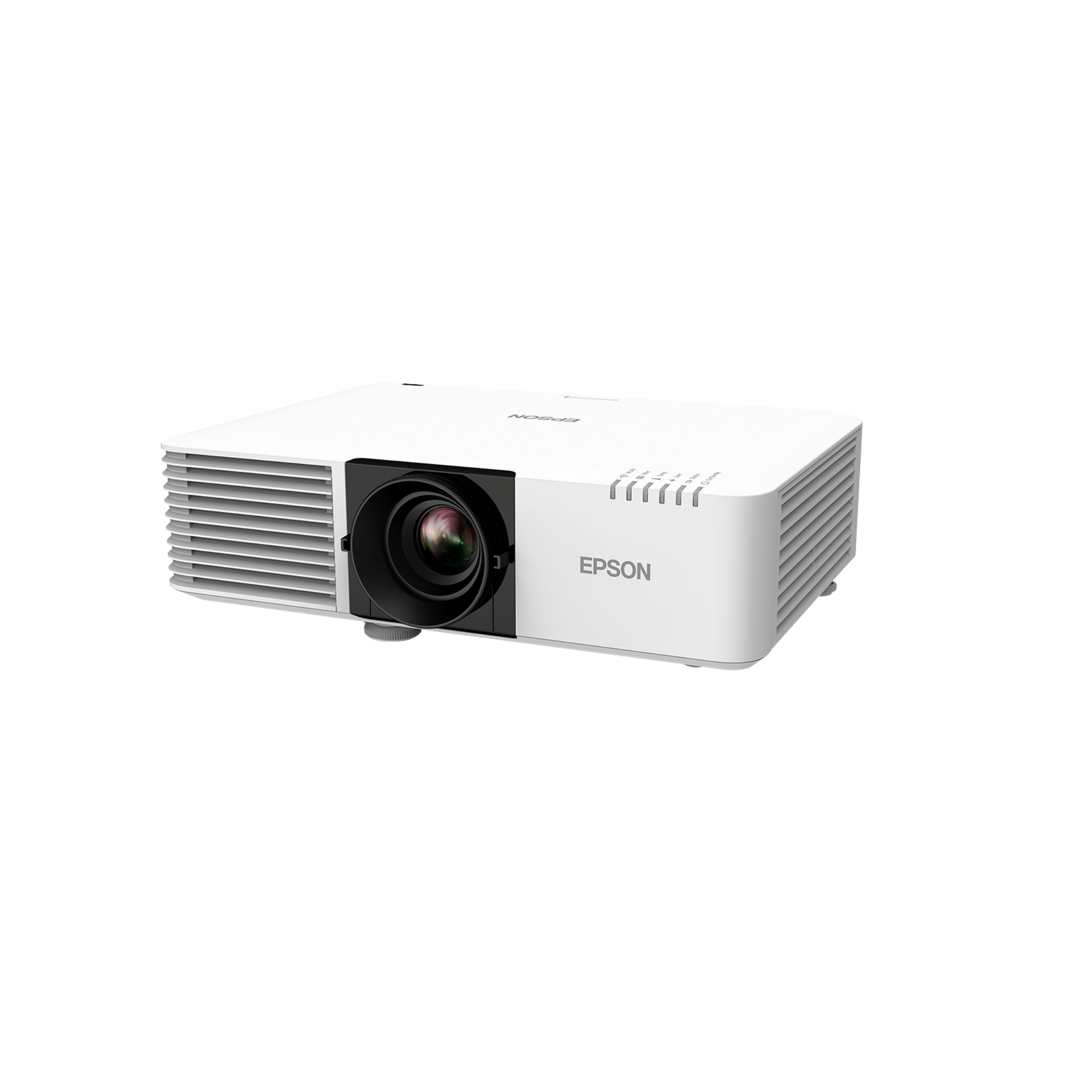

Epson - EB-L520U
SKU: EP0009
Epson - EB-L520U
Featuring 5,200 lumens high-brightness capability, along with Full HD, WUXGA, 16:6 wide screen, support for 4K input and detail enhancement technology, it gives users brighter, more vivid displays of up to 500”.
Providing more premium features than you would typically expect to find in this display class, the EB-L520U delivers edge-blending and geometric correction to achieve one seamless large-format display. And for multimedia content, you can playback content without any lagging, and create playlists and set schedules directly from USB memory, all thanks to H.264 advanced video coding and the Epson Content Manager.
Flexibility is another hallmark of this display solution - a split-screen function allows two or four images from different sources to be combined in one large display; wired or optional wireless1 with support for Miracast1 makes connectivity simple and straightforward; and HDBaseT content can be shared and distributed without compromising on quality.
Thanks to the renowned market leading2 reliability of Epson laser displays, this fit and forget solution eliminates the need for regular maintenance. And for added confidence the EB-L520U comes with a standard 3-year warranty to provide lasting peace of mind.
Technology
Projection System: 3LCD Technology, RGB liquid crystal shutter
LCD Panel: 0.67 inch with C2 Fine
Color Light Output: 5,200 Lumen - 3,640 Lumen (economy) (In accordance with IDMS15.4)
White Light Output: 5,200 Lumen - 3,640 Lumen (economy) (In accordance with ISO 21118:2020)
Resolution: WUXGA
Resolution Enhancement: Full HD
Aspect Ratio: 16:10
On-Screen Pixel Count: 2,304,000
Contrast Ratio: 5,000,000:1
Light Source: Laser
Laser Light Source Durability: 20,000 hours (High), 30,000 hours (Eco)
Keystone Correction: Manual vertical: ± 30°, Manual horizontal: ± 30°
Colour Video Processing: 10 Bits
2D Vertical Refresh Rate: 192 Hz - 240 Hz
Colour Reproduction: Up to 1.07 billion colours
Optical
Throw Ratio: 1.35 - 2.20:1
Zoom: Manual, Factor: 1 - 1.6
Projection Lens Zoom Ratio: 1.35 - 2.2:1
Lens: Optical
Screen Size: 50 inches - 500 inches
Projection Lens F Number: 1.5 - 1.7
Projection Lens Focal Length: 20 mm - 31.8 mm
Projection Lens Focus: Manual
Offset: 27:1
Connectivity

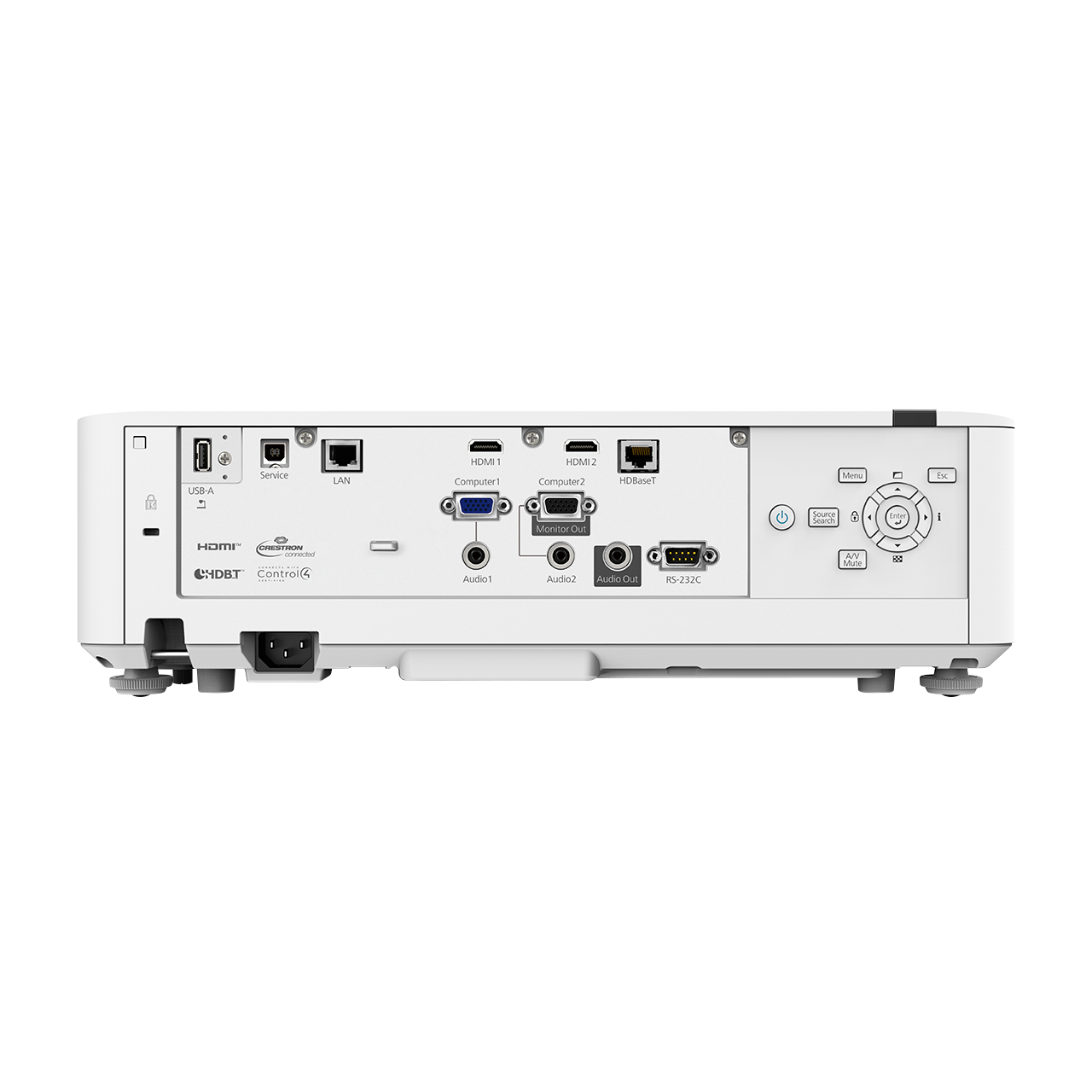

Interfaces:
RS-232C
VGA in (2x)
VGA out
HDMI in (2x)
HDBaseT
Miracast (optional)
Jack plug out
Jack plug in (2x)
USB 2.0-A
USB 2.0
Ethernet interface (100 Base-TX / 10 Base-T)
Wireless LAN IEEE 802.11a/b/g/n/ac (optional)
Epson iProjection App: Ad-Hoc / Infrastructure
Advanced Features
Security:
Kensington lock
Padlock
Security cable hole
Wireless LAN unit lock
2D Colour Modes:
Dynamic
Cinema
Presentation
sRGB
DICOM SIM
Other Features:
21:9 aspect ratio support
A/V mute
Arc Correction
Built-in speaker
CEC compatible
Easy OSD pre-setting
Edge Blending
Long light source life
PC Free
Quick Corner
Screen share
Source function
Ultra-wide display (16:6)
iProjection App
Video Colour Modes:
Cinema
Dynamic
Presentation
sRGB
DICOM SIM
Projector Control:
AMX
Crestron
Control4
Crestron Integrated Partner
Extron IP Link
Extron XTP
AMX Device Discovery
Control4 Simple Device Discovery Protocol
General
Power Consumption:
234 Watt (Normal On-Mode)
164 Watt (Eco On-Mode)
293 Watt (Normal Peak-mode)
223 Watt (Eco Peak-Mode)
0.3 Watt (Energy saving standby)
Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
Product Dimensions: 440 x 122 x 304 mm (Width x Depth x Height)
Product Weight: 7.7 kg
Noise Level:
Normal: 31 dB (A)
Economy: 23 dB (A)
Supported Temperature: Storage: -10°C - 60°C
Supported Humidity: Operation: 20% - 80%, Storage: 10% - 90%
Included Software: EasyMP Multi PC Projection
Options:
Air filter
Ceiling mount
Document camera
External Speaker
HDBaseT Transmitter
Safety wire set
Suspension adapter
WP System - ELPWP10
Wireless LAN unit
Wireless transmitter - ELPWT01
Loudspeaker: 10 Watt
Room Type / Application:
Boardroom
Home Cinema
Home Office
Large Meeting Room / Auditorium
Meeting Room / Classroom
Signage / Retail
Visitor Attraction
Positioning:
Ceiling Mounted
Desktop
Floor
Wall Mounted
Colour: White
| Brand | Epson |
|---|
